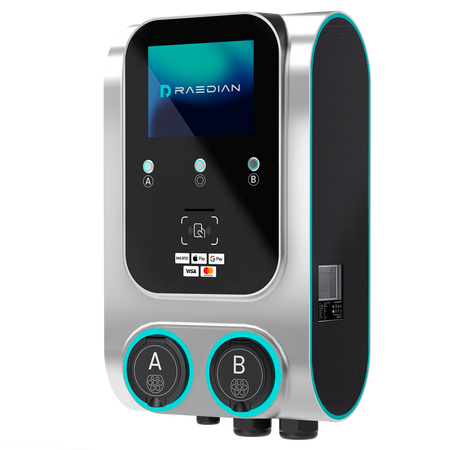

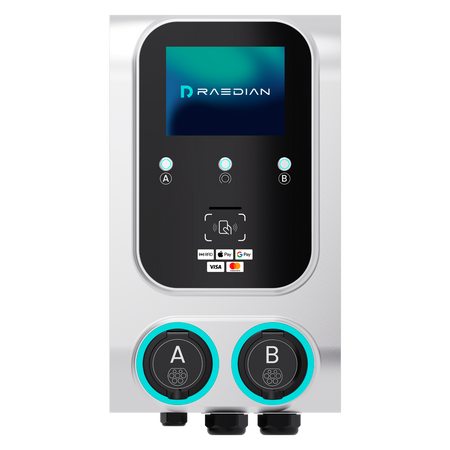

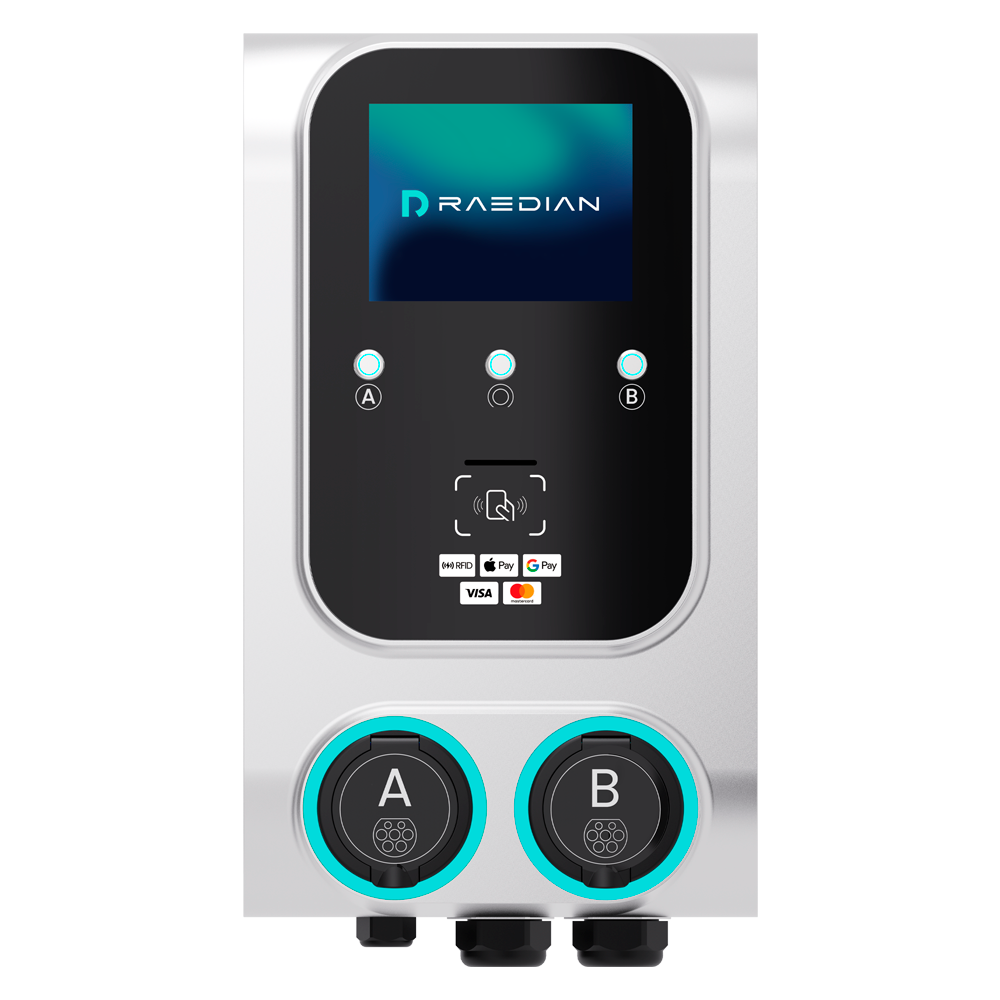

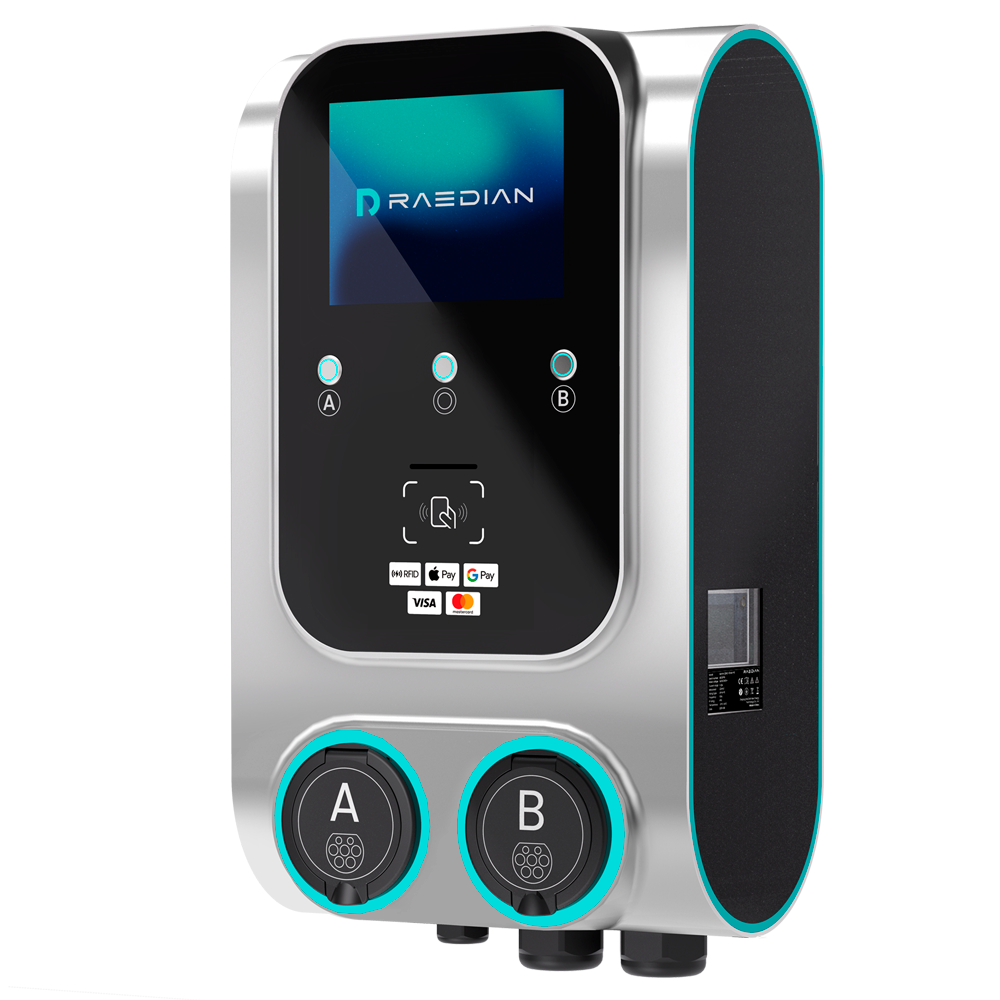

Raedian dual-socket EV charging station - MID meter | Payter Nayax
Raedian dual-socket EV charging station - MID meter | Payter Nayax
Regular price
€5.072,76
Final price
Regular price
-12%
€5.740,00
Sale price
€5.072,76
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Dual-socket charging station for electric vehicles - Power 2x22kW / 32A / Three-phase - Type 2 connector - IP55 protection - 4G, LAN, WiFi, BLE communication - MID Meter | Payter Nayax
📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2 with shutter
• Charging mode: Mode 3
• Connection type: Three-phase
• Maximum power: 2 x 22 kW
• Maximum current: 32 A
• Voltage range: 230V - 400V
• Grounding: TN/TT
• Input frequency: 50/60 Hz
• Connectivity: WiFi 2.4 GHz; BLE; 4G SIM; 2x LAN
• Authentication: RFID ISO/IEC 14443A/B 13.56MHz 7 byte max; OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD
• HMI and indicators: RGB LED ring; 3-button keypad
• Installation: Wall-mounted, on pedestal, or on pole
• Material: Reinforced aluminum alloy
• Cable included: No
• Operating temperature: -30℃ ~ +50℃ with power derating mechanism (1 socket 22KW or 2 sockets 11KW); -30℃ ~ +40℃ with power derating mechanism (2 sockets 22KW)
• Relative humidity: 5 % - 95 %
• Electrical safety class: Class I
• Standby consumption: 17.5 W
• Protection rating: IP55, IK10 (housing), IK08 (display)
• Operating altitude: 2000m
• Dimensions: 544 (H) x 315.6 (W) x 194 (D) mm
• Weight: 19.5 kg
• Protection: UVP, OVP, OCP, stuck relay, overtemperature; 6mA residual current compliant with IEC 62955
• Meter: MID Class B certified
• Load management: Dynamic load control via NEBULA portal; Load management with OCPP backend
• Contactless payment: EMVCo. L1 v3.0 certified; Desfire EV2/3 protocol; ISO18092: NFC protocol
• LED screen: Advertising. 8 inches, 1024 x 768 mm
• Operation: Cloud backend and API processing
• User interaction: Connection via app, QR, or touch screen
• Accepted payment methods: Credit cards, mobile phones, apps with own wallet, QR (on-screen or printed)
📦 INCLUDED:
• Electric vehicle charging station• Installation hardware• Instruction manual• Wall bracket• 2x RFID cards• MID meter
| Connector | Type 2 with shutter |
|---|---|
| Charging mode | Mode 3 |
| Connection type | Three-phase |
| Maximum power | 2 x 22 kW |
| Maximum current | 32 A |
| Voltage range | 230V - 400V |
| Earthing | TN/TT |
| Input frequency | 50/60 Hz |
| Connectivity | WiFi 2.4 GHz BLE 4G SIM 2x LAN |
| Authentication | RFID ISO/IEC 14443A/B 13.56MHz 7 byte max OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD |
| HMI and indicators | RGB LED ring 3-button keypad |
| Installation | Wall-mounted, pedestal or pole-mounted |
| Material | Reinforced aluminum alloy |
| Cable included | No |
| Operating temperature | -30℃ ~ +50℃ with power derating mechanism (1 socket 22KW or 2 sockets 11KW) -30℃ ~ +40℃ with power derating mechanism (2 sockets 22KW) |
| Relative humidity | 5% - 95% |
| Electrical safety class | Class I |
| Standby consumption | 17.5 W |
| Protection rating | IP55, IK10 (housing), IK08 (display) |
| Operating altitude | 2000m |
| Dimensions | 544 (H) x 315.6 (W) x 194 (D) mm |
| Weight | 19.5 kg |
| Protection | UVP, OVP, OCP, stuck relay, overtemperature 6mA residual current compliant with IEC 62955 |
| Meter | MID Class B certified |
| Load management | Dynamic load control via NEBULA portal Load management with OCPP backend |
| Contactless payment | EMVCo L1 v3.0 certified Desfire EV2/3 protocol ISO18092: NFC protocol |
| LED screen | Advertising. 8 inches, 1024 x 768 mm |
| Operation | Cloud backend and processing via API |
| User interaction | Connection via app, QR or touch screen |
| Accepted payment methods | Credit cards, Mobile, App with own wallet, QR (on screen or printed) |
