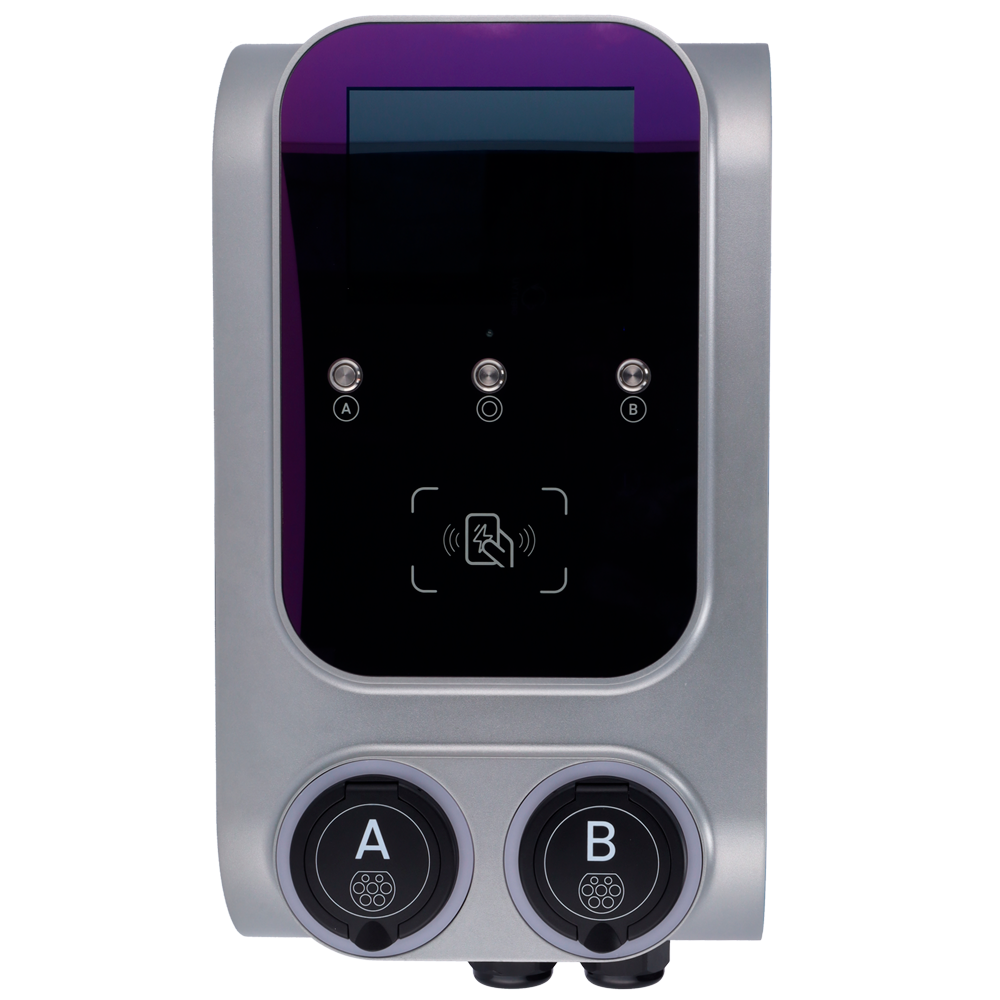

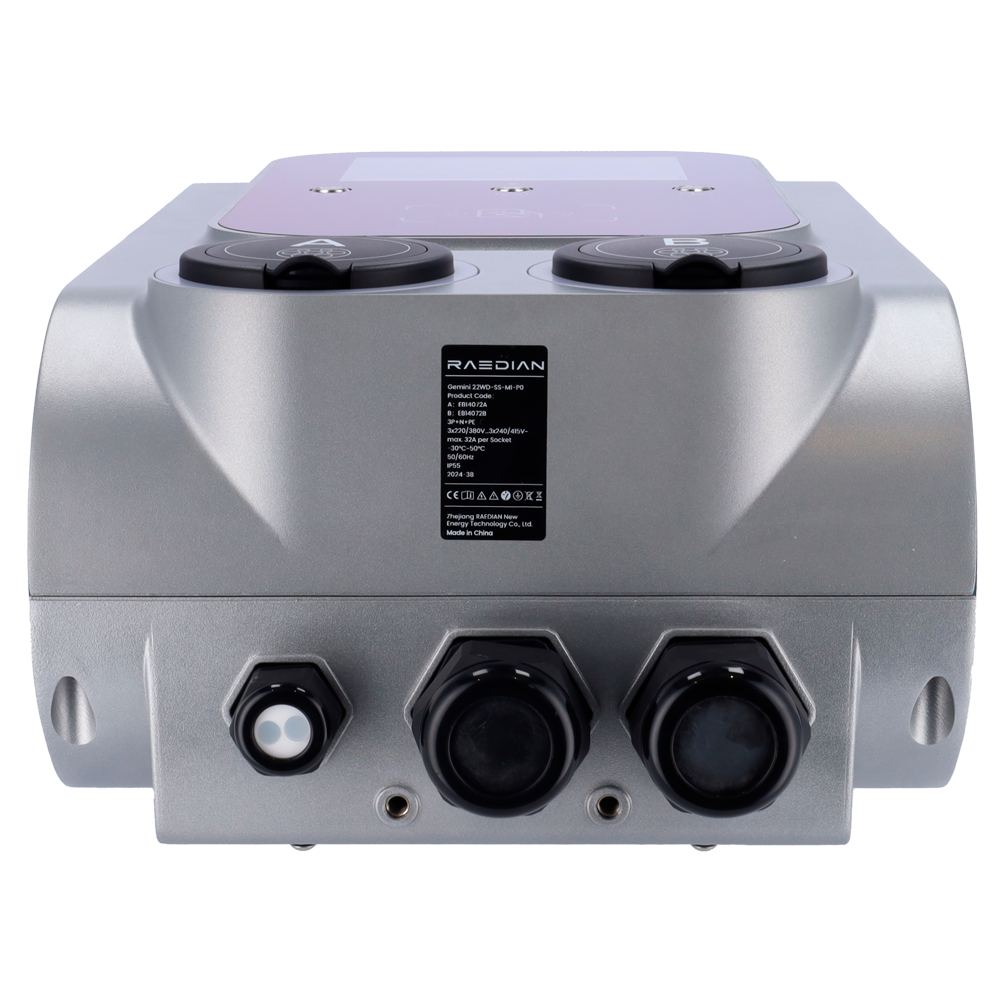

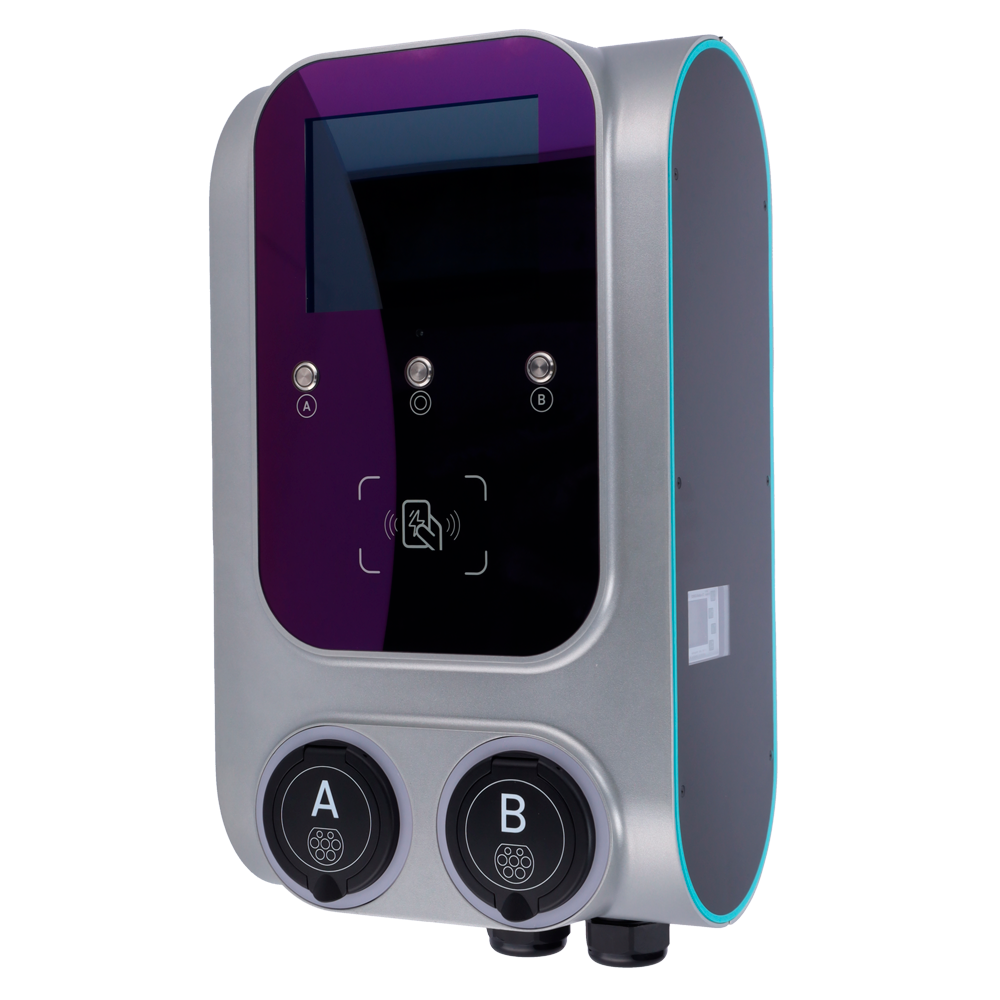

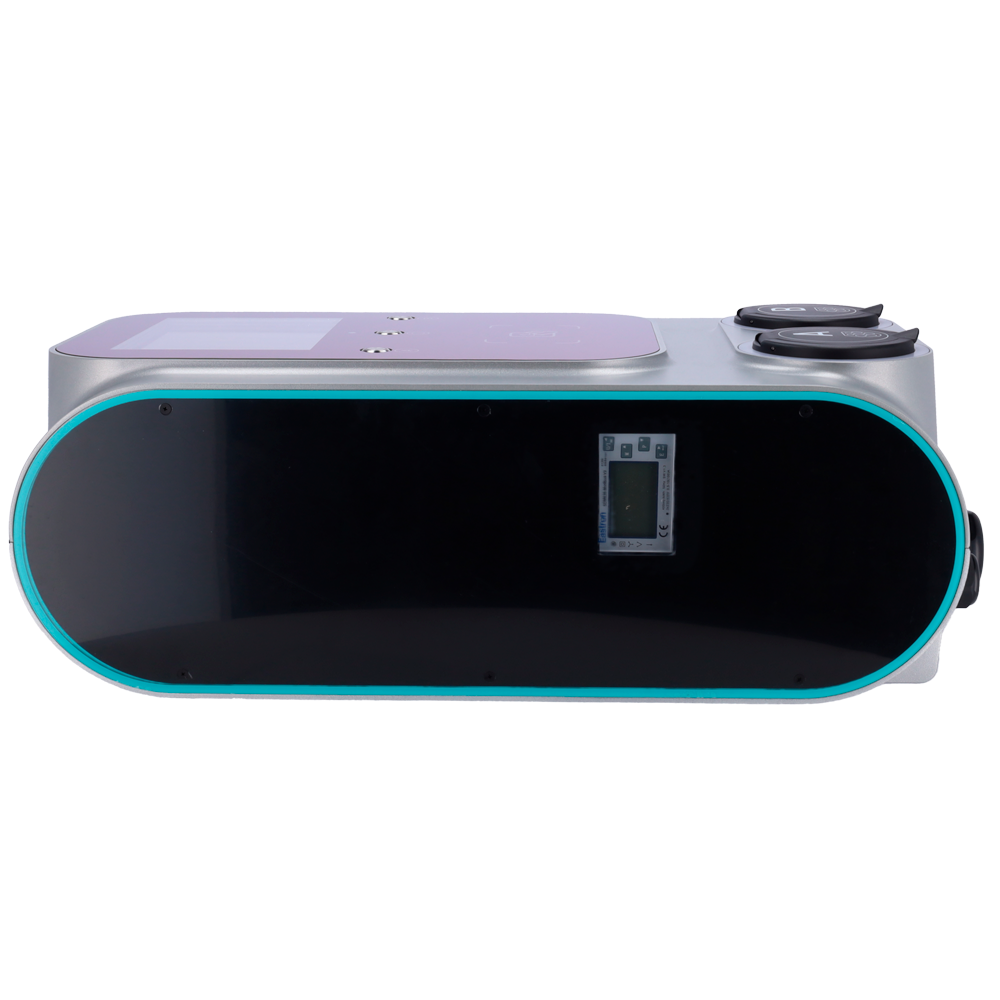

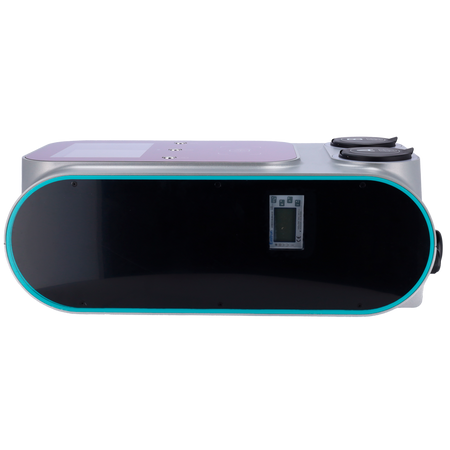

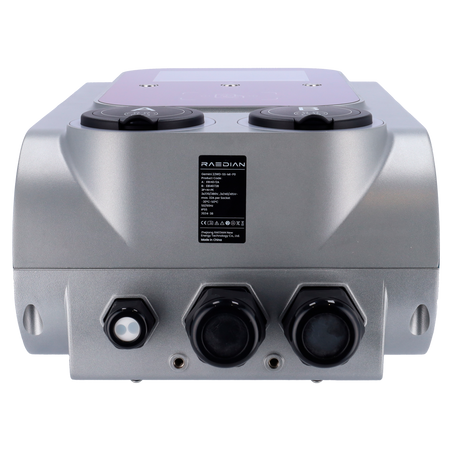

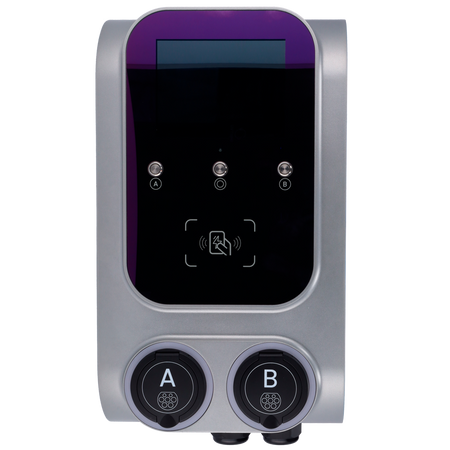

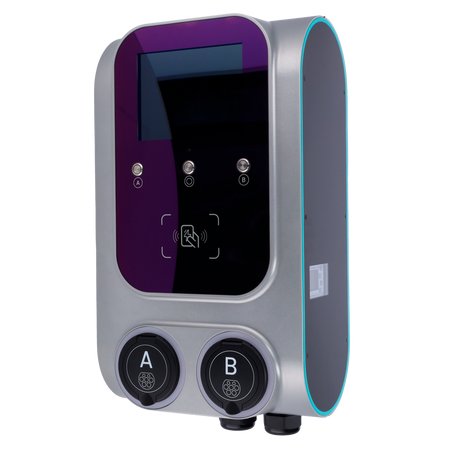

Raedian dual-socket EV charging station - MID meter | RFID reader
Raedian dual-socket EV charging station - MID meter | RFID reader
Regular price
€3.919,86
Final price
Regular price
-12%
€4.440,00
Sale price
€3.919,86
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Dual-socket electric vehicle charging station - Power 2x22kW / 32A / Three-phase - Type 2 connector - IP55 protection - 4G, LAN, WiFi, BLE communication - MID Meter | RFID reader
📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2 with shutter
• Charging mode: Mode 3
• Connection type: Three-phase
• Maximum power: 2 x 22 kW
• Maximum current: 32 A
• Voltage range: 230V - 400V
• Grounding: TN/TT
• Input frequency: 50/60 Hz
• Connectivity: WiFi 2.4 GHz; BLE,; 4G SIM; 2x LAN
• Authentication: RFID ISO/IEC 14443A/B 13.56MHz 7 byte max; OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD
• HMI and indicators: RGB LED ring; 3-button keypad
• Installation: Wall-mounted, pedestal-mounted, or pole-mounted
• Material: Reinforced aluminum alloy
• Included cable: No
• Operating temperature: -30℃ ~ +50℃ with power derating mechanism (1 socket 22KW or 2 sockets 11KW); -30℃ ~ +40℃ with power derating mechanism (2 sockets 22KW)
• Relative humidity: 5 % - 95 %
• Electrical safety class: Class I
• Standby consumption: 17.5 W
• Protection rating: IP55, IK10 (housing), IK08 (display)
• Operating altitude: 2000m
• Dimensions: 544 (H) x 315.6 (W) x 194 (D) mm
• Weight: 19.5 kg
• Protection: UVP, OVP, OCP, relay stuck, over-temperature; 6mA residual current compliant with IEC 62955
• Meter: MID Class B certified
• Load management: Dynamic load control via NEBULA portal; Load management with OCPP backend
• Contactless payment: EMVCo. L1 v3.0 certified; Desfire EV2/3 protocol; ISO18092: NFC protocol
• LED Screen: Advertising. 8 inches, 1024 x 768 mm
📦 INCLUDED:
• Electric vehicle charging station• Installation material• Instruction manual• Wall bracket• 2x RFID cards• MID meter
| Connector | Type 2 with shutter |
|---|---|
| Charging mode | Mode 3 |
| Connection type | Three-phase |
| Maximum power | 2 x 22 kW |
| Maximum current | 32 A |
| Voltage range | 230V - 400V |
| Earthing | TN/TT |
| Input frequency | 50/60 Hz |
| Connectivity | WiFi 2.4 GHz BLE, 4G SIM 2x LAN |
| Authentication | RFID ISO/IEC 14443A/B 13.56MHz 7 byte max OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD |
| HMI and indicators | RGB LED ring, 3-button keypad |
| Installation | Wall-mounted, pedestal-mounted or pole-mounted |
| Material | Reinforced aluminum alloy |
| Included cable | No |
| Operating temperature | -30℃ ~ +50℃ with power derating mechanism (1 socket 22KW or 2 sockets 11KW) -30℃ ~ +40℃ with power derating mechanism (2 sockets 22KW) |
| Relative humidity | 5% - 95% |
| Electrical safety class | Class I |
| Standby consumption | 17.5 W |
| Protection rating | IP55, IK10 (enclosure), IK08 (display) |
| Operating altitude | 2000m |
| Dimensions | 544 (H) x 315.6 (W) x 194 (D) mm |
| Weight | 19.5 kg |
| Protection | UVP, OVP, OCP, stuck relay, overtemperature, 6mA residual current compliant with IEC 62955 |
| Meter | MID certified Class B |
| Load management | Dynamic load control via NEBULA portal, load management via OCPP backend |
| Contactless payment | EMVCo certified L1 v3.0, Desfire EV2/3 protocol, ISO18092: NFC protocol |
| LED screen | Advertising, 8 inches, 1024 x 768 mm |
- User manual Link
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
