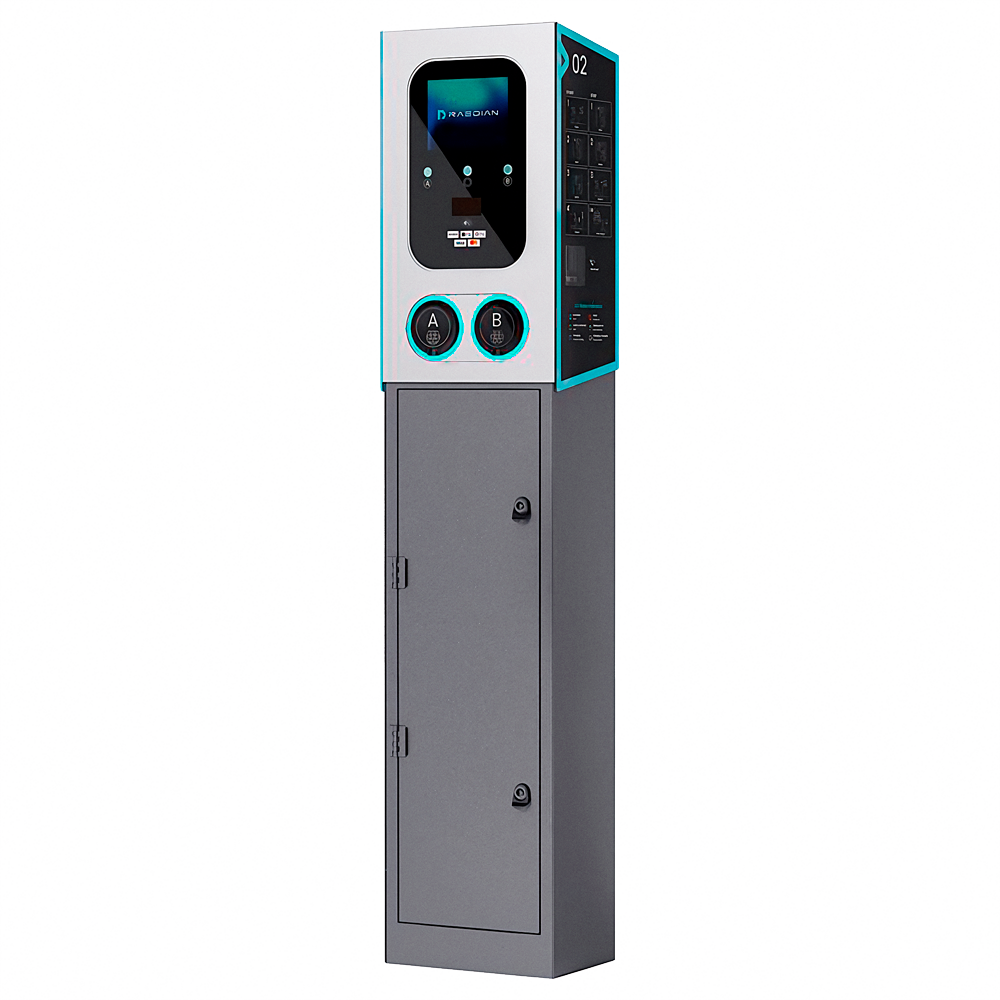

Raedian dual-socket charging station with included pedestal - MID meter | Payter Nayax
Raedian dual-socket charging station with included pedestal - MID meter | Payter Nayax
Regular price
€6.110,37
Final price
Regular price
-12%
€6.930,00
Sale price
€6.110,37
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Dual-socket charging station with pedestal included - Power 2x22kW / 32A / Three-phase - Type 2 connector - Pedestal with integrated protections - 4G, LAN, WiFi, BLE communication - MID Meter | Payter Nayax
📋 SPECIFICATIONS:
• Brand: RAEDIAN
• Device type: Electric vehicle charging station pole
• Material: Aluminum alloy
• Pedestal dimensions: 1620 (H) x 345 (W) x 32 (D) (dimensions with charging station included)
• Color: Gray / Aluminum
• Weight: 19.5 kg
• Compatibility: GEMINI charging station
• Electrical protections included: MCB Curve C 4P; RCB Type A 6mA
• BUS cable: Maximum area 25mm2 (maximum 5 charging stations in series)
• Brand: Raedian
• Connector: Type 2 with shutter
• Charging mode: Mode 3
• Connection type: Three-phase
• Maximum power: 2 x 22 kW
• Maximum current: 32 A
• Voltage range: 230V - 400V
• Earthing: TN/TT
• Input frequency: 50/60 Hz
• Connectivity: WiFi 2.4 GHz; BLE; 4G SIM; 2x LAN
• Authentication: RFID ISO/IEC 14443A/B 13.56MHz 7 bytes max; OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD
• HMI and indicators: RGB LED ring; 3-button keypad
• Installation: Wall-mounted, on pedestal, or on pole
• Material: Reinforced aluminum alloy
• Cable included: No
• Operating temperature: -30℃ ~ +50℃ with power reduction mechanism (1 socket 22KW or 2 sockets 11KW); -30℃ ~ +40℃ with power reduction mechanism (2 sockets 22KW)
• Relative humidity: 5% - 95%
• Electrical safety class: Class I
• Standby consumption: 17.5 W
• Protection rating: IP55, IK10 (housing), IK08 (display)
• Operating altitude: 2000m
• Dimensions: 544 (H) x 315.6 (W) x 194 (L) mm
• Weight: 19.5 kg
• Protection: UVP, OVP, OCP, stuck relay, overtemperature; 6mA residual current compliant with IEC 62955
• Meter: MID Class B certified
• Load management: Dynamic load control via NEBULA portal; Load management with OCPP backend
• Contactless payment: EMVCo certified. L1 v3.0; Desfire EV2/3 protocol; ISO18092: NFC protocol
• LED screen: Advertising. 8 inches, 1024 x 768 mm
• Operation: Cloud backend and API processing
• User interaction: Connection via app, QR, or touch screen
• Accepted payment methods: Credit cards, mobile phones, apps with own wallet, QR (on screen or printed)
📦 INCLUDED:
• Electric vehicle charging station• Installation material• Instruction manual• Wall bracket• 2x RFID cards• Pedestal with electrical protections• Iron base for pedestal• MID meter
| Device type | Electric vehicle charging station pedestal |
|---|---|
| Material | Aluminum alloy |
| Pedestal dimensions | 1620 (H) x 345 (W) x 32 (D) (dimensions including charging station) |
| Color | Gray / Aluminum |
| Weight | 19.5 kg |
| Compatibility | GEMINI charging station |
| Electrical protections included | MCB Curve C 4P RCD Type A 6mA |
| BUS cable | Maximum area 25mm2 (maximum 5 charging stations in series) |
| Connector | Type 2 with shutter |
| Charging mode | Mode 3 |
| Connection type | Three-phase |
| Maximum power | 2 x 22 kW |
| Maximum current | 32 A |
| Voltage range | 230V - 400V |
| Earthing | TN/TT |
| Input frequency | 50/60 Hz |
| Connectivity | WiFi 2.4 GHz BLE 4G SIM 2x LAN |
| Authentication | RFID ISO/IEC 14443A/B 13.56MHz 7 byte max OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD |
| HMI and indicators | RGB LED ring 3-button keypad |
| Installation | Wall-mounted, pedestal or pole-mounted |
| Material | Reinforced aluminum alloy |
| Cable included | No |
| Operating temperature | -30℃ ~ +50℃ with power reduction mechanism (1 socket 22KW or 2 sockets 11KW) -30℃ ~ +40℃ with power reduction mechanism (2 sockets 22KW) |
| Relative humidity | 5 % - 95 % |
| Electrical safety class | Class I |
| Standby consumption | 17.5 W |
| Protection rating | IP55, IK10 (housing), IK08 (display) |
| Operating altitude | 2000m |
| Dimensions | 544 (H) x 315.6 (W) x 194 (D) mm |
| Weight | 19.5 kg |
| Protection | UVP, OVP, OCP, relay stuck, overtemperature 6mA residual current compliant with IEC 62955 |
| Meter | MID Class B certified |
| Load management | Dynamic load control via NEBULA portal Load management with OCPP backend |
| Contactless payment | EMVCo L1 v3.0 certified Desfire EV2/3 ISO18092 protocol: NFC protocol |
| LED screen | Advertising. 8 inches, 1024 x 768 mm |
| Operation | Cloud backend and API processing |
| User interaction | Connection via app, QR or touch screen |
| Accepted payment methods | Credit cards, Mobile, App with proprietary wallet, QR (on screen or printed) |
