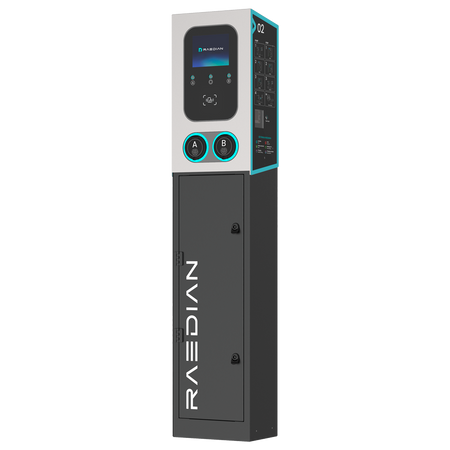

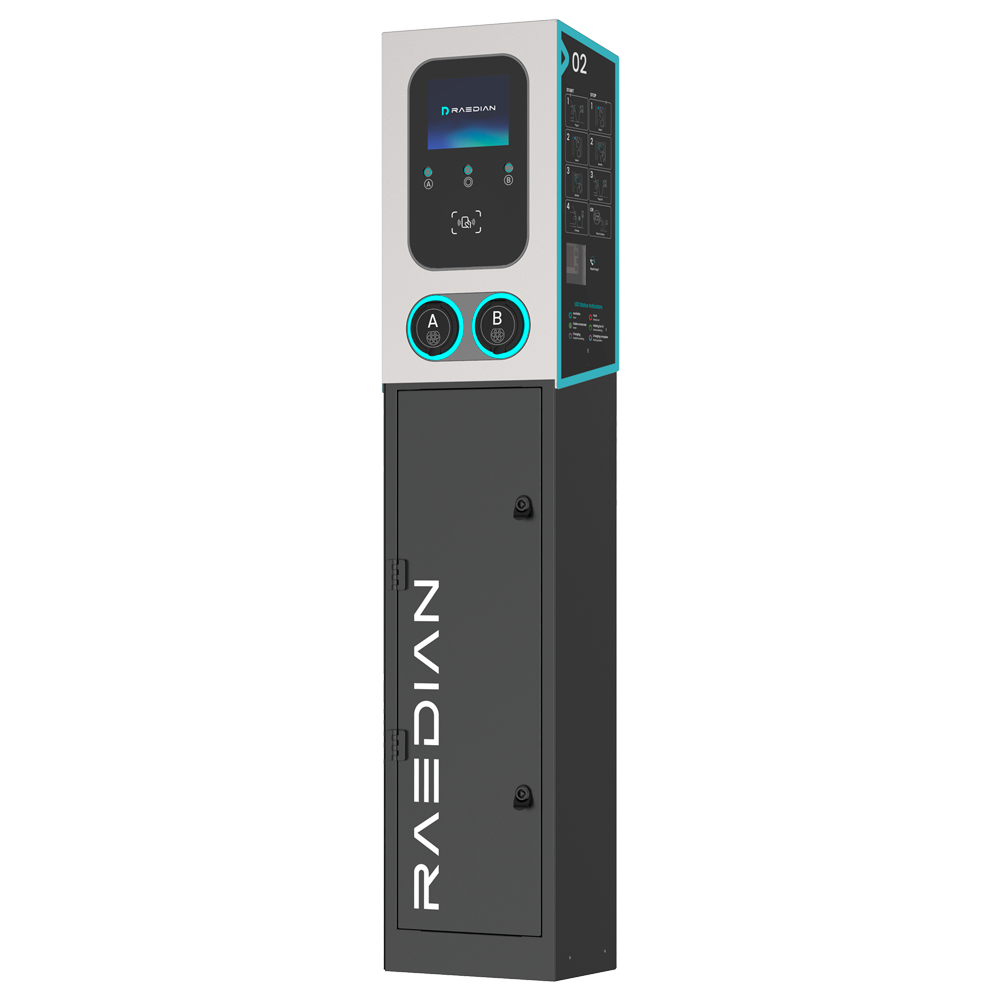

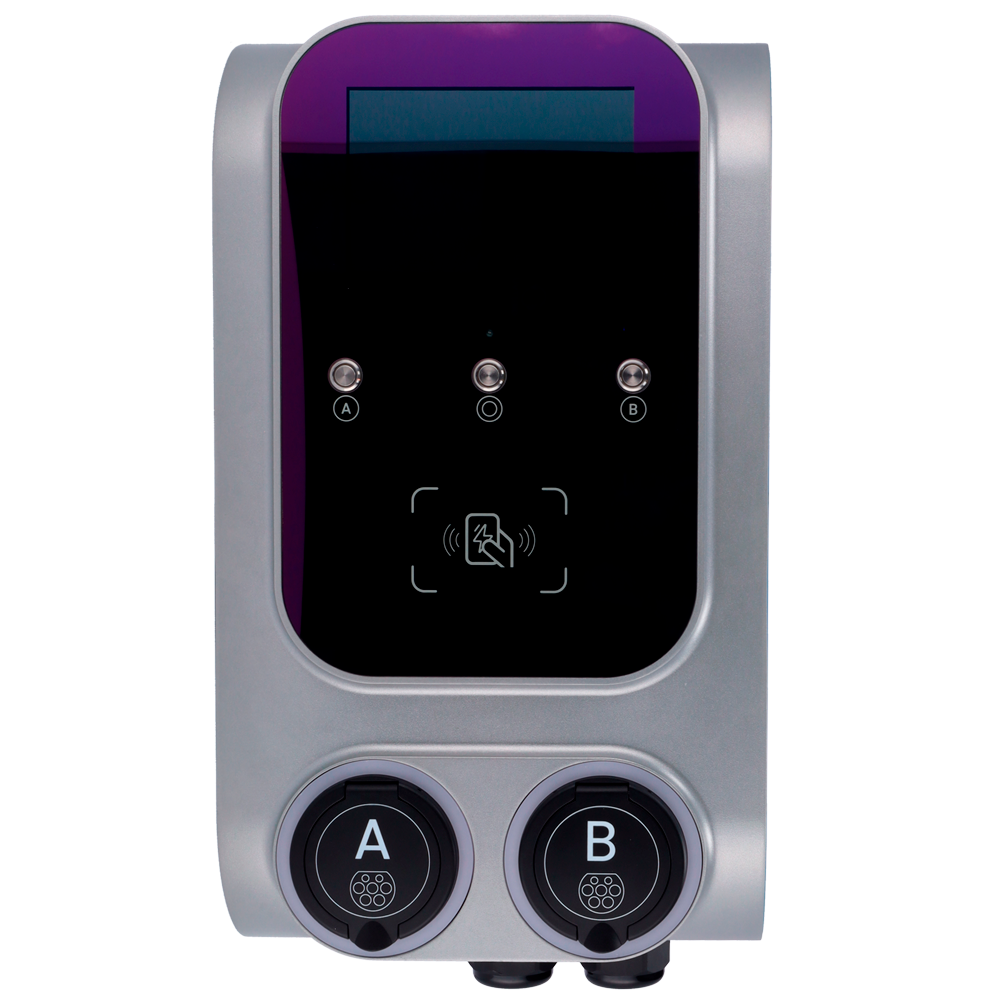

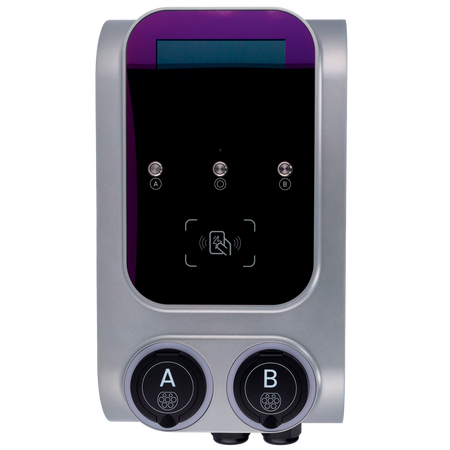

Raedian dual-socket charging station with included pedestal - MID meter | RFID reader

Dual-socket charging station with pedestal included - Power 2x22kW / 32A / Three-phase - Type 2 connector - Pedestal with integrated protection - 4G, LAN, WiFi, BLE communication - MID meter | RFID reader

📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2 with shutter
• Charging mode: Mode 3
• Connection type: Three-phase
• Maximum power: 2 x 22 kW
• Maximum current: 32 A
• Voltage range: 230V - 400V
• Grounding: TN/TT
• Input frequency: 50/60 Hz
• Connectivity: WiFi 2.4 GHz; BLE; 4G SIM; 2x LAN
• Authentication: RFID ISO/IEC 14443A/B 13.56MHz 7 bytes max; OCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD
• HMI and indicators: RGB LED ring; 3-button keypad
• Installation: Wall-mounted, pedestal-mounted, or pole-mounted
• Material: Reinforced aluminum alloy
• Cable included: No
• Operating temperature: -30℃ ~ +50℃ with power reduction mechanism (1 socket 22KW or 2 sockets 11KW); -30℃ ~ +40℃ with power reduction mechanism (2 sockets 22KW)
• Relative humidity: 5% - 95%
• Electrical safety class: Class I
• Standby consumption: 17.5 W
• Protection rating: IP55, IK10 (housing), IK08 (display)
• Operating altitude: 2000m
• Dimensions: 544 (H) x 315.6 (W) x 194 (D) mm
• Weight: 19.5 kg
• Protection: UVP, OVP, OCP, stuck relay, overtemperature; 6mA residual current compliant with IEC 62955
• Meter: MID Class B certified
• Load management: Dynamic load control via NEBULA portal; Load management with OCPP backend
• Contactless payment: EMVCo. L1 v3.0 certified; Desfire EV2/3 protocol; ISO18092: NFC protocol
• LED screen: Advertising. 8 inches, 1024 x 768 mm
• Brand: RAEDIAN
• Device type: Electric vehicle charging station pedestal
• Material: Aluminum alloy

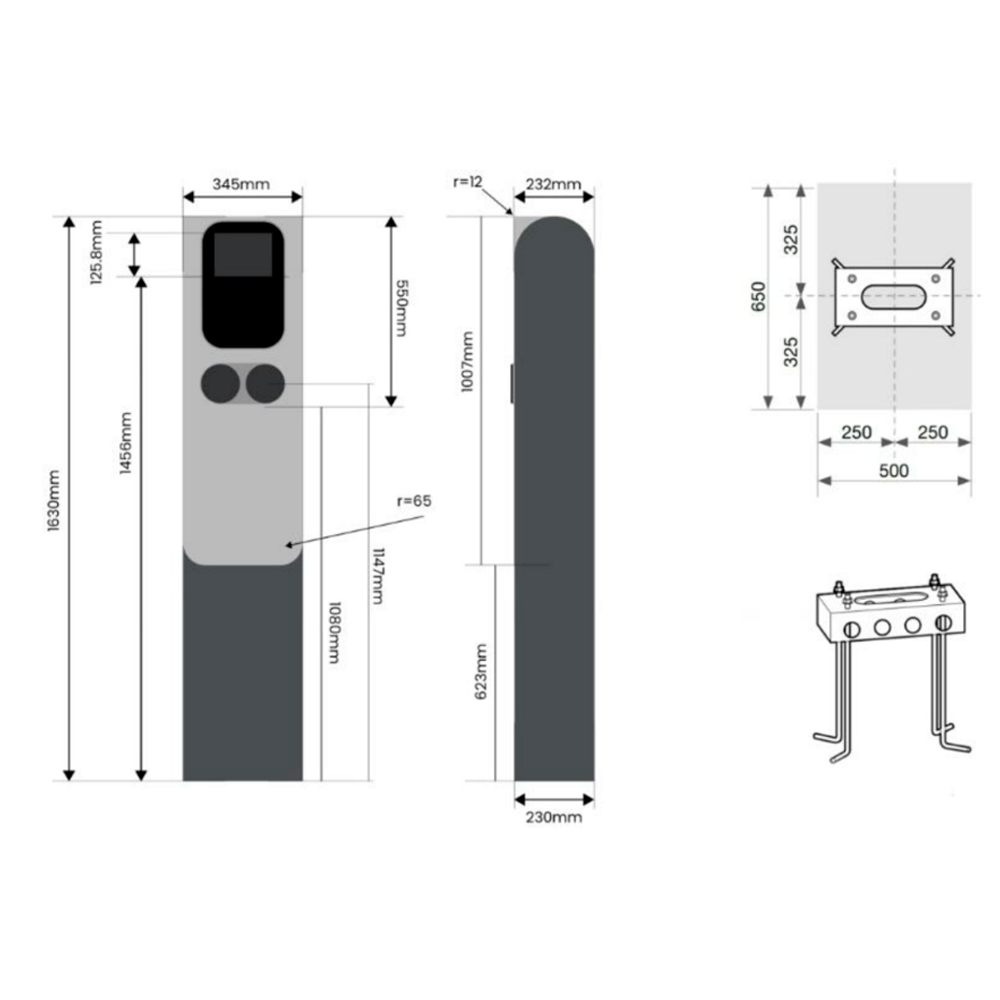

• Pedestal dimensions: 1620 (H) x 345 (W) x 32 (D) (dimensions with charging station included)
• Color: Gray / Aluminum
• Weight: 19.5 kg
• Compatibility: GEMINI charging station
• Electrical protections included: MCB Curve C 4P; RCB Type A 6mA
• BUS cable: Maximum area 25mm2 (maximum 5 charging stations in series)

📦 INCLUDED:
• Electric vehicle charging station• Installation material• Instruction manual• Wall bracket• 2x RFID cards• Pedestal with electrical protections• Iron base for pedestal• MID meter
