RAEDIAN electric vehicle charging station
Regular price
€1.152,90
Final price
Regular price
-23%
€1.500,00
Sale price
€1.152,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

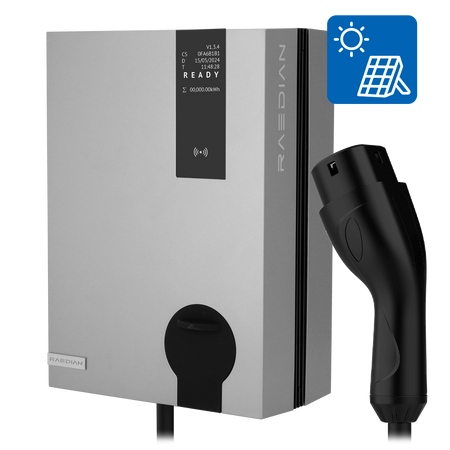

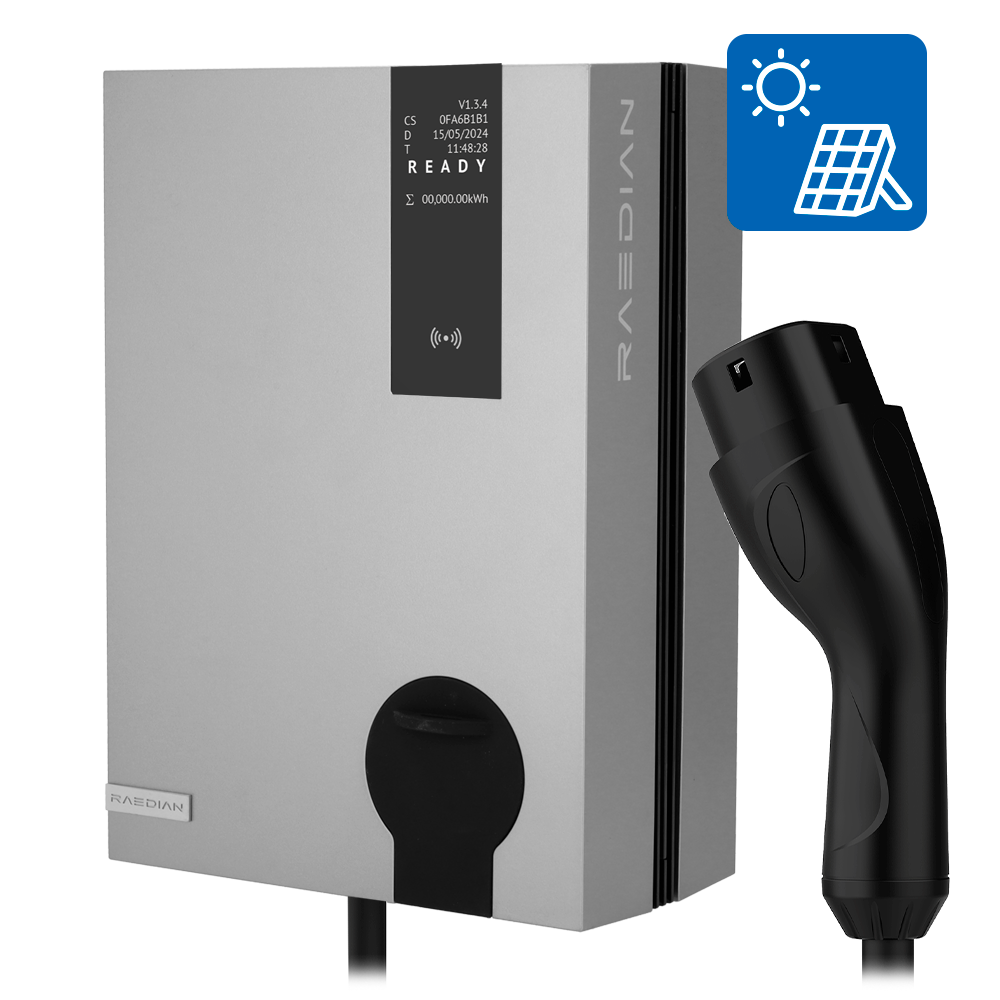

RAEDIAN Electric Vehicle Charging Station - Power 22kW / 32A / Three-phase - Type 2 connector - IP55, IK10 protection - App monitoring - 7.5m cable | Integrated solar kit
📋 SPECIFICATIONS:
• Brand: Raedian
• Connector: Type 2 IEC 62196
• Charging mode: Mode 3
• Connection type: Three-phase
• Authentication method: Plug & Charge; RFID; BLE (RAEDIAN App); OCPP Backend 1.6
• Display: OLED screen: Status and measurements
• Maximum power: 22 kW
• Maximum current: 32 A
• Voltage range: 230 - 400 V
• Earthing system: TN / TT / IT
• Input frequency: 50 / 60 Hz
• Connectivity: WiFi/BLE/RFID/RS485
• Charging interface: IEC 62196-2
• Installation: Wall-mounted or pedestal
• Cable included: Yes
• Cable length: 7.5 m
• Operating temperature: -30℃ ~ +55℃
• Protections: UVP, OVP, OCP, Relay, Over-temperature
• Metering accuracy: MID Class B
• Standby consumption: 3.86W
• Protection rating: IP55, IK10
• Relative humidity: 5% - 95%
• Operating altitude: 3000m
• Dimensions: 297 (D) x 210 (H) x 110 (W) mm
• Weight: 8.5kg
• Color: Metallic silver
📦 INCLUDED:

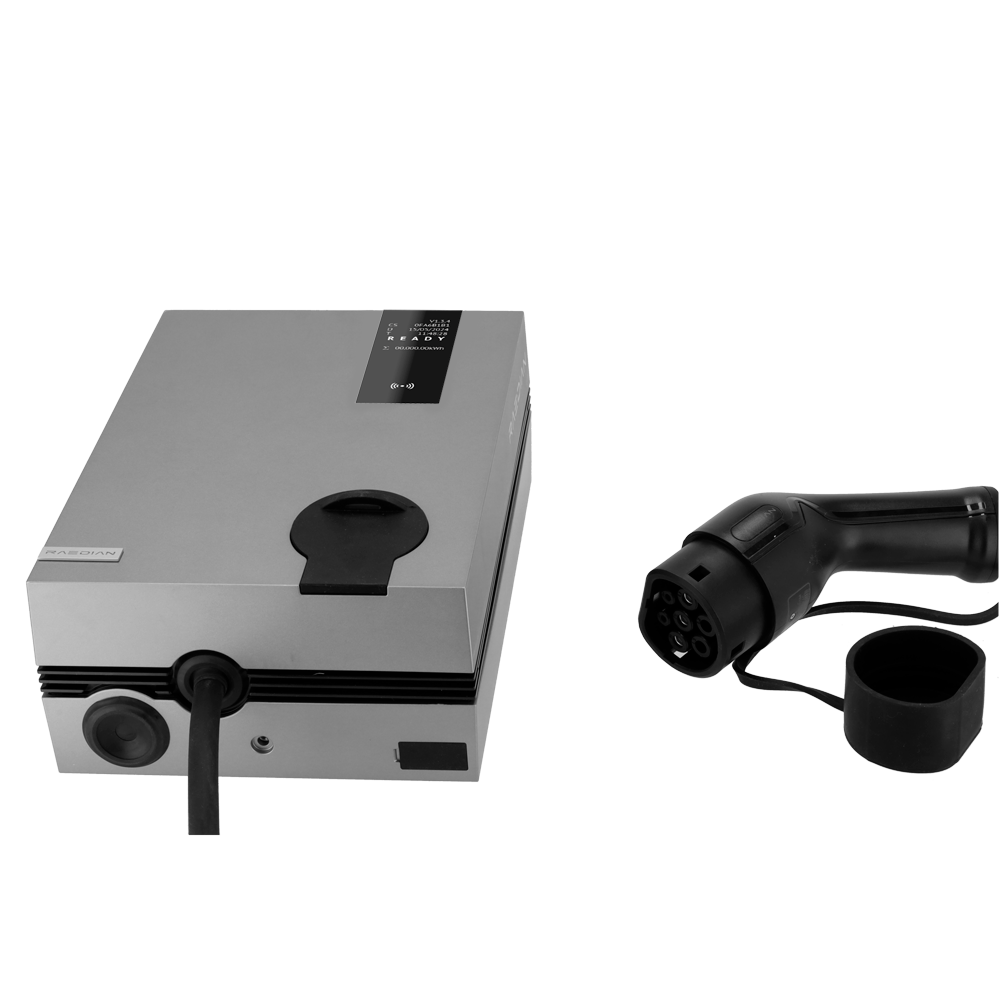

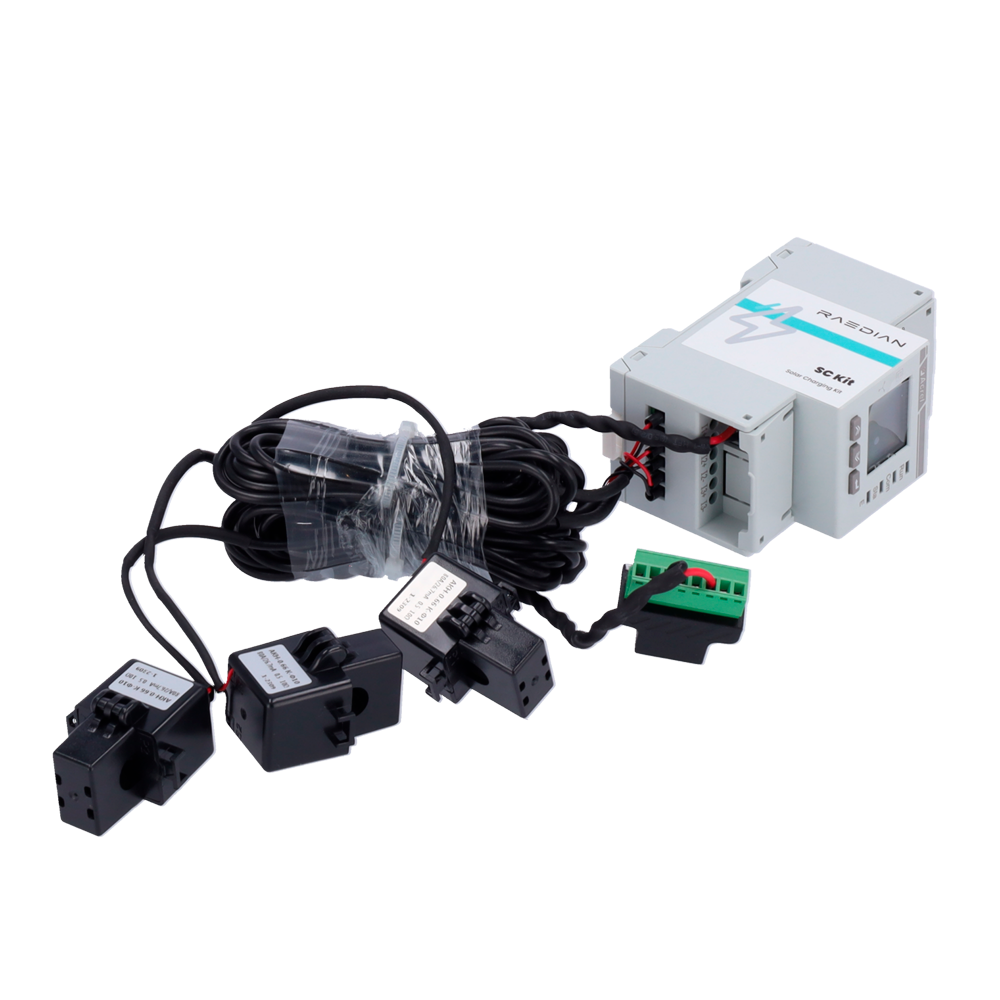

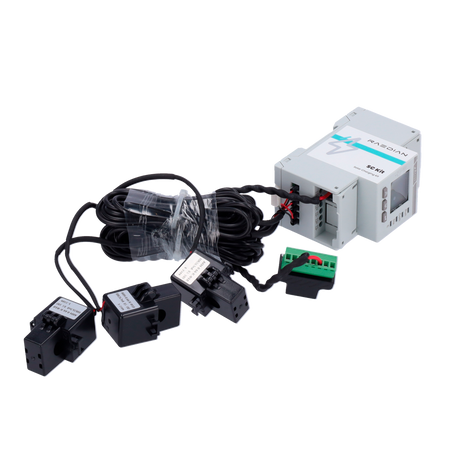

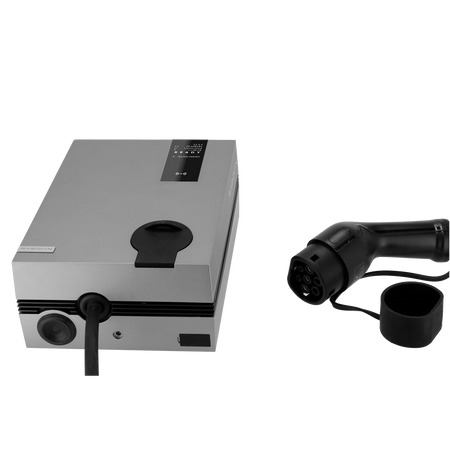

• Electric vehicle charging station with 7.5m integrated Type 2 cable • CT clamp • CT connector • 2x RFID cards • Installation hardware • Instruction manual • SC kit for solar charging
| Connector | Type 2 IEC 62196 |
|---|---|
| Charging mode | Mode 3 |
| Connection type | Three-phase |
| Authentication mode | Plug & Charge RFID BLE (RAEDIAN App) OCPP Backend 1.6 |
| Display | OLED screen: Status and measurements |
| Maximum power | 22 kW |
| Maximum current | 32 A |
| Voltage range | 230 - 400 V |
| Earthing system | TN / TT / IT |
| Input frequency | 50 / 60 Hz |
| Connectivity | WiFi/BLE/RFID/RS485 |
| Charging interface | IEC 62196-2 |
| Installation | Wall-mounted or pedestal |
| Cable included | Yes |
| Cable length | 7.5 m |
| Operating temperature | -30℃ ~ +55℃ |
| Protections | UVP, OVP, OCP, Relay, Over-temperature |
| Measurement accuracy | MID Class B |
| Standby consumption | 3.86W |
| Protection rating | IP55, IK10 |
| Relative humidity | 5% - 95% |
| Operating altitude | 3000m |
| Dimensions | 297 (D) x 210 (H) x 110 (W) mm |
| Weight | 8.5kg |
| Color | Metallic silver |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
