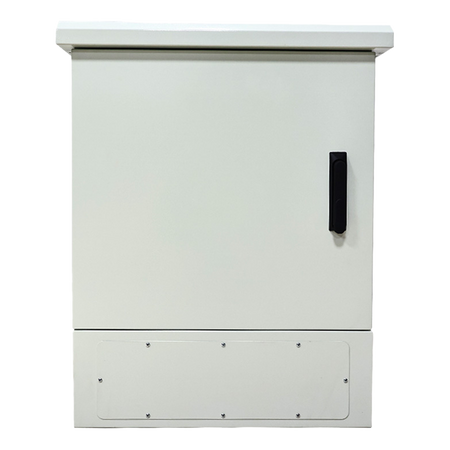

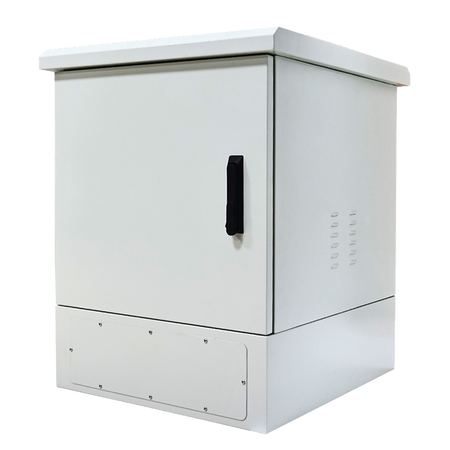

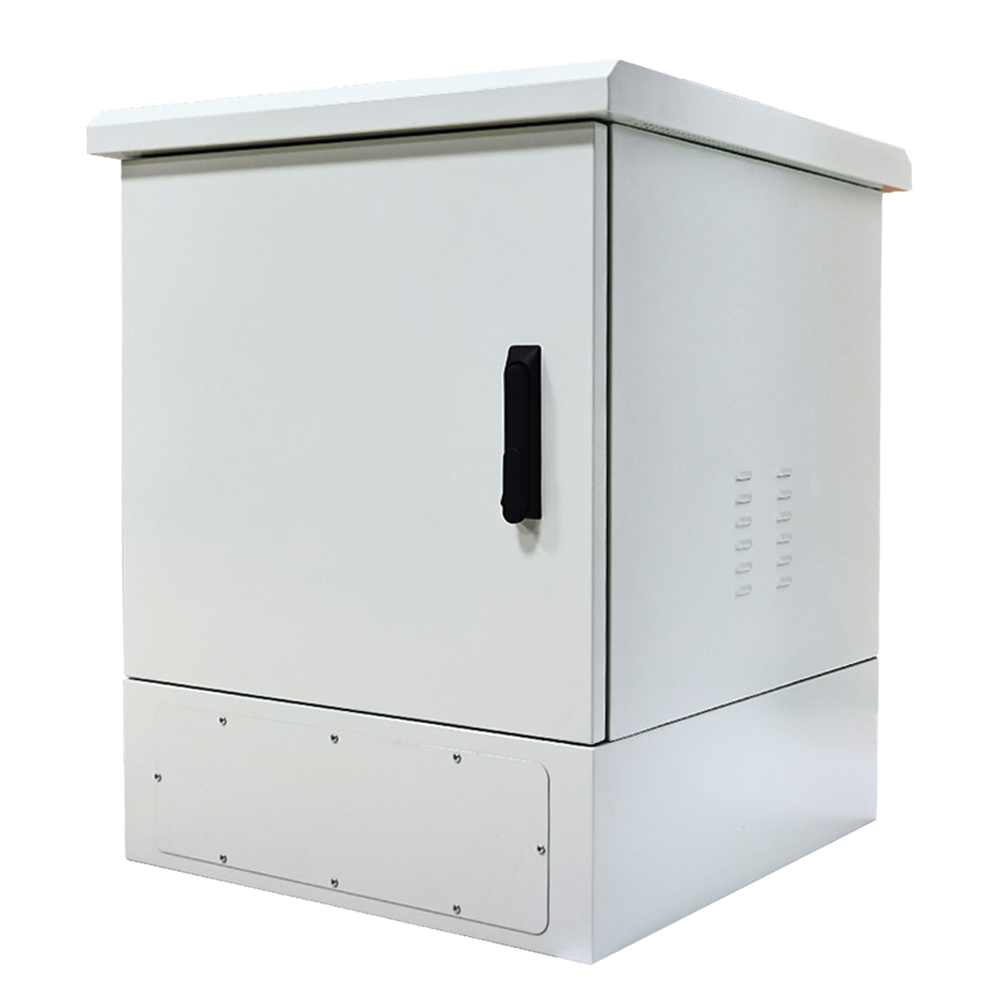

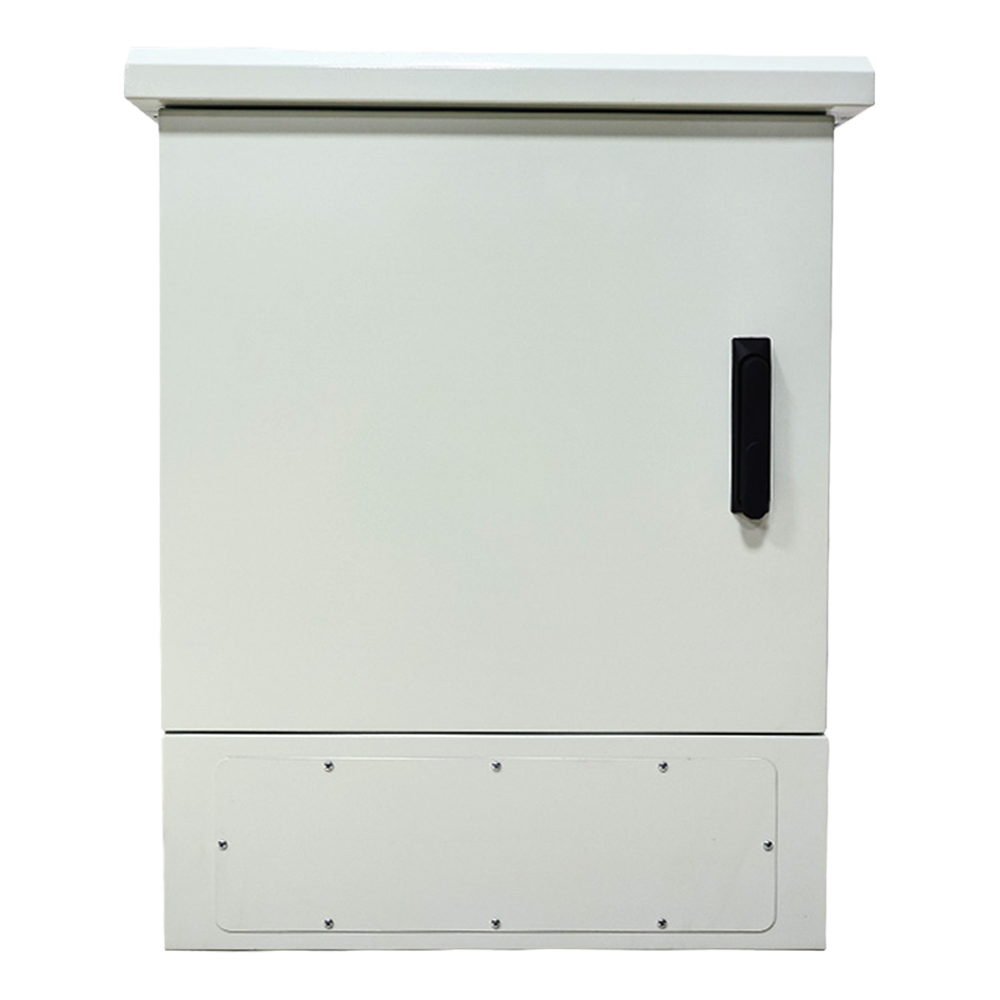

Industrial outdoor floor-standing rack - 9U capacity for 19-inch standards - IP65 protection against dust and water jets - Double-panel system for thermal insulation - Maximum static load capacity of 500 kg - Active ventilation via fan tray
📋 SPECIFICATIONS:
• Rack type: Outdoor floor-standing cabinet
• Load capacity: 9U
• Mounting standard: 19 inches
• External dimensions: 600 x 600 x 472 mm
• Internal dimensions: 500 (Width) x 560 (Height) x 415 (Depth) mm
• Protection rating: IP65 (Dust-proof and splash-proof)
• Maximum static load: 100 kg

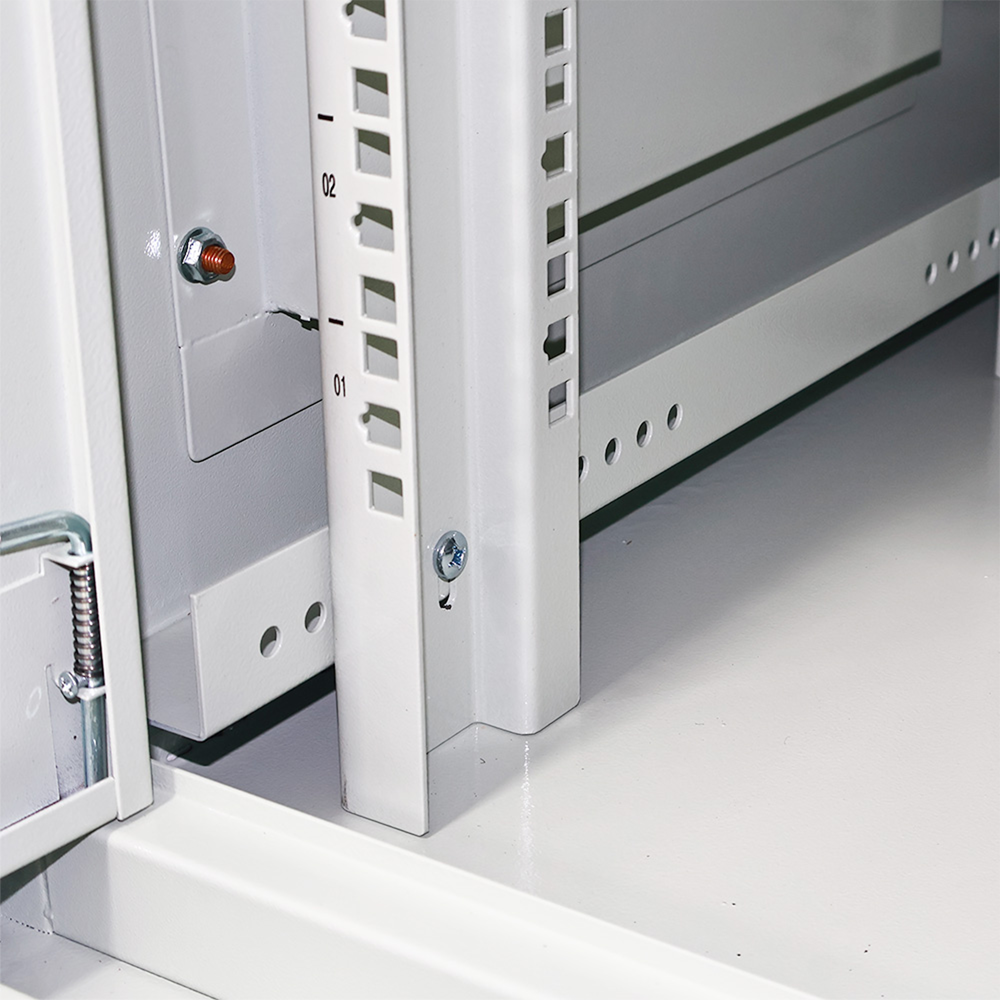

• Profile material: Cold-rolled steel SPCC (2.0 mm)
• Structure material: Galvanized steel sheet (1.0 mm)
• Panel design: Double-sided and rear panel system
• Passive thermal management: Side ventilation grilles and natural insulation channels

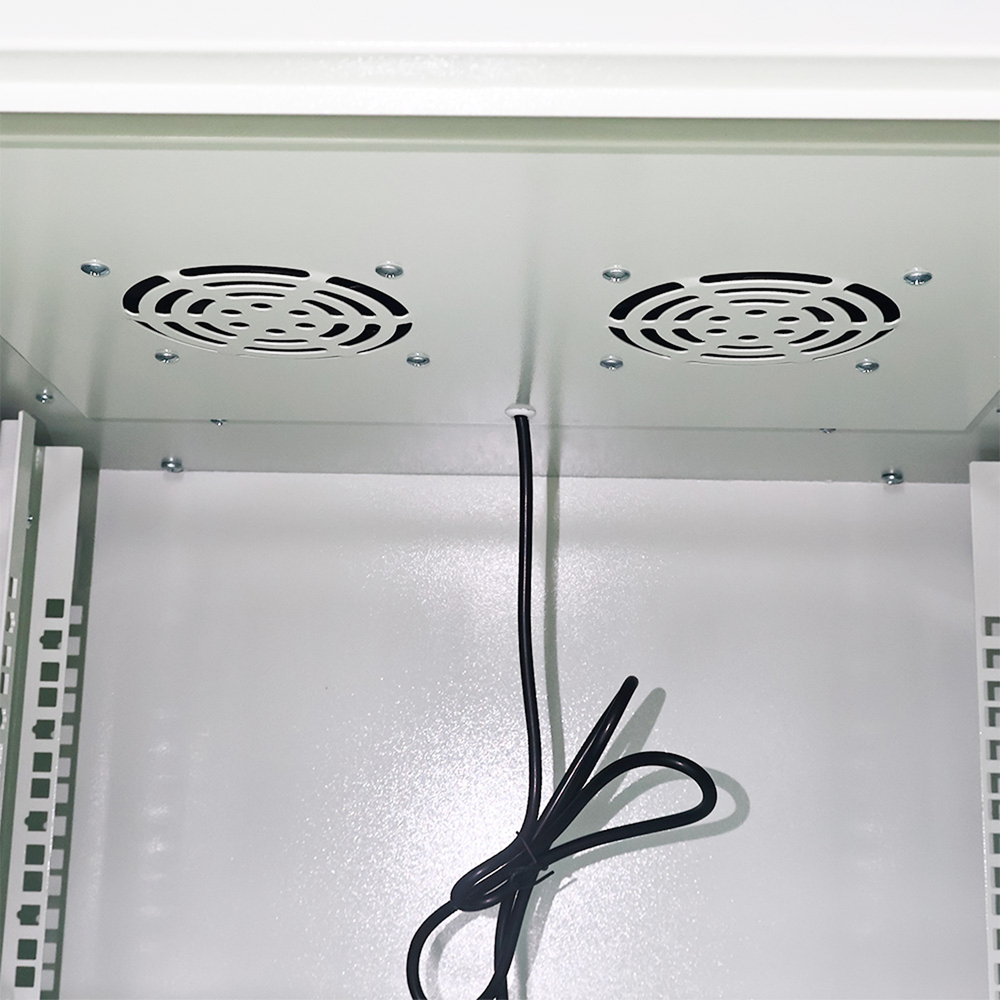

• Active thermal management: Top tray with 2 fans (European plug)
• Cable entry: 8 bottom holes with rubber grommets (cable glands)

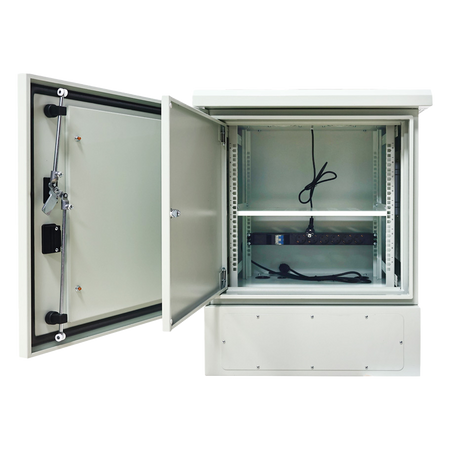

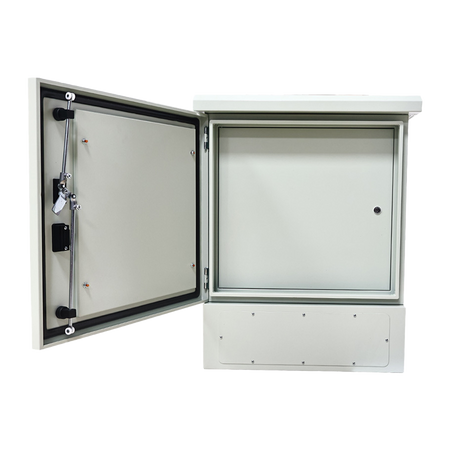

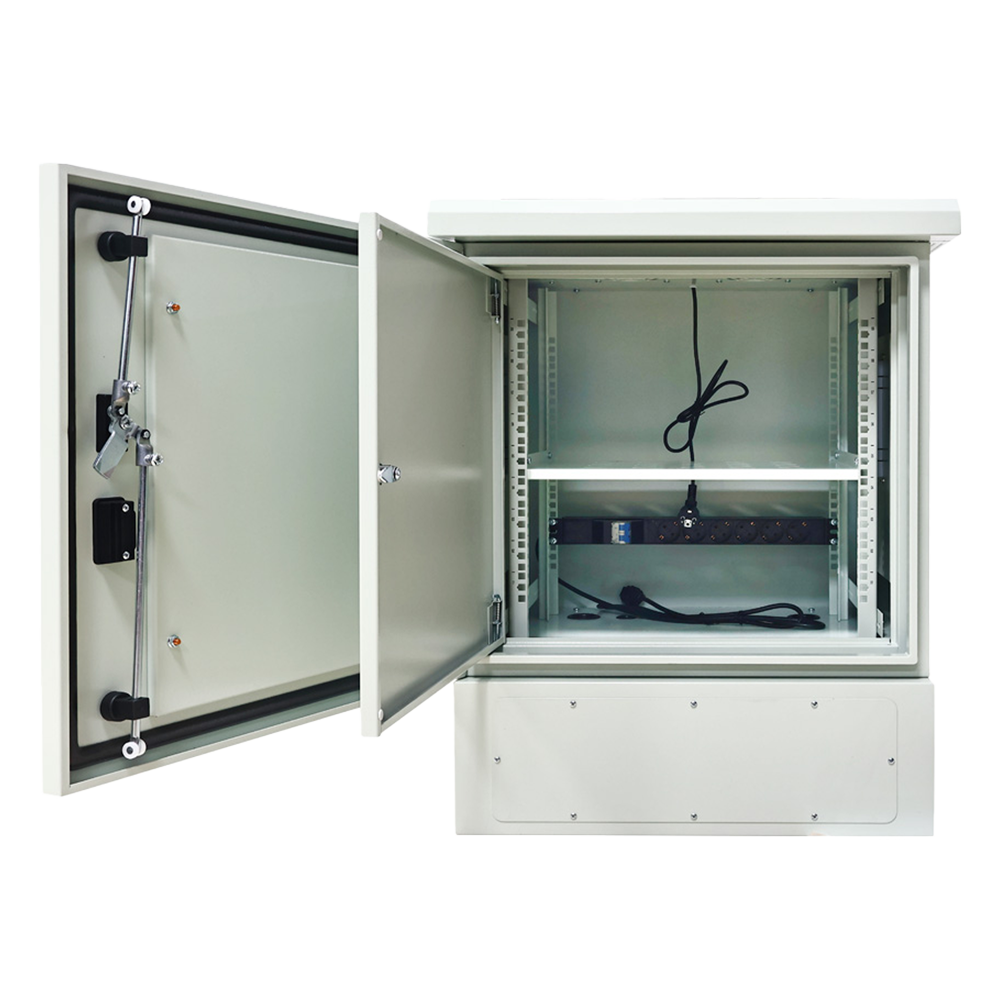

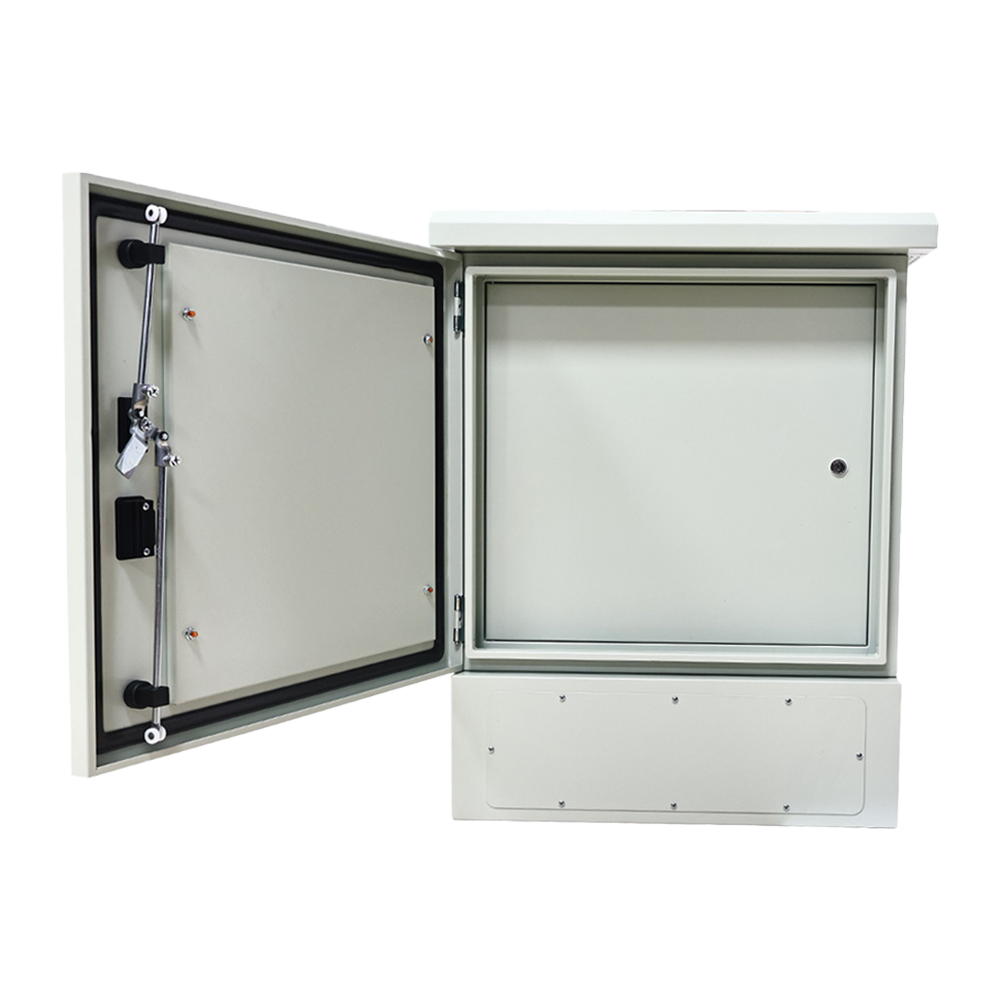

• Physical security: Front door with integrated security lock
• Surface treatment: Degreasing, phosphating, and powder coating
• Finish color: RAL7035 Gray
• Certifications: CE, RoHS, IEC60297-3
• Mounting method: Floor-standing / Outdoor surface installation
📦 INCLUDED:
• 1x 9U outdoor rack cabinet (Welded floor-standing structure)• 1x Front door with security lock• 1x Protective top cover (Canopy)• 1x Active ventilation tray (Fan tray with 2 fans)• 4x 19" internal mounting profiles• 8x Rubber grommets for cable entry• 4x Hooks
| Rack type | Outdoor floor-standing cabinet |
|---|---|
| Capacity | 9U |
| Mounting standard | 19 inches |
| External dimensions | 600 x 600 x 472 mm |
| Internal dimensions | 500 (Width) x 560 (Height) x 415 (Depth) mm |
| Protection rating | IP65 (Dust-tight and water-resistant) |
| Maximum static load | 100 kg |
| Profile material | Cold-rolled steel SPCC (2.0 mm) |
| Frame material | Galvanized sheet steel (1.0 mm) |
| Panel design | Double-walled side and rear panel system |
| Passive thermal management | Side ventilation louvers and natural insulation channels |
| Active thermal management | Top tray with 2 fans (EU plug) |
| Cable entry | 8 bottom holes with rubber grommets |
| Physical security | Front door with integrated security lock |
| Surface treatment | Degreasing, phosphating, and powder coating |
| Finish color | RAL7035 Grey |
| Certifications | CE, RoHS, IEC60297-3 |
| Mounting method | Floor-standing / Outdoor surface installation |
- User manual Link
