Queclink single-antenna Global LTE Cat M1/NB1 with 2G fallback
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Global LTE Cat M1/NB1 with single-antenna 2G backup - Zero power consumption when switched off - Multiple I/Os, including RS232 serial port and digital I/O - Water-resistant, IP67 - Ideal for boats, motorcycles, and vehicles
📋 SPECIFICATIONS:
• Operating band: Cat M1/Cat NB1:; LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28
• LTE data transmission: eMTC (DL) 375 Kbps; eMTC (UL) 375 Kbps; NB1 (DL) 32 Kbps ,NB1 (UL) 70 Kbps
• Operating frequency: EGPRS 850 / 900 / 1800 / 1900 MHz
• EGPRS data transmission: EDGE multi-slot class 33 (33 by default); EDGE multi-slot class 33 (33 by default)
• GNSS type: u-blox all-in-one GNSS receiver
• Sensitivity: Autonomous: -147 dBm; Hot start: -156 dBm; Re-acquisition: -160 dBm; Tracking: -162 dBm
• Positioning accuracy: < 2.5m
• TTFF (open sky): Cold start: 27 s average; Warm start: 27 s average; Hot start: 1 s average

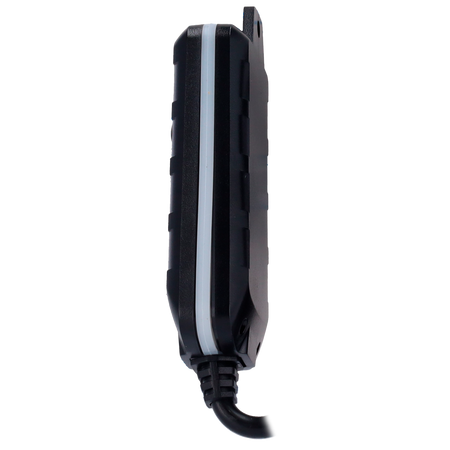

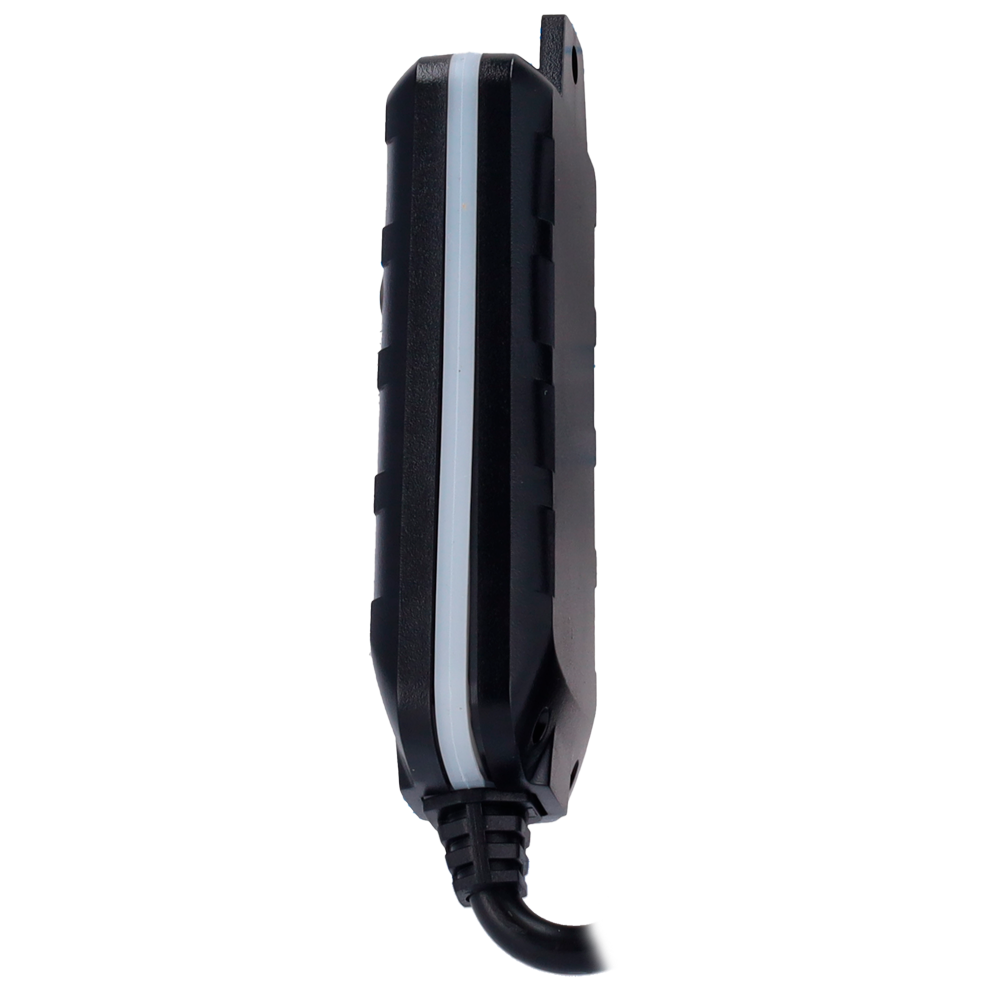

• Dimensions: 102mm × 46mm × 20.5mm
• Weight: 110g
• Backup battery: Li-Polymer 700mA
• Operating voltage: 8 to 32V DC
• Operating temperature: -30℃ ~ +80℃; -40℃ ~ +80℃ for storage
• Protection: IP 67
• Consumption: Zero power consumption with ignition off to prevent battery drain
• Buffer: Up to 10000 messages
• Digital inputs: 2 digital inputs included; 1 positive trigger input for ignition detection; 1 negative trigger input for normal use
• Digital output: 1 digital output, open drain, 150 mA maximum drive current
• Latched digital output: 1 digital output with internal latch circuit, open drain, 150 mA maximum drive current

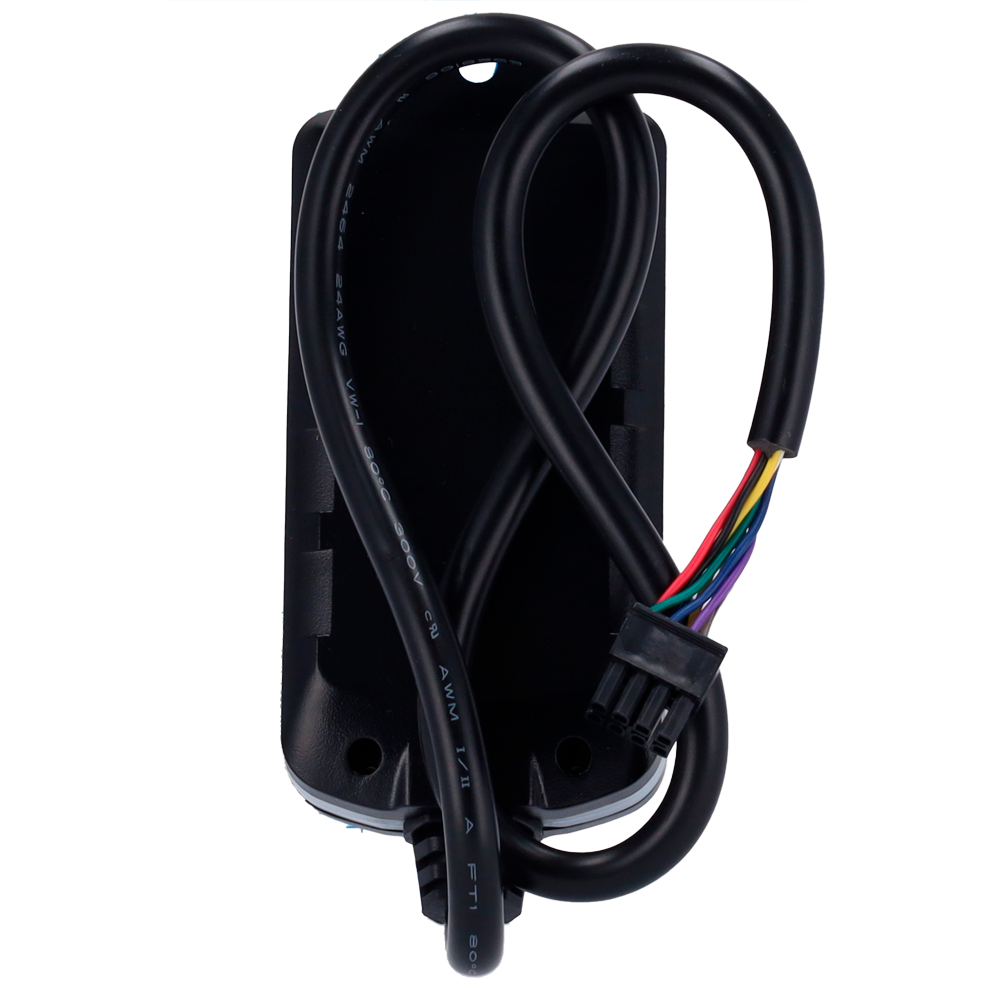

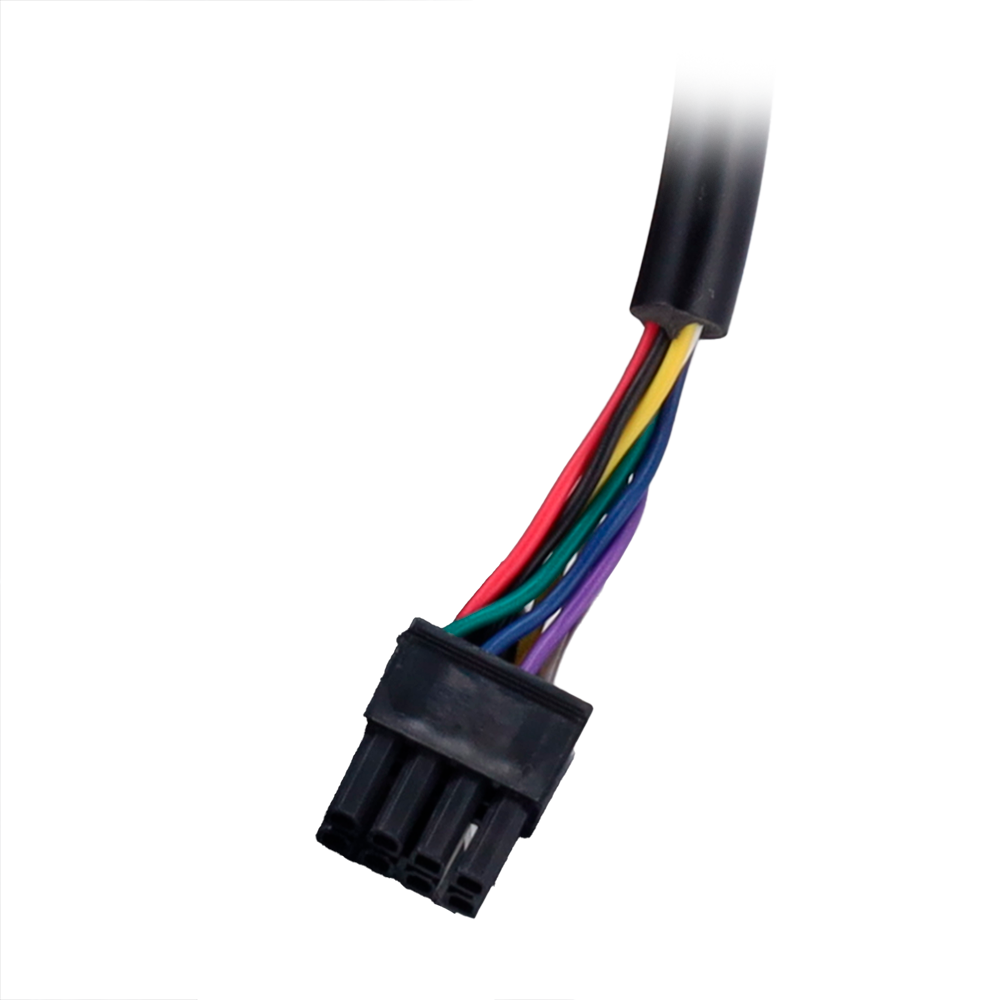

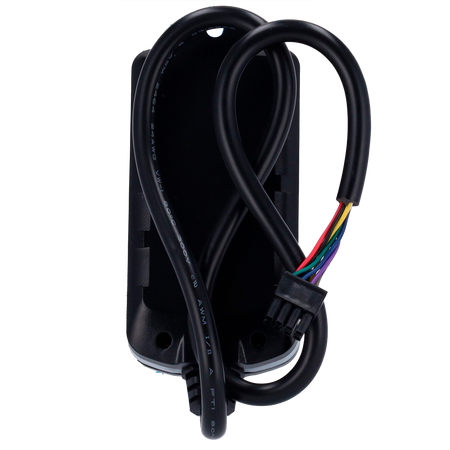

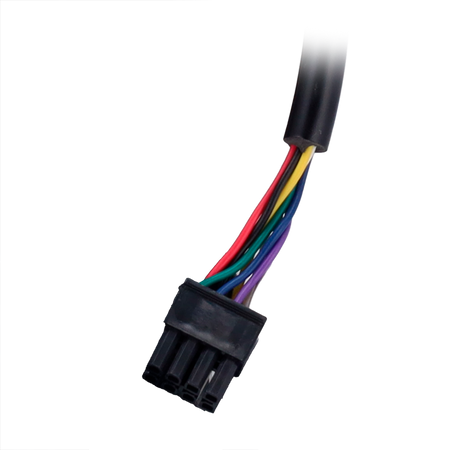

• Serial port: 1 RS232 serial port on 8-pin cable, used for external devices
• LTE antenna: Internal only
• GPS antenna: Internal only

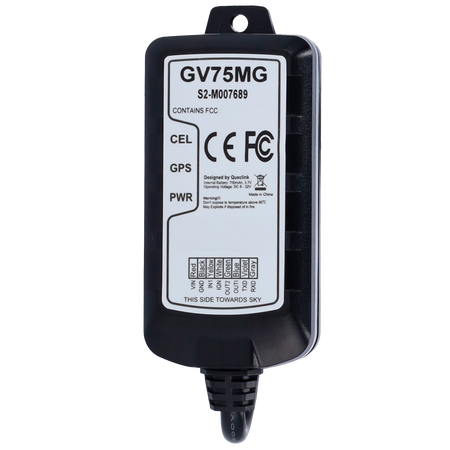

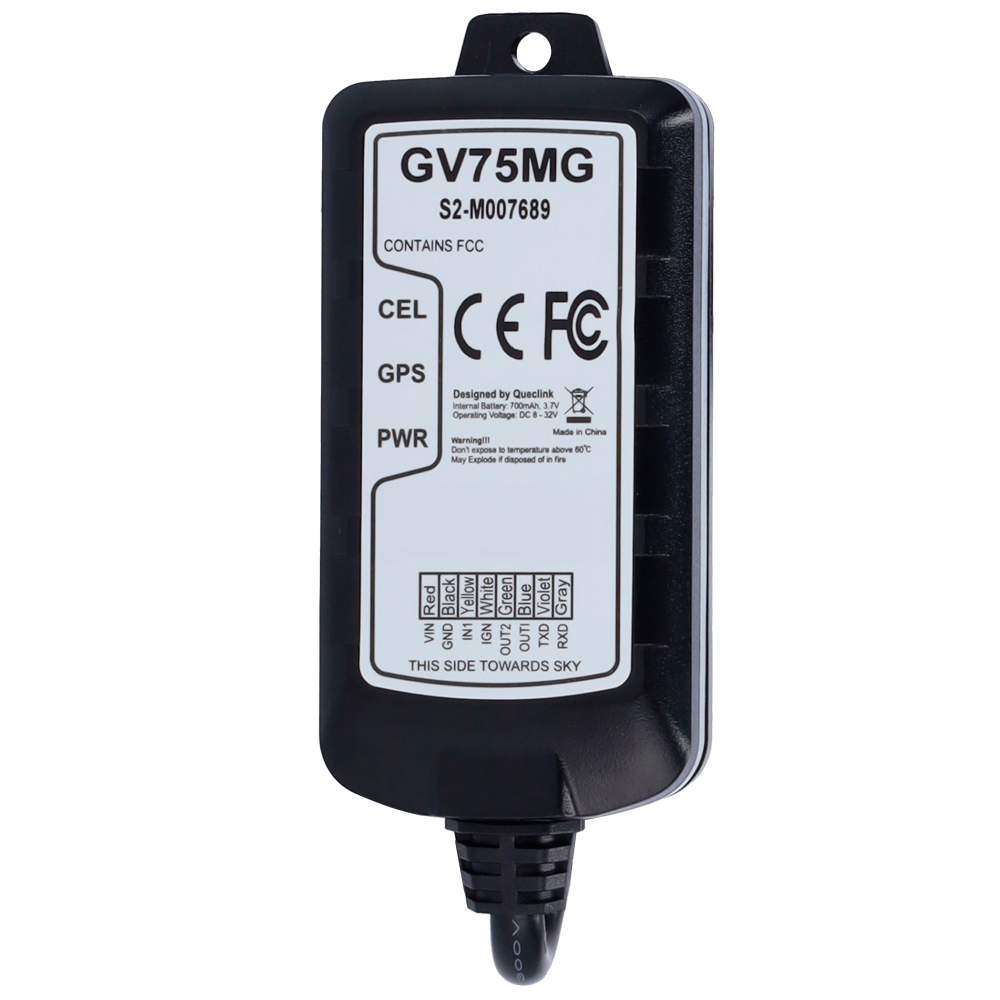

• LED indicator: CEL, GNSS, PWR
• Transmission protocols: TCP, UDP, SMS
• Scheduled report: Report position at predefined time and distance intervals
• Geofence: Geo-fence alarm and parking alarm, supports up to 20 internal geo-fence areas
• Alarms: Low battery, ignition, towing, driver behavior, collision, based on digital inputs
• Remote control: OTA control of digital outputs
| Operating band | Cat M1/Cat NB1: LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B28 |
|---|---|
| LTE data transmission | eMTC (DL) 375 Kbps, eMTC (UL) 375 Kbps, NB1 (DL) 32 Kbps, NB1 (UL) 70 Kbps |
| Operating frequency | EGPRS 850 / 900 / 1800 / 1900 MHz |
| EGPRS data transmission | EDGE multi-slot class 33 (33 by default), EDGE multi-slot class 33 (33 by default) |
| GNSS type | u-blox all-in-one GNSS receiver |
| Sensitivity | Autonomous: -147 dBm, Hot start: -156 dBm, Reacquisition: -160 dBm, Tracking: -162 dBm |
| Positioning accuracy | < 2.5m |
| TTFF (open sky) | Cold start: 27 s average, Warm start: 27 s average, Hot start: 1 s average |
| Dimensions | 102mm × 46mm × 20.5mm |
| Weight | 110g |
| Backup battery | Lithium polymer 700mA |
| Operating voltage | 8 to 32V DC |
| Operating temperature | -30℃ ~ +80℃, -40℃ ~ +80℃ for storage |
| Protection | IP 67 |
| Consumption | Zero power consumption when ignition is off to prevent battery drain |
| Buffer | Up to 10,000 messages |
| Digital inputs | 2 digital inputs including 1 positive trigger input for ignition detection, 1 negative trigger input for normal use |
| Digital output | 1 digital output, open drain, maximum drive current 150 mA |
| Interlocked digital output | 1 digital output with internal latch circuit, open drain, maximum drive current 150 mA |
| Serial port | 1 RS232 serial port on 8-pin cable, used for external devices |
| LTE antenna | Internal only |
| GPS antenna | Internal only |
| LED indicator | CEL, GNSS, PWR |
| Transmission protocols | TCP, UDP, SMS |
| Scheduled report | Report position at predefined time and distance intervals |
| Geofence | Geo-fence alarm and parking alarm, supports up to 20 internal geo-fence areas |
| Alarms | Low battery, ignition, towing, driver behavior, collision, based on digital inputs |
| Remote control | OTA control of digital outputs |
