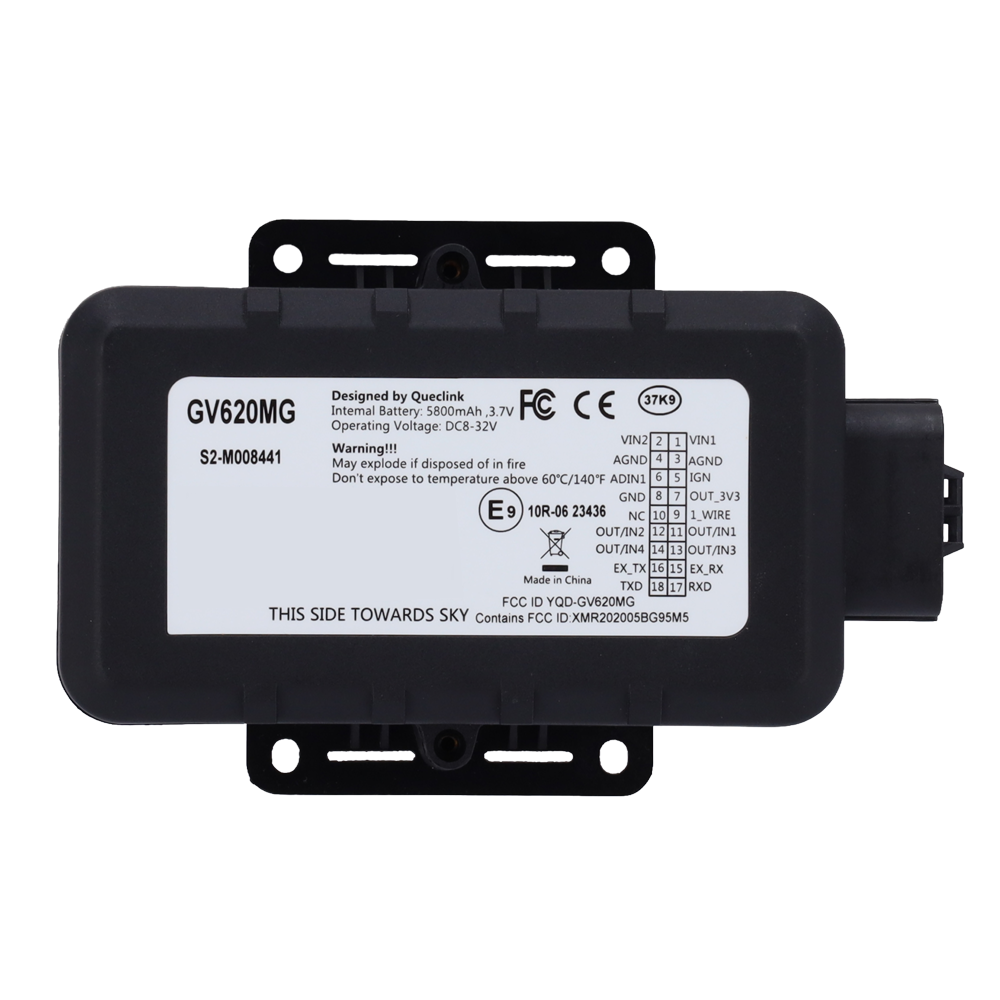

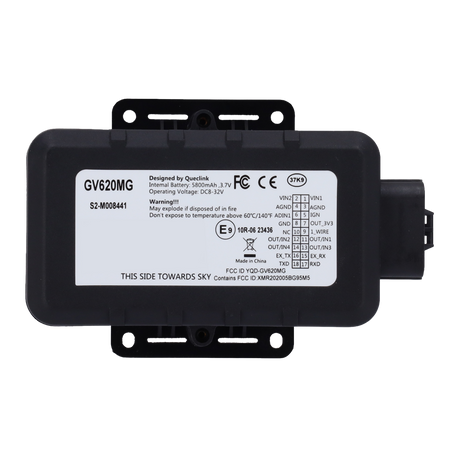

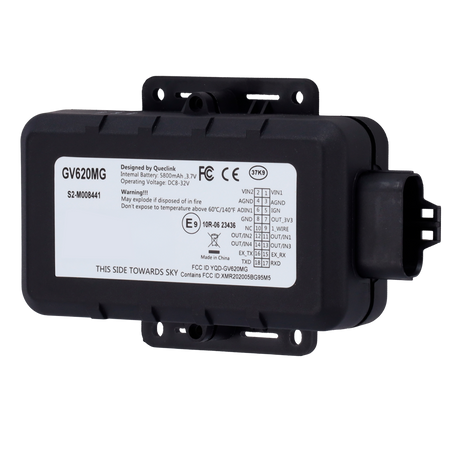

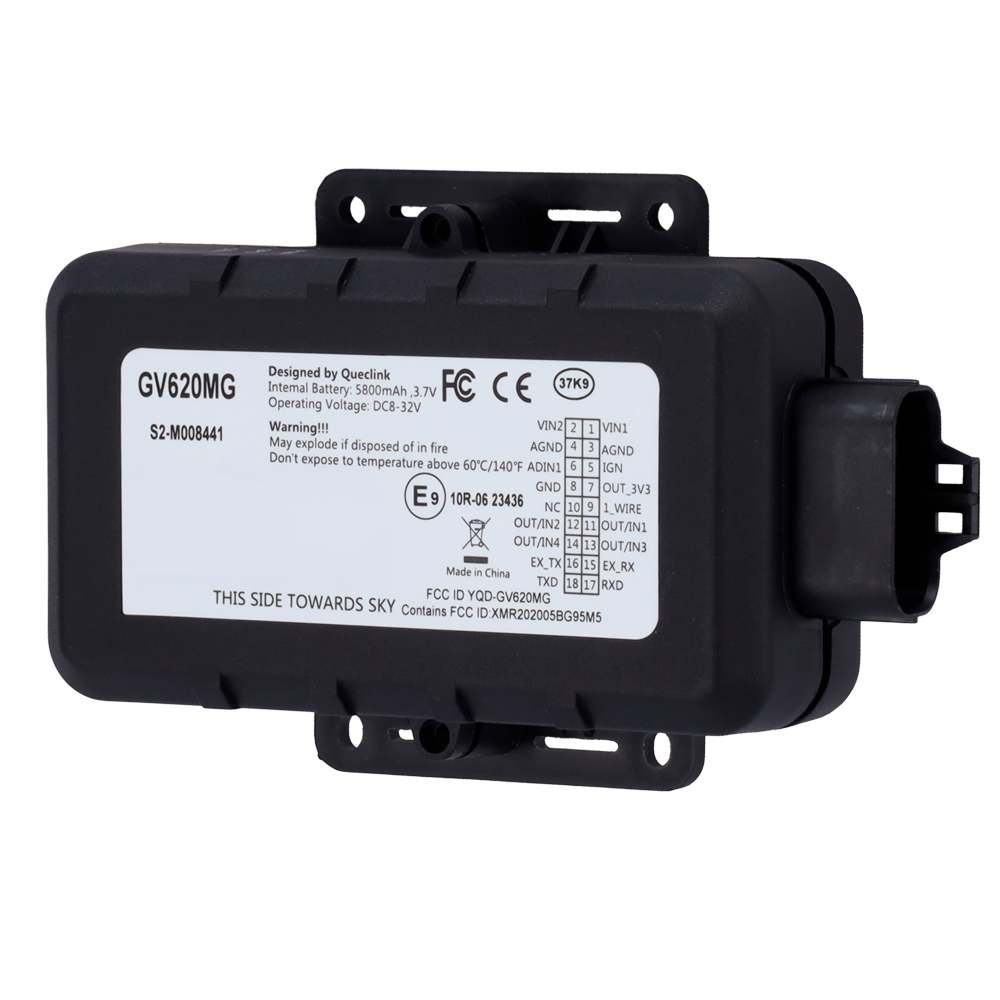

Queclink reinforced advanced tracker with multiple interfaces
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Advanced rugged tracker with multiple interfaces - 4G LTE Cat M1 with 2G backup - RS232 and 1-wire - IP67 - 120-day battery life - Machinery, trailers, construction
📋 SPECIFICATIONS:
• Dimensions: 138 x 66 x 38 mm
• Weight: 320 g (11.29 oz)
• Material: High-strength reinforced housing
• Environmental protection: IP67 certified (Waterproof)
• Operating voltage: 8V to 32V DC

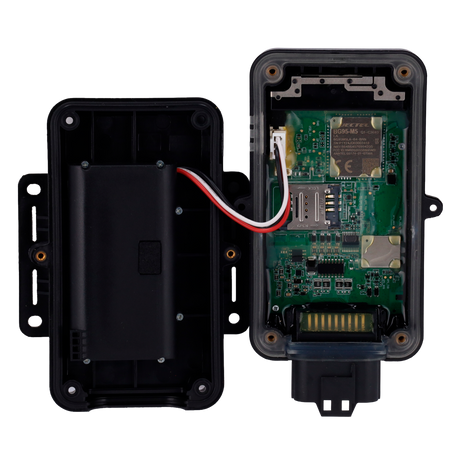

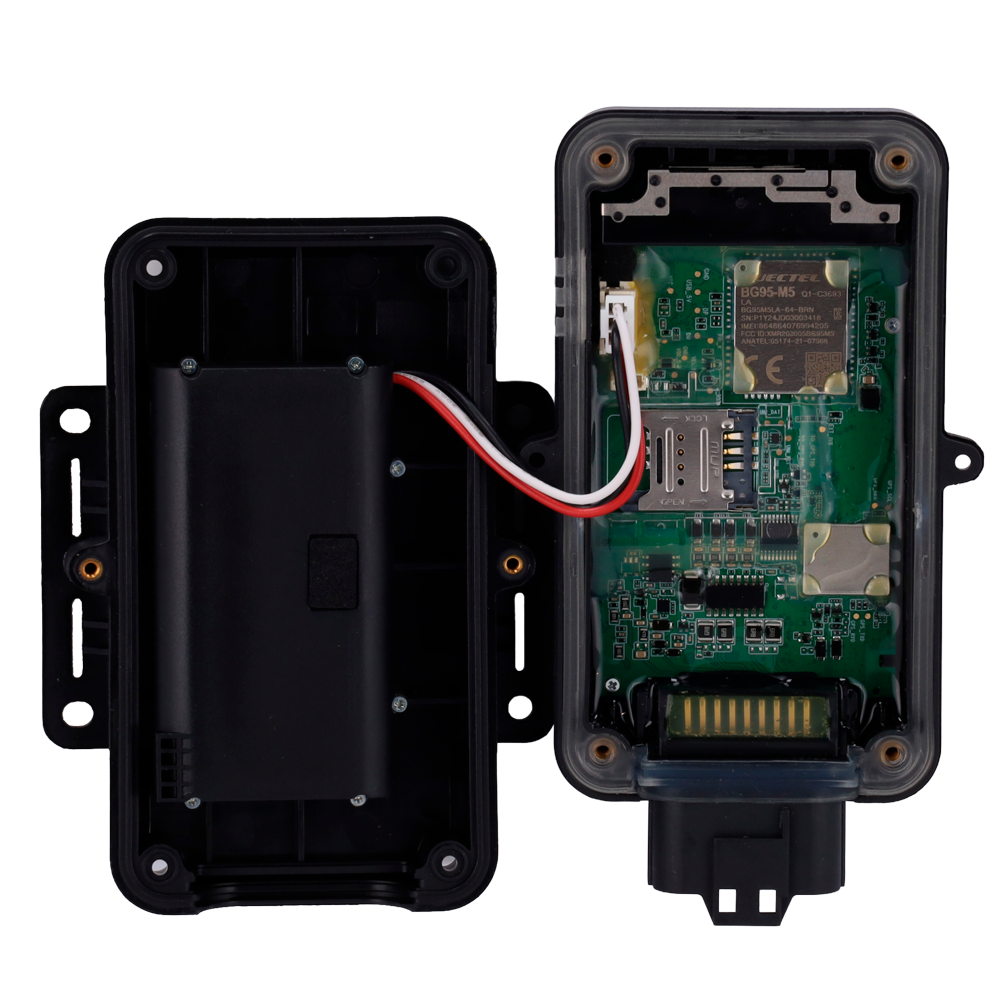

• Internal battery: Li-ion 5800 mAh (2 x 18650)
• Standby time: 120 days (1 report per day)
• Operating temperature: -30°C to +80°C
• Charging temperature: +10°C to +45°C

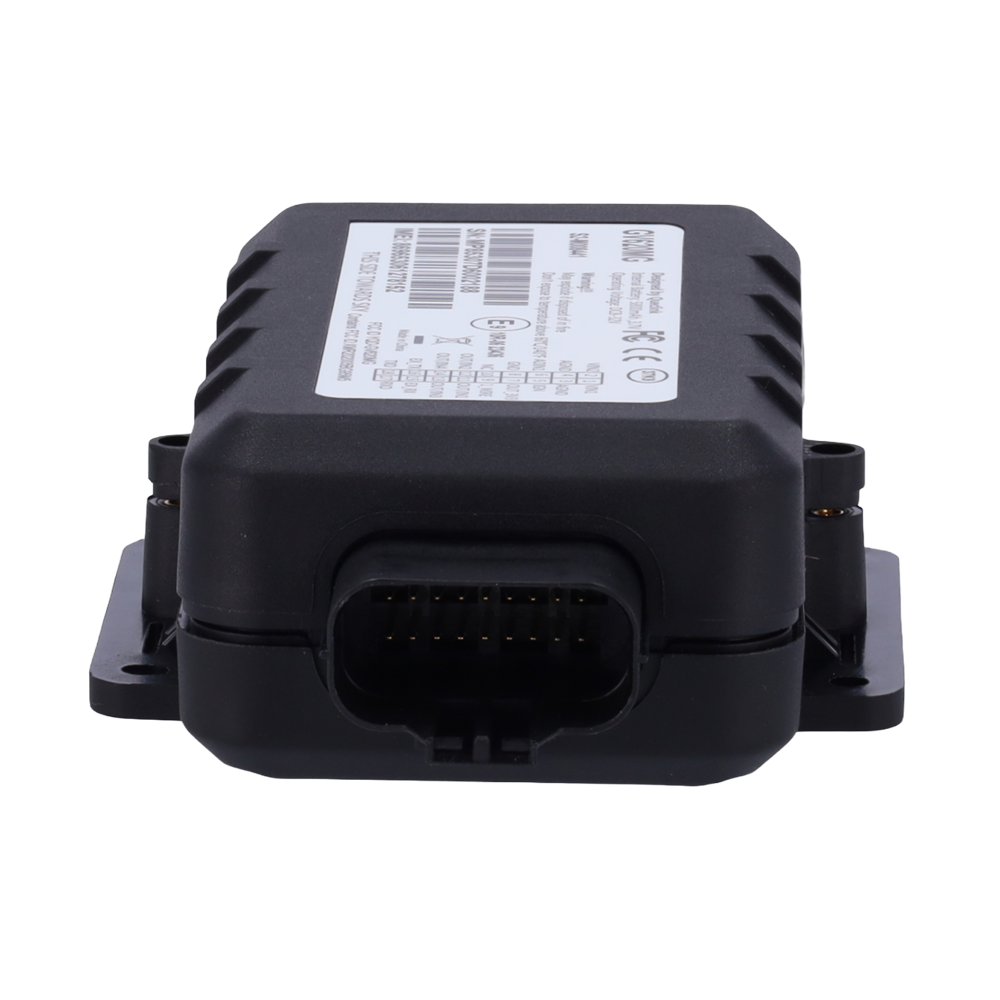

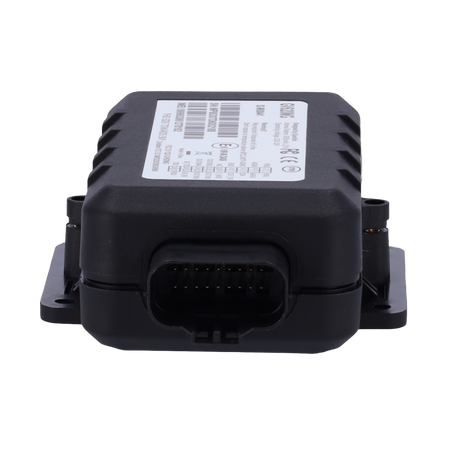

• Connection interface: 18-pin waterproof connector
• Digital input: 1x Ignition detection trigger
• Analog input: 1x 0V to 32V input
• Digital I/O: 4x Negative inputs or 4x Open Drain outputs
• 1-wire interface: Support for temperature sensors and iButton
• Serial port: 1x RS232 port for telemetry

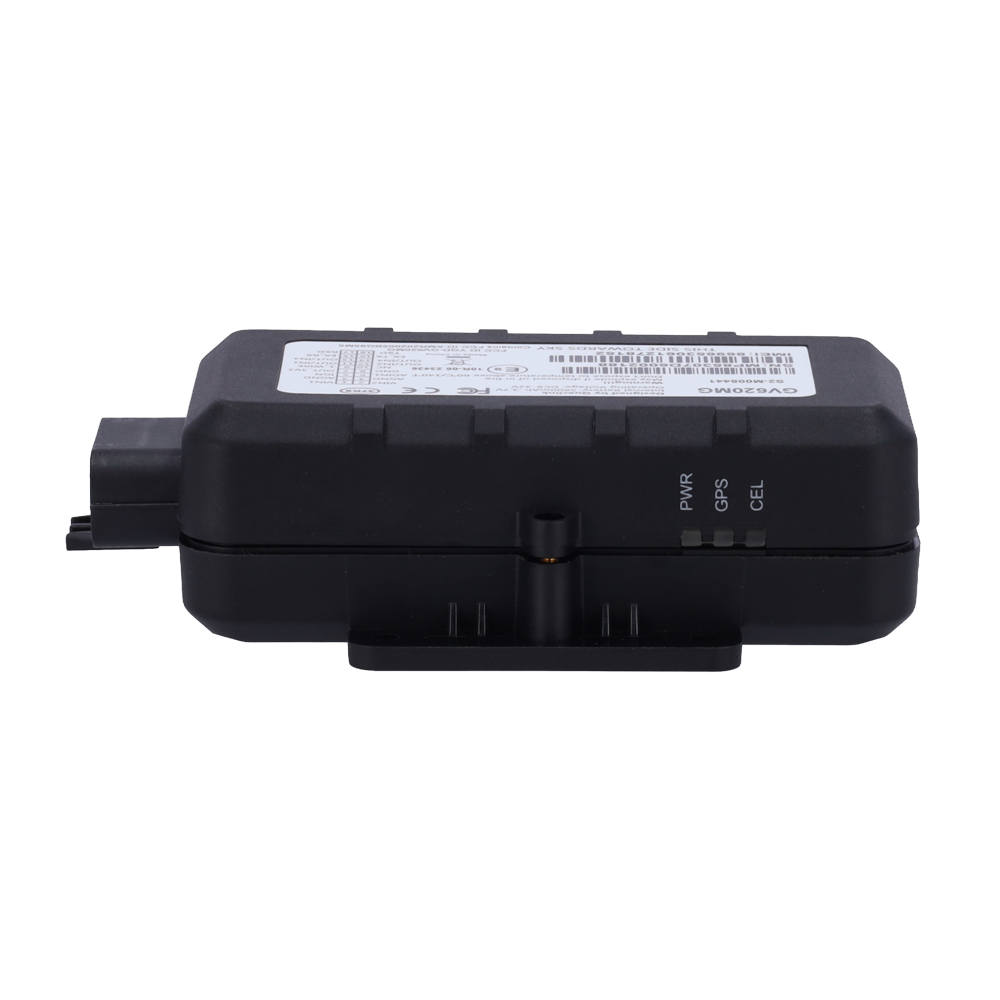

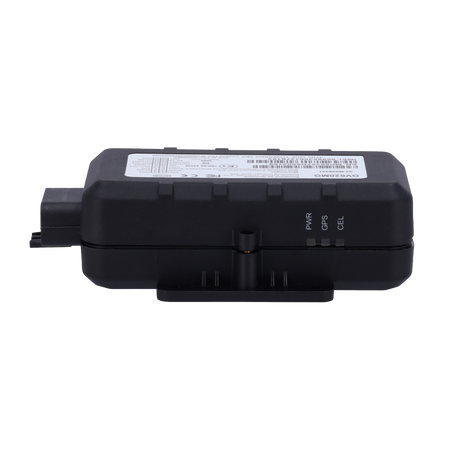

• LED indicators: CEL, GNSS, PWR
• Mounting: GV600W bracket with serrated flange nuts
• Cellular technology: LTE Cat M1 / NB2 / EGPRS
• Cat M1 bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
• Cat NB2 bands: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• EGPRS frequencies: 850/900/1800/1900 MHz
• GNSS type: u-blox All-in-One receiver
• Positioning accuracy: Autonomous: < 2m (CEP)
• Bluetooth: BLE 5.0 (Support for WTH301/WMS301)
• Antennas: Internal (cellular, GNSS, BLE)
• Data management: OTA control, geo-fencing, and low battery alarm
• Reports: Programming based on time and ignition events
• Fuel monitoring: Support for UFS300 ultrasonic sensor
• Certifications: CE / FCC
📦 INCLUDED:
• Tracker• Mounting kit (bracket and screws)• Quick setup guide• 5800 mAh internal battery
| Dimensions | 138 x 66 x 38 mm |
|---|---|
| Weight | 320 g (11.29 oz) |
| Material | High-strength reinforced housing |
| Environmental protection | IP67 certification (Waterproof) |
| Operating voltage | 8V to 32V DC |
| Internal battery | Li-ion 5800 mAh (2 x 18650) |
| Standby time | 120 days (1 report per day) |
| Operating temperature | -30°C to +80°C |
| Charging temperature | +10°C to +45°C |
| Connection interface | 18-pin watertight connector |
| Digital input | 1x Ignition detection trigger |
| Analog input | 1x 0V to 32V input |
| Digital I/O | 4x Negative inputs or 4x Open Drain outputs |
| 1-wire interface | Support for temperature sensors and iButton |
| Serial port | 1x RS232 port for telemetry |
| LED indicators | CEL, GNSS, PWR |
| Mounting | GV600W bracket with serrated flange nuts |
| Cellular technology | LTE Cat M1 / NB2 / EGPRS |
| Cat M1 bands | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| Cat NB2 bands | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| EGPRS frequencies | 850/900/1800/1900 MHz |
| GNSS type | u-blox All-in-One receiver |
| Positioning accuracy | Autonomous: < 2m (CEP) |
| Bluetooth | BLE 5.0 (WTH301/WMS301 support) |
| Antennas | Internal (cellular, GNSS, BLE) |
| Data management | OTA control, geo-fencing, and low battery alarm |
| Reports | Scheduling based on time and ignition events |
| Fuel monitoring | UFS300 ultrasonic sensor support |
| Certifications | CE / FCC |
