Compact IP67 waterproof GPS tracker - LTE Cat M1/NB2 with backup battery - Supports BLE 5.1 - 10-month standby duration - Zero consumption
📋 SPECIFICATIONS:
• Brand: Queclink
• Model: GV57MGPLUS

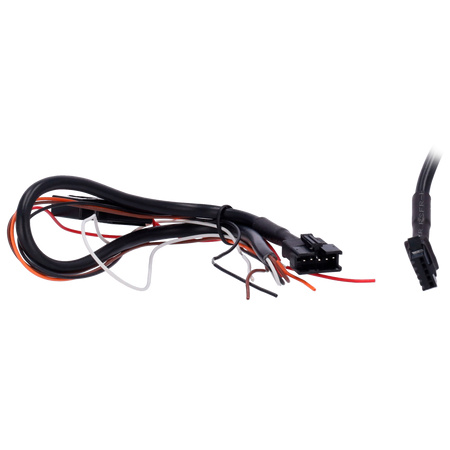

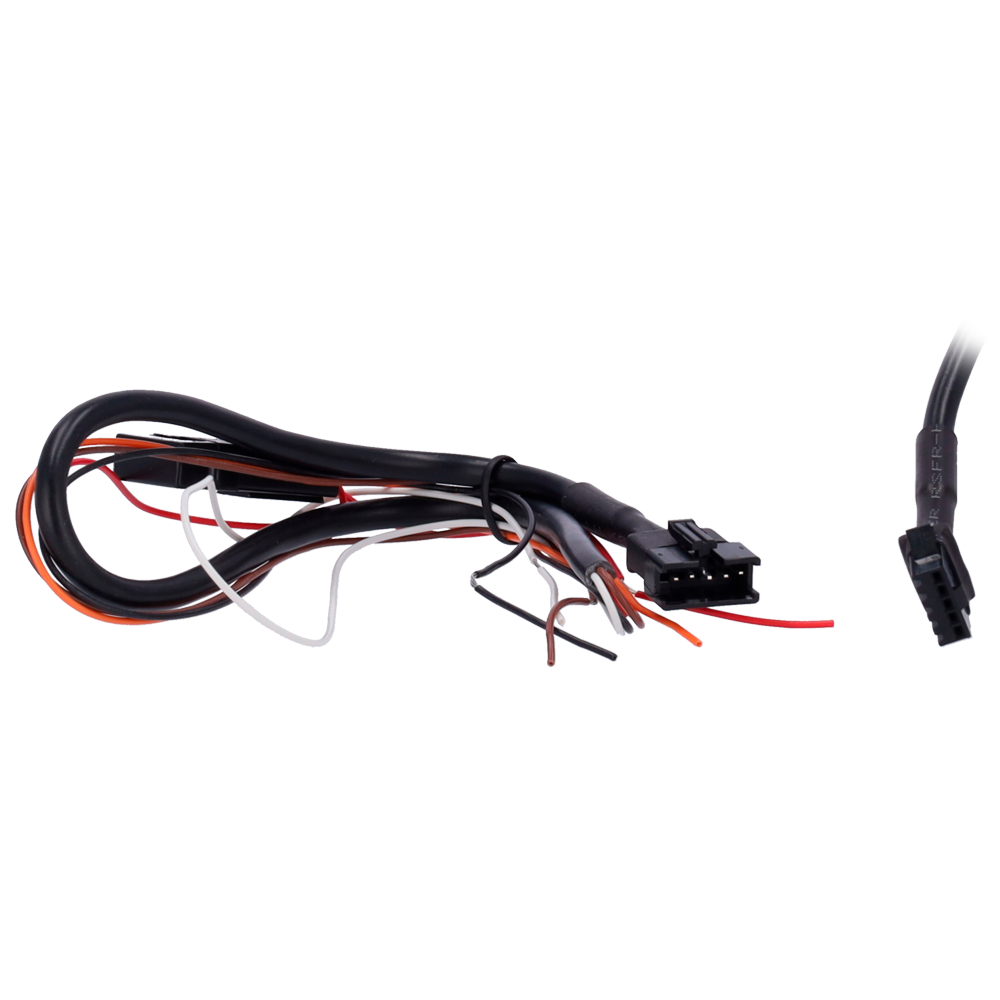

• Installation: Connection to onboard wiring
• Operating band: LTE-Cat M1/NB2; Cat M1:; B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85; Cat NB2:; B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• LTE data transmission: eMTC (DL) 348 Kbps; sMTC (UL) 1.08 Mbps; NB2 (DL) 121 Kbps; NB2 (UL) 150 Kbps; NB1 (DL) 74.1 Kbps; NB1 (UL) 101 Kbps
• Frequency: 850/900/1800/1900 MHz
• GSM data transmission: GPRS multi-slot class 33 (33 default); EDGE multi-slot class 33 (33 default)
• GNSS type: All-in-one receiver
• Sensitivity: Standalone: -148 dBm; Hot start: -163 dBm; Tracking: -165 dBm
• Position accuracy (CEP): Autonomous: < 2.0m
• TTFF (open sky): Cold start: ~31 seconds; Warm start: ~28 seconds; Hot start: ~1 second
• Dimensions: 84(L) x 50(W) x 26.6(H)
• Weight: 132g
• Backup battery: Lithium polymer, 2600 mAh
• Battery life: No reporting - 300 hours; Reporting every 5min - 180 hours; Reporting every 10min - 210 hours
• Power supply: 8V to 32V DC
• Operating temperature: -30ºC ~ +80ºC
• BLE: Supports BLE 5.1 protocol
• Digital inputs: x1 positive trigger input for ignition detection
• GSM antenna: Internal only
• GNSS antenna: Internal only
• BLE antenna: Internal only
• LED indicators: CEL, GNSS
• Micro USB interface: For configuration and debugging
• Transmission protocols: TCP, UDP, SMS
• Scheduled reports: Positioning and status based on time intervals, distance, mileage, or a combination of these parameters
• Geo-fence: Geo-fence and parking alarm, supports up to 20 areas
• Low battery alarm: Alerts when backup battery is low
• Power-on report: Alerts when the device is powered on
• SOS report: SOS alarm via panic button
• Driver behavior monitoring: Detection of aggressive driving, including harsh braking, acceleration, etc.
• Configuration tamper protection: Critical information, such as server data, is encrypted to prevent unauthorized access
• Messages: Buffer up to 10,000 messages
• Remote control: OTA control on digital outputs
📦 INCLUDED:
• Device• Screws
| Model | GV57MGPLUS |
|---|---|
| Installation | Connection to onboard wiring |
| Operating band | LTE-Cat M1/NB2 Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| LTE data transmission | eMTC (DL) 348 Kbps eMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL) 74.1 Kbps NB1 (UL) 101 Kbps |
| Frequency | 850/900/1800/1900 MHz |
| GSM data transmission | GPRS multi-slot class 33 (33 default) EDGE multi-slot class 33 (33 default) |
| GNSS type | All-in-one receiver |
| Sensitivity | Standalone: -148 dBm Hot start: -163 dBm Tracking: -165 dBm |
| Positioning accuracy (CEP) | Autonomous: < 2.0m |
| TTFF (open sky) | Cold start: 31 seconds approx. Warm start: 28 seconds approx. Hot start: 1 second approx. |
| Dimensions | 84(W) x 50(L) x 26.6(H) |
| Weight | 132g |
| Backup battery | Lithium polymer, 2600 mAh |
| Battery life | No reporting - 300 hours Reporting every 5min - 180 hours Reporting every 10min - 210 hours |
| Power supply | 8V to 32V DC |
| Operating temperature | -30ºC ~ +80ºC |
| BLE | Supports BLE 5.1 protocol |
| Digital inputs | x1 positive trigger input for ignition detection |
| GSM antenna | Internal only |
| GNSS antenna | Internal only |
| BLE antenna | Internal only |
| LED indicators | CEL, GNSS |
| Micro USB interface | For upgrading and debugging |
| Transmission protocols | TCP, UDP, SMS |
| Scheduled reports | Position and status based on time intervals, distance, mileage, or a combination of these parameters |
| Geo-fence | Geo-fence and parking alarm, supports up to 20 areas |
| Low battery alarm | Alerts when the backup battery is low |
| Power-on report | Alerts when the device is powered on |
| SOS report | SOS alarm via panic button |
| Driver behavior monitoring | Harsh driving detection, including harsh braking, acceleration, etc. |
| Configuration tamper protection | Critical information, such as server data, is encrypted to prevent unauthorized access |
| Messages | Buffer up to 10000 messages |
| Remote control | OTA control of digital outputs |
