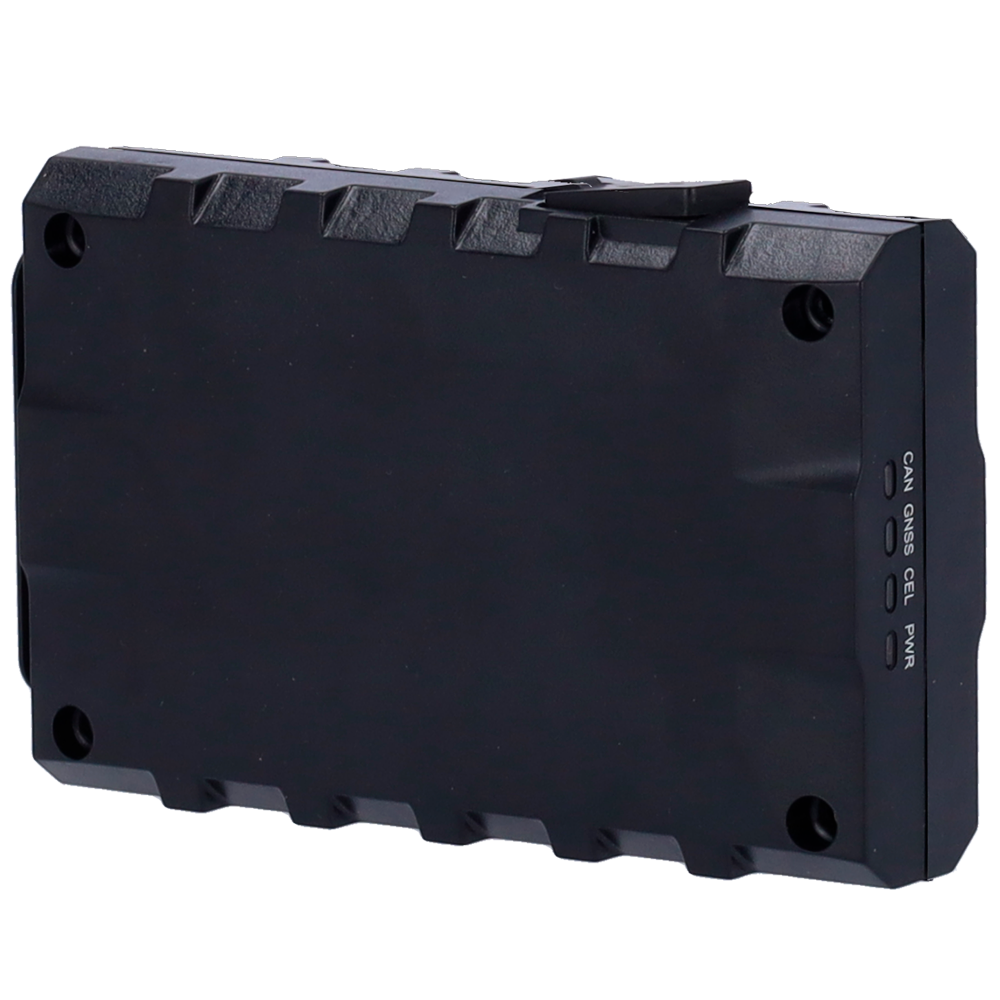

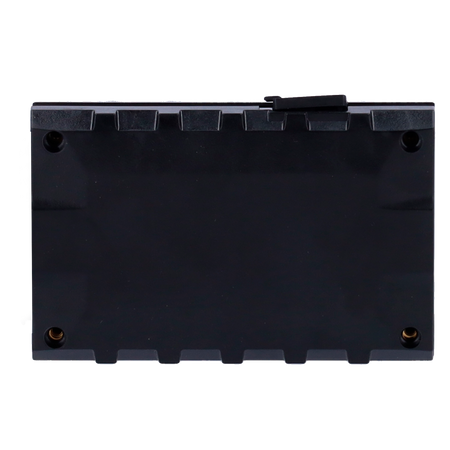

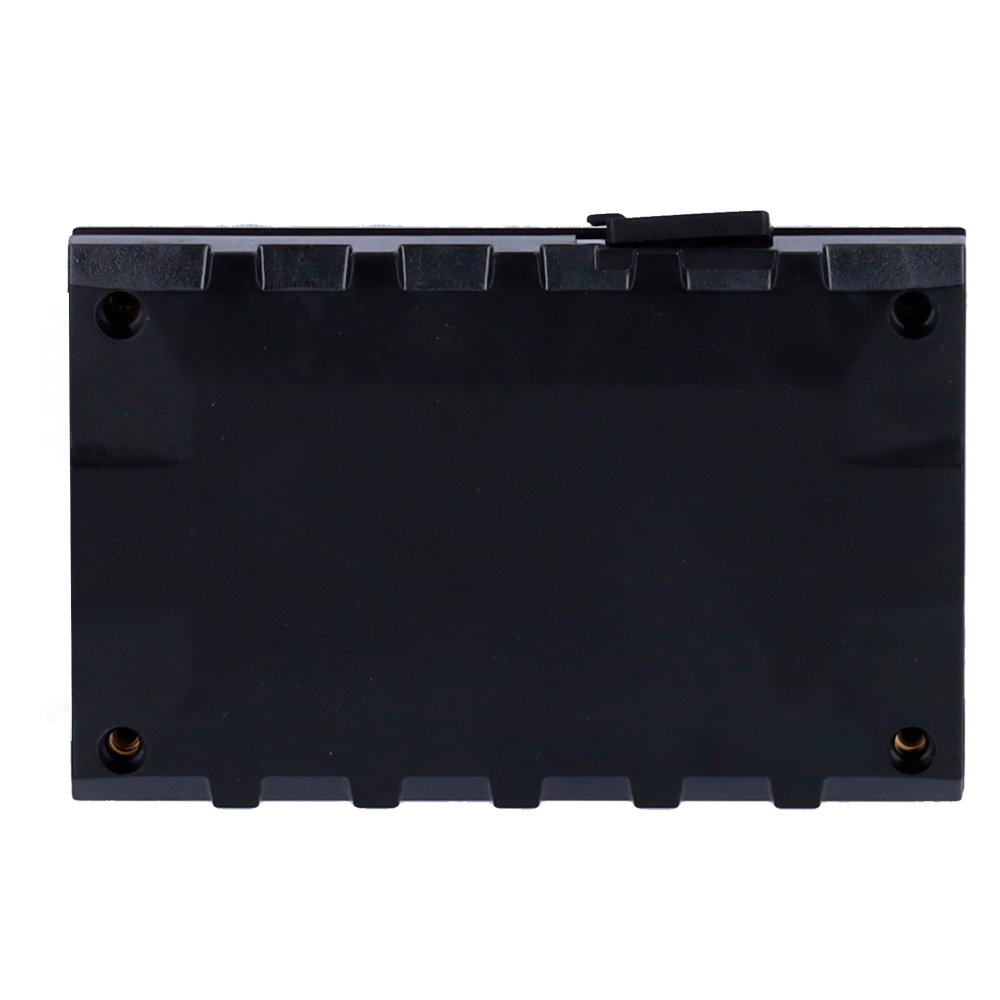

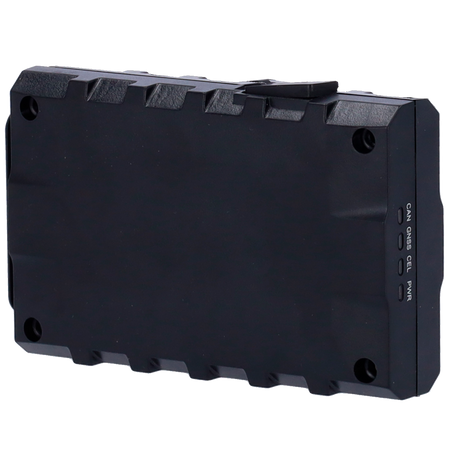

Queclink LTE vehicle tracker with CANbus and tachograph
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
LTE vehicle tracker with CANbus and tachograph - LTE Cat 1 with 2G backup - DDD file download - Supports K-line for tachograph data - Supports CANbus and DTC - Supports BLE 5.2
📋 SPECIFICATIONS:
• Brand: Queclink
• Model: GV355CEU
• Installation: Hardwired connection
• Operating band: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
• Frequency: 850/900/1800/1900 MHz
• GNSS type: u-blox all-in-one GNSS receiver
• Positioning accuracy (CEP): Standalone: < 2.0m
• Dimensions: 94(W) x 58.5(D) x 21(H)
• Weight: 92g
• Backup battery: Lithium-polymer, 250 mAh
• Power supply: 8V to 32V DC
• Operating temperature: -30ºC ~ +70ºC
• BLE: Supports BLE 5.2 protocol
• Digital inputs: x1 positive trigger input for ignition detection; x3 negative trigger inputs
• Analog inputs: x1 analog input (0V ~ 16V); x1 analog input (0V ~ 32V)
• Digital output: x1 digital output, normally open
• Latched digital output: x1 digital output with internal latch, normally open, 150 mAh maximum current (Reserved)
• GSM antenna: Internal only
• GNSS antenna: Internal only
• BLE antenna: Internal only

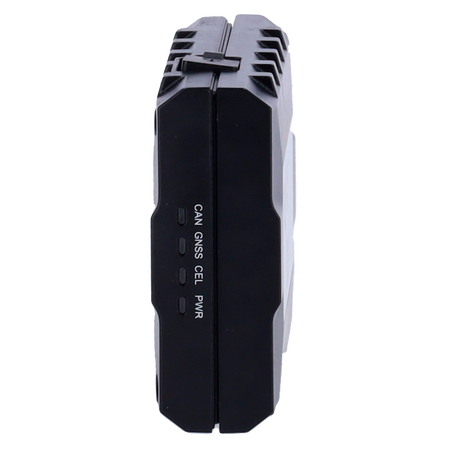

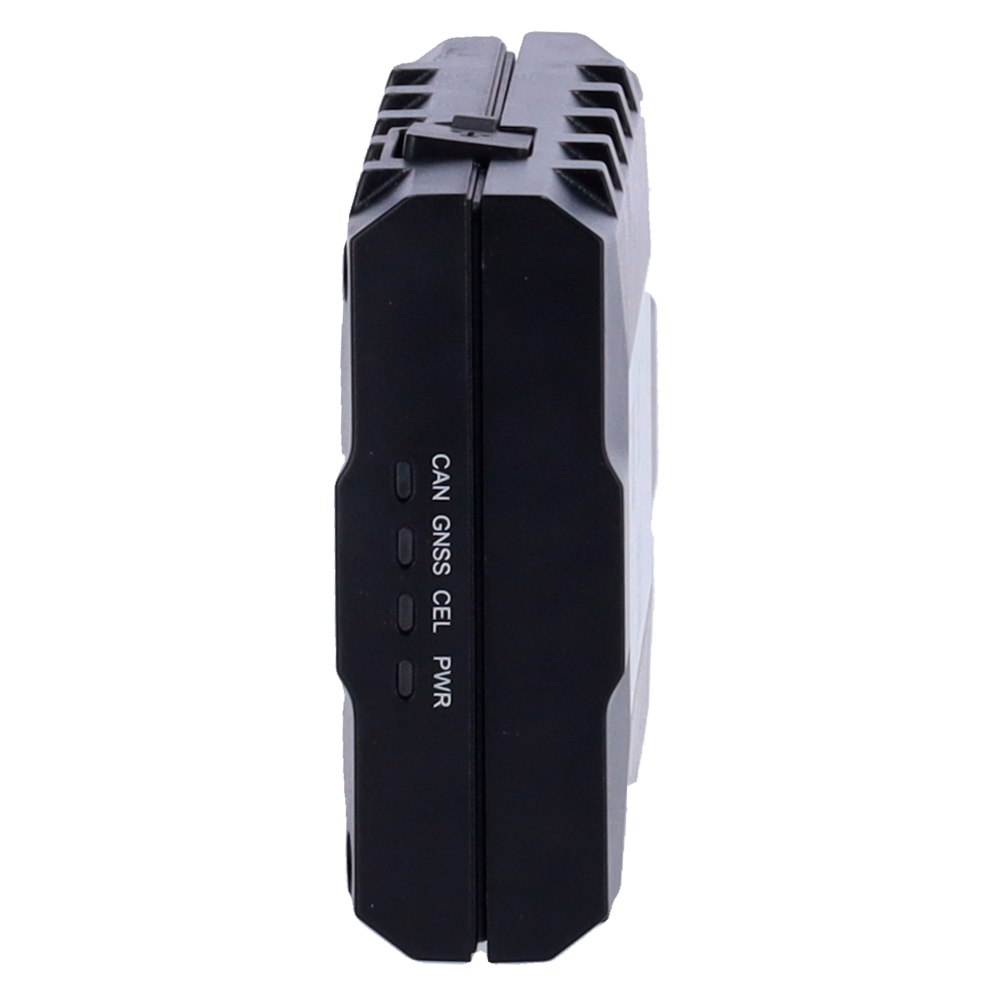

• LED indicators: CEL, GNSS, Power, CAN/J1708/Tachograph status

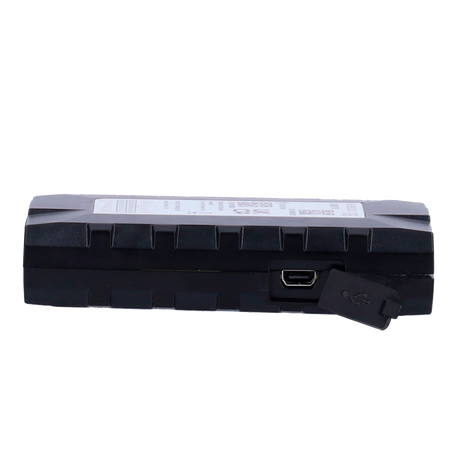

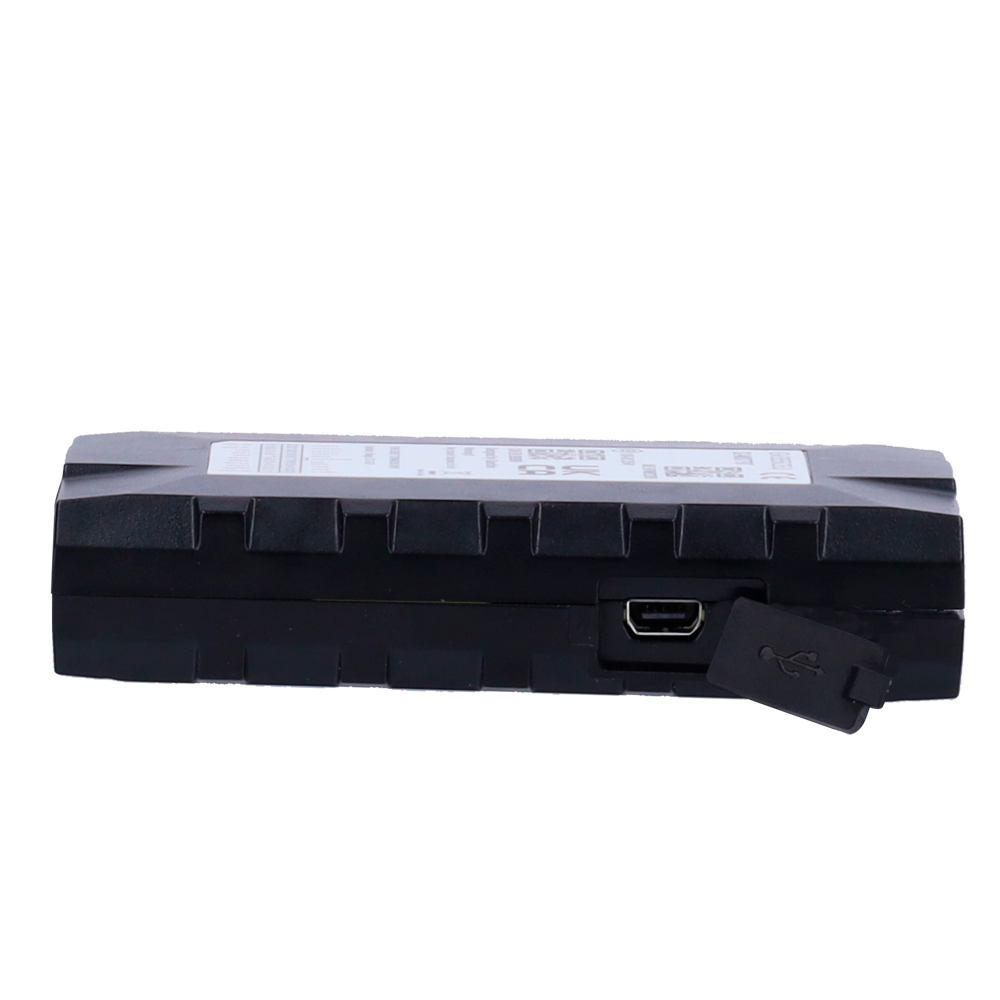

• Micro USB interface: For configuration, upgrading, and debugging
• 1-wire interface: x1 (supports 1-wire temperature sensors and iButton readers)
• Serial ports: x1 RS232; x1 RS485
• Configurable I/O: x1 digital input/output
• CAN interface: CAN1H/CAN1L: Supports CAN bus reading on heavy vehicles (J1939/FMS) and light vehicles; CAN2H/CAN2L: Supports tachograph data reading and downloading; Supports CAN data reading on J1708 and OBDII
• K-line: Connects to D8 of the tachograph for real-time reading
• Scheduled reports: Positioning and status based on time intervals, distance, mileage, or a combination of these parameters
• Geo-fence: Geo-fence and parking alarm, supports up to 20 areas
• Driver behavior monitoring: Detection of aggressive driving, including harsh braking, acceleration, etc.
• Collision detection: Collection of accident data for reconstruction and analysis
• Special alarm: Special alarms based on digital inputs/outputs
• Remote control: OTA control of digital outputs
📦 INCLUDED:

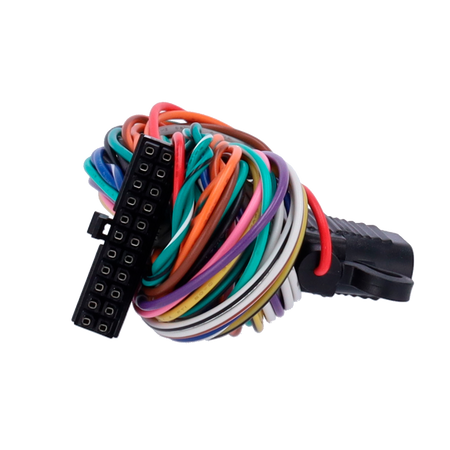

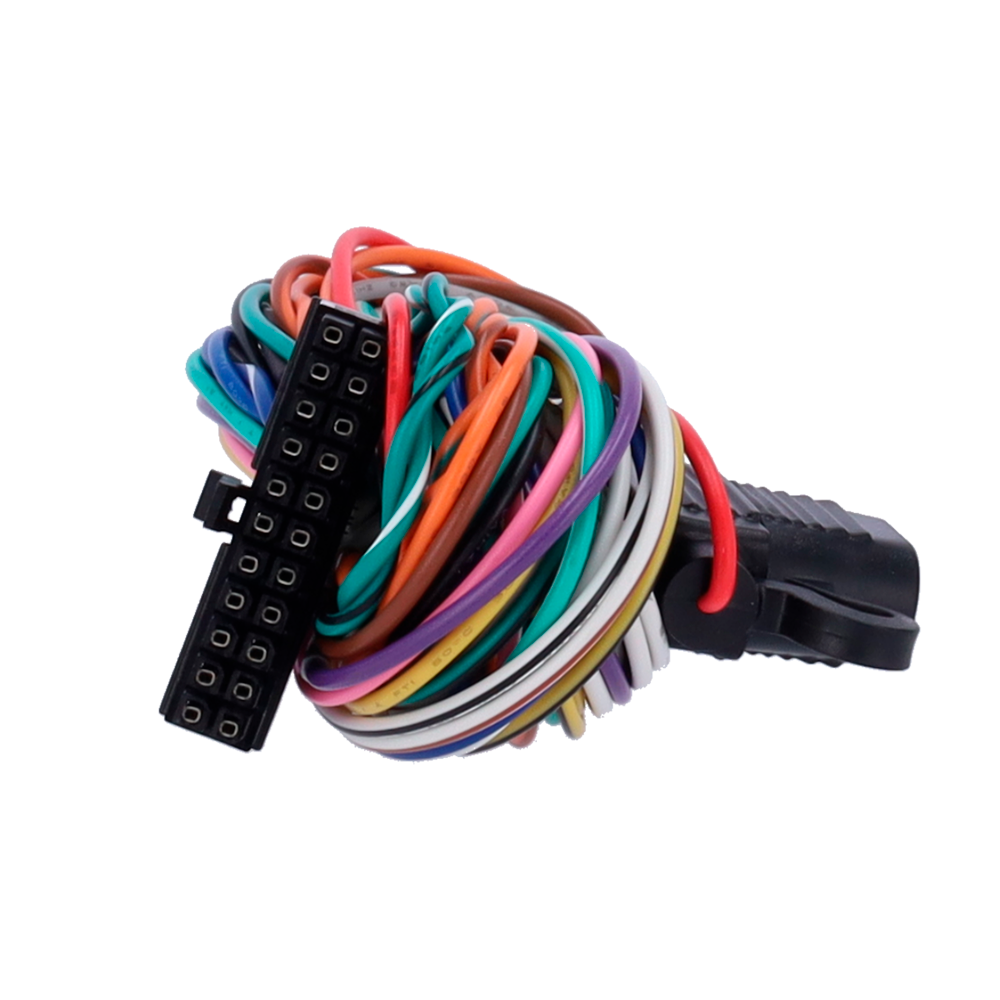

• Device + cable• Screws
| Model | GV355CEU |
|---|---|
| Installation | Hardwired connection |
| Operating band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| Frequency | 850/900/1800/1900 MHz |
| GNSS type | u-blox all-in-one GNSS receiver |
| Positioning accuracy (CEP) | Standalone: < 2.0m |
| Dimensions | 94(L) x 58.5(W) x 21(H) |
| Weight | 92g |
| Backup battery | Lithium polymer, 250 mAh |
| Power supply | 8V to 32V DC |
| Operating temperature | -30ºC ~ +70ºC |
| BLE | Supports BLE 5.2 protocol |
| Digital inputs | x1 positive trigger input for ignition detection x3 negative trigger inputs |
| Analog inputs | x1 analog input (0V ~ 16V) x1 analog input (0V ~ 32V) |
| Digital output | x1 digital output, normally open |
| Latching digital output | x1 digital output with internal latch, normally open, 150 mAh maximum current (Reserved) |
| GSM antenna | Internal only |
| GNSS antenna | Internal only |
| BLE antenna | Internal only |
| LED indicators | CEL, GNSS, Power, CAN/J1708/Tachograph status |
| Micro USB interface | For configuration, upgrades, and debugging |
| 1-wire interface | x1 (supports 1-wire temperature sensors and iButton readers) |
| Serial ports | x1 RS232 x1 RS485 |
| Configurable I/O | x1 digital input/output |
| CAN interface | CAN1H/CAN1L: Supports CAN bus reading for heavy-duty vehicles (J1939/FMS) and light vehicles CAN2H/CAN2L: Supports tachograph data reading and downloading Supports CAN data reading on J1708 and OBDII |
| K-Line | Connects to D8 of the tachograph for real-time reading |
| Scheduled reports | Positioning and status based on time intervals, distance, mileage, or a combination of these parameters |
| Geo-fence | Geo-fence and parking alarm, supports up to 20 areas |
| Driver behavior monitoring | Harsh driving detection, including hard braking, acceleration, etc. |
| Collision detection | Incident data collection for reconstruction and analysis |
| Special alarm | Special alarms based on digital inputs/outputs |
| Remote control | OTA control of digital outputs |
