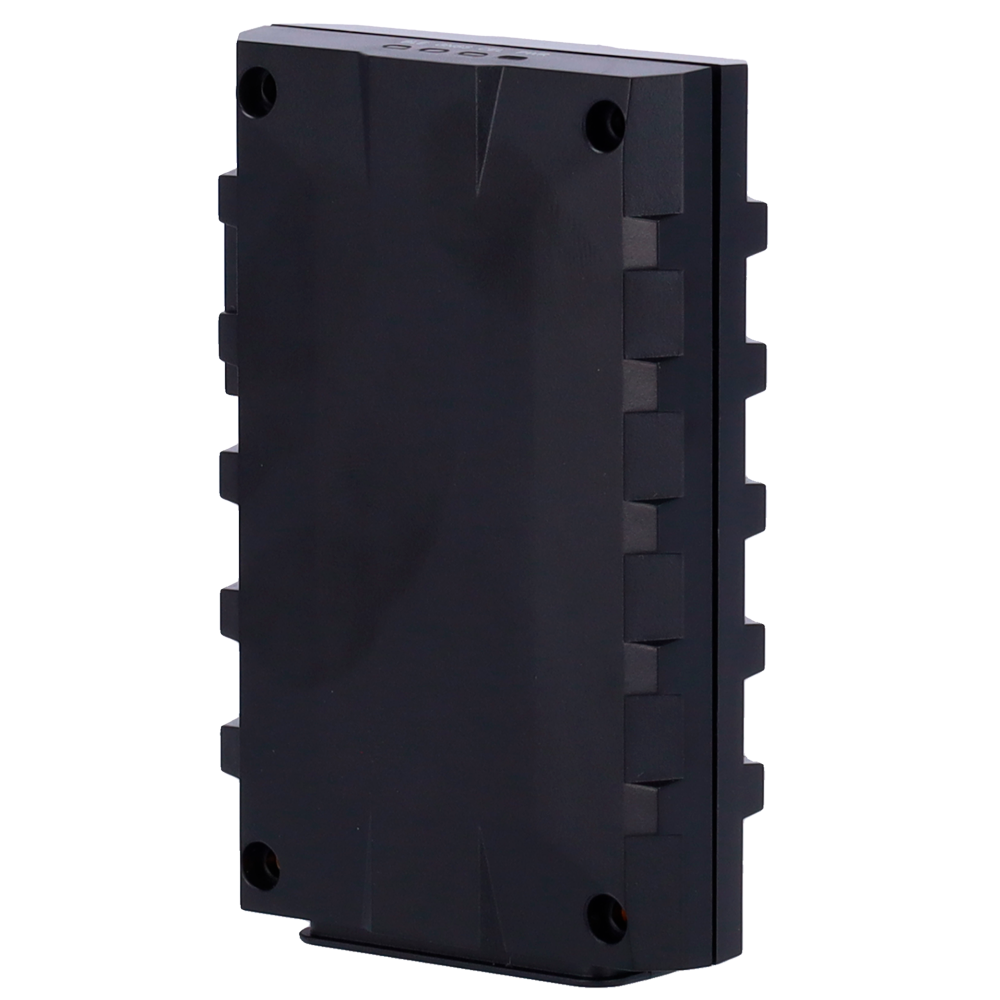

Advanced tracker with multiple Queclink interfaces
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Advanced tracker with multiple interfaces - 4G LTE Cat 1 - RS485 and RS232 - BLE 5.2 - Compatibility with numerous accessories
📋 SPECIFICATIONS:
• Operating band: LTE-FDD: B1/B3/B7/B8/B20/B28
• Data transmission: LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
• EGPRS frequency: 900/1800 MHz
• EGPRS data transmission: EDGE: (DL) Max 236.8Kbps/(UL)Max 236.8Kbps; GPRS: (DL)Max 85.6Kbps/(UL)Max 85.6Kbps
• Dimensions: 95 x 58.5 x 21mm
• Weight: 92g
• Backup battery: 250mAh Lithium polymer
• Operating voltage: 8 to 32 VDC
• Operating temperature: -30℃ ~ +70℃
• BLE: 5.2
• GNSS type: u-blox all-in-one receiver
• Constellations: GPS, Glonass, Galileo, Beidou
• Sensitivity: Cold start: -148 dBm; Hot start: -160 dBm; Tracking: -167 dBm
• Positioning accuracy (CEP): Autonomous <2m
• TTFF (open field): Cold start: 24 s average; Hot start: 1 s average

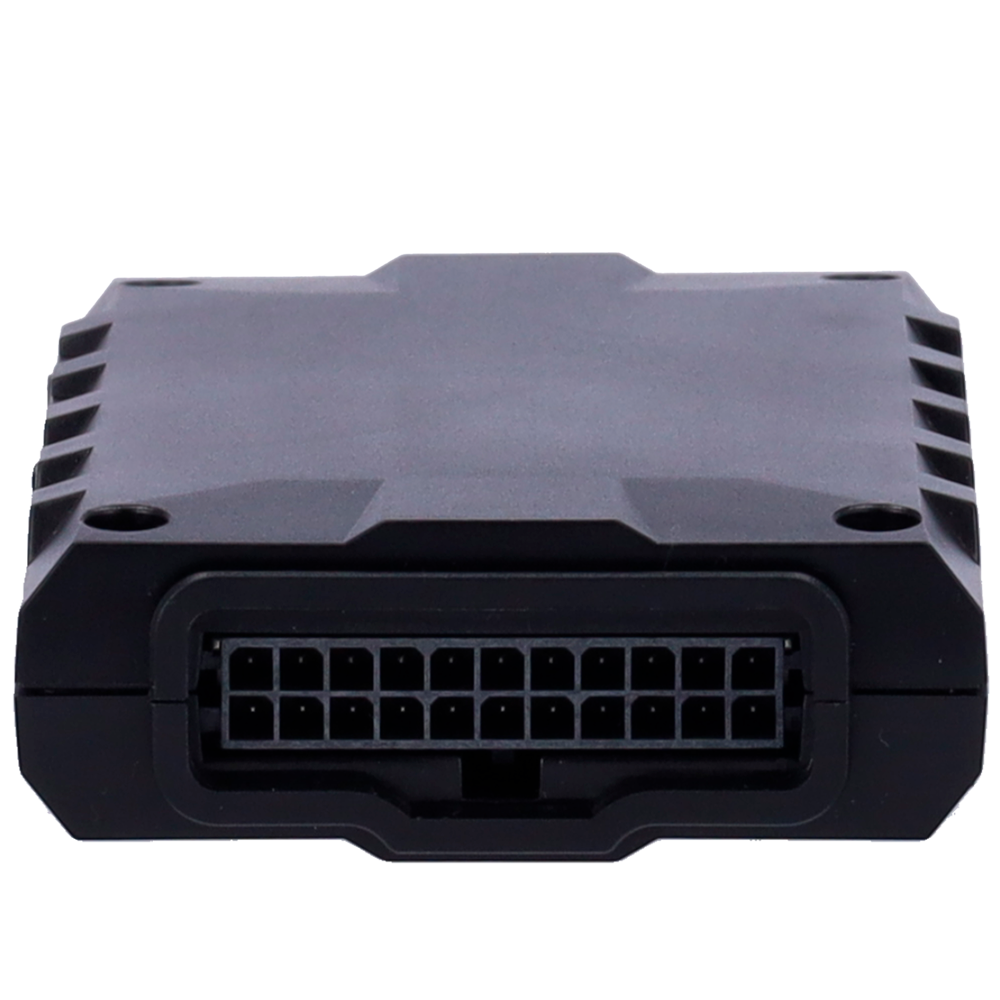

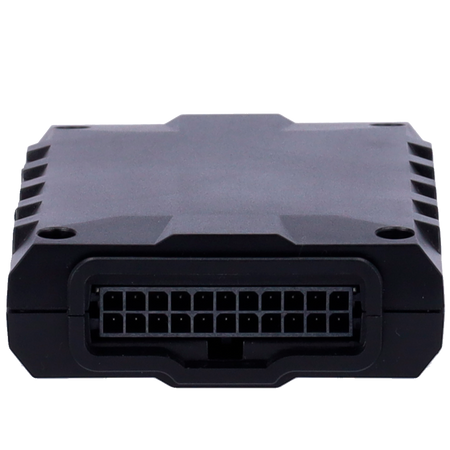

• Interfaces: 1 positive trigger input for ignition detection; 4 negative trigger inputs for normal use; 2 analog inputs (0 V-16 V), 1 analog input (0-30 V); 6 digital outputs; 1 digital output, with internal latch circuit, open drain, 150 mA maximum drive current; 1 RS232 serial port on 22-pin Molex type connectors, for external devices. 1 RS485 serial port on 22-pin Molex type connectors, for external devices.
• Cellular antenna: Internal only
• GNSS antenna: Internal antenna
• BLE antenna: Internal only

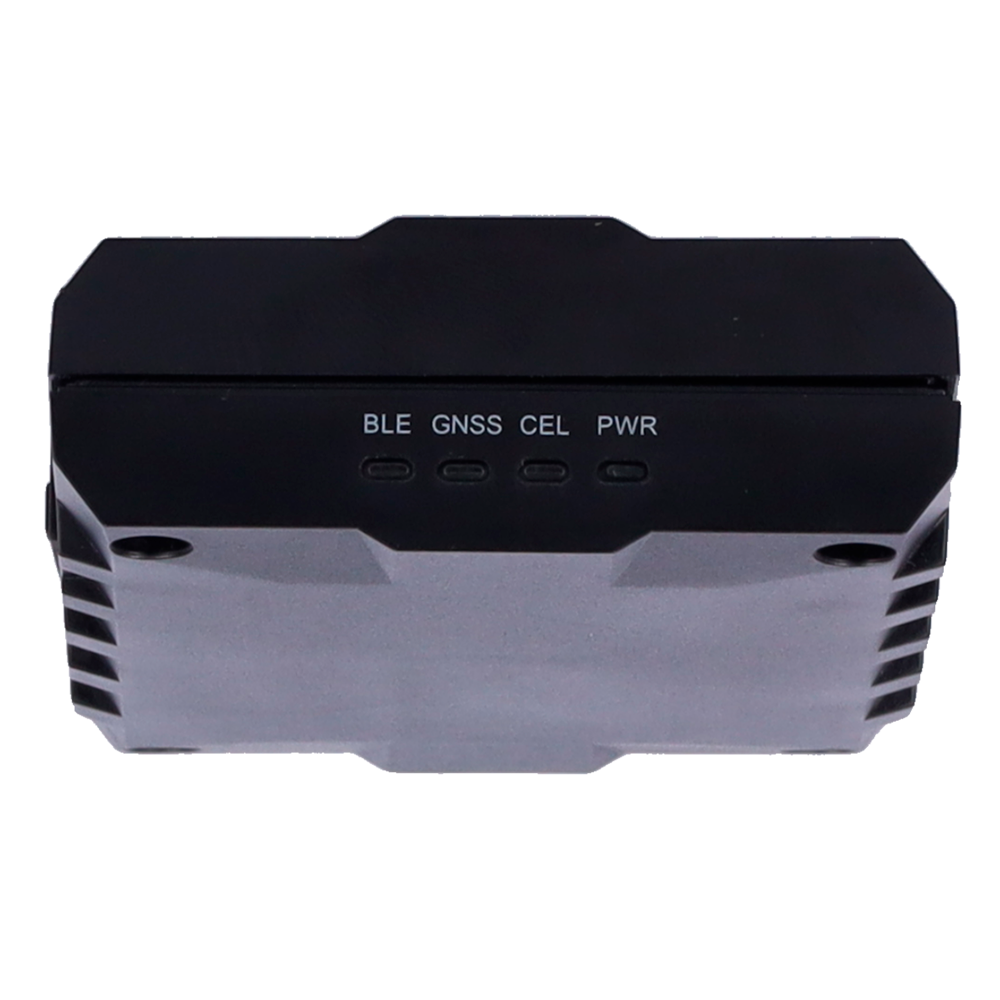

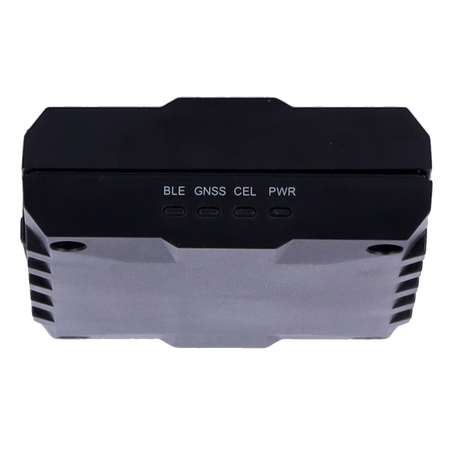

• LED indicators: Cellular network, GNSS, power status, BLE status
• USB: For configuration, update, and debug
• 1-Wire: VDD, DATA for 1-wire
• Transmission protocol: TCP, UDP, SMS
• Reporting: Position and status reporting based on preset time intervals, distance, mileage, or a combination of these settings
• Geofence: Up to 20 zones
• Alarms: Low battery; Ignition; Towing; Driver behavior; Collision; Alarm inputs
• Remote control: OTA of digital outputs
📦 INCLUDED:
• Tracker
• Wiring harness
| Operating band | LTE-FDD: B1/B3/B7/B8/B20/B28 |
|---|---|
| Data transmission | LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL) |
| EGRPS frequency | 900/1800 MHz |
| EGRPS data transmission | EDGE: (DL) Max 236.8Kbps/(UL)Max 236.8Kbps GPRS: (DL)Max 85.6Kbps/(UL)Max 85.6Kbps |
| Dimensions | 95 x 58.5 x 21mm |
| Weight | 92g |
| Backup battery | 250mAh Lithium polymer |
| Operating voltage | 8 to 32 VDC |
| Operating temperature | -30℃ ~ +70℃ |
| BLE | 5.2 |
| GNSS type | u-blox all-in-one receiver |
| Constellations | GPS, Glonass, Galileo, Beidou |
| Sensitivity | Cold start: -148 dBm Hot start: -160 dBm Tracking: -167 dBm |
| Positioning accuracy (CEP) | Autonomous <2m |
| TTFF (open sky) | Cold start: 24s average Hot start: 1s average |
| Interfaces | 1 positive trigger input for ignition detection 4 negative trigger inputs for normal use 2 analog inputs (0V-16V), 1 analog input (0-30V) 6 digital outputs 1 digital output, one with internal latch circuit, open drain, maximum drive current 150mA 1 RS232 serial port on 22-pin Molex type connectors, for external devices. 1 RS485 serial port on 22-pin Molex type connectors, for external devices. |
| Cellular antenna | Internal only |
| GNSS antenna | Internal antenna |
| BLE antenna | Internal only |
| LED indicators | Cellular network, GNSS, power status, BLE status |
| USB | For configuration, upgrade and debugging |
| 1 wire | VDD, DATA for 1 wire |
| Transmission protocol | TCP, UDP, SMS |
| Reporting | Position and status reports based on preset time intervals, distance, mileage, or a combination of these settings |
| Geofences | Up to 20 zones |
| Alarms | Low battery, Power on, Towing, Driver behavior, Collision, Alarm inputs |
| Remote control | OTA of digital outputs |
