WCDMA/GSM Queclink multiple interfaces
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
WCDMA/GSM - Multiple interfaces - Supports various accessories, CAN adapter and sensors - fleet management, cold chain and transport supervision
📋 SPECIFICATIONS:
• Brand: Queclink

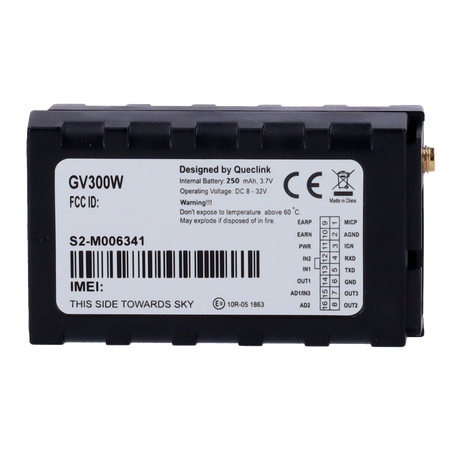

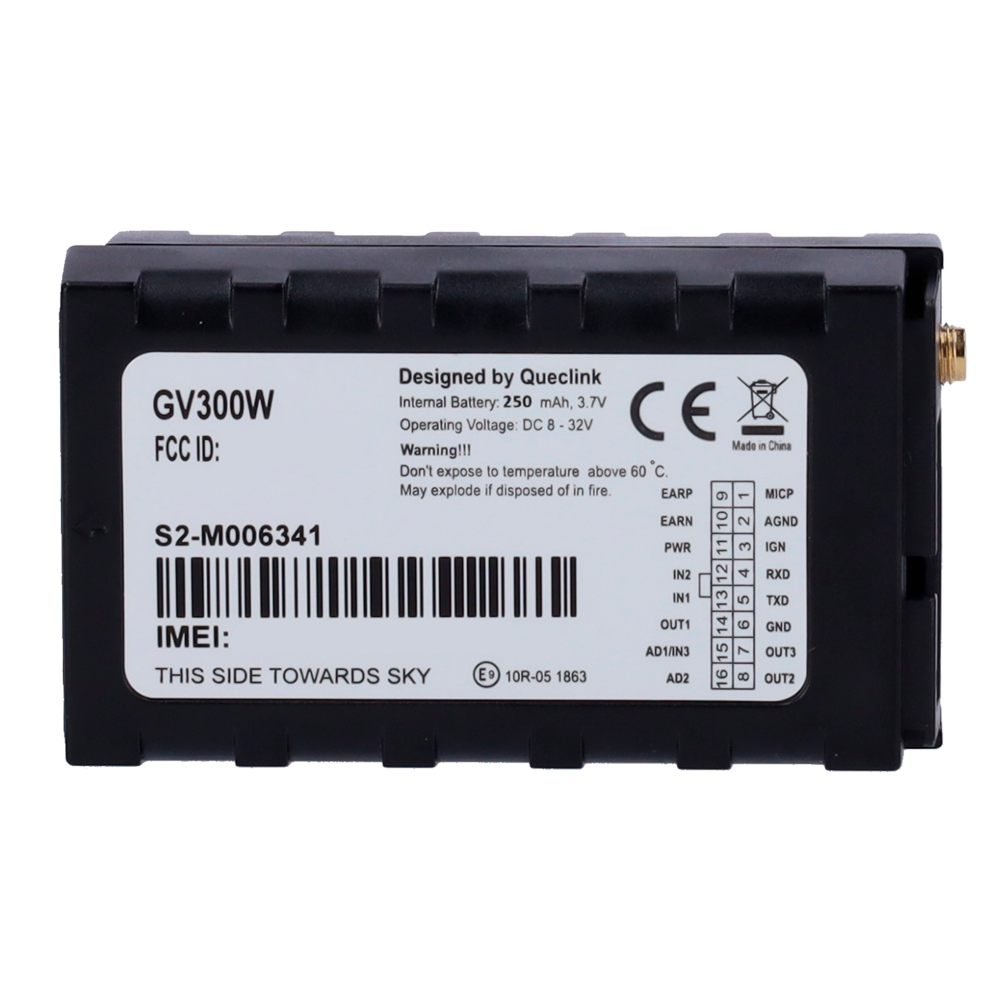

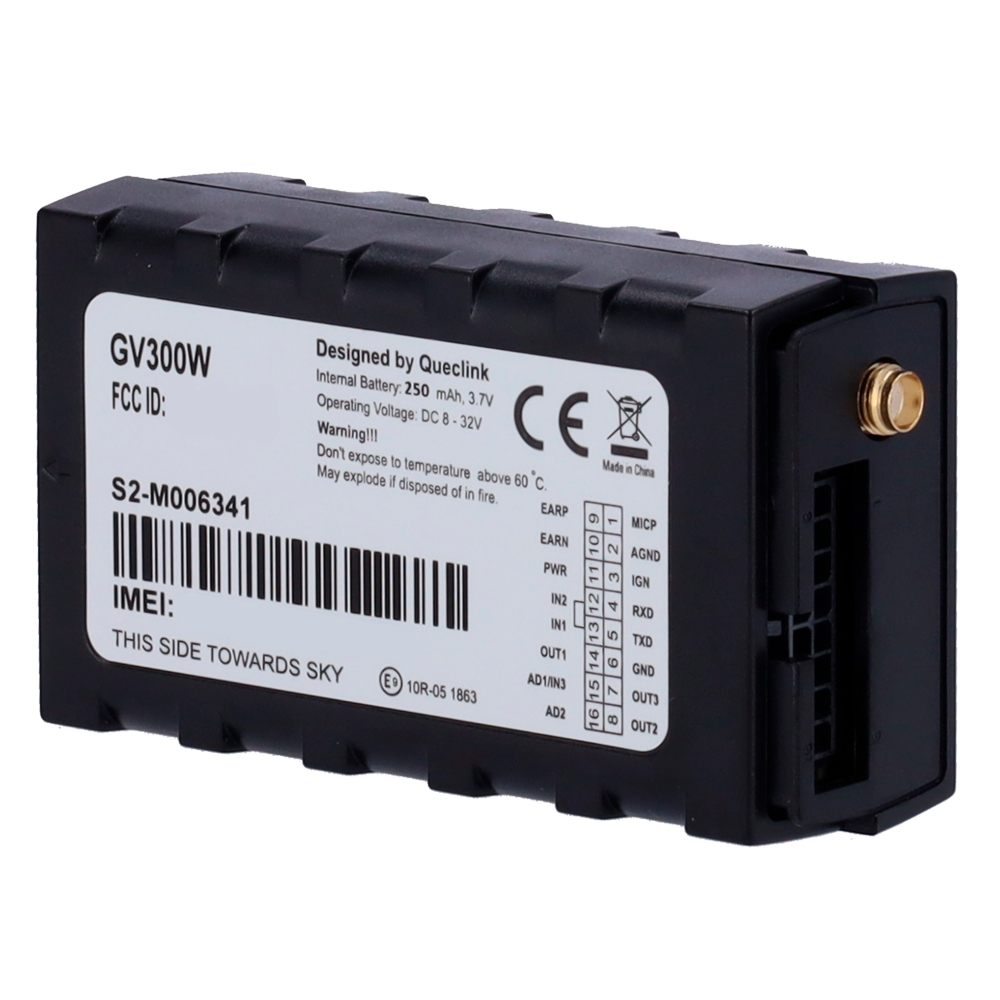

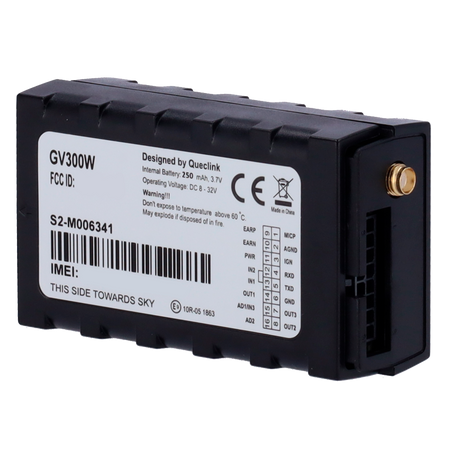

• Model: GV300W
• Installation: Internal vehicle wiring connection
• Frequency: GSM: 850 / 900 / 1800 / 1900 MHz; Compatible with GSM phase 2/2+; -Class 4 (2W @ 850/900 MHz); -Class 1 (1W @ 1800/1900 MHz)
• GPRS: GPRS multi-slot Class 12 (10 by default); GPRS mobile station class B
• UMTS Frequency: UMTS 850 / 1900 / 2100 MHz; UMTS Class 3 (0.25W@ 850 / 1900 / 2100 MHz)
• HSPA data transmission: HSDPA: Max 3.6Mbps (DL); WCDMA: Max 384Kbps (DL) / Max 384Kbps (UL)
• GNSS receiver type: u-blox all-in-one GNSS receiver
• GNSS sensitivity: Autonomous: -147 dBm; Hot start: -156 dBm; Re-acquisition: -160 dBm; Tracking: -162 dBm
• Position accuracy (CEP): Autonomous: < 2.5m
• TTFF (open sky): Cold start: 27s approx; Warm start: 27s approx; Hot start: 1s approx
• Dimensions: 80(L) x 49(W) x 26(H)
• Weight: 72g
• Battery: Li-Polymer 250 mAh
• Operating voltage: 8V to 32V DC
• Operating temperature: -30°C ~ +70°C; -40℃ ~ +70℃ for storage
• Message buffer: Up to 10,000 messages
• Digital inputs: 1 positive digital input for ignition detection; 2 negative digital inputs for general use
• Configurable input: 1 special input configurable as negative digital input or analog input (0V-16V)
• Analog inputs: 1 analog input (0.3V-16V)
• Digital outputs: 2 digital outputs, open collector/drain, maximum output current 150 mA
• Digital outputs (latched): 1 digital output with internal latch circuit, open collector/drain, maximum output current 150 mA

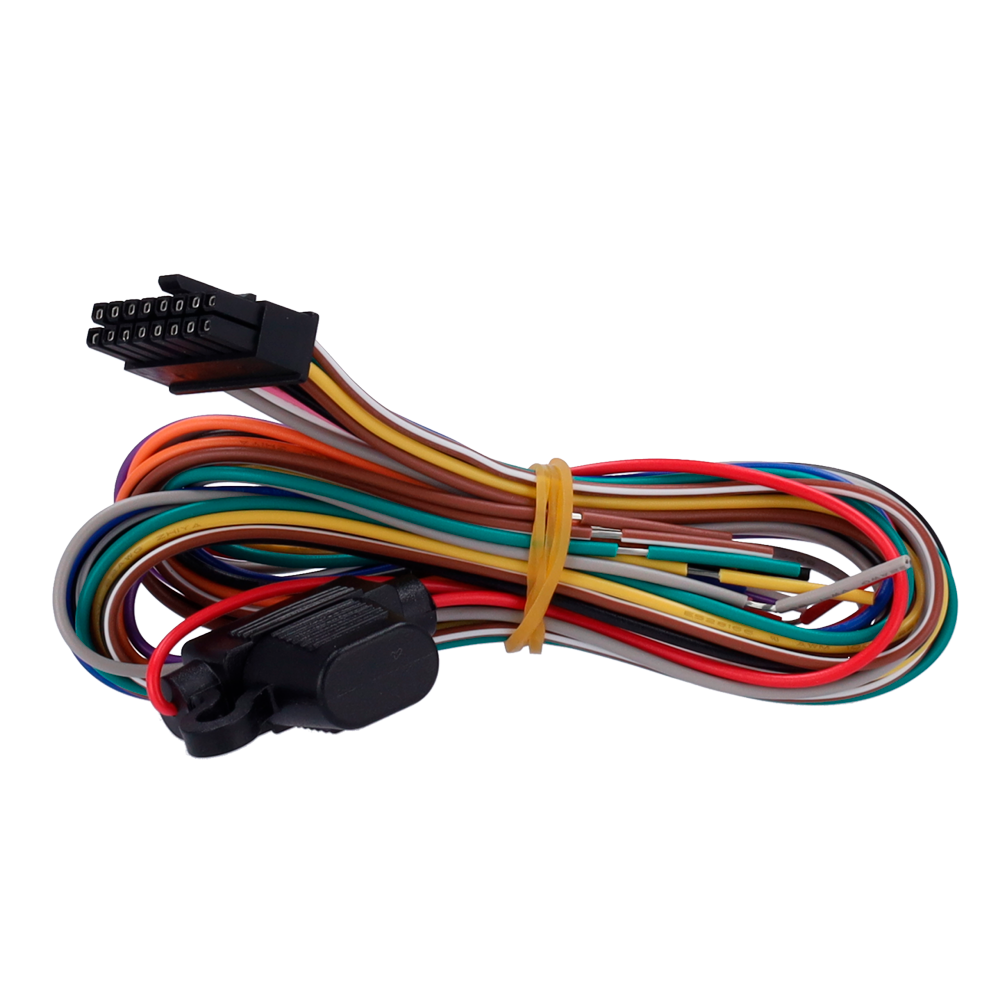

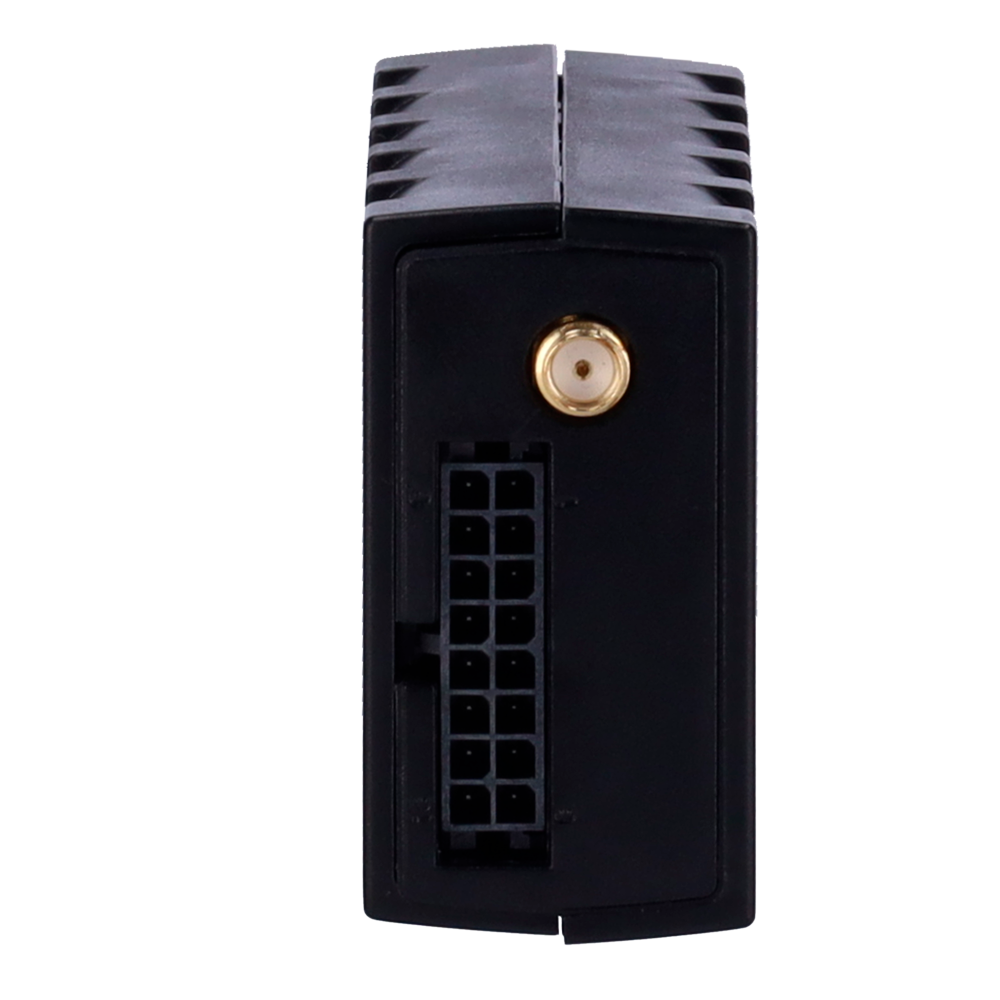

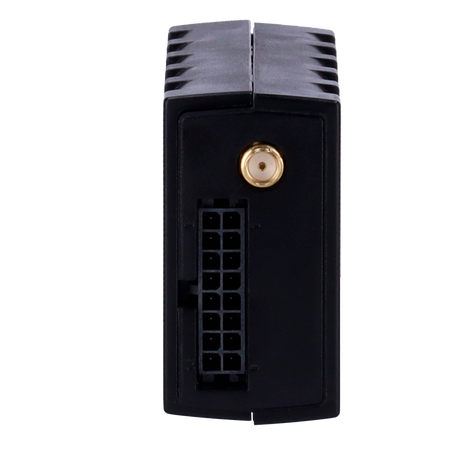

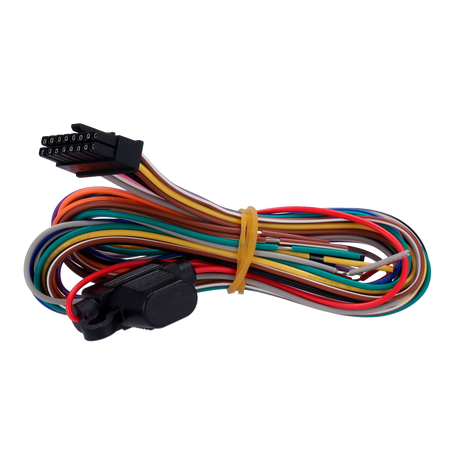

• Serial port: 1 RS232 serial port on a 16-pin molex connector for external devices (GARMIN protocol support)
• Two-way audio interface: 1 differential output; 1 single-ended input
• GSM antenna: Internal only
• GNSS antenna: Internal antenna and optional external antenna
• LED indicators: CEL, GNSS, PWR

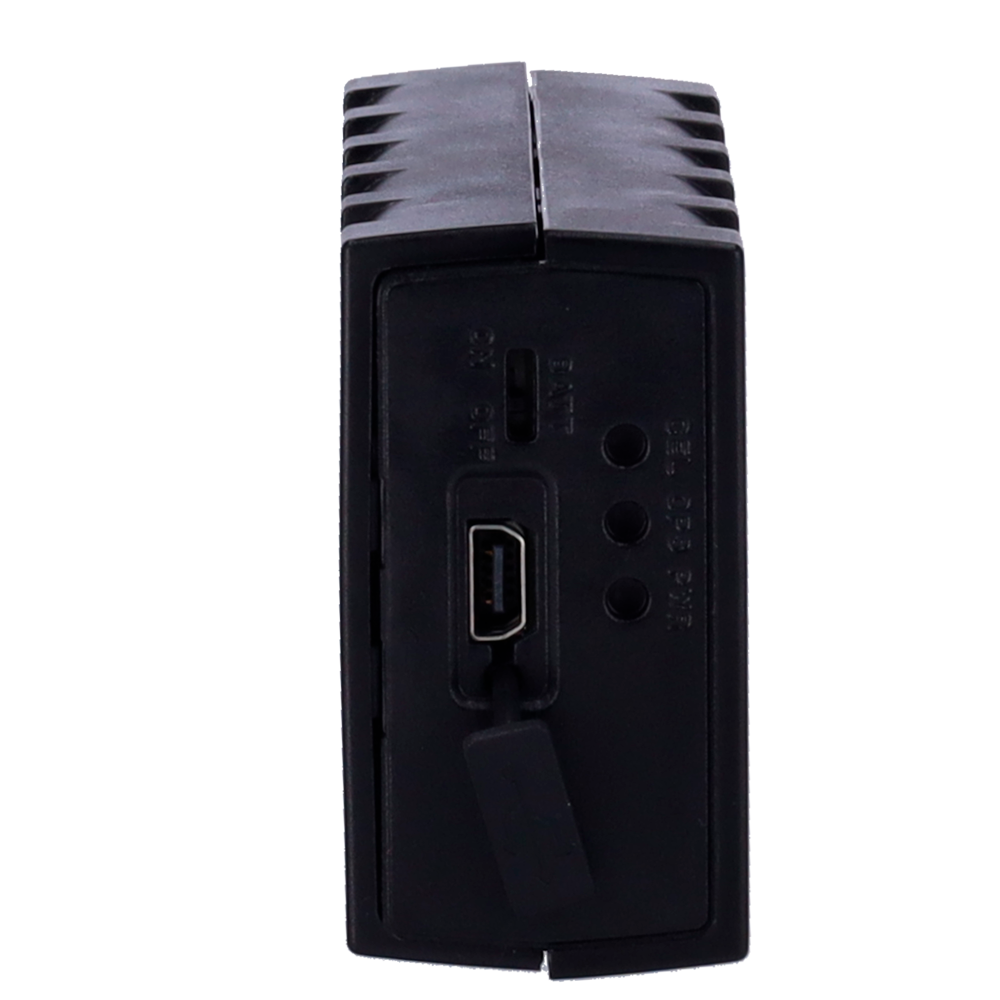

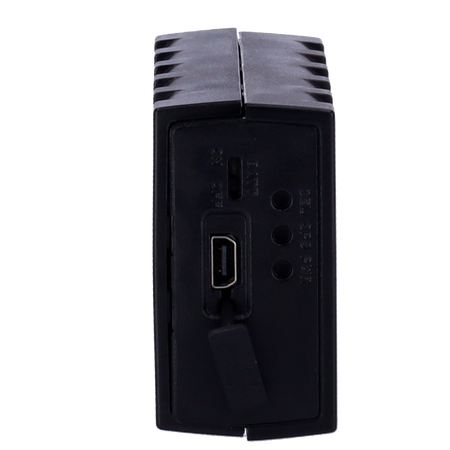

• Mini USB interface: For upgrading and configuration
• Transmission protocol: TCP, UDP, SMS
• Programmable report: Reports device status and position based on distance parameters, preset time intervals, mileage or a combination of these.
• Geo-fence: Geo-fence and parking based alarm; up to 20 geographic areas can be defined
• Battery report: Alerts when battery is low
• Ignition report: Reports when the device is powered on
• Towing alert: Towing alert active when the vehicle is off
• GNSS antenna disconnection alert: Alerts when the external GPS antenna is disconnected
• Driving behavior: Aggressive driving detection, including harsh braking, harsh acceleration, etc.
• Collision alert: Collection of incident data for accident reconstruction and analysis
• Special alarm: Special alarm based on digital and/or analog input triggering
• Remote control: Ability to control digital outputs remotely
| Model | GV300W |
|---|---|
| Installation | Vehicle internal wiring connection |
| Frequency | GSM: 850 / 900 / 1800 / 1900 MHz Compliant with GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz) |
| GPRS | GPRS multi-slot Class 12 (10 by default) GPRS mobile station class B |
| UMTS Frequency | UMTS 850 / 1900 / 2100 MHz UMTS Class 3 (0.25W@ 850 / 1900 / 2100 MHz) |
| HSPA Data Transmission | HSDPA: Max 3.6Mbps (DL) WCDMA: Max 384Kbps (DL)/ Max 384Kbps (UL) |
| GNSS Receiver Type | u-blox all-in-one GNSS receiver |
| GNSS Sensitivity | Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
| Position Accuracy (CEP) | Autonomous: < 2.5m |
| TTFF (Open Sky) | Cold start: ~27s Recent start: ~27s Hot start: ~1s |
| Dimensions | 80(W) x 49(L) x 26(H) |
| Weight | 72g |
| Battery | Lithium-polymer 250 mAh |
| Operating Voltage | 8V to 32V DC |
| Operating Temperature | -30°C ~ +70°C -40°C ~ +70°C for storage |
| Message Buffer | Up to 10,000 messages |
| Digital Inputs | 1 positive digital input for ignition detection 2 negative digital inputs for general use |
| Configurable Input | 1 special input configurable as negative digital input or analog input (0V-16V) |
| Analog Inputs | 1 analog input (0.3V-16V) |
| Digital Outputs | 2 digital outputs, open collector/drain, maximum output current 150 mA |
| Digital Outputs (latched) | 1 digital output with internal latch circuit, open collector/drain, maximum output current 150 mA |
| Serial Port | 1 RS232 serial port on a 16-pin Molex connector for external devices (GARMIN protocol support) |
| Two-way Audio Interface | 1 differential output 1 single-ended input |
| GSM Antenna | Internal only |
| GNSS Antenna | Internal antenna and optional external antenna |
| LED Indicators | CEL, GNSS, PWR |
| Mini USB Interface | For upgrade and configuration |
| Transmission Protocol | TCP, UDP, SMS |
| Programmable Report | Reports device status and position based on distance parameters, preset time intervals, mileage, or a combination of these. |
| Geo-fence | Geo-fence and parking-based alarm; Up to 20 geo-fence areas can be defined |
| Battery Report | Alerts when the battery is low |
| Ignition Report | Reports when the device is powered on |
| Tow Alarm | Tow alarm active when the vehicle is turned off |
| GNSS Antenna Disconnect Alarm | Alerts when the external GPS antenna is disconnected |
| Driving Behavior | Harsh driving detection, including harsh braking, harsh acceleration, etc. |
| Crash Detection | Collection of accident data for reconstruction and analysis |
| Special Alarm | Special alarm based on digital and/or analog input activation |
| Remote Control | Ability to control digital outputs remotely |
