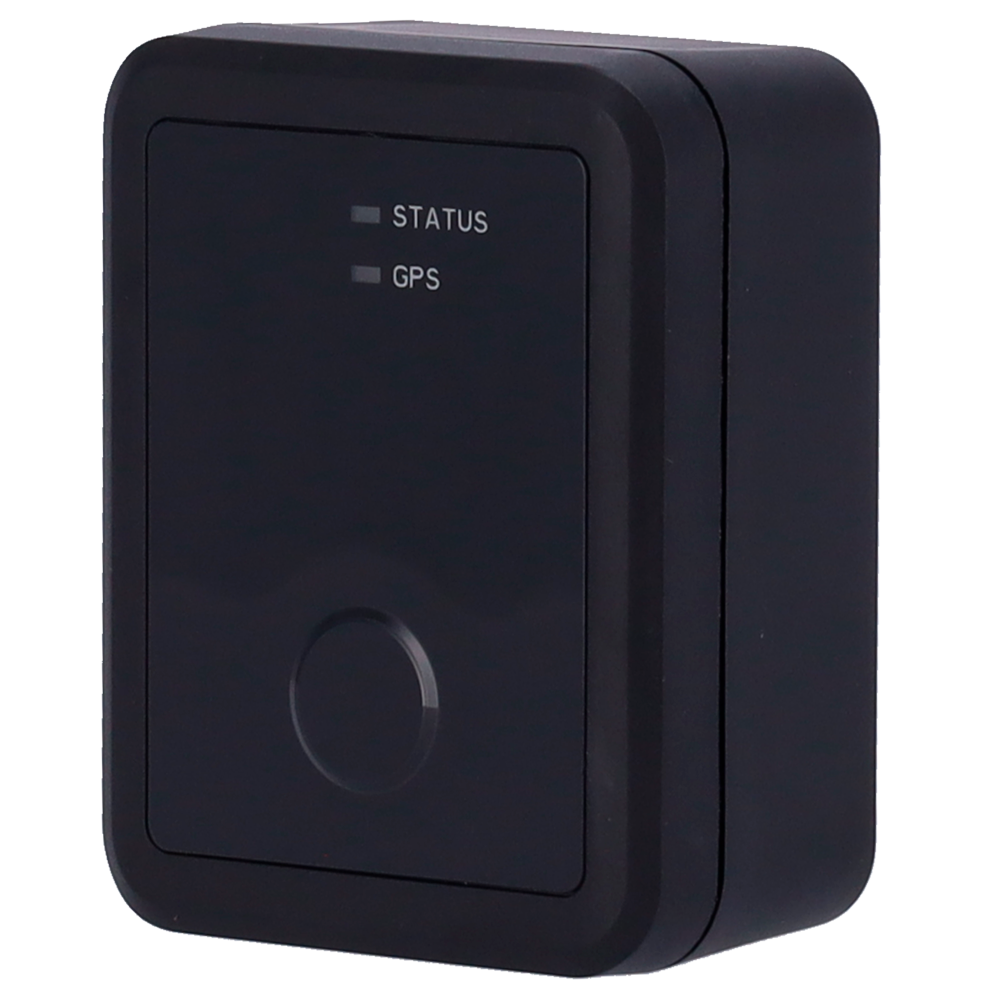

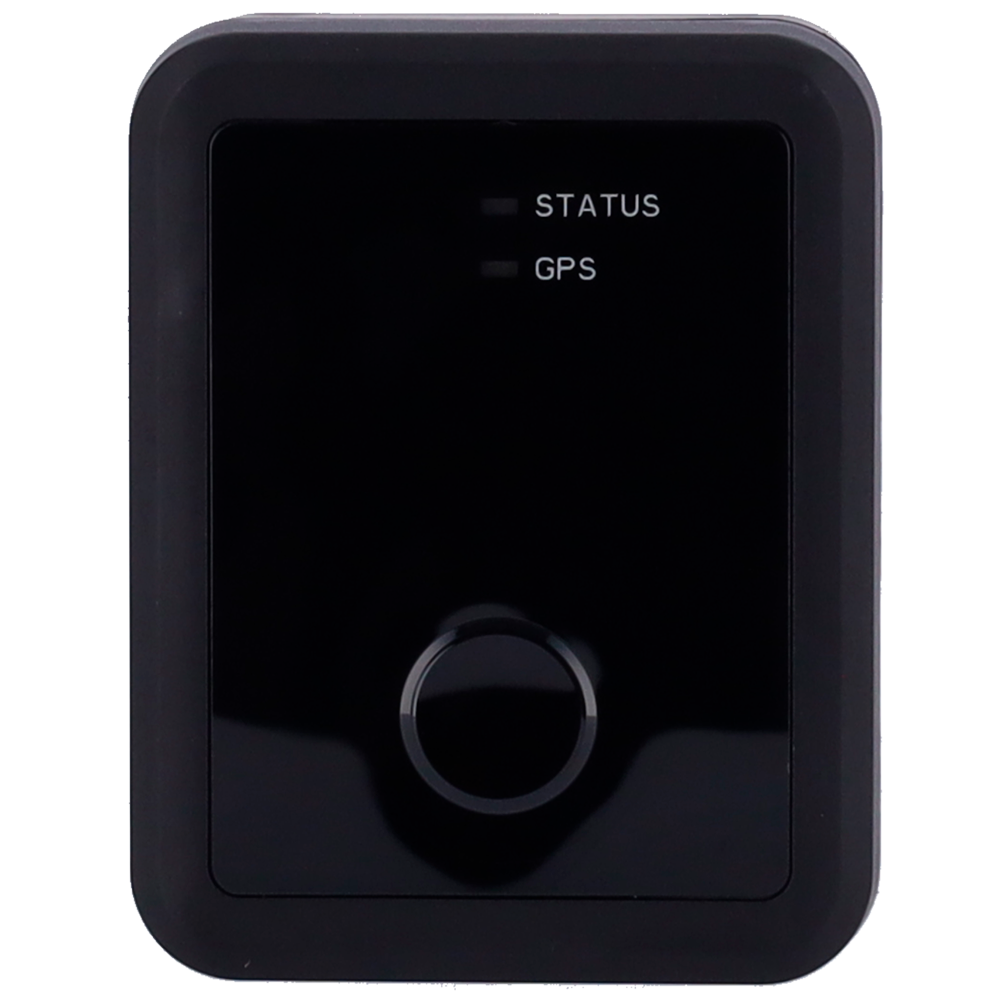

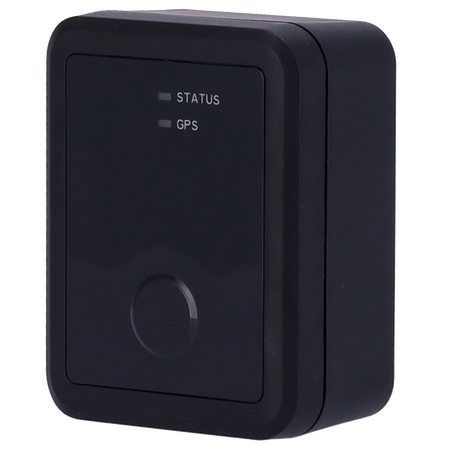

Queclink long-life IP67 IP tracker
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Long-life IP67 tracker - Single antenna Global LTE Cat M1/NB2 with 2G backup - Battery up to 4 years in standby - Compatible with battery (17600mA) and IP67 housing - Compact size - Supports BLE 5.2
📋 SPECIFICATIONS:
• Brand: Queclink
• Model: GL53MGPLUS
• Installation: Portable
• Operating band: Cat M1:; LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18 B19/B20/B25/B27/B28/B66/B85; Cat NB2:; LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
• LTE data transmission: eMTC (DL) 348 Kbps; eMTC (UL) 1.08 Mbps; NB2 (DL) 121 Kbps; NB2 (UL) 150 Kbps; NB1 (DL) 74.1 Kbps; NB1 (UL) 101 Kbps
• Frequency: 850/900/1800/1900 MHz
• EGPRS data transmission: GPRS: 107Kbps (DL) / 85.6Kbps (UL); EDGE: 296Kbps (DL) / 236.8Kbps (UL)
• GNSS type: All-in-one receiver
• Sensitivity: Autonomous: -148 dBm; Hot start: -163 dBm; Tracking: -165 dBm
• Position accuracy (CEP): Autonomous: <2.0m
• TTFF (open sky): Cold start: approx. 31 seconds; Warm start: approx. 28 seconds; Hot start: approx. 1 second
• Dimensions: 64.6(L) x 51(W) x 28.3(H)
• Weight: 93.5g
• Backup battery: Lithium manganese dioxide battery, 4400 mAh
• Battery life: With BLE off; Standby current: <5uA; Report sent 1 time per day - 4 years; Report sent 4 times per day - 480 days; Report sent every 5min - 16 days
• Water resistance: IP67
• BLE: Supports BLE 5.2
• External battery voltage: 3.7V to 4.2V DC
• Operating temperature: -20ºC ~ +60ºC
• Message buffer: Up to 10000 messages
• Function button: Used for power on/off and status check
• LTE antenna: Internal only
• GNSS antenna: Internal only
• BLE antenna: Internal only

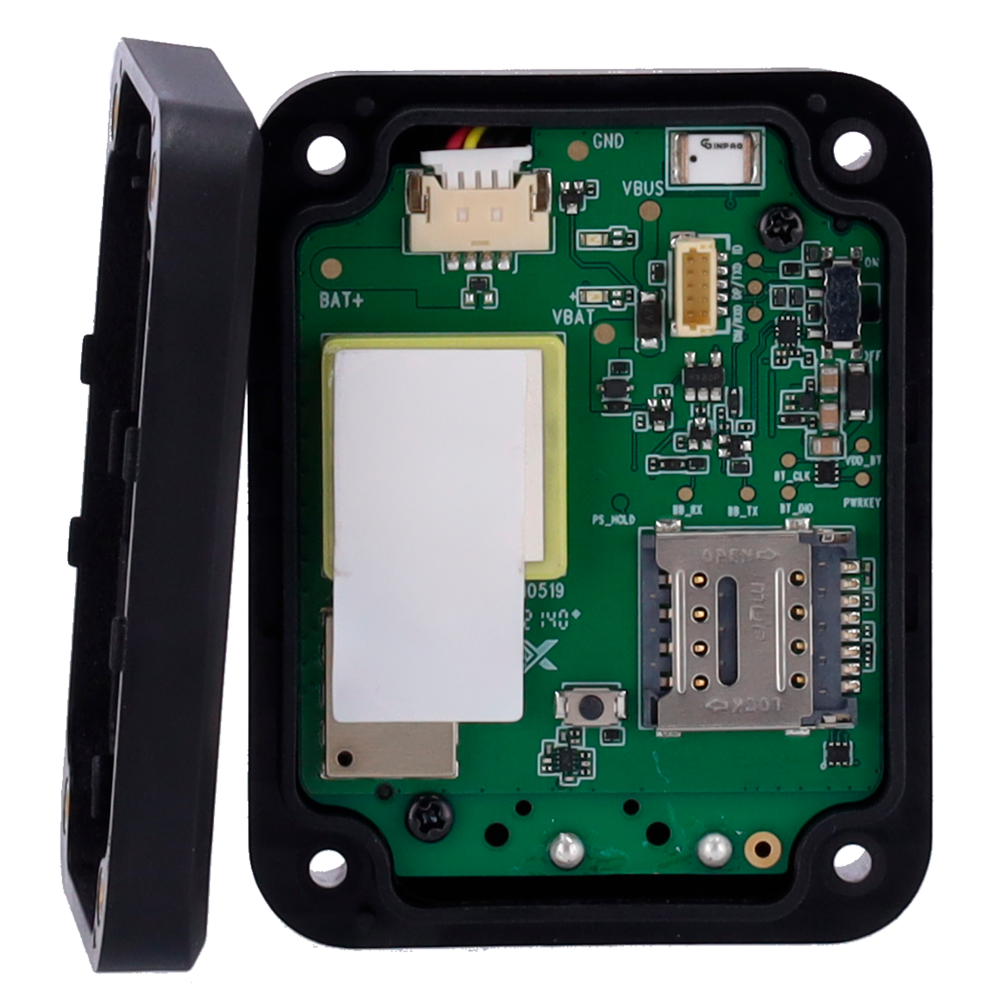

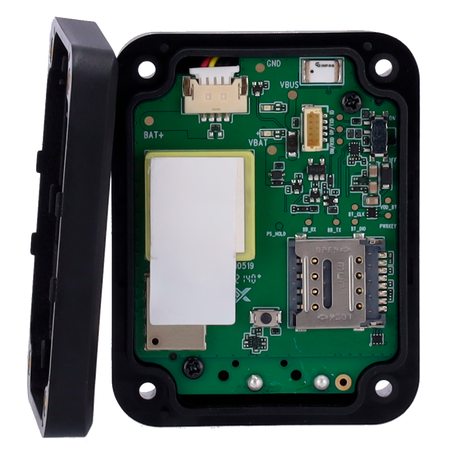

• SIM card: Internal only (3FF SIM)

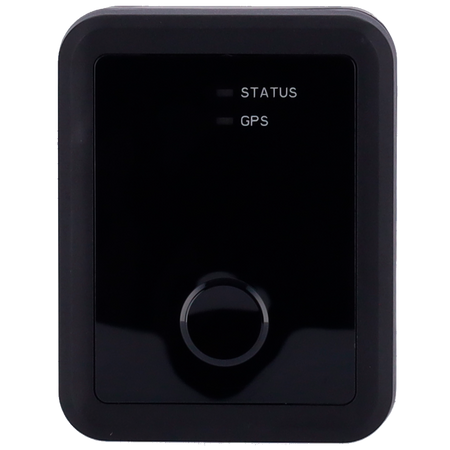

• LED indicators: Status, GNSS
• Commands: @track command protocol
• Transmission protocols: TCP, UDP, SMS
• Working modes: Power saving for long duration; Continuous mode for emergency tracking
• Scheduled reports: Position and status reports at time intervals
• Geo-fence: Supports up to 20 regions
• Low battery alarm: Alerts when the backup battery is low
• Power-on report: Notification at time intervals
• Motion detection: Detection based on 3-axis accelerometer
• Messages: Buffer up to 10000 messages
• Remote control: OTA control on digital outputs
| Model | GL53MGPLUS |
|---|---|
| Installation | Portable |
| Operating Band | Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18 B19/B20/B25/B27/B28/B66/B85 Cat NB2: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| LTE Data Transmission | eMTC (DL) 348 Kbps eMTC (UL) 1.08 Mbps NB2 (DL) 121 Kbps NB2 (UL) 150 Kbps NB1 (DL) 74.1 Kbps NB1 (UL) 101 Kbps |
| Frequency | 850/900/1800/1900 MHz |
| EGPRS Data Transmission | GPRS: 107Kbps (DL) / 85.6Kbps (UL) EDGE: 296Kbps (DL) / 236.8Kbps (UL) |
| GNSS Type | All-in-one receiver |
| Sensitivity | Autonomous: -148 dBm Hot start: -163 dBm Tracking: -165 dBm |
| Positioning Accuracy (CEP) | Autonomous: <2.0m |
| TTFF (open field) | Cold start: approx. 31 seconds Warm start: approx. 28 seconds Hot start: approx. 1 second |
| Dimensions | 64.6(L) x 51(W) x 28.3(H) |
| Weight | 93.5g |
| Backup Battery | Lithium manganese dioxide battery, 4400 mAh |
| Battery life | With BLE off Standby consumption: Reporting 1 time per day - 4 years Reporting 4 times per day - 480 days Reporting every 5min - 16 days |
| Water resistance | IP67 |
| BLE | Supports BLE 5.2 |
| External battery voltage | 3.7V to 4.2V DC |
| Operating temperature | -20ºC ~ +60ºC |
| Message buffer | Up to 10000 messages |
| Function button | Used for power on/off and status check |
| LTE antenna | Internal only |
| GNSS antenna | Internal only |
| BLE antenna | Internal only |
| SIM card | Internal only (3FF SIM) |
| LED indicators | Status, GNSS |
| Commands | @track command protocol |
| Transmission protocols | TCP, UDP, SMS |
| Working mode | Power saving for long duration Continuous mode for emergency tracking |
| Scheduled reports | Position and status report at time intervals |
| Geo-fence | Supports up to 20 regions |
| Low battery alarm | Alerts when the backup battery is low |
| Power-on report | Notifies at time intervals |
| Motion detection | Detection based on 3-axis accelerometer |
| Messages | Buffer up to 10000 messages |
| Remote control | OTA control of digital outputs |
