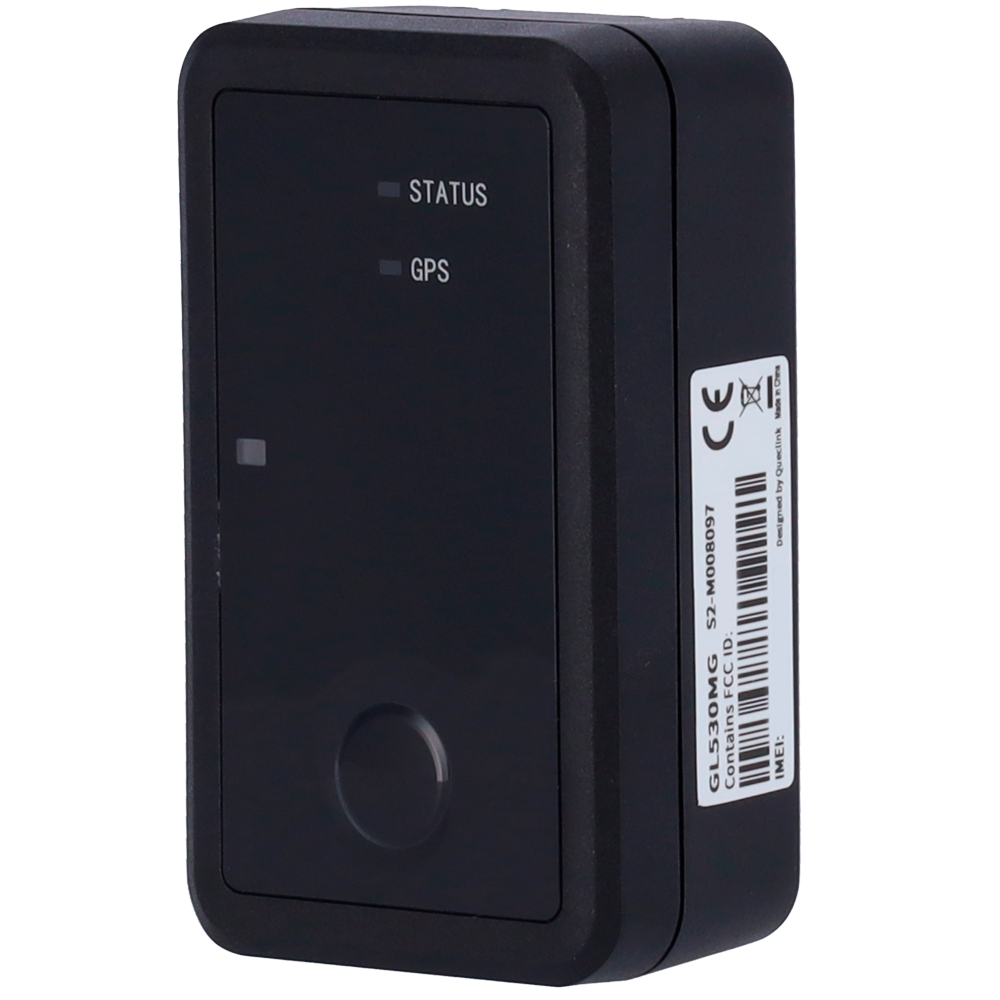

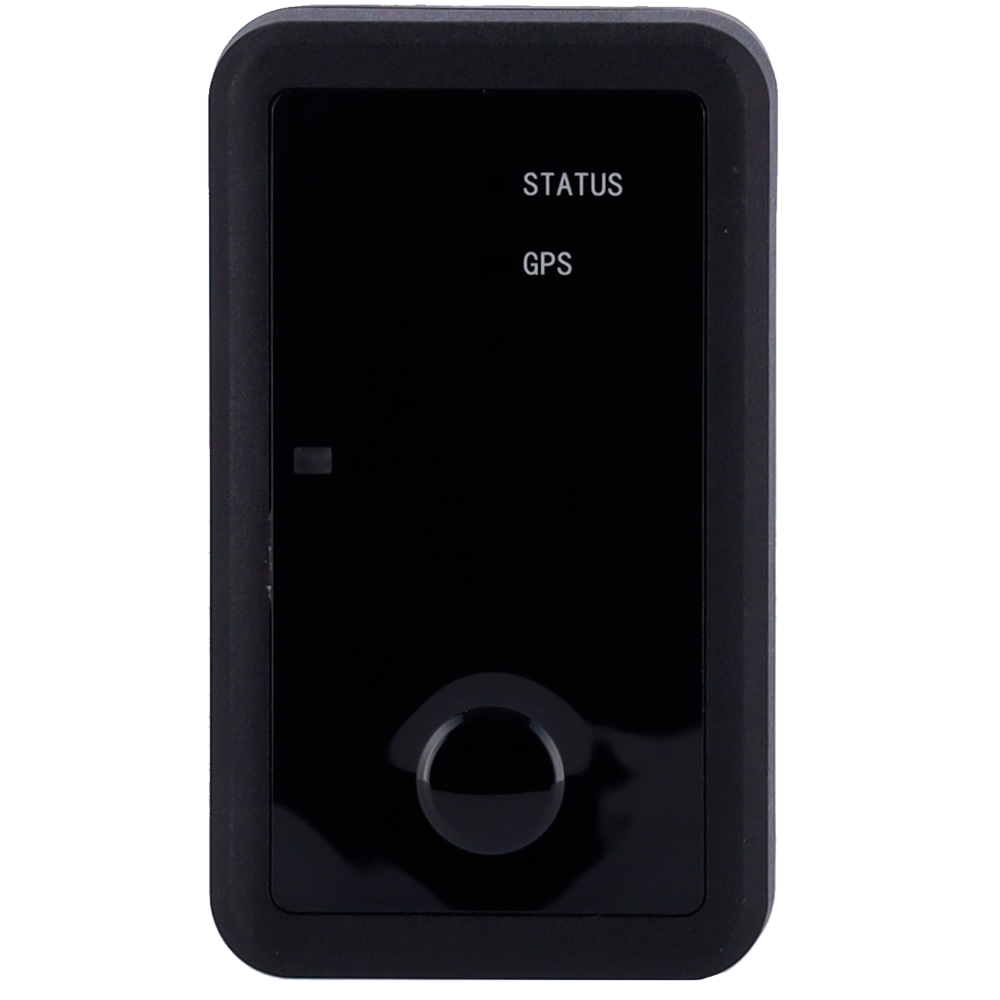

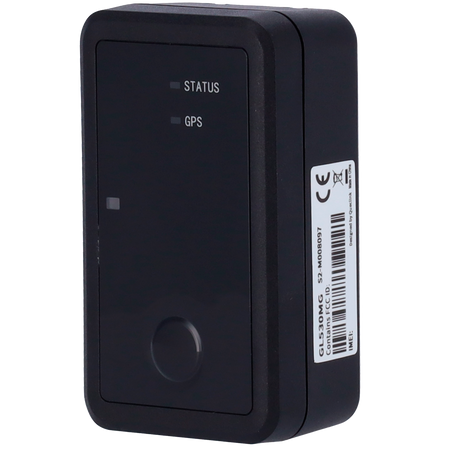

Global LTE Cat M1/NB2 with 2G with a single Queclink antenna - Waterproof, IP67 compliant
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Global LTE Cat M1/NB2 with 2G with a single antenna - Battery life up to 7 years - Waterproof, IP67 compliant - Quick and flexible installation - Ideal for asset tracking and lot management
📋 SPECIFICATIONS:
• Brand: Queclink
• Model: GL530MG
• Installation: Flexible
• Operating band: LTE Cat M1/NB2; Cat M1:; B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/; B27/B28/B66/B85; Cat NB2:; B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/; B28/B66/B71/B85
• LTE data transmission: eMTC (DL) 348kbps; eMTC (UL) 1.08Mbps; NB2 (DL) 121kbps; NB2 (UL) 150kbps; NB1 (DL) 74.1kbps; NB1 (UL) 101kbps
• Operating frequency: EGPRS 850/900/1800/1900 MHz
• EGPRS data transmission: GPRS 107 Kbps(DL)/ 85.6 Kbps(UL); EDGE 296 Kbps(DL)/ 236.8 Kbps(UL)
• Dimensions: 87 × 51 × 30mm; 3.43’’(W) × 2.01’’(D) × 1.18’’(H); 87 × 51 × 33.5mm; 3.43’’(W) × 2.01’’(D) × 1.32’’(H); (magnetic housing mount version)
• Weight: 140 g; 160 g; (magnetic housing mount version)
• Backup battery: 3 CR123A lithium batteries, 1,400 mAh
• Battery life: 1 report per day (GNSS enabled): 5 years; 1 report per day (cell ID only): 7 years
• Protection rating: IP67 compliant
• Operating temperature: -20℃ ~ +60℃
• Internal temperature sensor: To monitor temperature; Accuracy: ±1℃
• Internal light sensor: For tamper detection
• Vibration: For acknowledgment signal when a function button is pressed
• Magnetic Mount Housing (Optional): For easy installation on metal surfaces
• GNSS type: u-blox all-in-one GNSS receiver
• Constellations: GPS, Glonass, Galileo, Beidou
• GNSS sensitivity: Cold start: -148dBm; Hot start: -160 dBm; Tracking: -167 dBm
• Location accuracy (CEP): Autonomous: < 2m
• Time to First Fix (TTFF) - open field: Cold start: approx. 24s; Hot start: approx. 1s
• Function button: Used for power on/off and checking operating status
• LTE antenna: Internal only
• GNSS antenna: Internal only

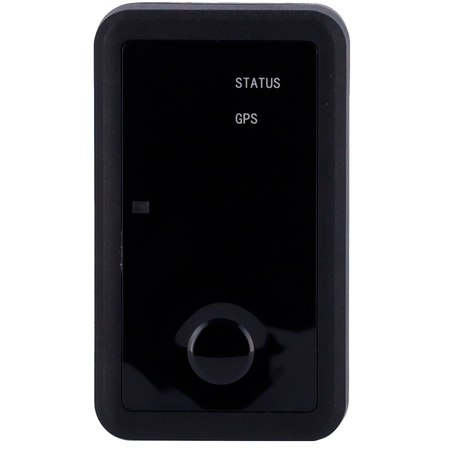

• LED indicators: GNSS, Status
• Commands: Queclink protocol commands
• Transmission Protocol: TCP, UDP, SMS
• Operating mode: Power saving mode for extended standby time; Continuous mode for emergency monitoring
• Scheduled report: Position and status notification at preset time intervals
• Geo-fence: Supports up to 20 areas
• Battery alarm: Alarm when the internal battery is low
• Wake-up report: Notification when the device is activated
• Motion detection: Motion detection based on the internal 3-axis accelerometer
• Report frequency setting: Intelligent notification frequency setting
📦 INCLUDED:
• Device• Serial number sticker• Screws• Double-sided tape
| Model | GL530MG |
|---|---|
| Installation | Flexible |
| Operating Band | LTE Cat M1/NB2 Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B28/B66/B71/B85 |
| LTE Data Transmission | eMTC (DL) 348kbps eMTC (UL) 1.08Mbps NB2 (DL) 121kbps NB2 (UL) 150kbps NB1 (DL) 74.1kbps NB1 (UL) 101kbps |
| Operating Frequency | EGPRS 850/900/1800/1900 MHz |
| EGPRS Data Transmission | GPRS 107 Kbps(DL)/ 85.6 Kbps(UL) EDGE 296 Kbps(DL)/ 236.8 Kbps(UL) |
| Dimensions | 87 × 51 × 30mm 3.43’’(L) × 2.01’’(W) × 1.18’’(H) 87 × 51 × 33.5mm 3.43’’(L) × 2.01’’(W) × 1.32’’(H) (magnetic case version) |
| Weight | 140 g 160 g (magnetic case version) |
| Backup Battery | 3 x CR123A lithium batteries, 1,400 mAh |
| Battery Life | 1 report per day (GNSS enabled): 5 years 1 report per day (Cell ID only): 7 years |
| Ingress Protection | IP67 compliant |
| Operating Temperature | -20℃ ~ +60℃ |
| Internal Temperature Sensor | For temperature monitoring Accuracy: ±1℃ |
| Internal Light Sensor | For tamper detection |
| Vibration | For confirmation signal when a function button is pressed |
| Magnetic Case (Optional) | For easy installation on metal surfaces |
| GNSS Type | u-blox all-in-one GNSS receiver |
| Constellations | GPS, Glonass, Galileo, Beidou |
| GNSS Sensitivity | Cold start: -148dBm Hot start: -160 dBm Tracking: -167 dBm |
| Position Accuracy (CEP) | Autonomous: < 2m |
| Time to First Fix (TTFF) - open sky | Cold start: 24s approx. Hot start: 1s approx. |
| Function Button | Used for power on/off and operating status check |
| LTE Antenna | Internal only |
| GNSS Antenna | Internal only |
| LED Indicators | GNSS, Status |
| Commands | Queclink protocol commands |
| Transmission Protocol | TCP, UDP, SMS |
| Working Modes | Power saving mode for long standby time Continuous mode for emergency monitoring |
| Scheduled Report | Position and status notification at preset intervals |
| Geo-fence | Supports up to 20 areas |
| Battery Alarm | Alarm when internal battery is low |
| Wakeup Report | Notification when the device is activated |
| Motion Detection | Motion detection based on internal 3-axis accelerometer |
| Report Rate Setting | Smart reporting rate setting |
