LTE Cat 1 with 2G backup Simple 2-wire installation Queclink
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
LTE Cat 1 with 2G backup - Simple 2-wire installation - IP 67 protection - 6-axis and 1600Hz sampling rate - Supports BLE 5.2
📋 SPECIFICATIONS:
• Brand: Queclink
• Model: GB100CG

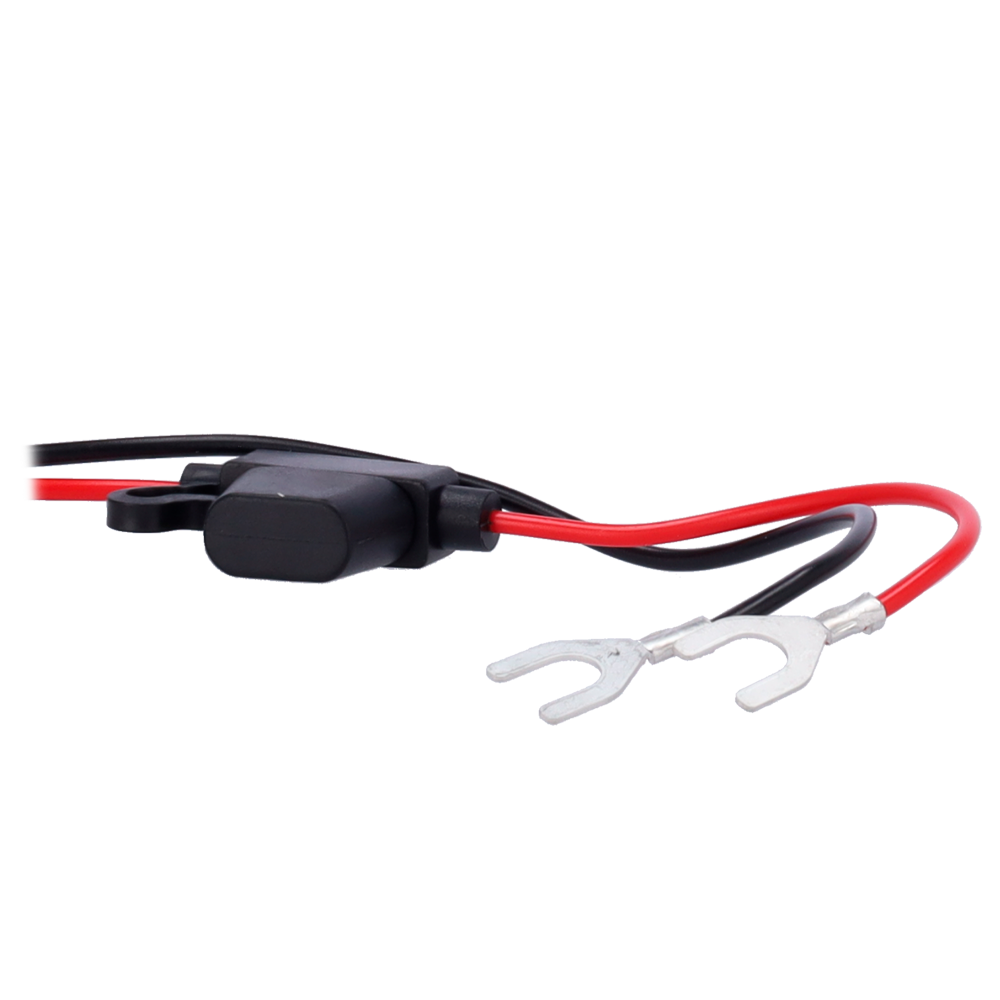

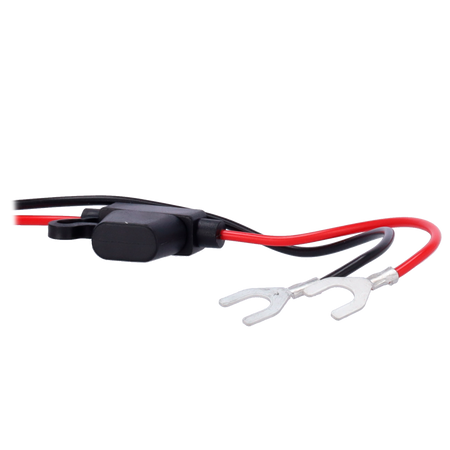

• Installation: Internal battery wiring connection
• Operating band: LTE-FDD:; B1/B2/B3/B4/B5/B7/B8/B20/B28; GSM:; 850/900/1800/1900MHz
• GNSS type: All-in-one GNSS receiver
• Position accuracy: Autonomous: <2.0m
• Certificate: CE/UKCA/E-Mark
• Weight: 70.5g
• Backup battery: NiMH, 3.6V 200mAh
• Power supply: 8V to 32V DC
• Operating temperature: -20ºC ~+70ºC
• BLE: Supports BLE 5.2
• Cellular antenna: Internal only
• GNSS antenna: Internal only
• LED indicators: GNSS/CEL/PWR
• Micro USB interface: For configuration and firmware update
• SIM card: Nano SIM or eSIM
• Motion sensor: 3-axis accelerometer and 3-axis gyroscope
• Alarms: Jamming/geofence/driving behavior/crash/ignition
• Remote control: OTA control
| Model | GB100CG |
|---|---|
| Installation | Internal battery wiring connection |
| Operating band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 GSM: 850/900/1800/1900MHz |
| GNSS type | All-in-one GNSS receiver |
| Position accuracy | Autonomous: <2.0m |
| Certificate | CE/UKCA/E-Mark |
| Weight | 70.5g |
| Backup battery | NiMH, 3.6V 200mAh |
| Power supply | 8V to 32V DC |
| Operating temperature | -20ºC ~+70ºC |
| BLE | Supports BLE 5.2 |
| Cellular antenna | Internal only |
| GNSS antenna | Internal only |
| LED indicators | GNSS/CEL/PWR |
| Micro USB interface | For configuration and firmware update |
| SIM card | Nano SIM or eSIM |
| Motion sensor | 3-axis accelerometer and 3-axis gyroscope |
| Alarms | Jamming/geo-fence/driver behavior/collision/ignition |
| Remote control | OTA control |
