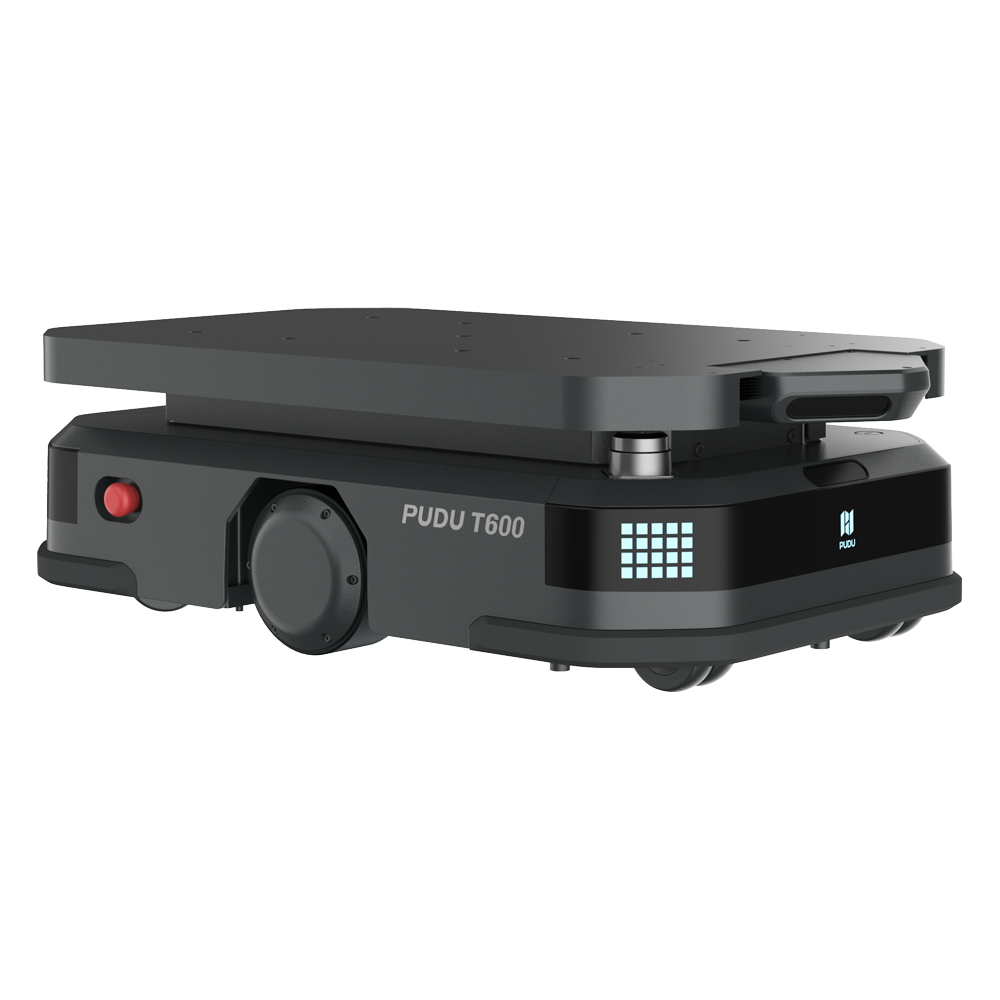

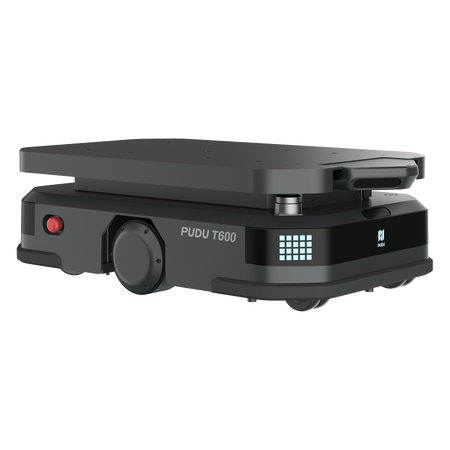

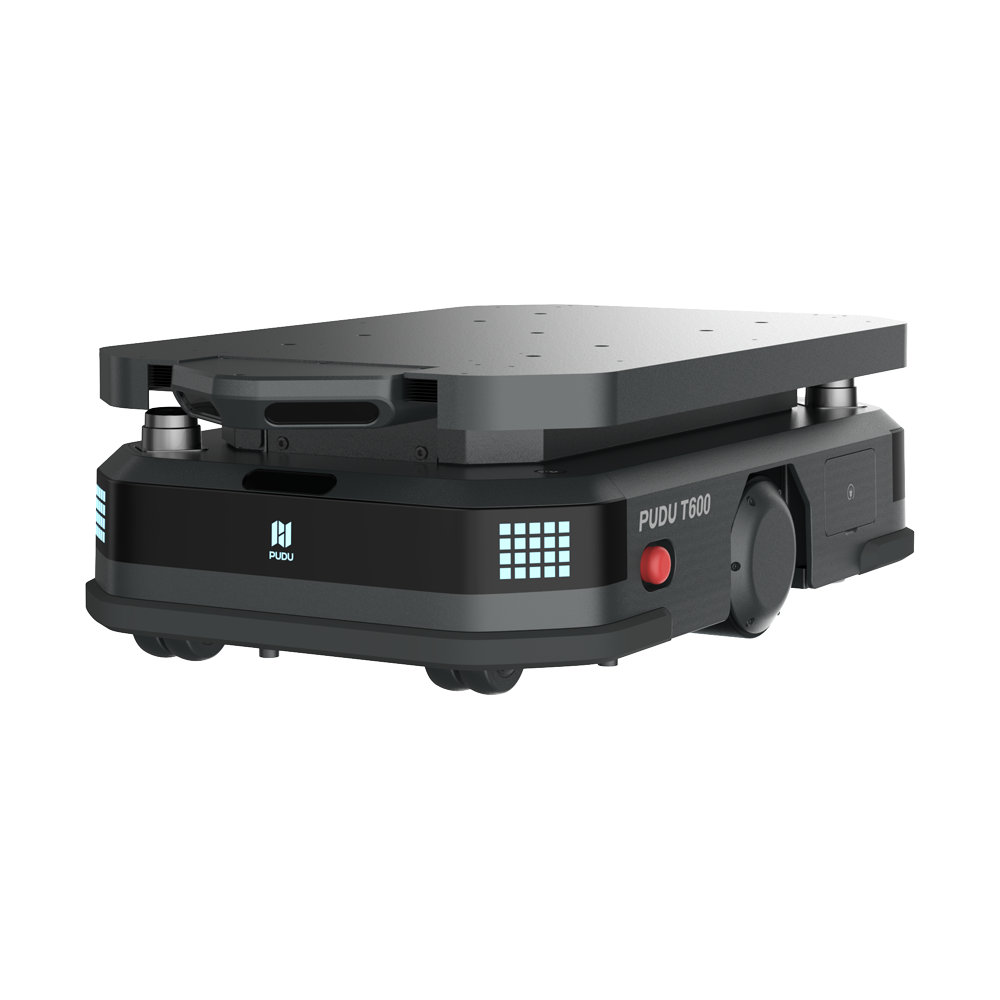

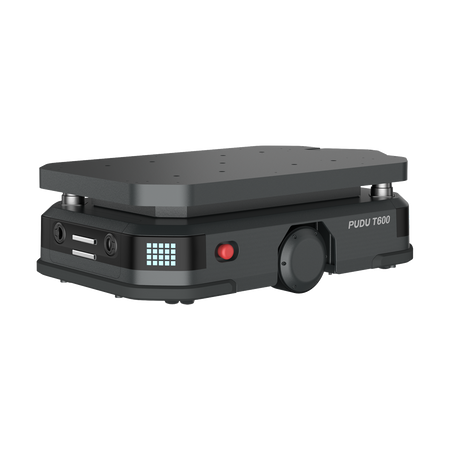

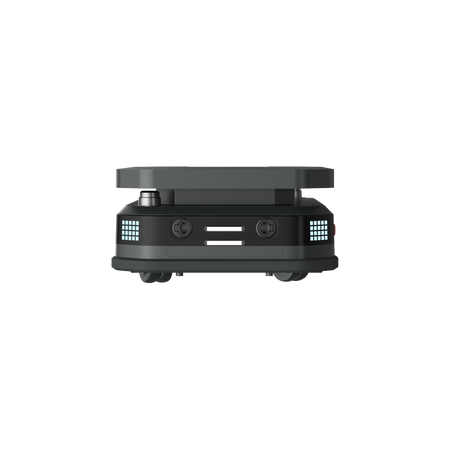

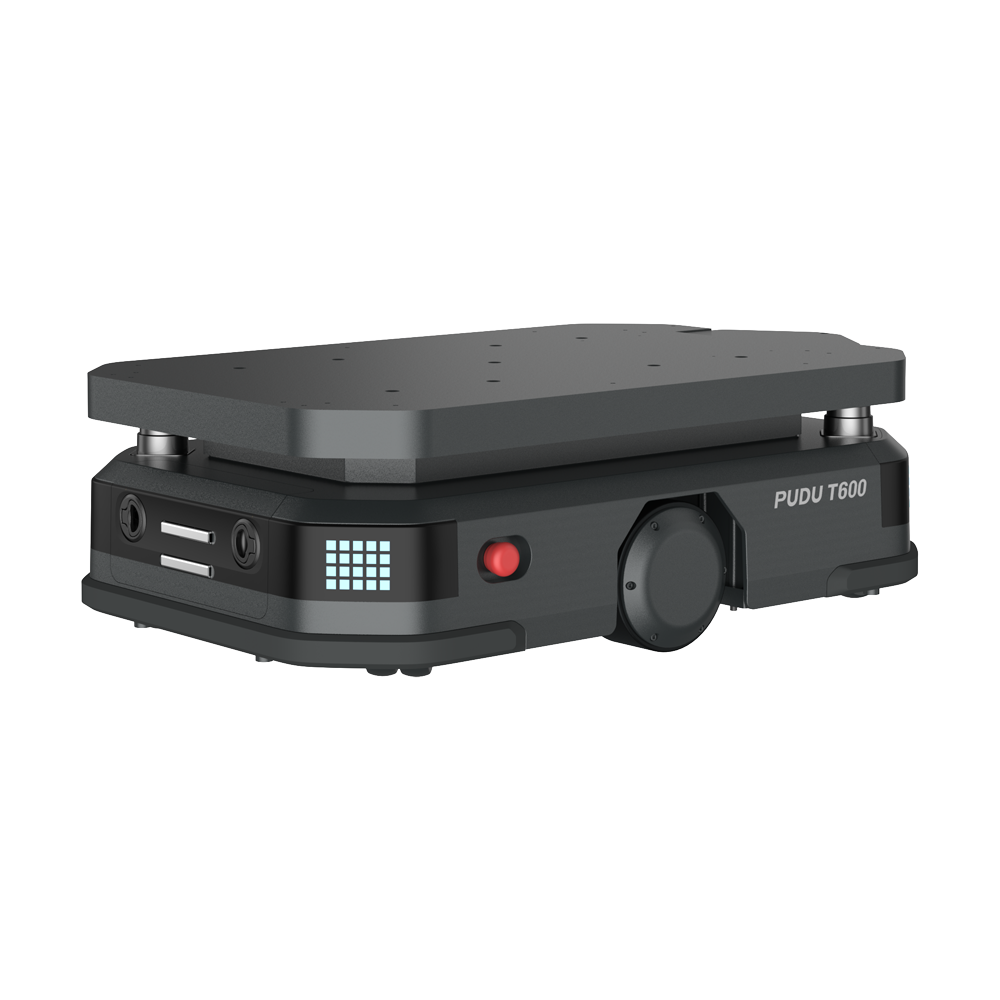

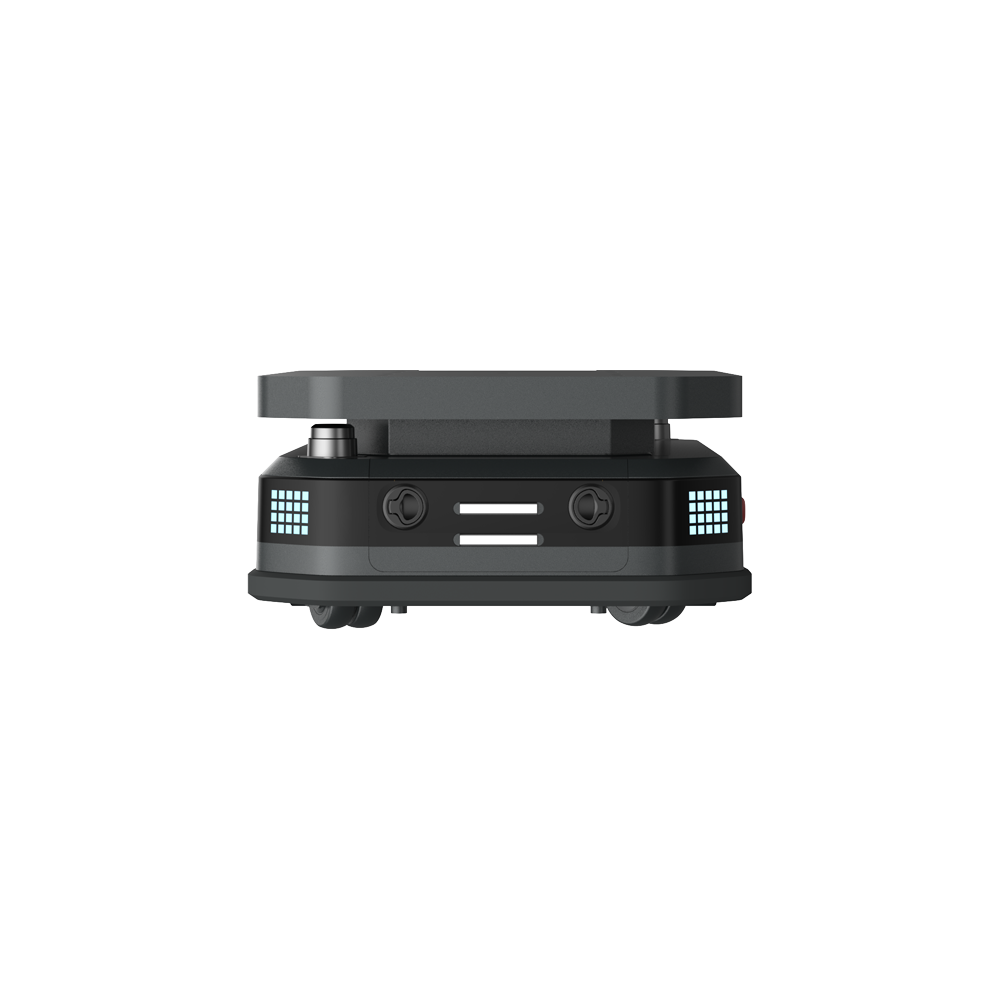

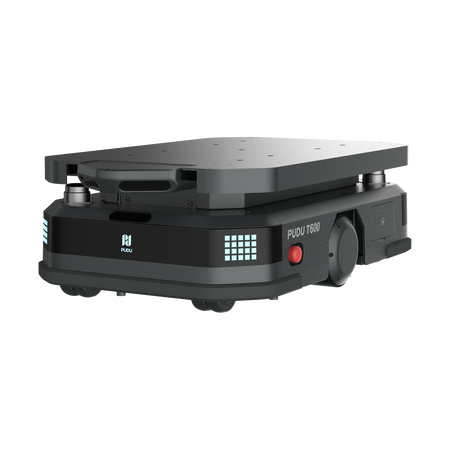

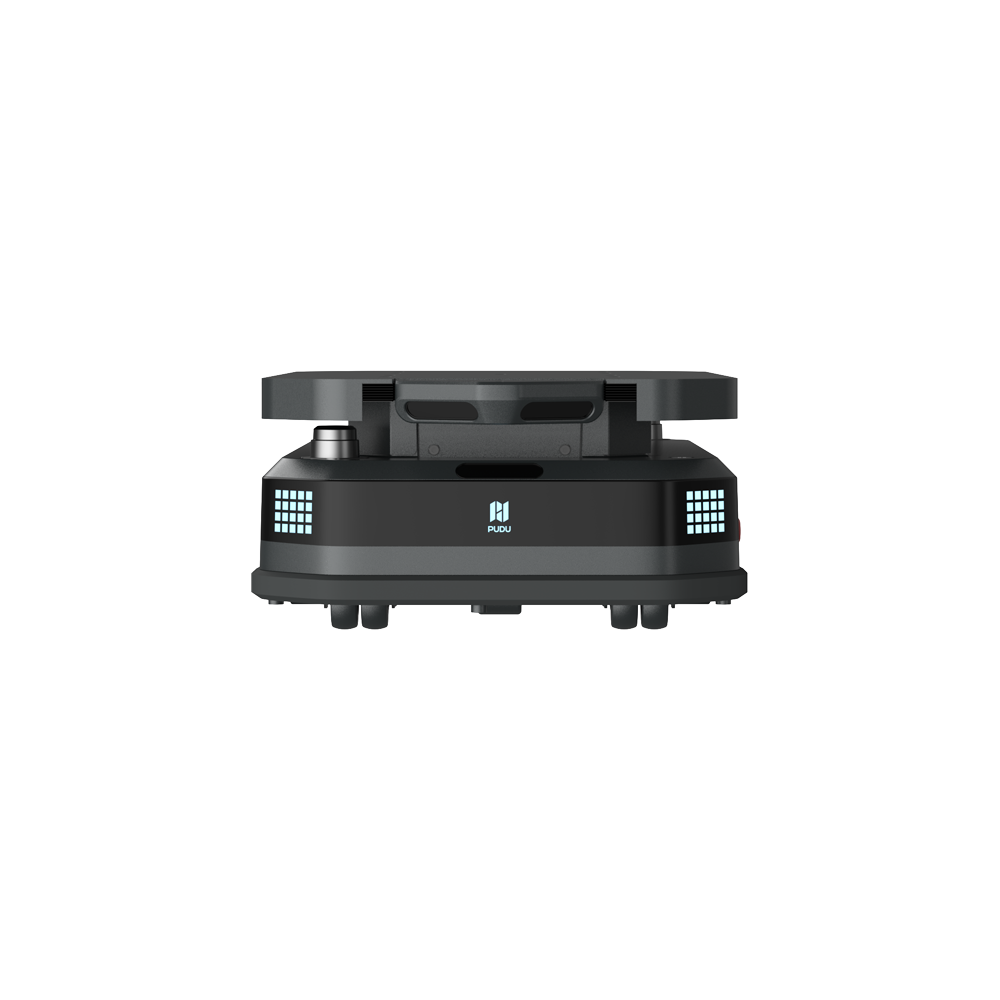

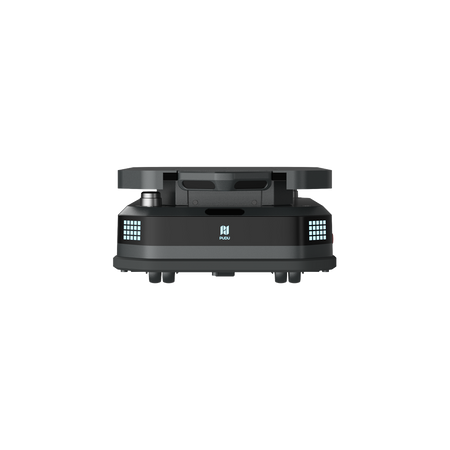

Pudu Robotics industrial cargo transport platform
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Industrial load transport platform - Maximum load capacity of 600 kg - Storage area identification - Elevator integration - Intelligent traffic strategy - Dynamic obstacle avoidance
📋 SPECIFICATIONS:
• Color: Black
• Robot type: Flexible and efficient industrial load transport platform
• Delivery function: The robot transports items from one point to another autonomously, following predefined or real-time assigned routes. This function is used to transport materials, tools, or products within a building or warehouse.
• Patrol function: Performs programmed routes to monitor an area, detecting changes, obstacles, or anomalous situations. This function is used for surveillance, monitoring, or area control activities.
• Lifting function: Allows the robot to lift or adjust the height of loads or trays, facilitating operations such as loading, unloading, or positioning objects at different levels.
• Transport function: Consists of moving loads within a space without a precise location, whether materials, products, boxes, or components. The robot can do this continuously and efficiently, replacing manual movement operations.
• Towing function: The robot pulls carts, platforms, or trailers with loads, increasing their transport capacity. This function is useful in contexts where it is necessary to move large volumes or heavy loads without human effort.
• Maximum load capacity: 600 kg
• Navigation systems: LiDAR SLAM
• Navigation sensors and cameras: Front RGBD sensor; Front LiDAR sensor; Side anti-collision sensor
• Positioning accuracy: Standard: ± 5 cm; Precise: ± 1 cm
• VDA5050 protocol: Enables collaborative programming with other robots and compatible systems, thus allowing for rapid implementation of a flexible, unified, efficient, and scalable logistics network.
• On-Premise installation: Supports local deployment, allowing the system to run on the client's local servers or a private cloud. This allows data to circulate within a closed internal network, eliminating dependence on external cloud services and significantly reducing data transmission risks, making it ideal for industrial or commercial environments with high security requirements.
• Minimum clearance required for navigation: 65 cm
• Maximum traversable height (step): 10 mm
• Maximum traversable gap (empty space): 35 mm
• Battery capacity: 30 Ah
• Battery life: 12 hours (without load transport)
• Charging time: 2 hours (0% to 90%)
• Charging mode: Charging station (not included); Cable charging; Manual battery replacement
• Movement speed: 0.2 m/s ~ 1.2 m/s (adjustable)
• Installation (necessary accessories not included): Elevators (with intelligent calling of idle elevators); Automatic doors; Call button; Control panel
• Mobile application: PUDU Link for: Fleet management and remote control; Route configuration; Consultation of operational and maintenance data
• Other: Emergency stop button; Motion assist button; Turn signal light
• Dimensions: 845 (H) x 255 (W) x 500 (D) mm
• Weight: 94 kg
📦 INCLUDED:
• Heavy load transport platform
| Color | Black |
|---|---|
| Robot type | Flexible and efficient industrial load transport platform |
| Delivery function | The robot autonomously transports items from one point to another, following predefined or real-time assigned routes. This function is used to transport materials, tools, or products within a building or warehouse. |
| Patrol function | Carries out programmed routes to monitor an area, identifying changes, obstacles, or abnormal situations. This function is used for surveillance, monitoring, or area control tasks. |
| Lifting function | Allows the robot to lift or adjust the height of loads or trays, facilitating operations such as loading, unloading, or positioning objects at different levels. |
| Transport function | Consists of moving loads within a space without a precise location, whether they are materials, products, boxes, or components. The robot can do this continuously and efficiently, replacing manual movement operations. |
| Towing function | The robot tows carts, platforms, or trailers with loads, increasing their transport capacity. This function is useful in contexts where it is necessary to move large volumes or heavy loads without human effort. |
| Maximum load capacity | 600 kg |
| Navigation systems | LiDAR SLAM |
| Navigation sensors and cameras | Front RGBD sensor, front LiDAR sensor, side anti-collision sensor |
| Positioning accuracy | Standard: ± 5 cm, Precise: ± 1 cm |
| VDA5050 protocol | Allows for collaborative programming with other robots and compatible systems, thus enabling the rapid implementation of a flexible, unified, efficient, and scalable logistics network. |
| On-Premise installation | Supports local deployment, allowing the system to be run on the client's local servers or a private cloud. This allows data to circulate within a closed internal network, eliminating dependence on external cloud services and significantly reducing risks related to data transmission, making it ideal for industrial or commercial environments with high security requirements. |
| Minimum clearance space required for navigation | 65 cm |
| Maximum traversable height (step) | 10 mm |
| Maximum traversable gap (empty space) | 35 mm |
| Battery capacity | 30 Ah |
| Battery life | 12 hours (without load transport) |
| Charging time | 2 hours (from 0% to 90%) |
| Charging mode | Charging station (not included), cable charging, manual battery replacement |
| Movement speed | 0.2 m/s ~ 1.2 m/s (adjustable) |
| Installation (necessary accessories not included) | Elevators (with smart elevator call for idle elevators), automatic doors, call button, control panel |
| Mobile application | PUDU Link for: Fleet management and remote control, route configuration, consultation of operational and maintenance data |
| Other | Emergency stop button, motion assist button, turn indicator light |
| Dimensions | 845 (H) x 255 (W) x 500 (D) mm |
| Weight | 94 kg |
