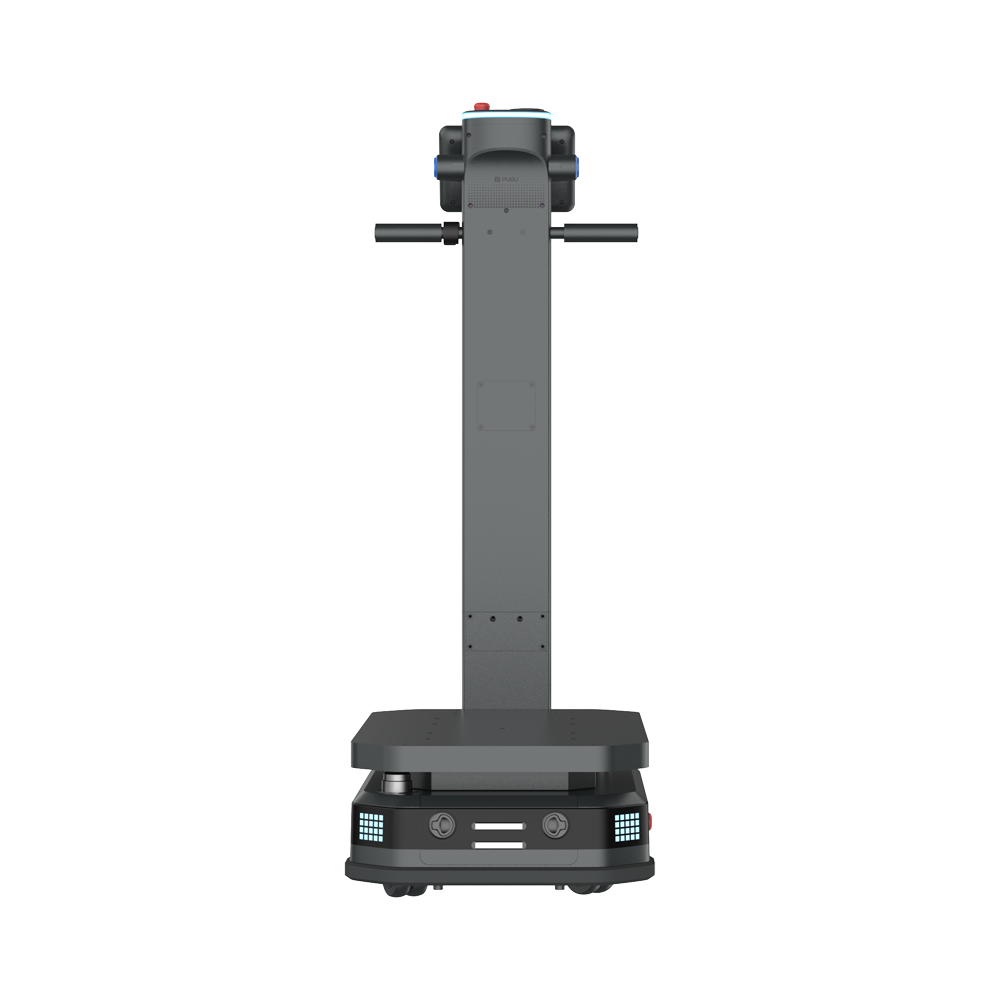

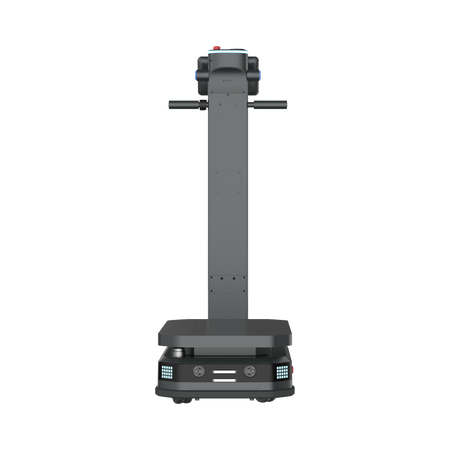

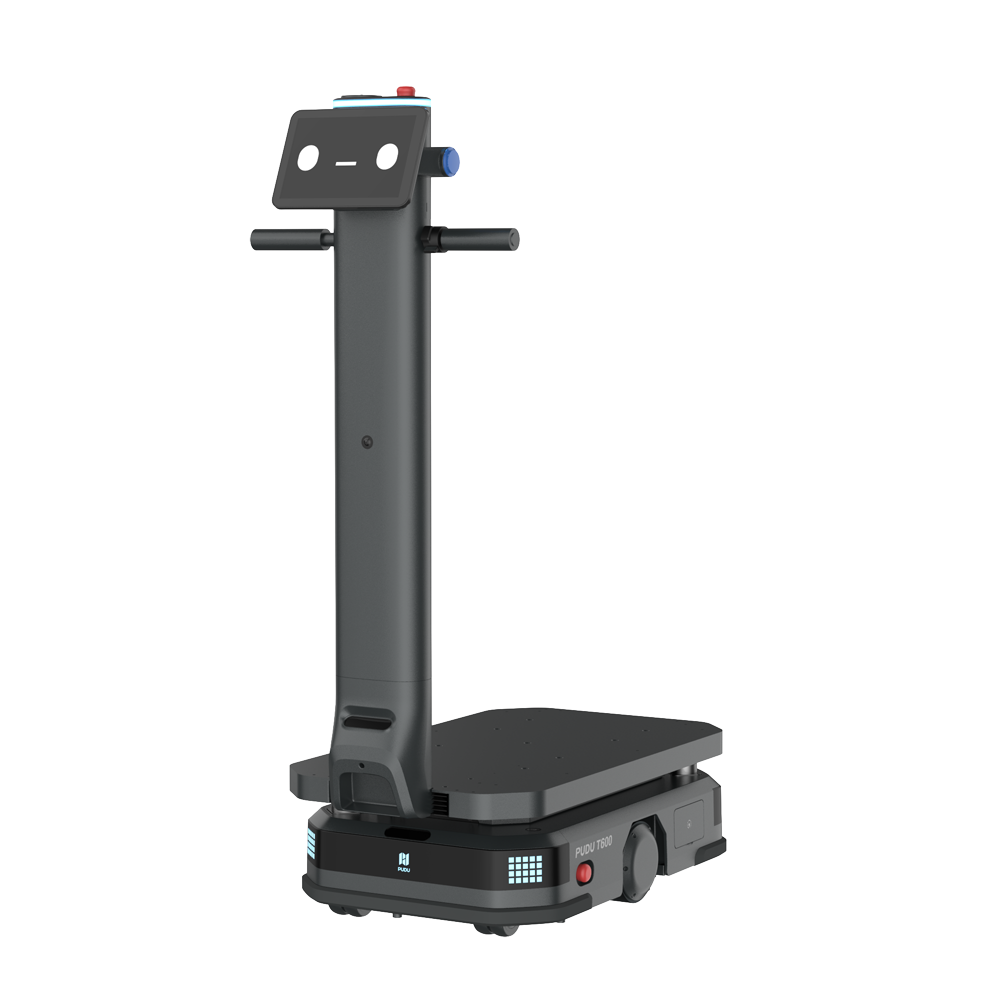

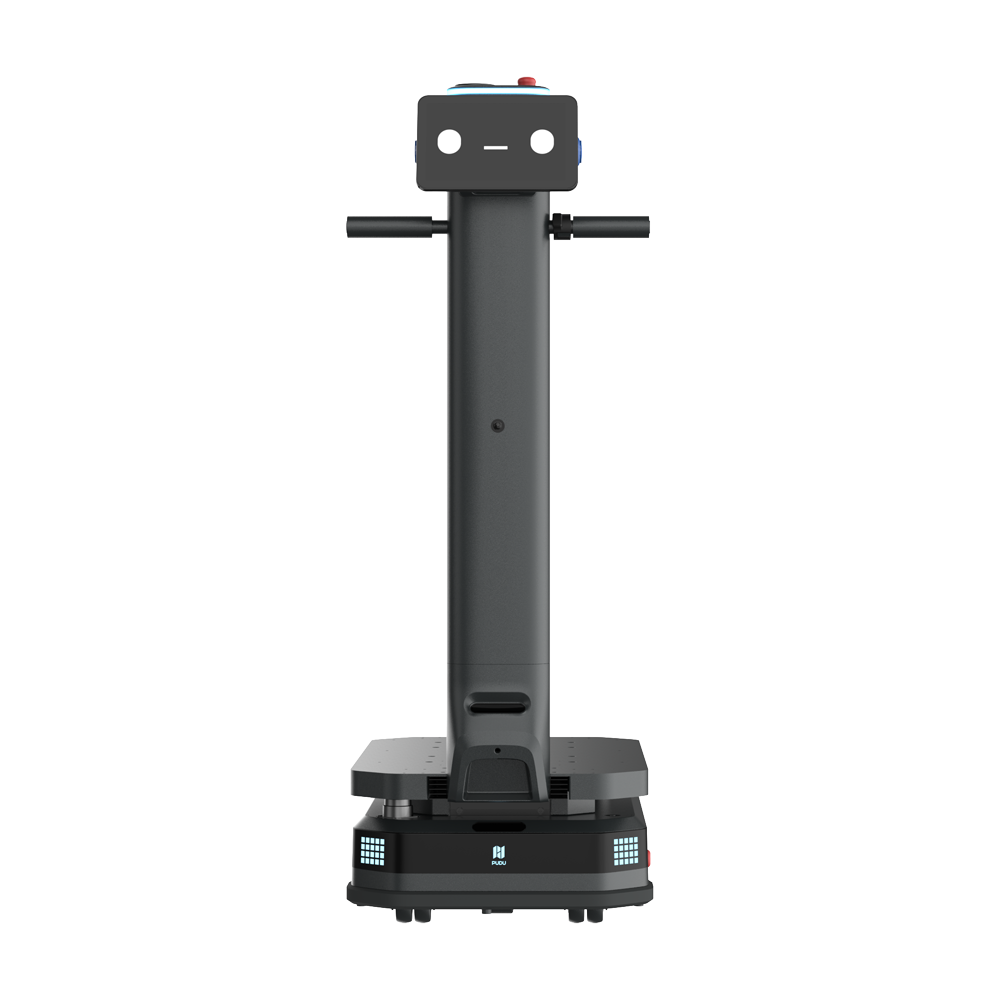

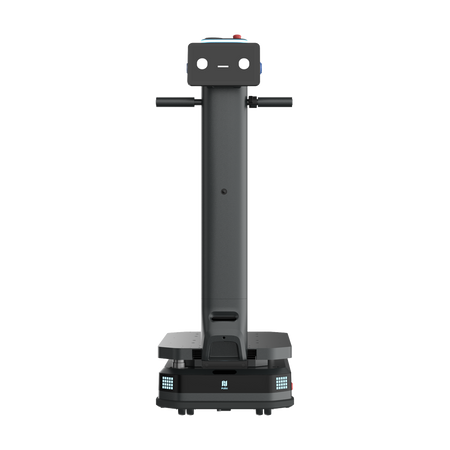

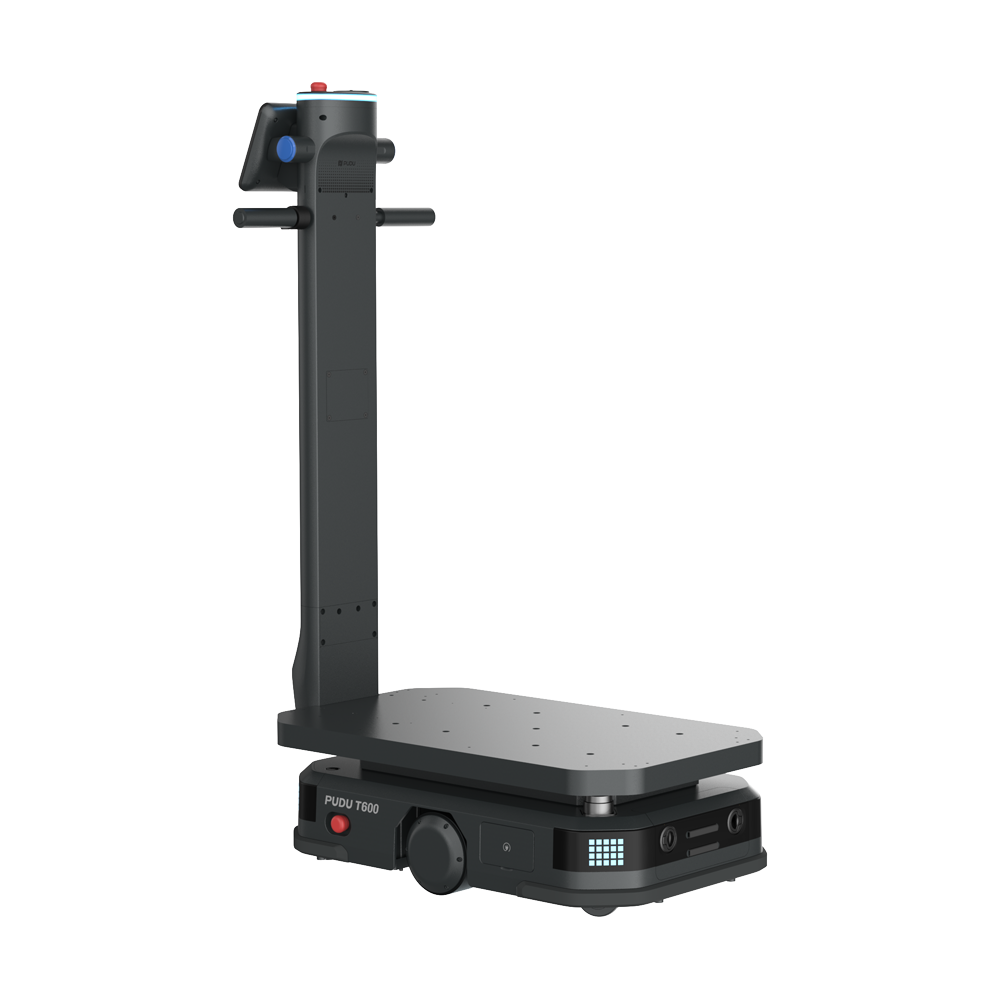

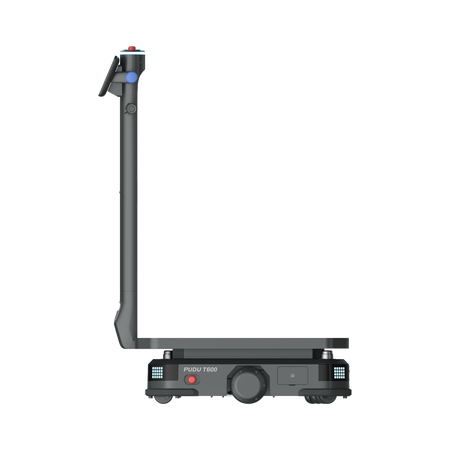

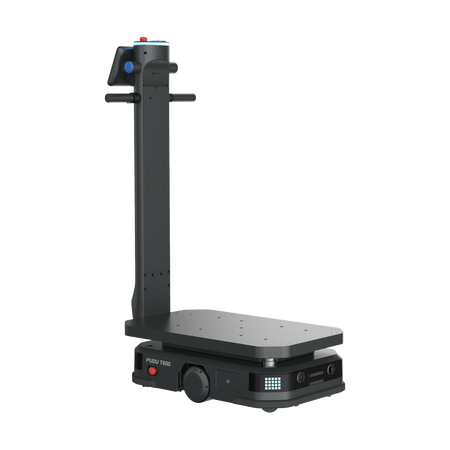

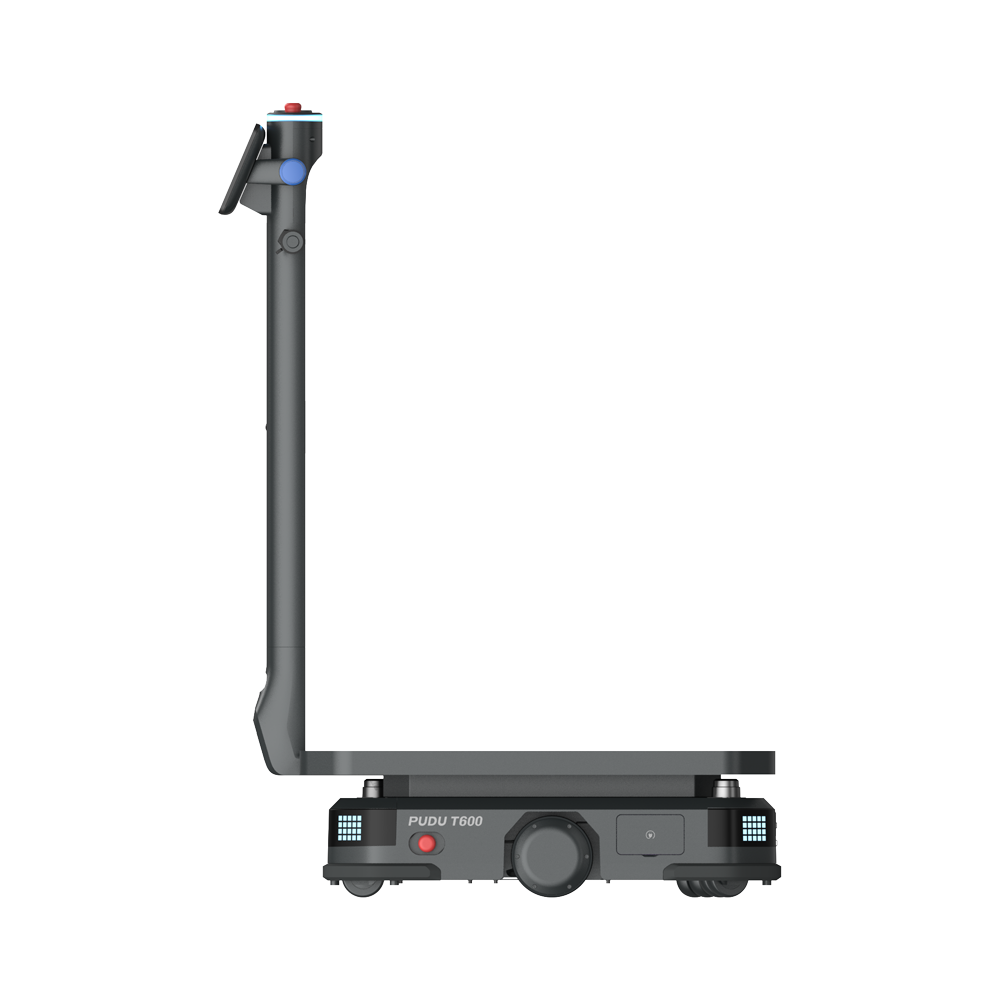

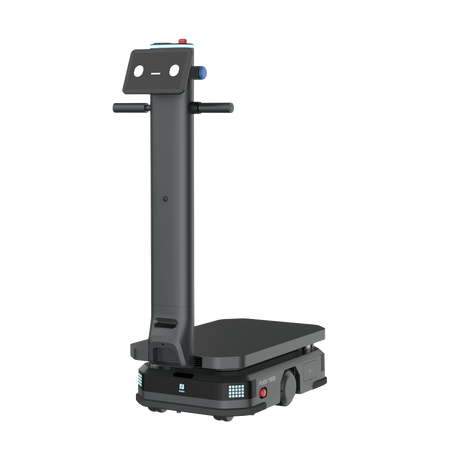

Pudu Robotics heavy-duty delivery robot

Heavy-load distribution robot - Maximum load capacity of 600 kg - Storage area identification - Elevator integration - Intelligent traffic strategy - Dynamic obstacle avoidance

📋 SPECIFICATIONS:
• Color: Black
• Robot type: Heavy-load distribution robot
• Delivery function: The robot transports items from one point to another autonomously, following predefined or real-time assigned routes. This function is used to transport materials, tools, or products within a building or warehouse.
• Patrol function: Performs programmed routes to monitor an area, identifying changes, obstacles, or abnormal situations. This function is used for surveillance, monitoring, or area control activities.
• Lifting function: Allows the robot to lift or adjust the height of loads or trays, facilitating operations such as loading, unloading, or positioning objects at different levels.
• Tracking function: The robot can automatically follow a person or another vehicle while maintaining a safe distance. This is useful when the operator requires the robot's assistance during material transport.
• Assistance function: Provides direct support to workers or operators, whether by carrying tools, facilitating transport, or assisting with repetitive tasks to reduce physical strain and improve ergonomics.
• Transport function: Consists of moving loads within a space without a precise location, whether they are materials, products, boxes, or components. The robot can do this continuously and efficiently, replacing manual displacement operations.
• Towing function: The robot pulls carts, platforms, or trailers with loads, increasing its transport capacity. This function is useful in contexts where it is necessary to move large volumes or heavy loads without human effort.
• Maximum load capacity: 600 kg
• Interface: 10.1" touch screen
• Navigation systems: VSLAM + LiDAR SLAM
• Navigation sensors and cameras: Front camera; Top VSLAM camera; Front RGBD sensor; Side LiDAR sensor; Side anti-collision sensor
• Positioning accuracy: Standard: ± 5 cm; Precise: ± 1 cm
• VDA5050 protocol: Allows collaborative programming with other robots and compatible systems, thus enabling the rapid implementation of a flexible, unified, efficient, and scalable logistics network.
• On-Premise installation: Supports local deployment, allowing the system to run on the client's local servers or a private cloud. This allows data to circulate within a closed internal network, eliminating dependence on external cloud services and significantly reducing data transmission risks, making it ideal for industrial or commercial environments with high security requirements.
• Minimum clearance required for navigation: 70 cm
• Maximum traversable height (step): 10 mm
• Maximum traversable gap (empty space): 35 mm
• Battery capacity: 30 Ah
• Battery life: 12 hours (without carrying a load)
• Charging time: 2 hours (0% to 90%)
• Charging mode: Charging station (not included); Cable charging; Manual battery replacement
• Movement speed: 0.2 m/s ~ 1.2 m/s (adjustable)
• Installation (necessary accessories not included): Elevators (with intelligent call for inactive elevators); Automatic doors; Call button; Control panel
• Mobile application: PUDU Link for:; Fleet management and remote control; Route configuration; Operational and maintenance data consultation
• Accessories (optional and not included): Shelf; Tray; Towing module; Conveyor
• Other: Emergency stop button; Motion assistance button; Turn signal light
• Dimensions: 960 (H) x 1350 (W) x 500 (D) mm
• Weight: 112 kg

📦 INCLUDED:
• Robot
