PoE Extender Supports modern IEEE 802.3af/at/bt standards Branded
PoE Extender Supports modern IEEE 802.3af/at/bt standards Branded
Regular price
€126,82
Final price
Regular price
-5%
€134,00
Sale price
€126,82
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PoE Extender. - Supports modern IEEE 802.3af/at/bt standards. - Features 5 RJ45 ports (1 PoE IN / 4 PoE OUT). - High power delivery up to 90 W. - Gigabit data transfer on the input port. - Integrated intelligent PoE Watchdog function
📋 SPECIFICATIONS:
• Installation notes:: It is recommended to connect this device to a PoE switch. Using PoE injectors may not guarantee proper operation.
• Device type: Indoor PoE Extender (Unmanaged Layer 2 Switch)

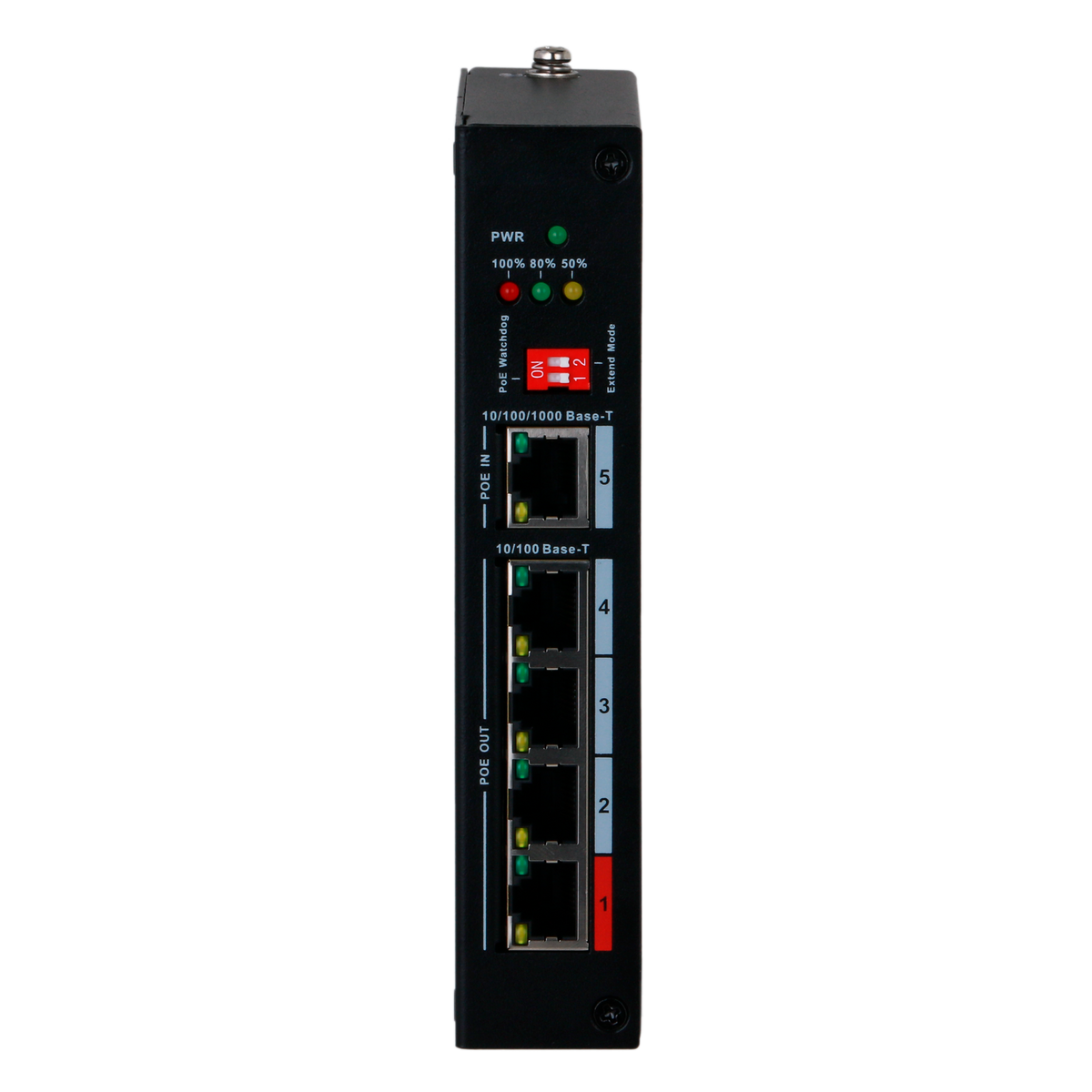

• Network interface: 4x 10/100 Mbps PoE OUT ports + 1x 10/100/1000 Mbps PoE IN port
• Transfer speed: 10 / 100 / 1000 Mbps (Gigabit Uplink)
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
• Supported PoE protocols: IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt
• Port 1 output power: Supports up to 90 W (Special red port)
• Ports 2-4 output power: Supports up to 30 W per port
• Total power: ≤ 90 W (Full load) / 5 W (Idle)
• PoE pin assignment: 1, 2, 4, 5 (V+) and 3, 6, 7, 8 (V-)

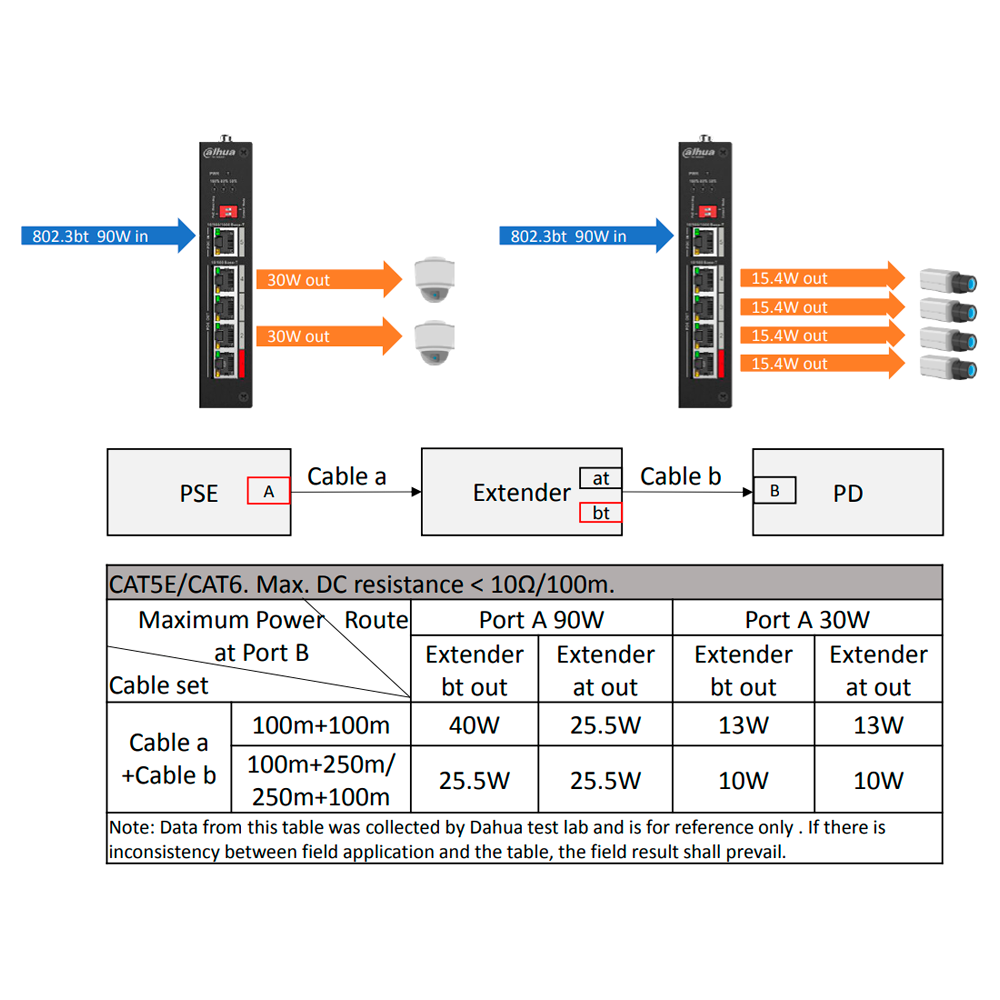

• Advanced features: Real-time PoE Watchdog / 250-meter transmission via DIP switch
• Switching capacity: 2.8 Gbps
• Packet forwarding rate: 2.08 Mpps
• MAC address table: 4 K
• Packet buffer size: 1 Mbit
• Jumbo Frame support: 9 K Byte
• Lightning protection: Common mode: 4 KV / Differential mode: 2 KV
• Electrostatic discharge (ESD) protection: Air discharge: 8 KV / Contact discharge: 6 KV
• Chassis material: Metal (Full-metal, fanless)
• Installation method: Desktop mounting / DIN rail mounting
• Operating temperature: -30°C to ~ 65°C
• Storage temperature: -40°C to ~ 70°C
• Operating humidity: 5% to 95% RH (non-condensing)
• Physical dimensions: 30 x 150 x 100 mm
• Net product weight: 0.47 kg
📦 INCLUDED:
• 1x PFT1500 Gigabit PoE Extender• 1x Manuals and instructions
| Installation notes: | It is recommended to connect this device to a PoE switch. The use of PoE injectors may not ensure its proper operation. |
|---|---|
| Device type | Indoor PoE extender (Unmanaged Layer 2 switch) |
| Network interface | 4x 10/100 Mbps PoE OUT ports + 1x 10/100/1000 Mbps PoE IN port |
| Transfer speed | 10 / 100 / 1000 Mbps (Gigabit Uplink) |
| Communication standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az |
| Supported PoE protocols | IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt |
| Port 1 output power | Supports up to 90 W (Special red port) |
| Ports 2-4 output power | Supports up to 30 W per port |
| Total power | ≤ 90 W (At full load) / 5 W (Idle) |
| PoE pin assignment | 1, 2, 4, 5 (V+) and 3, 6, 7, 8 (V-) |
| Advanced features | Real-time PoE Watchdog / 250-meter transmission via DIP switch |
| Switching capacity | 2.8 Gbps |
| Packet forwarding rate | 2.08 Mpps |
| MAC address table | 4 K |
| Packet buffer size | 1 Mbit |
| Jumbo Frame support | 9 K Byte |
| Lightning protection | Common mode: 4 KV / Differential mode: 2 KV |
| Electrostatic discharge (ESD) protection | Air discharge: 8 KV / Contact discharge: 6 KV |
| Chassis material | Metal (Full-metal, fanless) |
| Installation mode | Desktop mounting / DIN rail mounting |
| Operating temperature | -30°C to ~ 65°C |
| Storage temperature | -40°C to ~ 70°C |
| Operating humidity | 5% to 95% RH (non-condensing) |
| Physical dimensions | 30 x 150 x 100 mm |
| Net product weight | 0.47 kg |
