OEM PoE Extender Supports IEEE 802.3af/at standards
Regular price
€36,90
Final price
Regular price
€37,00
Sale price
€36,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

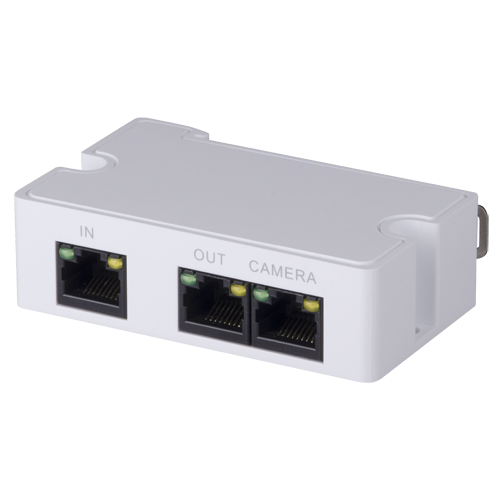

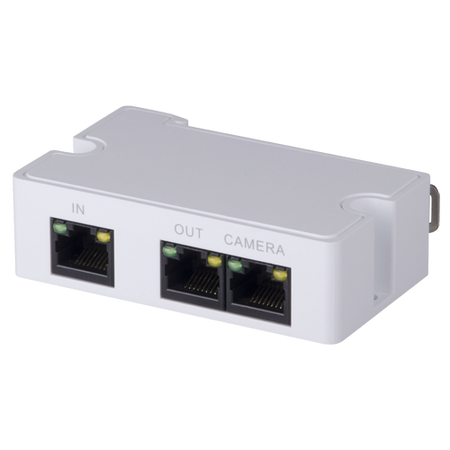

OEM PoE Extender. - Supports IEEE 802.3af/at standards. - Features 3 RJ45 ports (1 PoE IN / 2 PoE OUT). - Efficient power supply up to 25 W. - Data transfer at 10/100M speed. - Supports DIN rail or box installation.
📋 SPECIFICATIONS:
• Installation notes: It is recommended to connect this device to a PoE switch. The use of PoE injectors may not guarantee proper operation.
• Device type: Indoor PoE extender (3 ports)

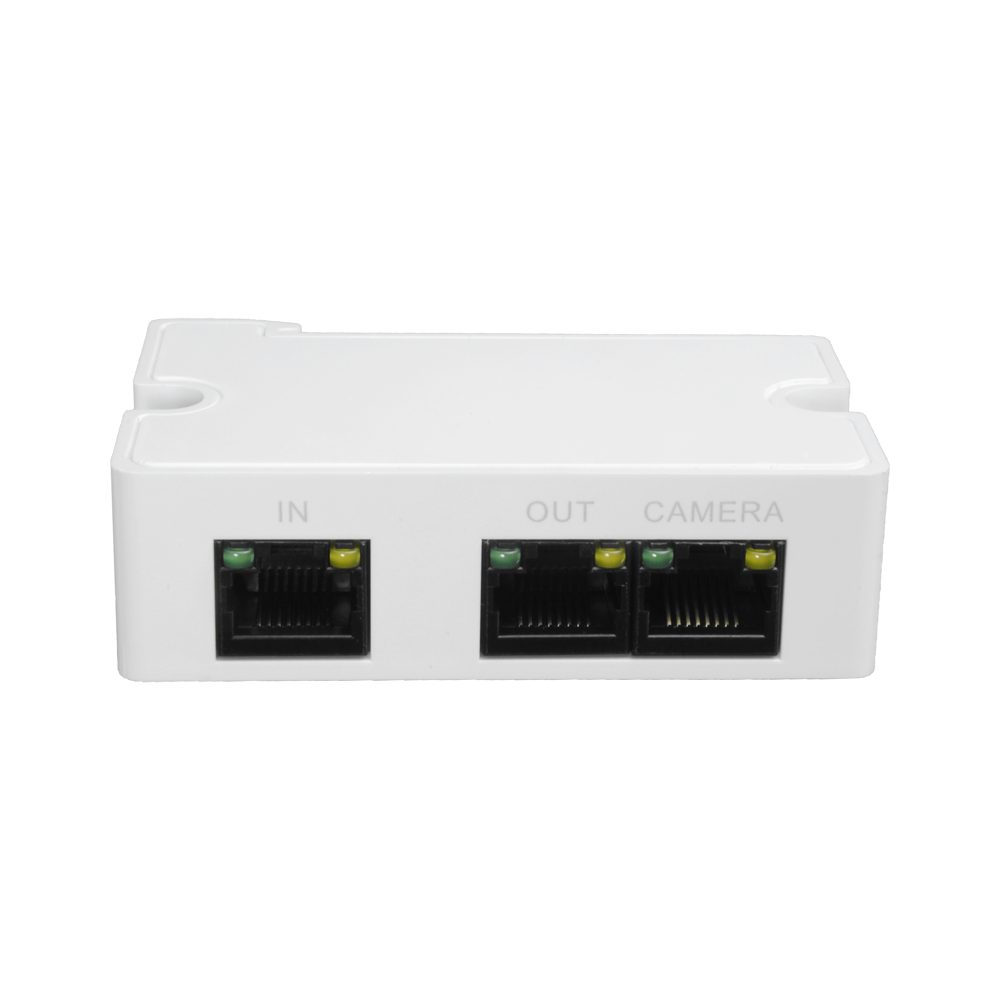

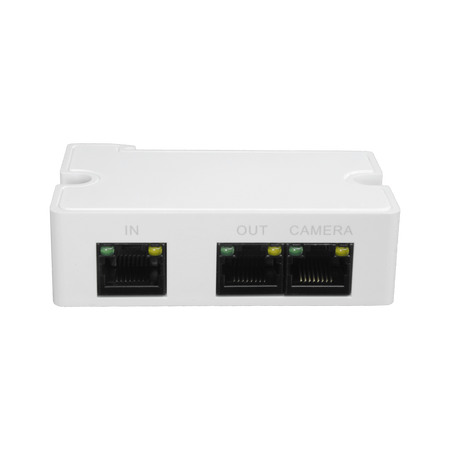

• Network interface: 1x 10/100M PoE IN port + 1x PoE OUT port (Camera) + 1x PoE OUT port (next extender)
• Transfer speed: 10 / 100 Mbps (Fast Ethernet)
• Supported PoE standards: IEEE 802.3af / IEEE 802.3at (IP camera power supply)
• Self-power consumption: ≤ 3 W
• Total power: ≤ 25 W (Total consumption of connected cameras)
• Cascade capacity: Supports level 2 passive cascading (connecting up to 3 IPC cameras
• Maximum transmission distance: Up to 300 meters (cascaded with compatible High PoE Midspan)

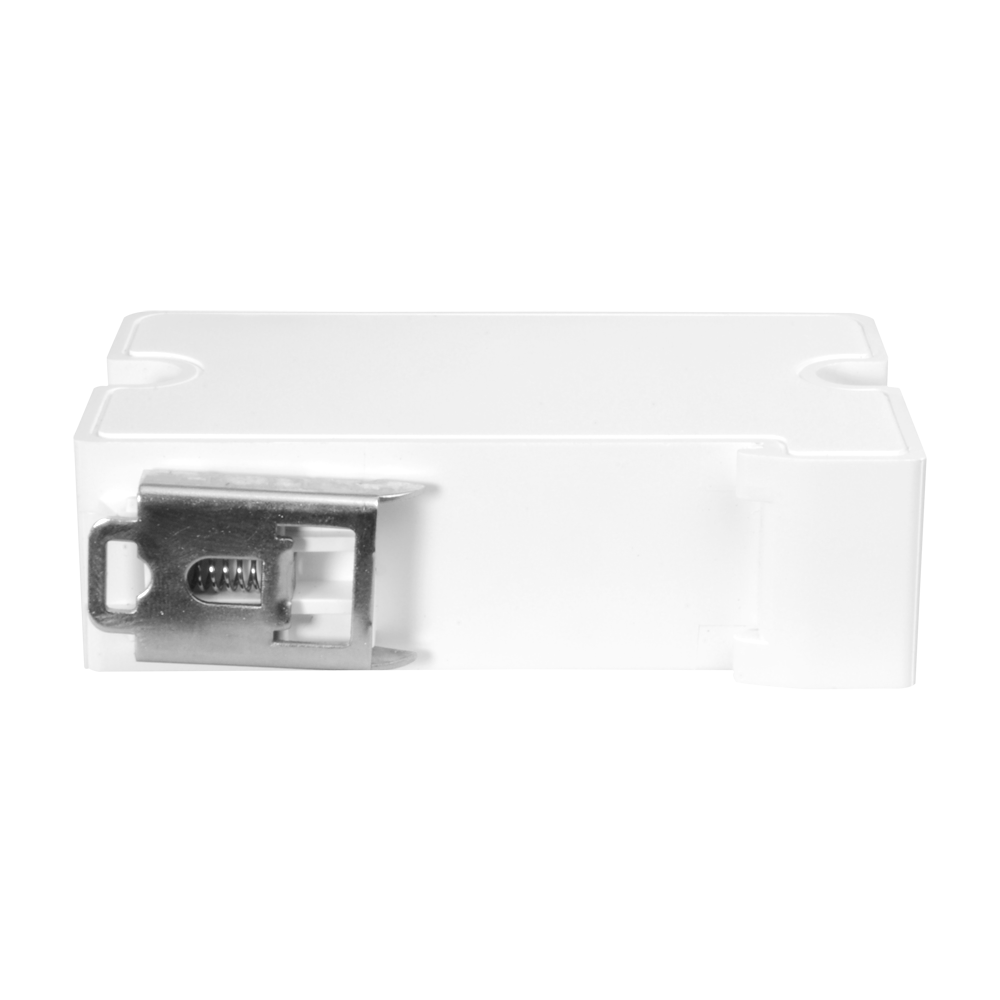

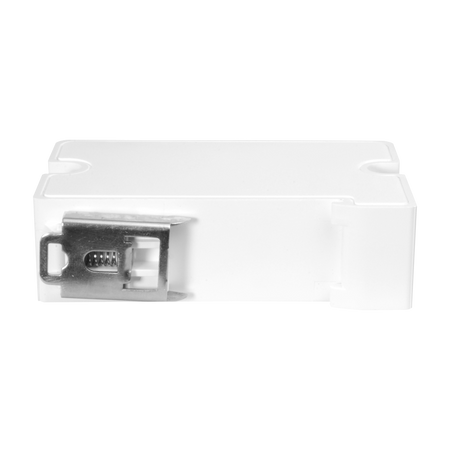

• Installation mode: Indoor junction box mounting / DIN rail mounting
• Operating temperature: -30°C to ~ 65°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Physical dimensions: 23 x 79 x 52 mm
• Net product weight: 57 g
📦 INCLUDED:
• 1x PFT1300 PoE Extender• 1x Manuals and instructions
| Installation notes: | It is recommended to connect this device to a PoE switch. The use of PoE injectors may not ensure its proper operation. |
|---|---|
| Device type | Indoor PoE extender (3 ports) |
| Network interface | 1x 10/100M PoE IN port + 1x PoE OUT port (Camera) + 1x PoE OUT port (next extender) |
| Transfer speed | 10 / 100 Mbps (Fast Ethernet) |
| Supported PoE standards | IEEE 802.3af / IEEE 802.3at (IP camera power supply) |
| Self-consumption | ≤ 3 W |
| Total power | ≤ 25 W (Total consumption of connected cameras) |
| Daisy chain capability | Supports level 2 passive daisy chain (connecting up to 3 IPC cameras) |
| Maximum transmission distance | Up to 300 meters (daisy-chained with compatible High PoE Midspan) |
| Installation mode | Indoor junction box mounting / DIN rail mounting |
| Operating temperature | -30°C to ~ 65°C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Physical dimensions | 23 x 79 x 52 mm |
| Net product weight | 57 g |
