Dahua switching power supply - Total power 30W
Regular price
€11,53
Final price
Regular price
-4%
€12,00
Sale price
€11,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

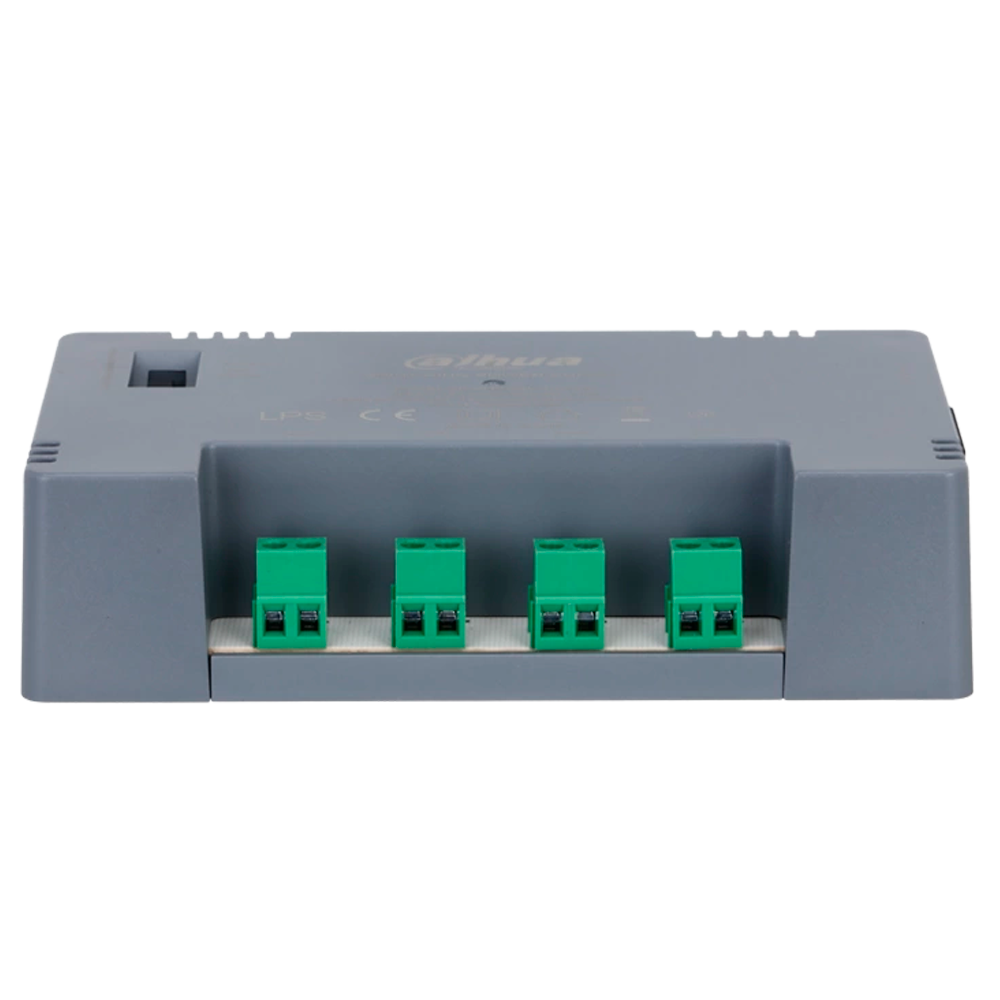

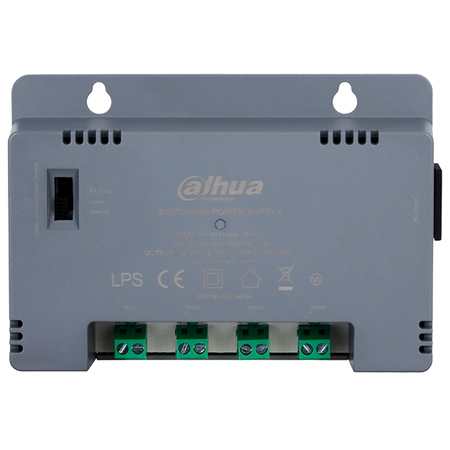

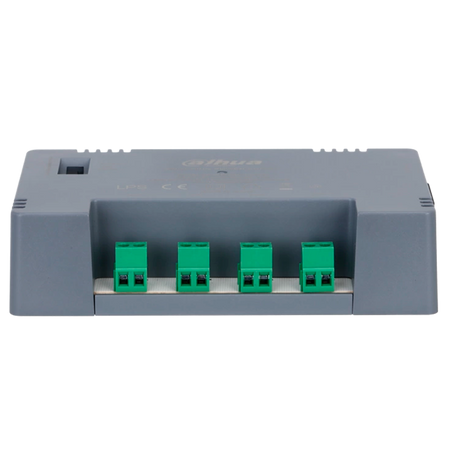

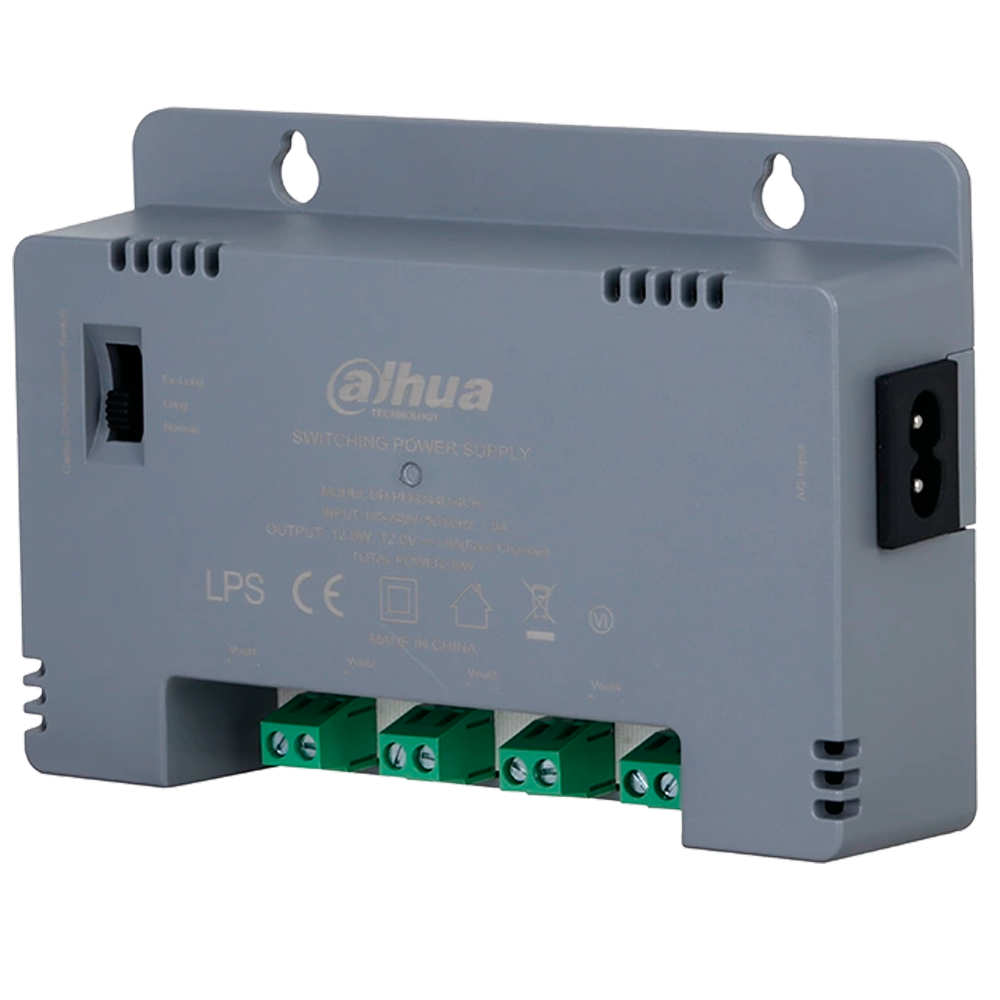

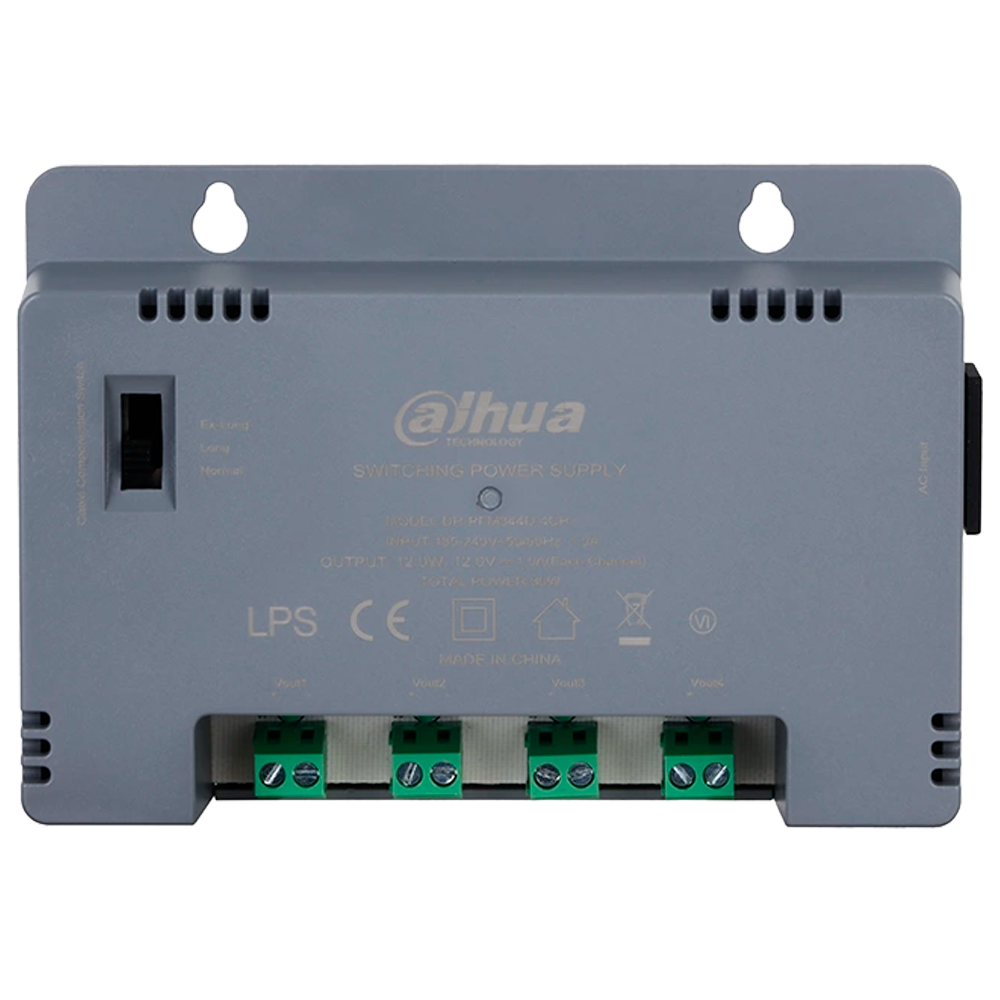

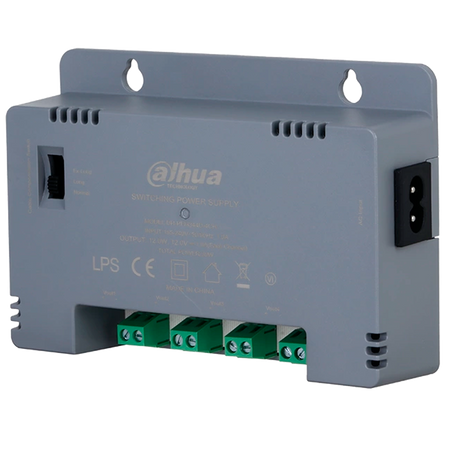

Switching power supply - AC Input 185-240V - 50/60Hz 1.5A - Total power 30W - 4 outputs - Adjustable 3-level output voltage - DC Output 12 V / 12 W
📋 SPECIFICATIONS:
• Power input: AC 185-240V - 50/60Hz 1.5A
• Power outputs: 8 outputs
• Output voltage: DC 12 V - 1 A / 12 W, 3 levels (Normal:12VDC, Long: 13.2VDC, and Ex-Long:15VDC)
• Output ripple: 150 mV
• Total power: 30 W
• Consumption: ≤ 0.1W
• Transformation efficiency: ≥ 87%
• Protection: Overcurrent, short circuit and overvoltage
• Surge protection: Common mode: ±4 kV, differential mode: ±2 kV.
• Operating temp.: 0º C ~ +40º C
• Dimensions: 140.1 (H) x 94.5(W) x 34.2 (D) mm
📦 INCLUDED:
• 4-channel switching power supply• Power cable
| Power input | AC 185-240V - 50/60Hz 1.5A |
|---|---|
| Power outputs | 8 outputs |
| Output voltage | DC 12 V - 1 A / 12 W, 3 levels (Normal: 12VDC, Long: 13.2VDC, and Ex-Long: 15VDC) |
| Output ripple | 150 mV |
| Total power | 30 W |
| Consumption | ≤ 0.1W |
| Conversion efficiency | ≥ 87% |
| Protection | Overcurrent, short circuit, and overvoltage |
| Surge protection | Common mode: ±4 kV, differential mode: ±2 kV. |
| Operating temp. | 0º C ~ +40º C |
| Dimensions | 140.1 (H) x 94.5 (W) x 34.2 (D) mm |
