Elettricity

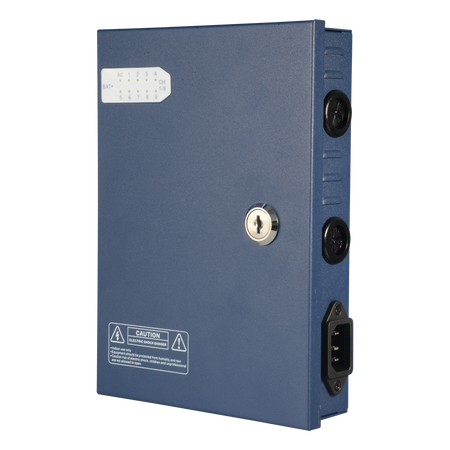

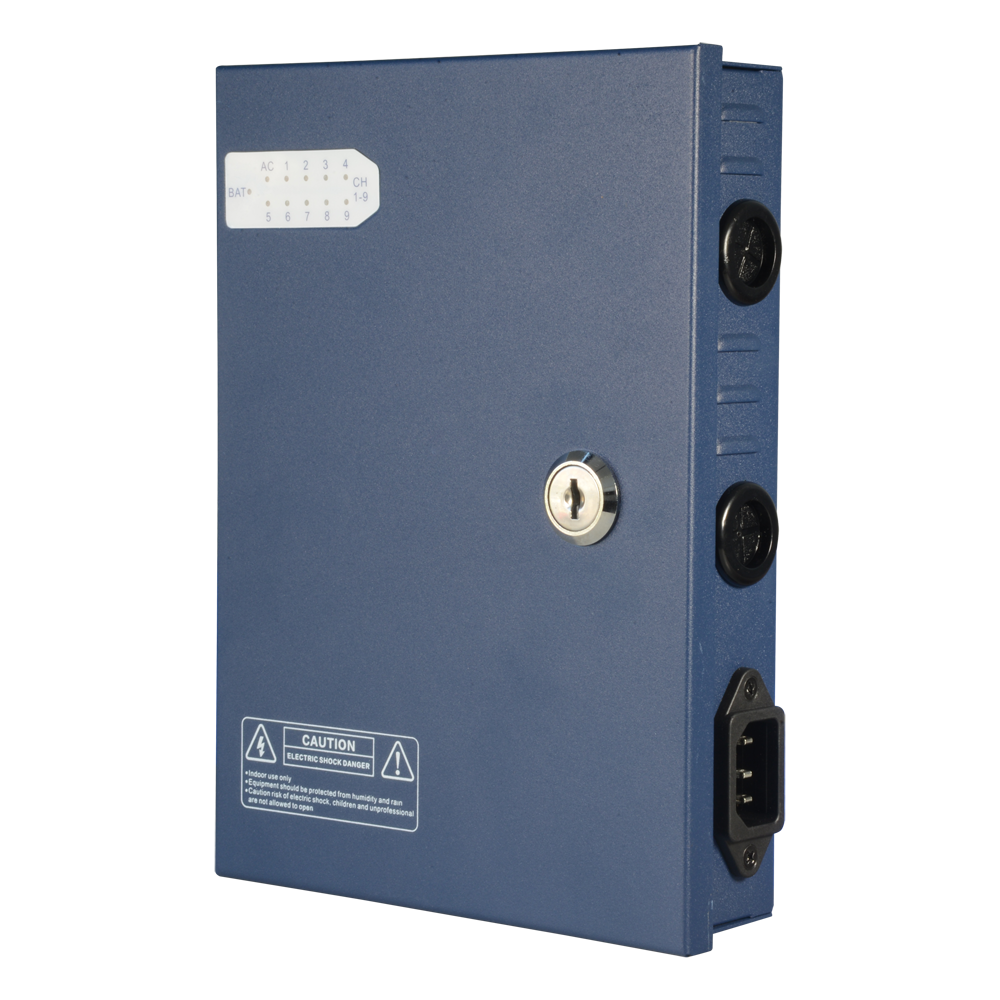

Slim power distribution box - 9 outputs with copper twisted pair

SKU: PD-120-9-SLIM
(0)
In stock
Usually shipped within 24 hours
€71,48 Final price
-6% €76,00 €71,48 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Slim power distribution box - 1 AC 220 V 50Hz input - 9 copper pair outputs - Resettable protection fuse - 12 V / 120 W output voltage - Metal body

📋 SPECIFICATIONS:
• Power input: AC 96 V - 264 V 50/60 Hz
• Power outputs: 9 copper pair outputs (terminals)
• Output voltage: 12V DC
• Total power: 120 W (10 A)
• Max. intensity per output: 1150 mA
• Protection: Short circuit / Overvoltage / Current spikes
• Filtered: EMI / PFC
• Operating temp.: -20ºC ~ +50º C
• Dimensions: 208 (W) x 152 (H) x 40 (D) mm
• UPS function: External connectors for 7AH-24AH batteries (battery not included)

📦 INCLUDED:
• 9-output 12 V power distribution box• Security lock key• Replacement 10A fuse• Installation diagram• 4 screws and 4 wall anchors for mounting• User manual
Power input AC 96 V - 264 V 50/60 Hz
Power outputs 9 copper pair outputs (clips)
Output voltage 12V DC
Total power 120 W (10 A)
Max. intensity per output 1150 mA
Protection Short circuit / Overvoltage / Current peaks
Filtered EMI / PFC
Operating temp. -20º C ~ +50º C
Dimensions 208 (W) x 152 (H) x 40 (D) mm
UPS function External connectors for 7AH-24AH batteries (battery not included)
