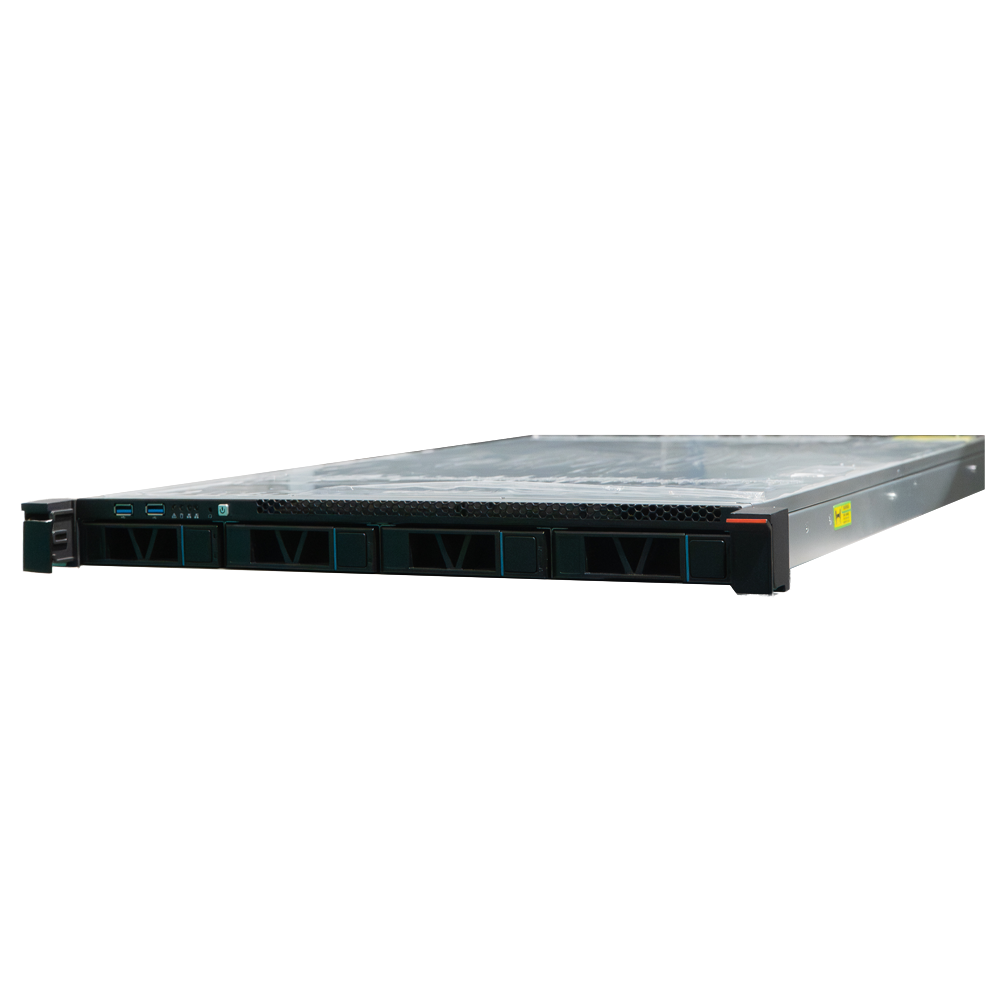

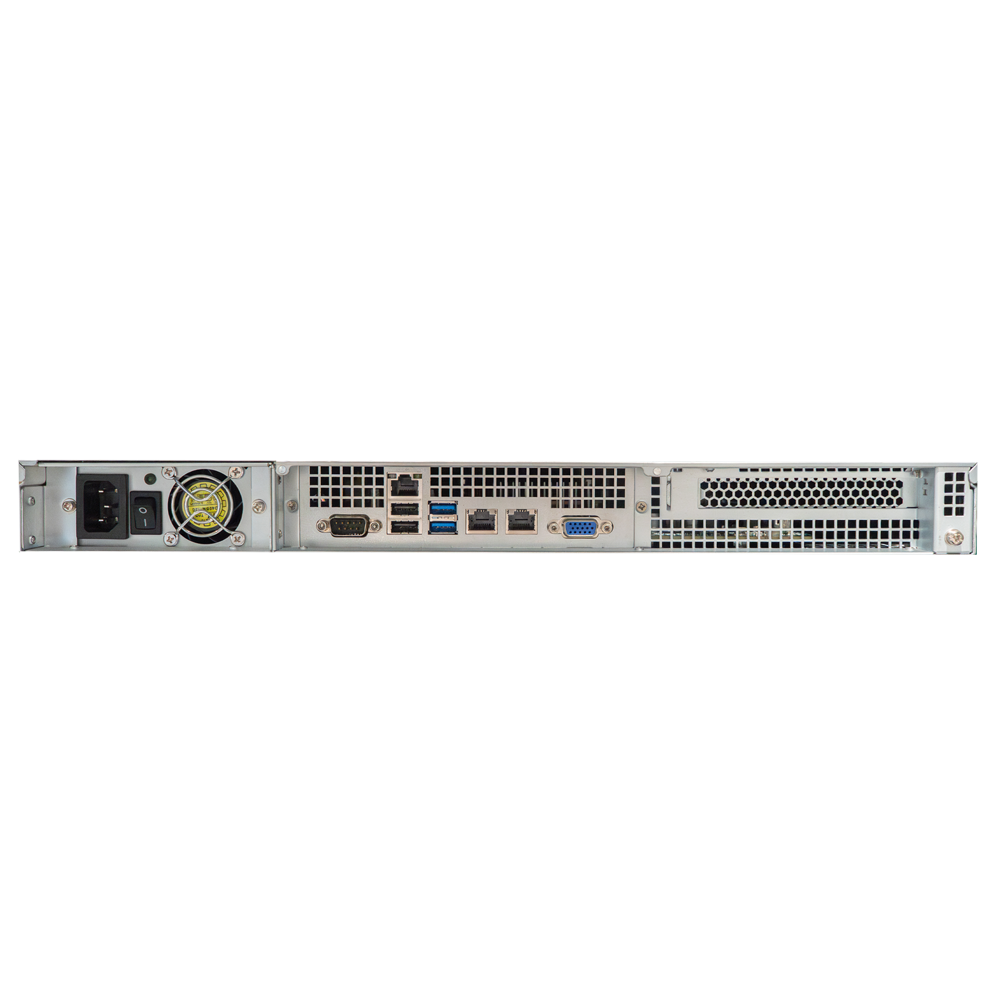

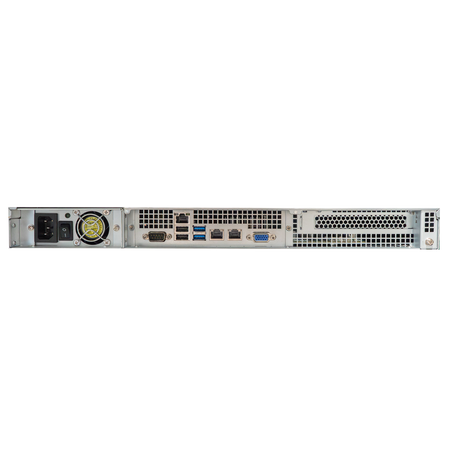

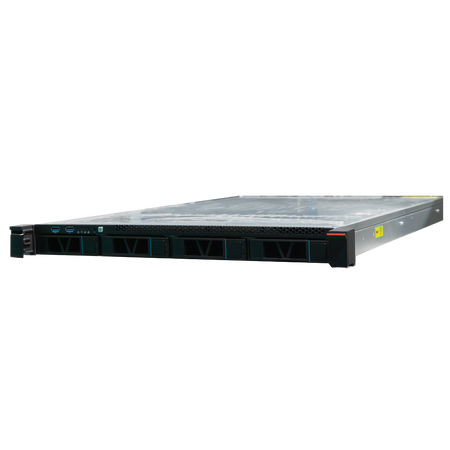

Network Optix 1U 4-bay NX Witness Server
Network Optix 1U 4-bay NX Witness Server
Regular price
€3.198,15
Final price
Regular price
-5%
€3.356,00
Sale price
€3.198,15
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
NX Witness 1U 4-bay Server - Supports up to 32 channels (depending on res./speed) - Linux Ubuntu LTS 22.04 OS - For additional hard drives, please add a note to the order - Licenses not included - Compatible with 99% of cameras on the market
📋 SPECIFICATIONS:
• Operating system: Linux Ubuntu LTS 22.04
• Video input: max. 32 IP cameras
• IP camera integration: Specific plugin based on camera brand, RTSP or ONVIF Profile S
• Device compatibility: Compatible with over 1,000 manufacturers and 21,600 devices, including Safire Smart, Uniview, Hikvision, Milesight, Sunnel, Raythink and many others
• Warranty: 2 years
• Management: NX Witness Desktop Client for Windows/Mac/Linux
• Mobile apps: NX mobile (Apple Store and Google Play)
• Model: NX-SERVER2-4BAY-1U-32CH
• Main application: Network Optix VMS Server (up to 32 video channels)
• Processor: E3-1280V6 multi-core 64-bit 4 core 8 threads
• Memory slots: 4 DIMM slots
• Supported memory: 8 ECC DDR4 (2133Mhz / 2666Mhz)
• Expansion slot: 1 x PCIe 4.0
• System hard drive: SSD EAGET S205 240GB
• Storage hard drive: HD8TB 8TB hard drive + additional hard drives upon request
• Hard drive bays: 4 x 3.5 / 2.5-inch SAS/SATA hot-swap
• Rear network interfaces: 2 x 10/100/1000Base-T Ethernet
• Remote management port: 1 x BMC network port
• Video outputs: 1 x VGA (rear panel)
• Communication ports: 1 x DB9 serial port (rear panel)
• Rear USB ports: 2 x USB 3.0
• Front USB ports: 2 x USB 3.0
• Front controls: Power button and reset button
• Front LED indicators: Power LED, network port LED, alarm LED
• Power options: Support for 1+1 450W hot-swap redundant power supply or 350W fixed PSU
• AC voltage range: 100V~127V / 200V~240V
• Network frequency: 50Hz / 60Hz
• Cooling system: 3+1 hot-swappable redundant fans model 4038
• Thermal management: Support for automatic speed adjustment based on ambient temperature
• Form factor: 1U 4-bay, 19-inch rack
• Product dimensions: 44mm (Height) x 440mm (Width) x 680mm (Depth)
• Operating temperature: +5 ℃ to +40 ℃
• Operating humidity: +10% to +90%
📦 INCLUDED:
• NX-Server1-8TB server• Power cable• 19" rack mount adapter
| Operating system | Linux Ubuntu LTS 22.04 |
|---|---|
| Video input | max. 32 IP cameras |
| IP camera integration | Specific plugin based on camera brand, RTSP or ONVIF Profile S |
| Device compatibility | Compatible with over 1,000 manufacturers and 21,600 devices, including Safire Smart, Uniview, Hikvision, Milesight, Sunnel, Raythink and many others |
| Warranty | 2 years |
| Management | NX Witness Desktop Client for Windows/Mac/Linux |
| Mobile apps | NX mobile (Apple Store and Google Play) |
| Model | NX-SERVER2-4BAY-1U-32CH |
| Main application | Network Optix VMS Server (up to 32 video channels) |
| Processor | E3-1280V6 multi-core 64-bit 4 cores 8 threads |
| Memory slots | 4 DIMM slots |
| Supported memory | 8 ECC DDR4 (2133Mhz / 2666Mhz) |
| Expansion slots | 1 x PCIe 4.0 |
| System hard drive | SSD EAGET S205 240GB |
| Storage hard drive | HD8TB 8TB hard drive + additional hard drives upon request |
| Hard drive bays | 4 x 3.5 / 2.5 inch SAS/SATA hot-swap |
| Rear network interfaces | 2 x 10/100/1000Base-T Ethernet |
| Remote management port | 1 x BMC network port |
| Video outputs | 1 x VGA (rear panel) |
| Communication ports | 1 x DB9 serial port (rear panel) |
| Rear USB ports | 2 x USB 3.0 |
| Front USB ports | 2 x USB 3.0 |
| Front controls | Power button and reset button |
| Front LED indicators | Power LED, network port LED, alarm LED |
| Power options | Support for 450W 1+1 redundant hot-swap power supply or a 350W fixed PSU |
| AC voltage range | 100V~127V / 200V~240V |
| Network frequency | 50Hz / 60Hz |
| Cooling system | 3+1 redundant hot-swappable 4038 model fans |
| Thermal management | Support for automatic speed adjustment based on ambient temperature |
| Form factor | 1U 4 Bay, 19-inch rack |
| Product dimensions | 44mm (Height) x 440mm (Width) x 680mm (Depth) |
| Operating temperature | +5 ℃ to +40 ℃ |
| Operating humidity | +10% to +90% |
