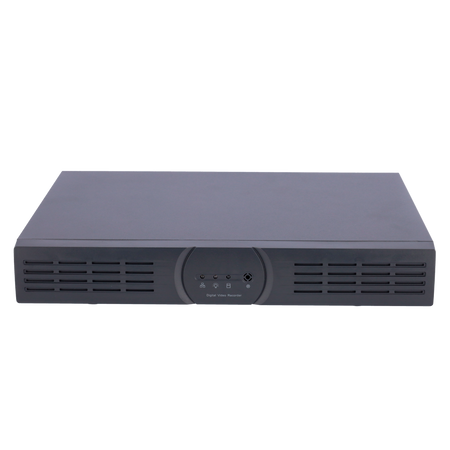

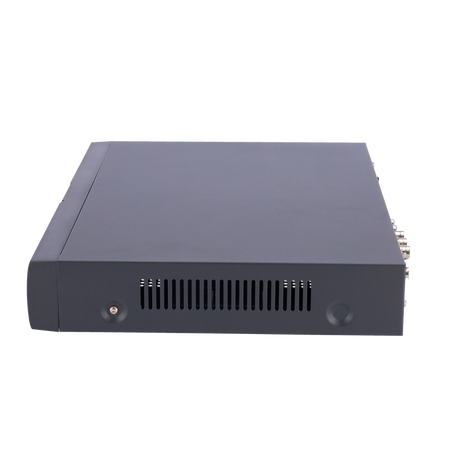

NVS 4 CH BNC video brand
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

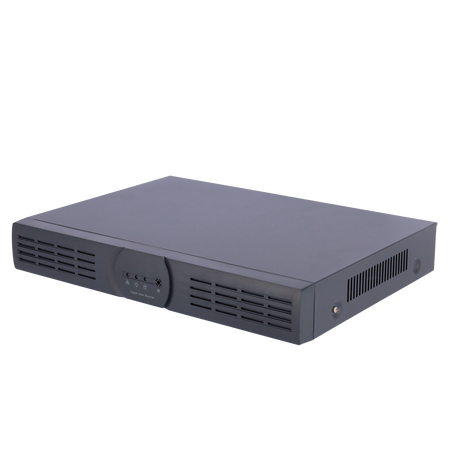

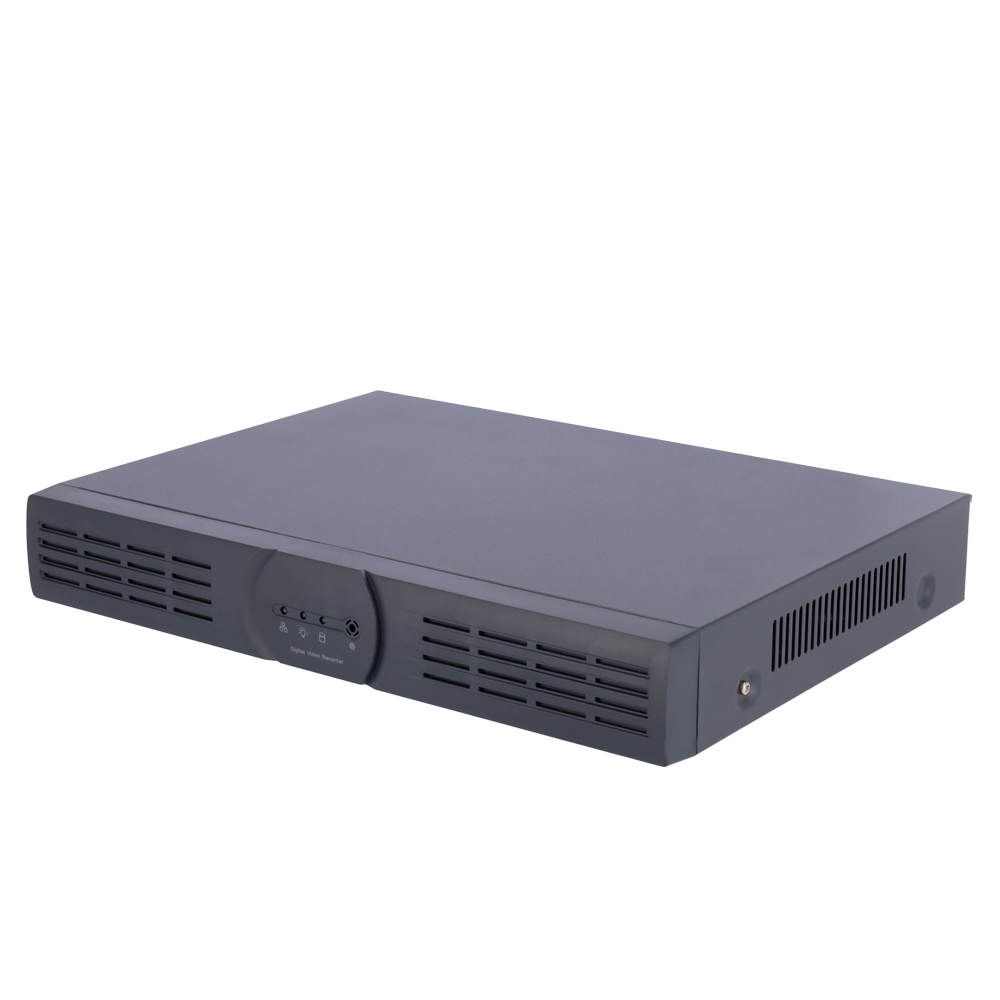

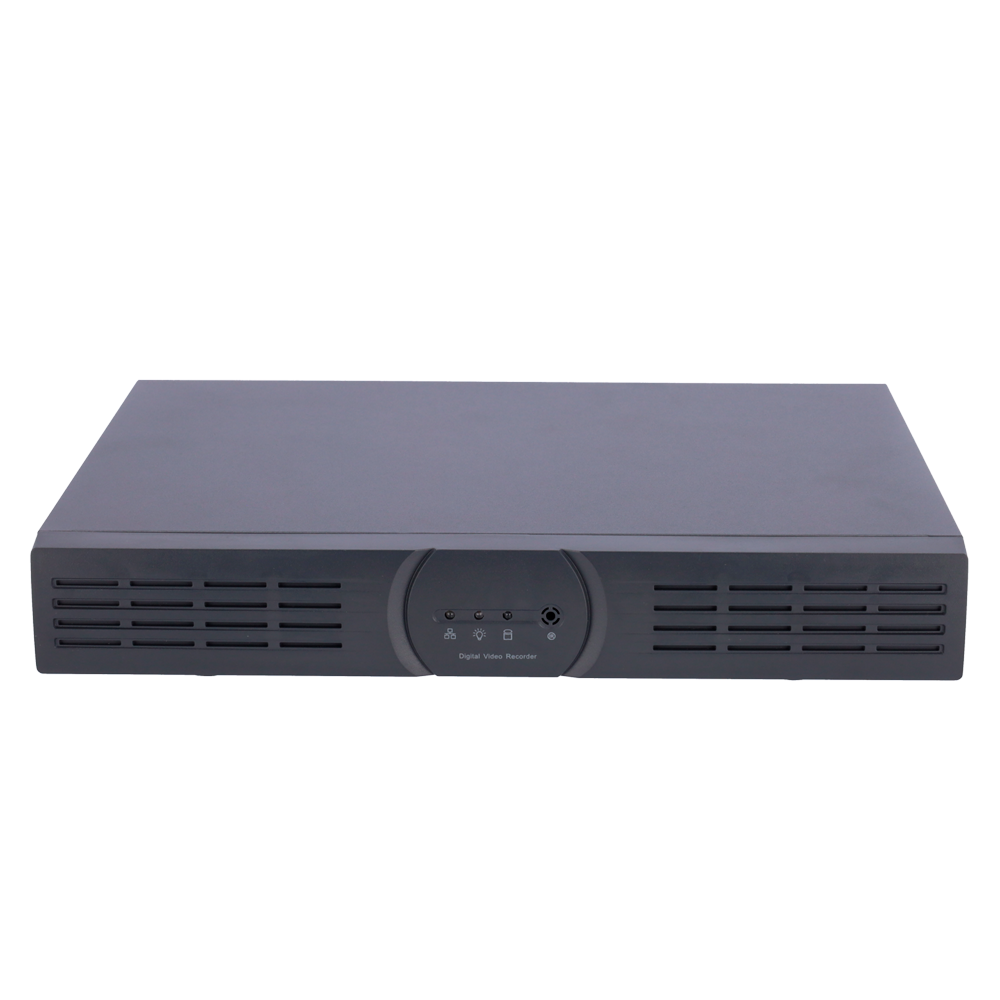

NVS Brand - 4 CH BNC video - 960H Resolution | H.264 compression - HDMI, VGA and BNC video output - Audio | Alarms
📋 SPECIFICATIONS:
• Brand: Branded
• Analog camera inputs: 4 CH BNC

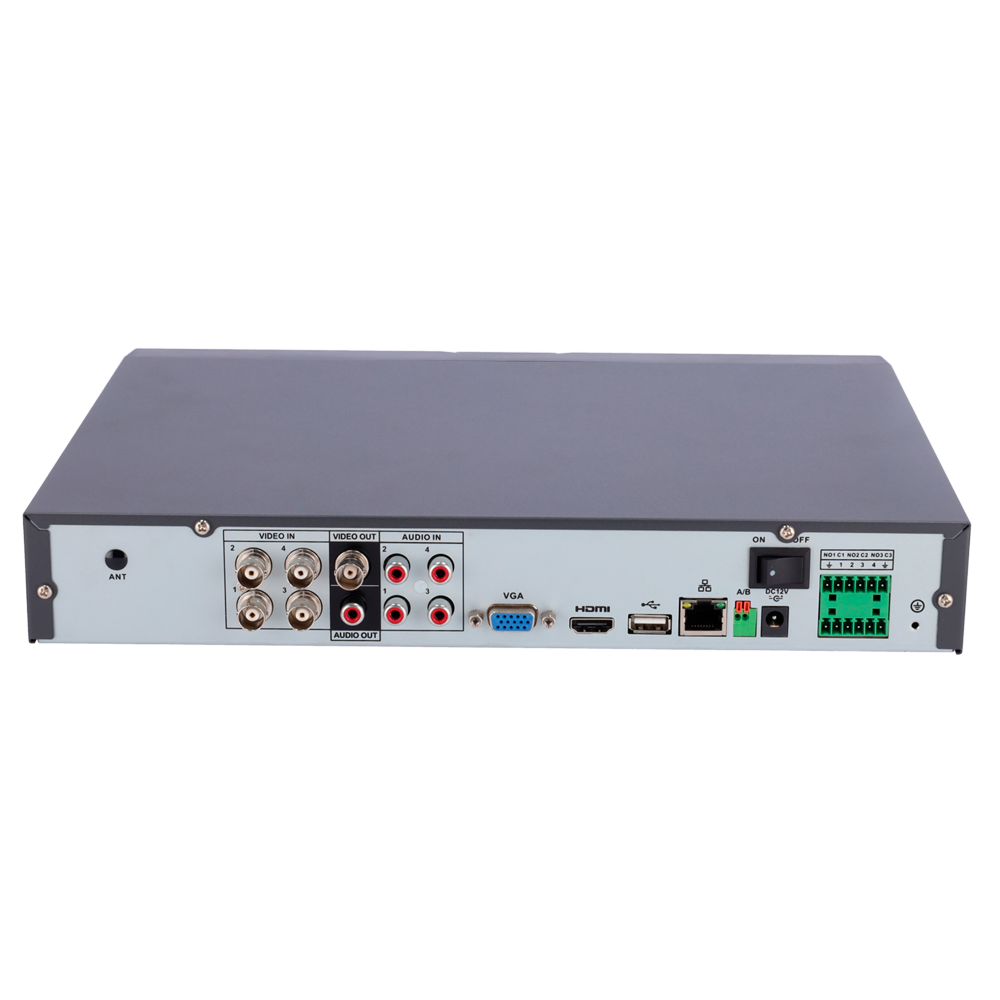

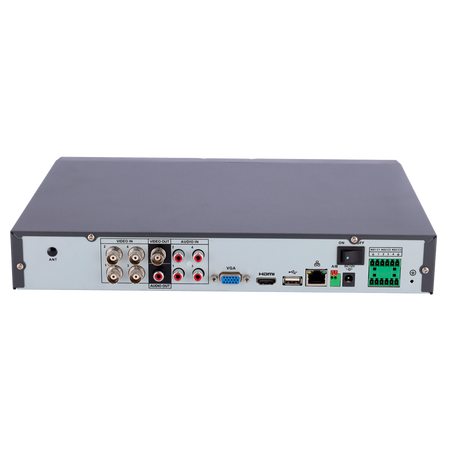

• Video output: 1xHDMI, 1xVGA, 1xBNC
• Video compression format: H.264 / MPEG4
• Main display resolution: 960H (960×576)
• Recording resolution: 960H (960×576)
• Encoding capacity: 4CH@960H
• Audio inputs: 4 CH (RCA); 1 CH 3.5mm JACK MIC IN
• Audio outputs: 1 RCA output, 3.5mm JACK LINE OUT; Multiple output
• Two-way audio: Supports high-quality two-way conversations
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Alarms: 4 Inputs / 3 Relays
• Recording method: Manual, scheduled, motion detection, alarm
• Backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Internal memory: 1xSATA HDD
• Communication: 1 x RJ45 10/100 Mbps (Ethernet) / 1 x RS485 / 1 x Antenna connector
• Remote access: Web browser, Smartphone App and Smart PSS
• Power supply: DC 12 V, 40 W
• Operating temperature: -10° ~ +55° C
• Dimensions / Weight: 137 x 162 x 30 mm / 2.3 Kg
📦 INCLUDED:
• NVS branded video recorder• Mouse• Power cable• CD with manual and software
| Analog camera inputs | 4 CH BNC |
|---|---|
| Video output | 1xHDMI, 1xVGA, 1xBNC |
| Video compression format | H.264 / MPEG4 |
| Main display resolution | 960H (960×576) |
| Recording resolution | 960H (960×576) |
| Encoding capacity | 4CH@960H |
| Audio inputs | 4 CH (RCA) 1 CH 3.5mm JACK MIC IN |
| Audio outputs | 1 RCA output, 3.5mm JACK LINE OUT multiple output |
| Bidirectional audio | Supports high-quality two-way talk |
| Multifunction | Pentaplex: Live, recording, playback, backup, and remote access |
| Alarms | 4 Inputs / 3 Relays |
| Recording method | Manual, scheduled, motion detection, alarm |
| Backup | USB storage / USB HDD / USB CD-RW / USB DVR-RW |
| Internal storage | 1xSATA HDD |
| Communication | 1 x RJ45 10/100 Mbps (Ethernet) / 1 x RS485 / 1 x Antenna connector |
| Remote access | Web browser, Smartphone App, and Smart PSS |
| Power supply | DC 12 V, 40 W |
| Operating temperature | -10° ~ +55° C |
| Dimensions / Weight | 137 x 162 x 30 mm / 2.3 Kg |
