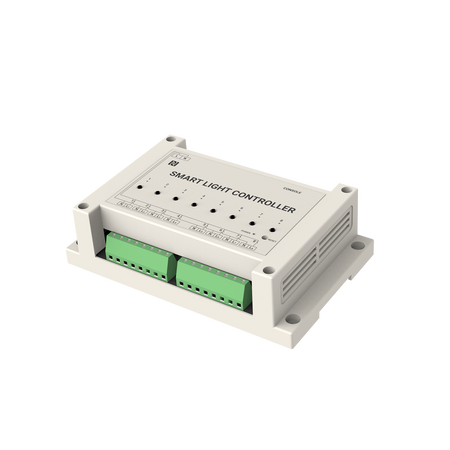

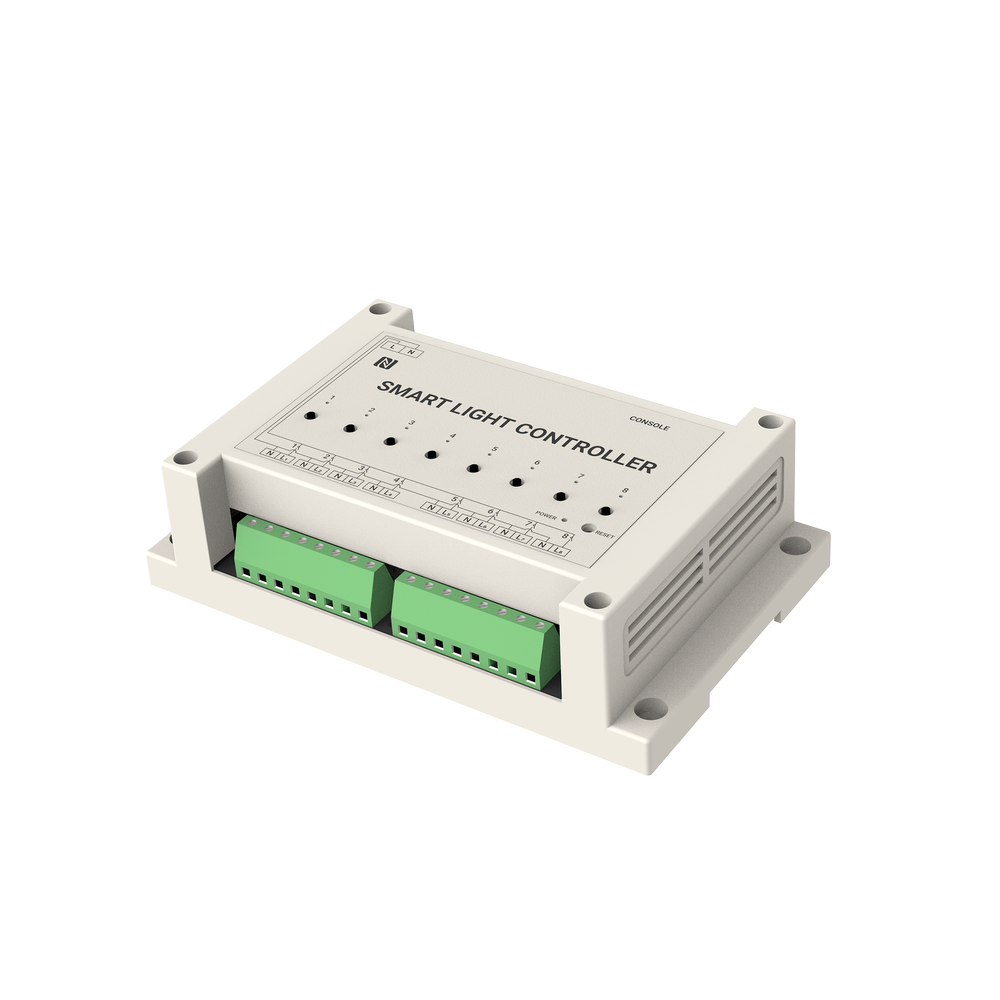

Milesight LoRaWAN IoT lighting control
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
IoT LoRaWAN lighting control - Up to 8 lighting circuits - Measures energy consumption - Range up to 15km with line of sight - Configuration via NFC and APP - Power-off memory function
📋 SPECIFICATIONS:
• Technology: LoRaWAN®, Milesight D2D
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class C
• Outputs: 8 active outputs
• Maximum capacity: Capacitive & inductive load: Up to 5A per output and 16A total; resistive load: Up to 8A per output and 16A total
• Input voltage: 100~240 VAC, 50~60 Hz
• Measured values: Voltage (VAC), Current (mA), Power factor (%), Power (W), Energy consumption (kW-h)
• Operating temperature: -20ºC ~ 60ºC
• Color/material: Cream / ABS
• Dimensions: 145 x 90 x 40 mm
• Installation: Wall / DIN rail
📦 INCLUDED:
• IoT lighting control• Connector• Installation accessories• User manual
| Technology | LoRaWAN®, Milesight D2D |
|---|---|
| Frequency Band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| Outputs | 8 active outputs |
| Maximum Capacity | Capacitive & inductive load: Up to 5A on each output and 16A in total; resistive load: Up to 8A on each output and 16A in total |
| Input Voltage | 100~240 VAC, 50~60 Hz |
| Measured Values | Voltage (VAC), Current (mA), Power factor (%), Power (W), Energy consumption (kW-h) |
| Operating Temperature | -20ºC ~ 60ºC |
| Color/Material | Cream / ABS |
| Dimensions | 145 x 90 x 40 mm |
| Installation | Wall / DIN rail |
