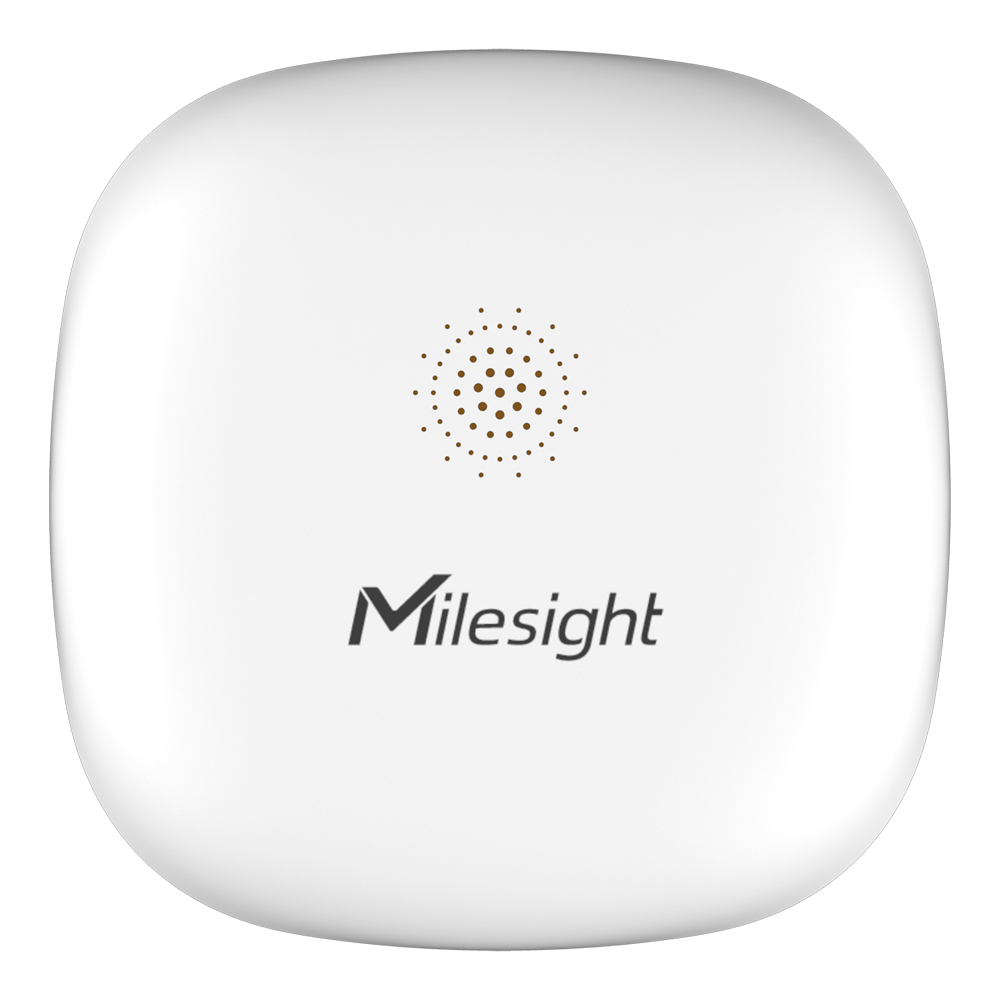

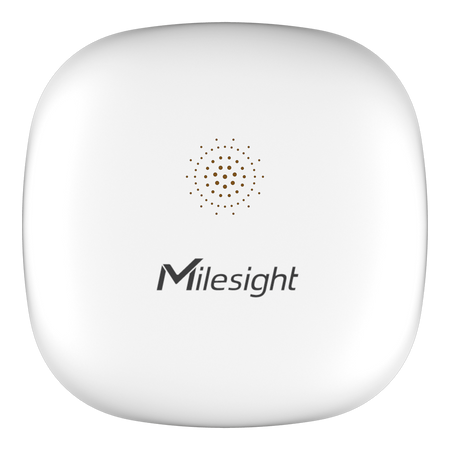

Milesight liquid level detection at only 0.5 mm
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Water detection with liquid levels as low as 0.5 mm - Replaceable 590 mAh battery with up to 5.7 years of life - Local alarm via integrated sensor buzzer - D2D protocol for direct control without the need for a gateway - NFC configuration from a smartphone without opening the device - IP67 submersible for cellars, pipes, and outdoors
📋 SPECIFICATIONS:
• Model: WS303
• Type: Contact water leak detection sensor
• Technology: Wireless LoRaWAN + Milesight D2D (Device-to-Device)
• Antenna: Internal
• Supported frequencies: CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4
• Transmission power: 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz)
• Reception sensitivity: -137 dBm @ 300 bps LoRaWAN OTAA / ABP mode, Class A Detectable liquids Conductive liquids (water, saline solutions, conductive coolants)
• Activation threshold: 0.5 mm water level on contacts
• Local alarm: Integrated piezoelectric buzzer (~85 dB at 10 cm)
• Remote alarm: Push notifications via Milesight IoT Cloud / Mobile App D2D Protocol Direct control of Milesight valves and actuators without a gateway
• Configuration: NFC (Milesight Toolbox mobile app) or LoRaWAN Downlink Power supply 1 × 590 mAh CR2450 lithium battery (user-replaceable)
• Estimated battery life: Up to 5.7 years (1 leak of 1 hour per week, 25 °C, laboratory conditions)
• Operating temperature: -10 °C to +60 °C Relative humidity 0% to 100% (non-condensing)
• Protection: IP67 (resistant to temporary immersion)
• Dimensions: 63 × 63 × 14 mm Weight 36.4 g (with battery) / 29.8 g (without battery)
• Material and color: ABS+PC housing, white Installation method 3M adhesive tape (included) or placed on a flat surface
• Certifications: CE, FCC, RoHS
• Compatible platforms: Milesight IoT Cloud, Milesight Development Platform, any standard LoRaWAN network server
• Typical applications: Server rooms, basements, bathrooms, archives, industrial kitchens, homes, smart offices
📦 INCLUDED:
• 1x Milesight WS303 leak detection sensor
• 1x 590 mAh CR2450 lithium battery (pre-installed and replaceable)
• 1x Quick installation guide and technical documentation
• 1x 3M adhesive for surface mounting
| Model | WS303 |
|---|---|
| Type | Contact-based water leak detection sensor |
| Technology | LoRaWAN wireless + Milesight D2D (Device-to-Device) |
| Antenna | Internal |
| Supported frequencies | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Transmission power | 16 dBm (868 MHz) / 20 dBm (915 MHz) / 19 dBm (470 MHz) |
| Reception sensitivity | -137 dBm @ 300 bps LoRaWAN OTAA/ABP mode, Class A Detectable liquids Conductive liquids (water, saline solutions, conductive coolants) |
| Activation threshold | 0.5 mm water level on contacts |
| Local alarm | Integrated piezoelectric buzzer (~85 dB at 10 cm) |
| Remote alarm | Push notifications via Milesight IoT Cloud / Mobile App D2D Protocol Direct control of Milesight valves and actuators without a gateway |
| Configuration | NFC (Milesight Toolbox mobile app) or LoRaWAN Downlink Power supply 1 × 590 mAh CR2450 lithium battery (user-replaceable) |
| Estimated battery life | Up to 5.7 years (1 leak of 1 hour per week, 25 °C, laboratory conditions) |
| Operating temperature | -10 °C to +60 °C Relative humidity 0% to 100% (non-condensing) |
| Protection | IP67 (resistant to temporary immersion) |
| Dimensions | 63 × 63 × 14 mm Weight 36.4 g (with battery) / 29.8 g (without battery) |
| Material and color | ABS+PC housing, white Installation method 3M adhesive tape (included) or placed on a flat surface |
| Certifications | CE, FCC, RoHS |
| Compatible platforms | Milesight IoT Cloud, Milesight Development Platform, any standard LoRaWAN network server |
| Typical applications | Server rooms, basements, bathrooms, archives, industrial kitchens, homes, smart offices |
