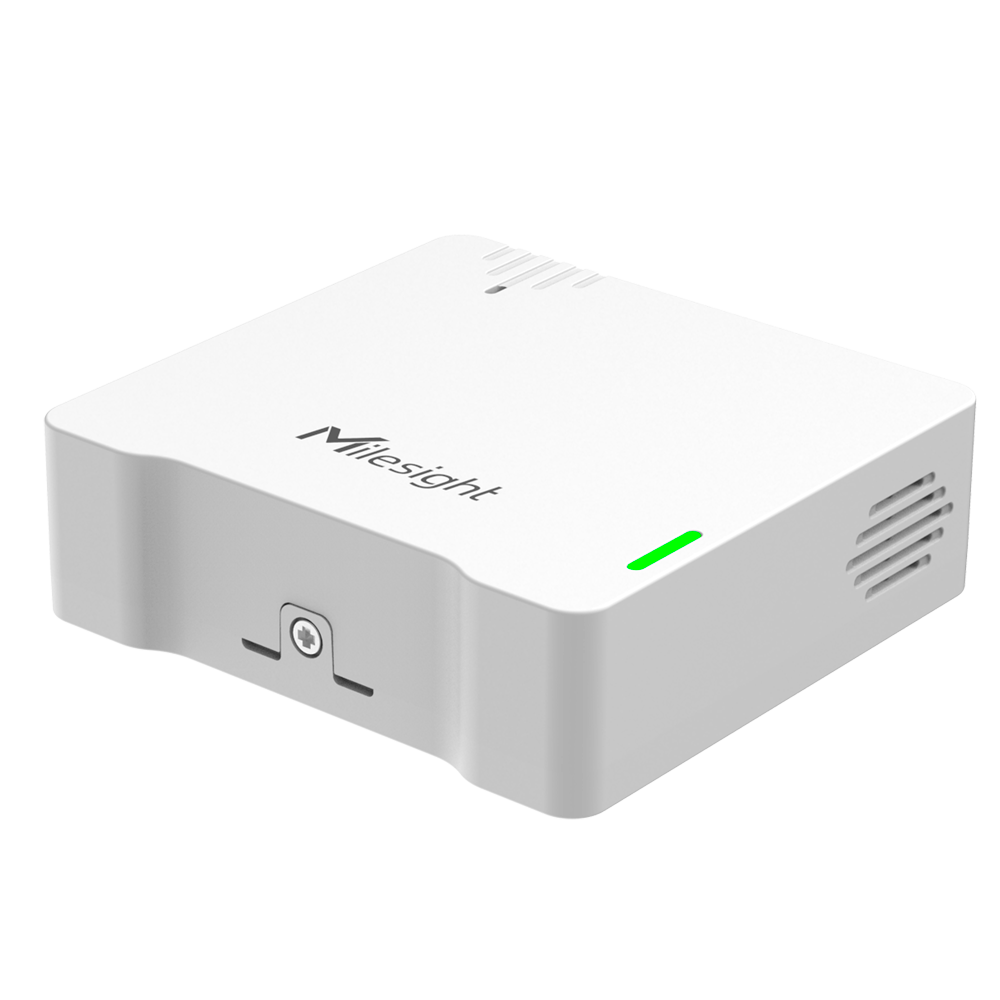

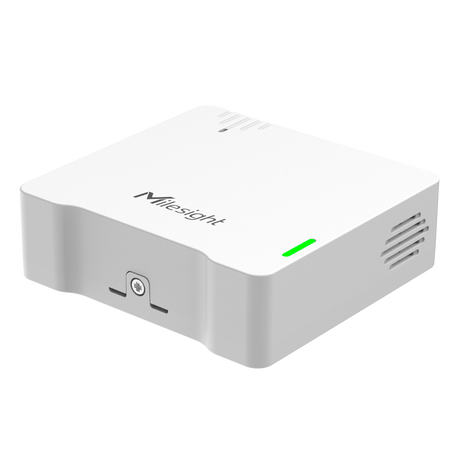

Milesight measurement range from 30 to 120 dBA
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Measurement range from 30 to 120 dBA - Accuracy of ± 3 dB; Resolution of 0.1 dB - A-weighting, C-weighting and Fast weighting - Measurement units: effective SPL, Leq and Lmax
📋 SPECIFICATIONS:
• Technology: LoRaWAN
• Antenna: Internal
• Operating frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
• Transmission power: 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Range: From 30 dBA to 120 dBA, from 35 dBC to 120 dBC.
• Accuracy: ± 3 dB (0 °C to +45 °C)
• Resolution: 0.1 dB
• Frequency range: From 30 Hz to 8 kHz
• Frequency weighting: A and C weighting (switchable via software)
• Time weighting: Fast weighting
• Measurement units: effective SPL, Leq, Lmax
• buttons: x1 Power/Reset button
• LED: x1 status/alarm LED indicator
• On/Off: Mobile application via NFC or power button.
• configuration: Mobile application via NFC or downlink
• Advanced function: Alarm threshold
• Power supply: x2 replaceable 2700 mAh ER14505 Li-SOCl2 batteries
• Battery life*; (10 min interval, 25 °C): Fast time weighting disabled:; Approx. 5 years (SF7, EU868 and US915); Approx. 3.3 years (SF10, EU868); Approx. 2.4 years (SF10, US915); Fast time weighting enabled:; Approx. 1.7 years (SF7, EU868 and US915); Approx. 1.5 years (SF10, EU868); Approx. 1.3 years (SF10, US915)
• Operating temperature: -20°C to +60°C
• Relative humidity: ≤95% (non-condensing)
• Protection: IP 30
• Dimensions: 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 inches)
• Material and color: PC + ABS, white
• Weight: 79.1 g (batteries included)
• Installation: On flat surfaces with screws or 3M tape.
• Standards: CE, FCC, Telec, RoHS
| Technology | LoRaWAN |
|---|---|
| Antenna | Internal |
| Operating frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Transmit power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Range | 30 dBA to 120 dBA, 35 dBC to 120 dBC. |
| Accuracy | ± 3 dB (0 °C to +45 °C) |
| Resolution | 0.1 dB |
| Frequency range | 30 Hz to 8 kHz |
| Frequency weighting | A and C weighting (software switchable) |
| Time weighting | Fast weighting |
| Measurement unit | Actual SPL, Leq, Lmax |
| Buttons | x1 Power/Reset button |
| LED | x1 status/alarm LED indicator |
| On/Off | Mobile application via NFC or power button. |
| Configuration | Mobile application via NFC or downlink |
| Advanced function | Alarm threshold |
| Power supply | x2 replaceable 2700 mAh ER14505 Li-SOCl2 batteries |
| Battery life* (10 min interval, 25 °C) | Fast time weighting disabled: Approx. 5 years (SF7, EU868 and US915) Approx. 3.3 years (SF10, EU868) Approx. 2.4 years (SF10, US915) Fast time weighting enabled: Approx. 1.7 years (SF7, EU868 and US915) Approx. 1.5 years (SF10, EU868) Approx. 1.3 years (SF10, US915) |
| Operating temperature | -20°C to +60°C |
| Relative humidity | ≤95% (non-condensing) |
| Protection | IP 30 |
| Dimensions | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 inches) |
| Material and color | PC + ABS, white |
| Weight | 79.1 g (batteries included) |
| Installation | On flat surfaces with screws or 3M tape. |
| Regulations | CE, FCC, Telec, RoHS |
