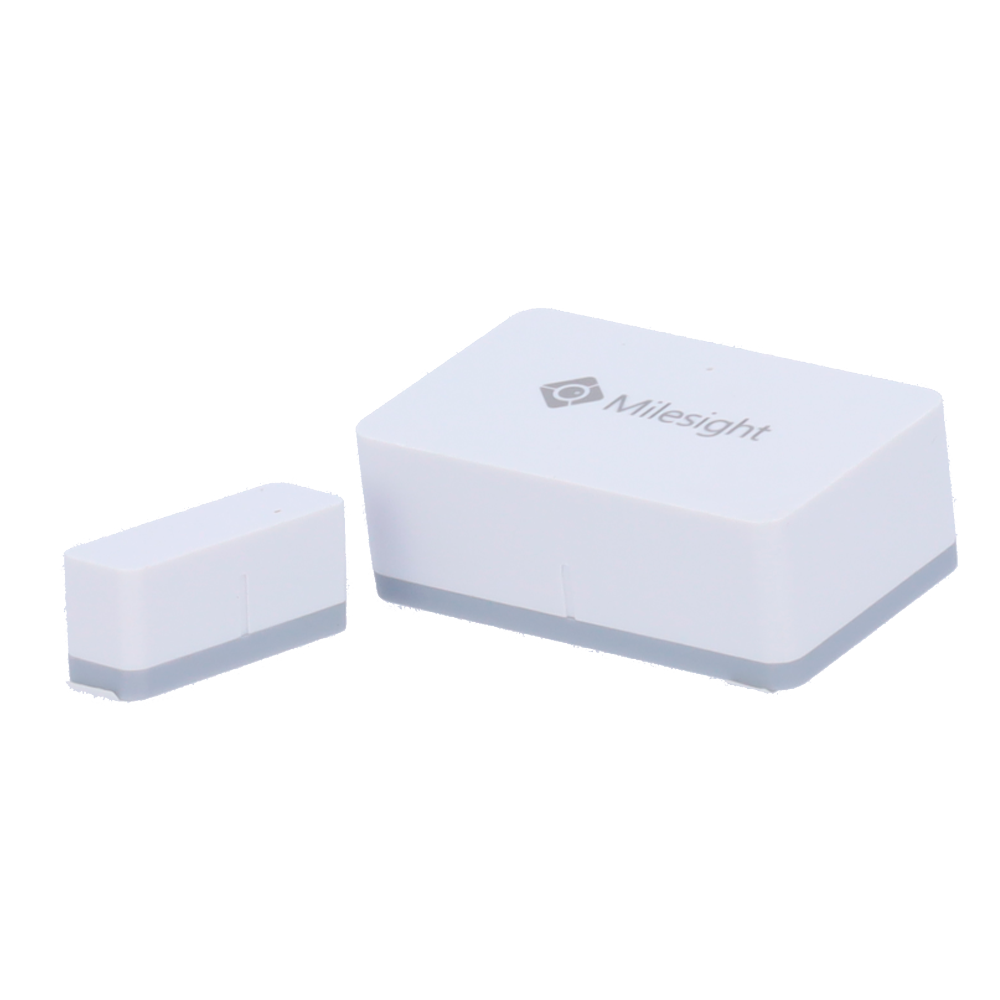

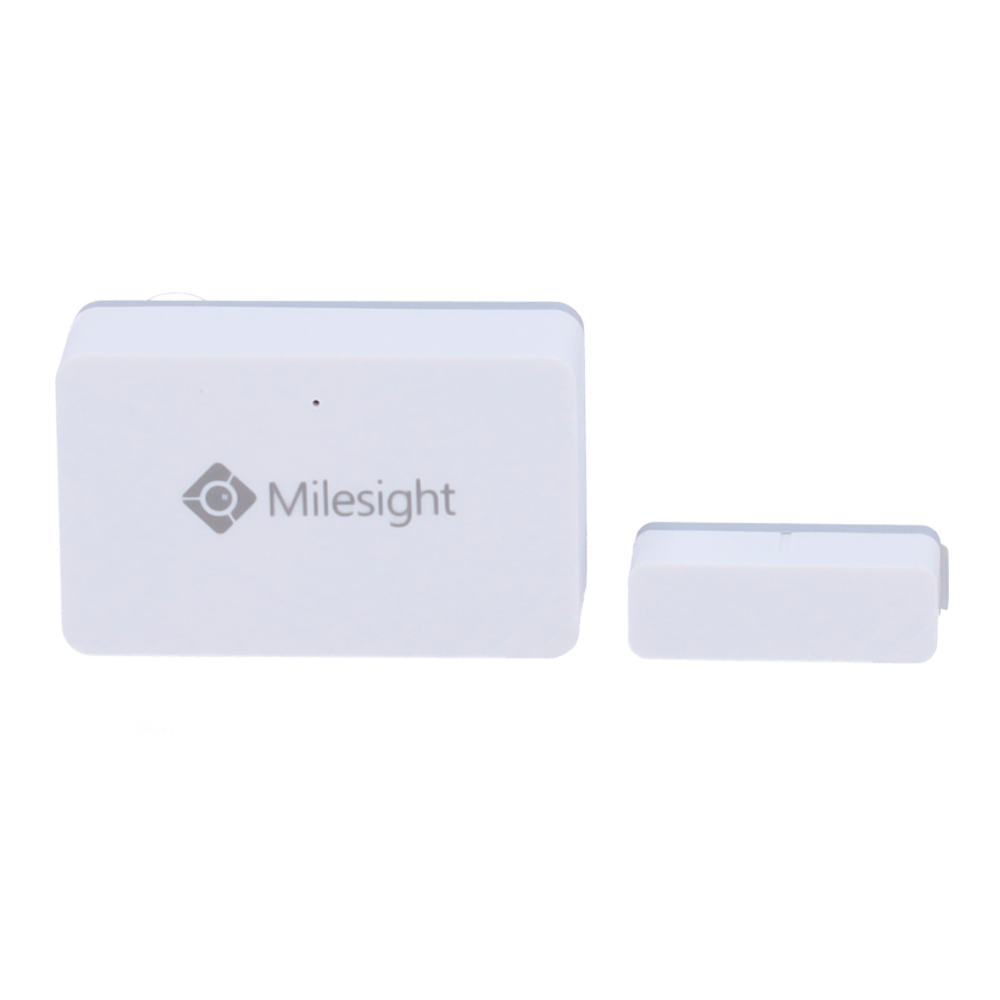

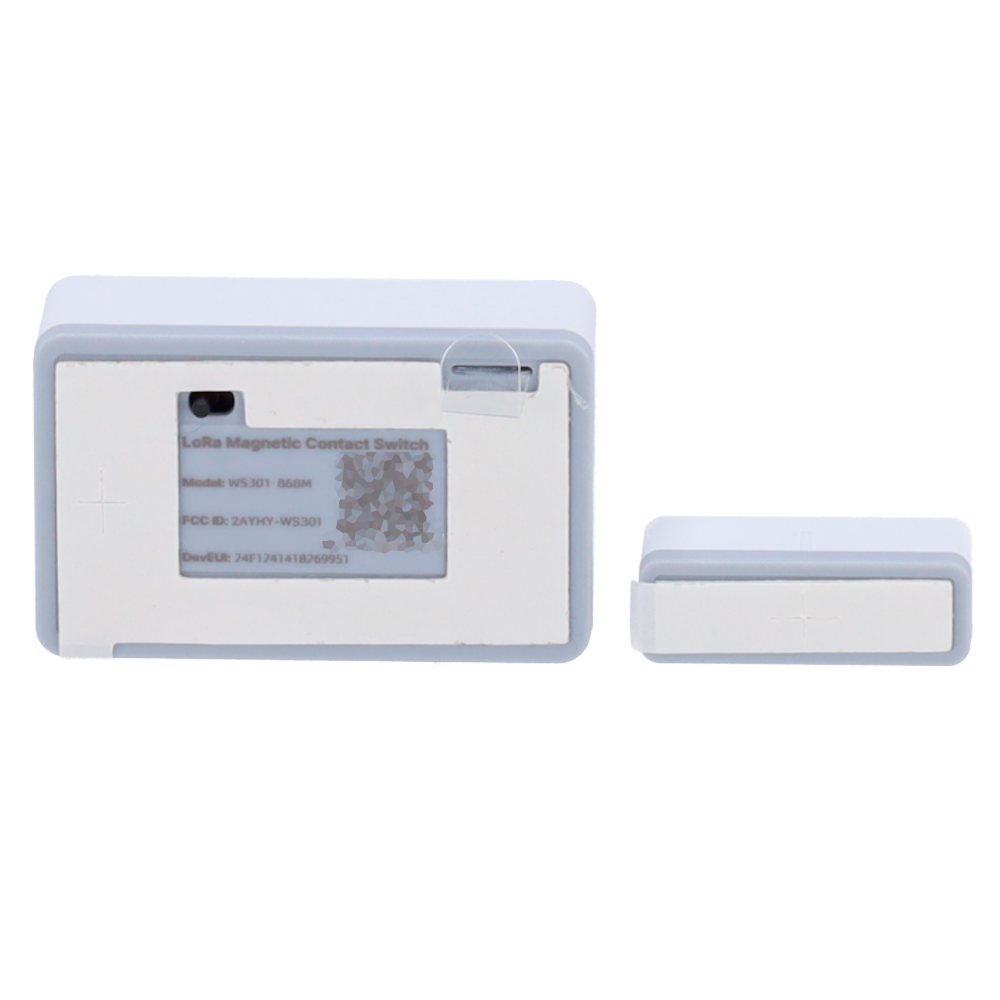

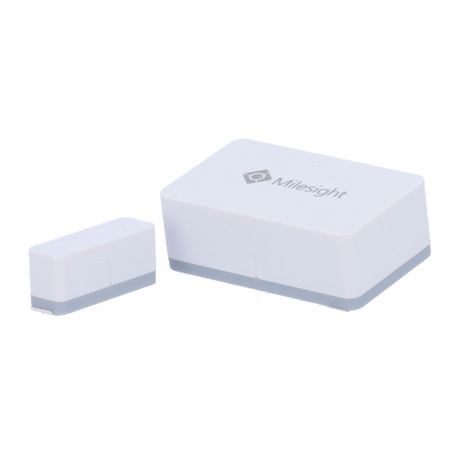

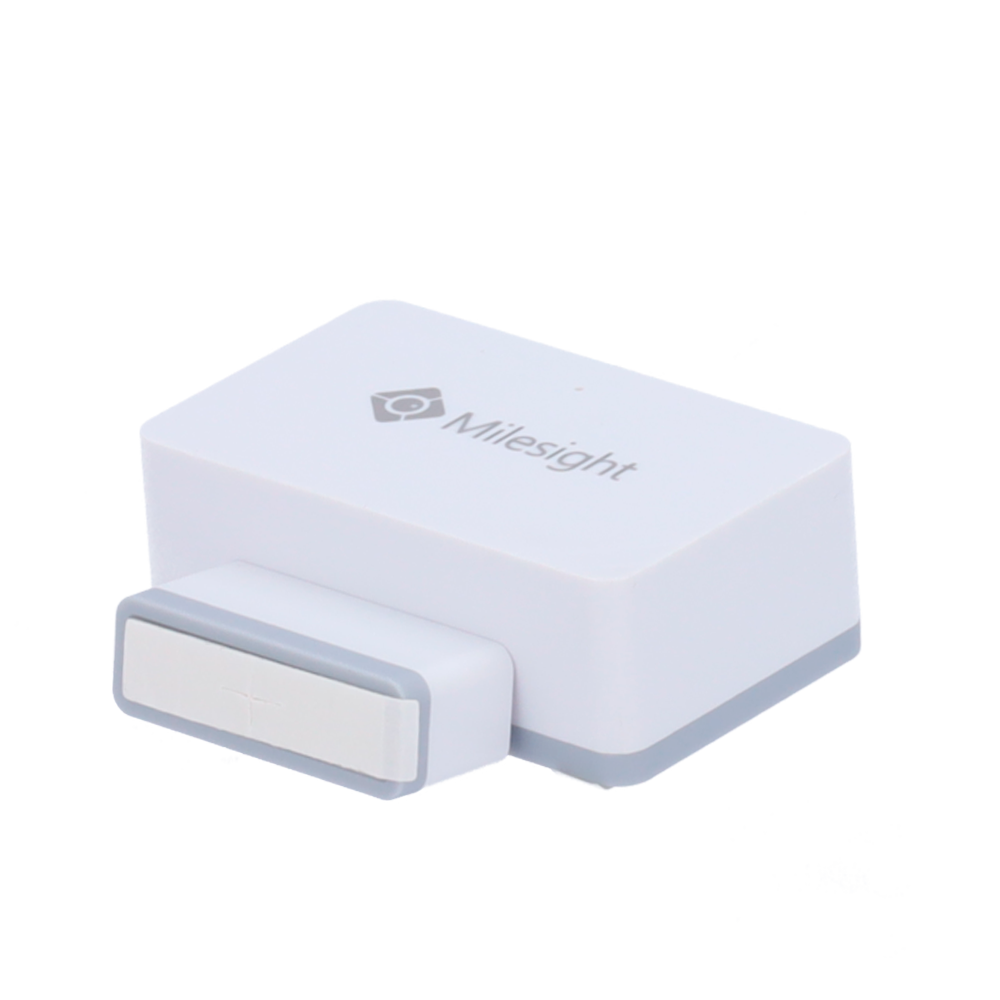

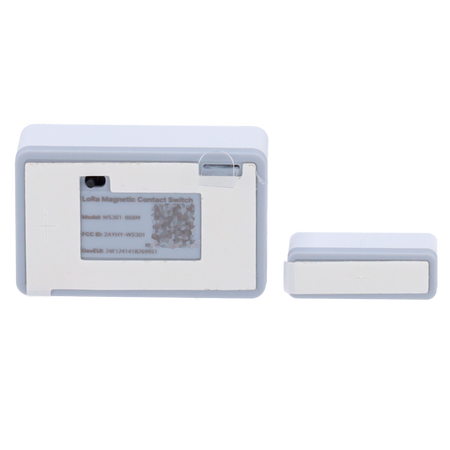

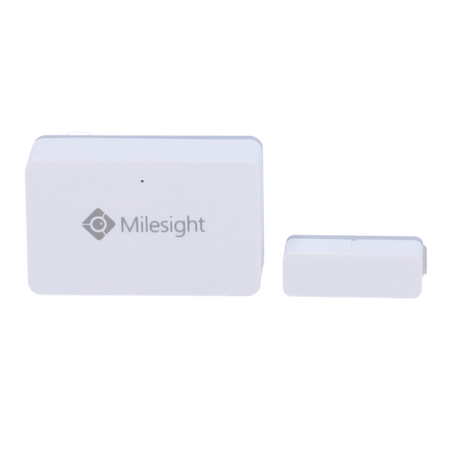

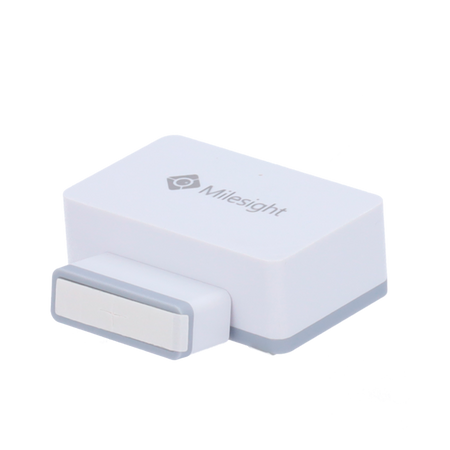

Milesight LoRaWAN magnetic contact - Configuration via NFC and APP
Regular price
€76,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN magnetic contact - Range up to 15km with line-of-sight - Installation on doors and windows - Configuration via NFC and APP - IP20 Protection Rating - Long battery life
📋 SPECIFICATIONS:
• Frequency band: 868 MHz
• Sensitivity: -137dBm@300bps
• Output power: 16dBm Max.
• Protocol: OTAA/ABP Class A
• Communication range: Up to 15 km in line-of-sight
• Detection distance: 10 - 15 mm
• Alarm: Open/closed status, tamper
• Configuration: NFC via smartphone app
• Installation: Doors and windows
• Reliability: WAN failover
• Power supply: 1x 1650 mAh ER14335 Li-SOCl2 battery
• Battery life: 5 years (30 openings per day)
• Operating temperature: -20ºC to 60ºC (Relative humidity <90%)
• Protection rating: IP20
• Dimensions: Sensor: 18.5 (D) x 50.5 (H) x 31 (W) mm; Magnet: 1.3 (D) x 30 (H) x 10 (W) mm
• Material: Flame-retardant polycarbonate
• Color: White
• Certifications: CE, FCC, RoHS
📦 INCLUDED:
• Magnetic contact• Instruction manual• Mounting material
| Frequency Band | 868 MHz |
|---|---|
| Sensitivity | -137dBm@300bps |
| Output Power | 16dBm Max. |
| Protocol | OTAA/ABP Class A |
| Communication Range | Up to 15km line-of-sight |
| Detection distance | 10 - 15 mm |
| Alarm | Open/closed status, tamper |
| Configuration | NFC via smartphone APP |
| Installation | Doors and windows |
| Reliability | WAN failover |
| Power Supply | 1x 1650 mAh ER14335 Li-SOCI2 battery |
| Battery Life | 5 years (30 openings per day) |
| Operating Temperature | -20ºC to 60ºC (Relative humidity <90%) |
| Protection Rating | IP20 |
| Dimensions | Sensor: 18.5 (D) x 50.5 (H) x 31 (W) mm Magnet: 1.3 (D) x 30 (H) x 10 (W) mm |
| Material | Flame-retardant polycarbonate |
| Color | White |
| Certificates | CE, FCC, RoHS |
