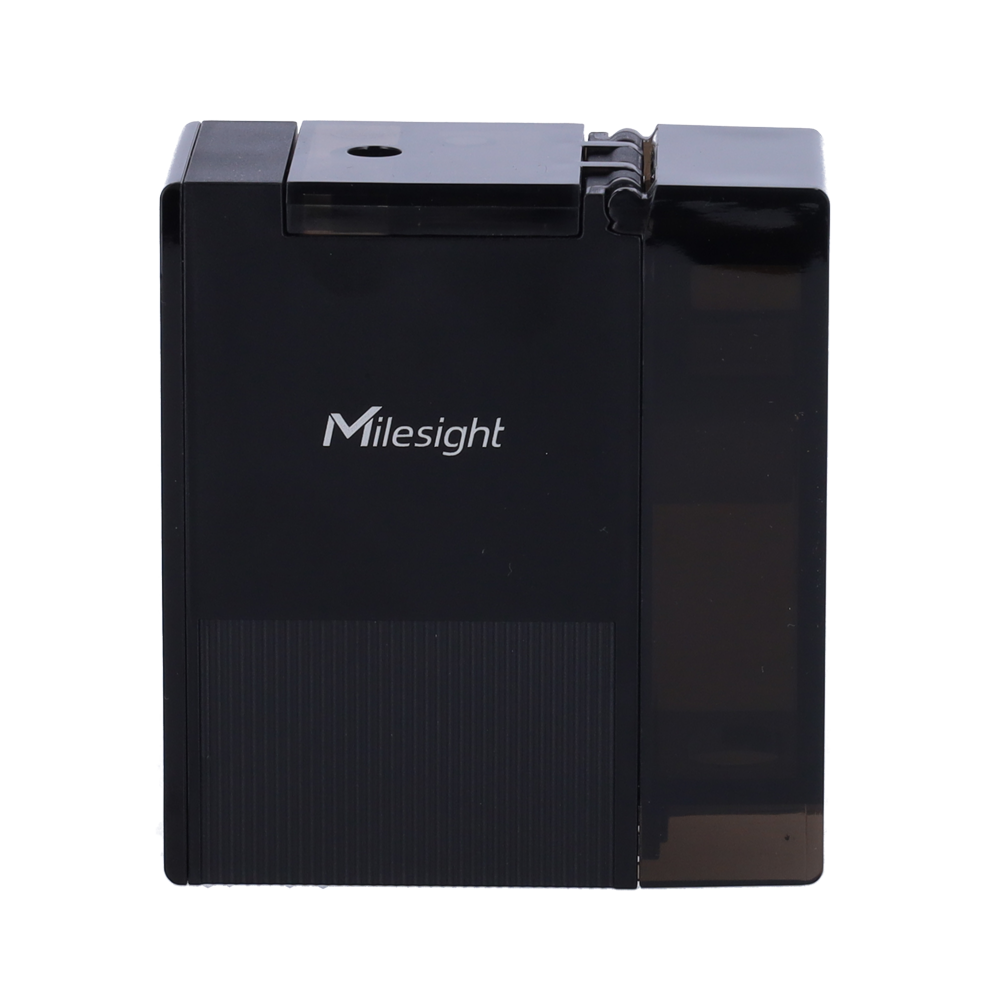

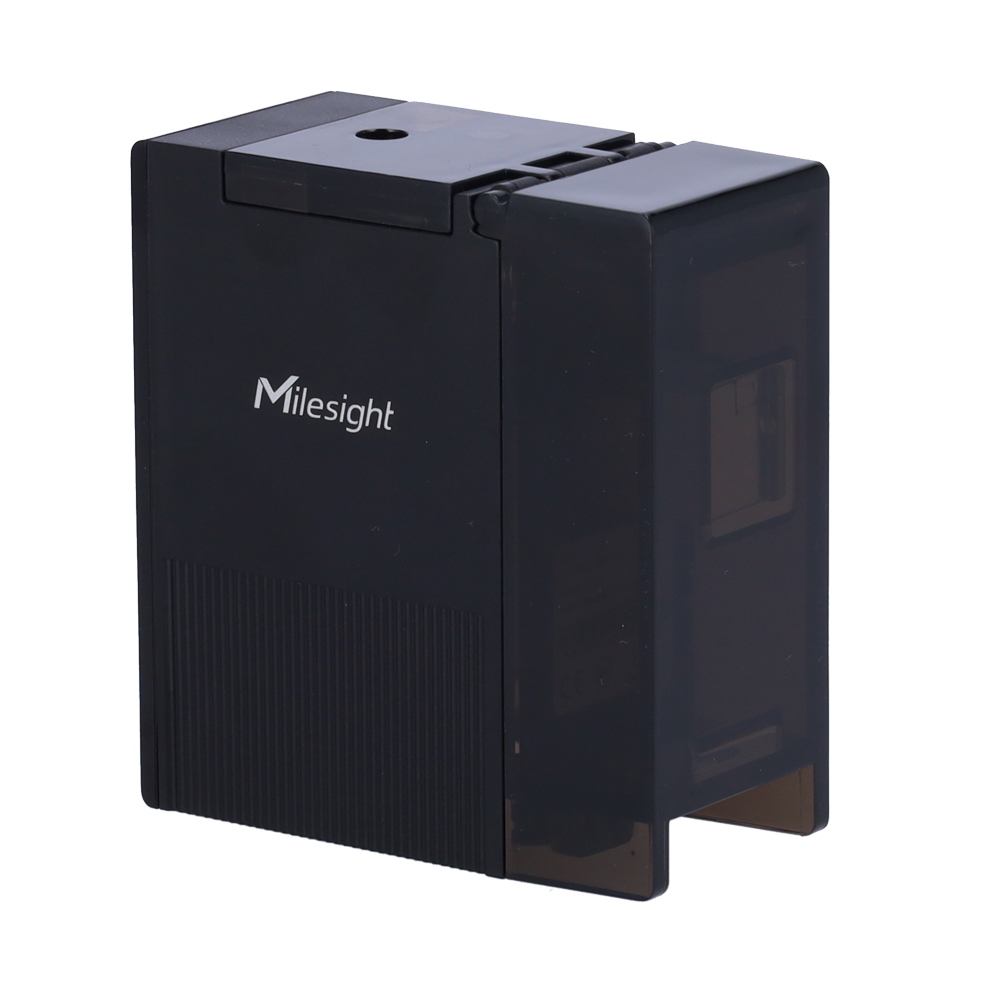

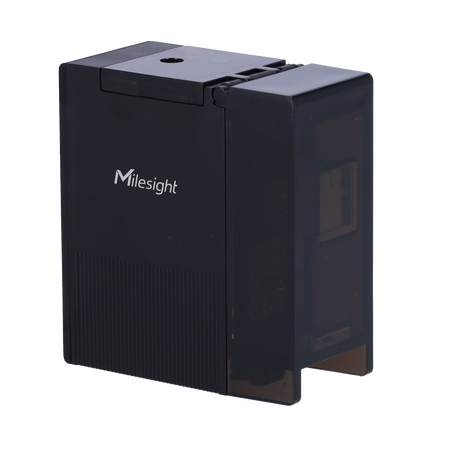

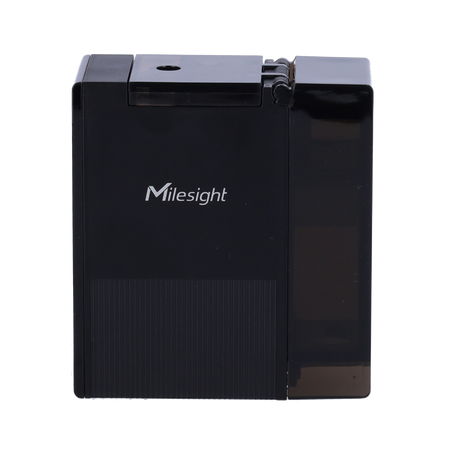

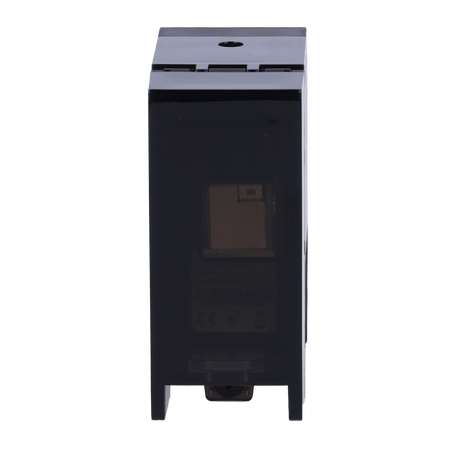

Milesight Pedestrian Counting Sensor
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Pedestrian traffic counting sensor - Precise detection - 12 - 60V and PoE power supply - IP65 protection - Detection range between 1 - 9 meters - Integration in the retail sector
📋 SPECIFICATIONS:
• Dimensions: 73.5 x 80 x 36 mm
• Protection rating: IP65
• Operating temperature: -20°C to +50°C
• Relative humidity: 0-95% (non-condensing)
• Sensor technology: Diffuse reflection (photoelectric)
• Wavelength: 940nm (Infrared LED)
• Installation height: 0.7 - 1.2 m

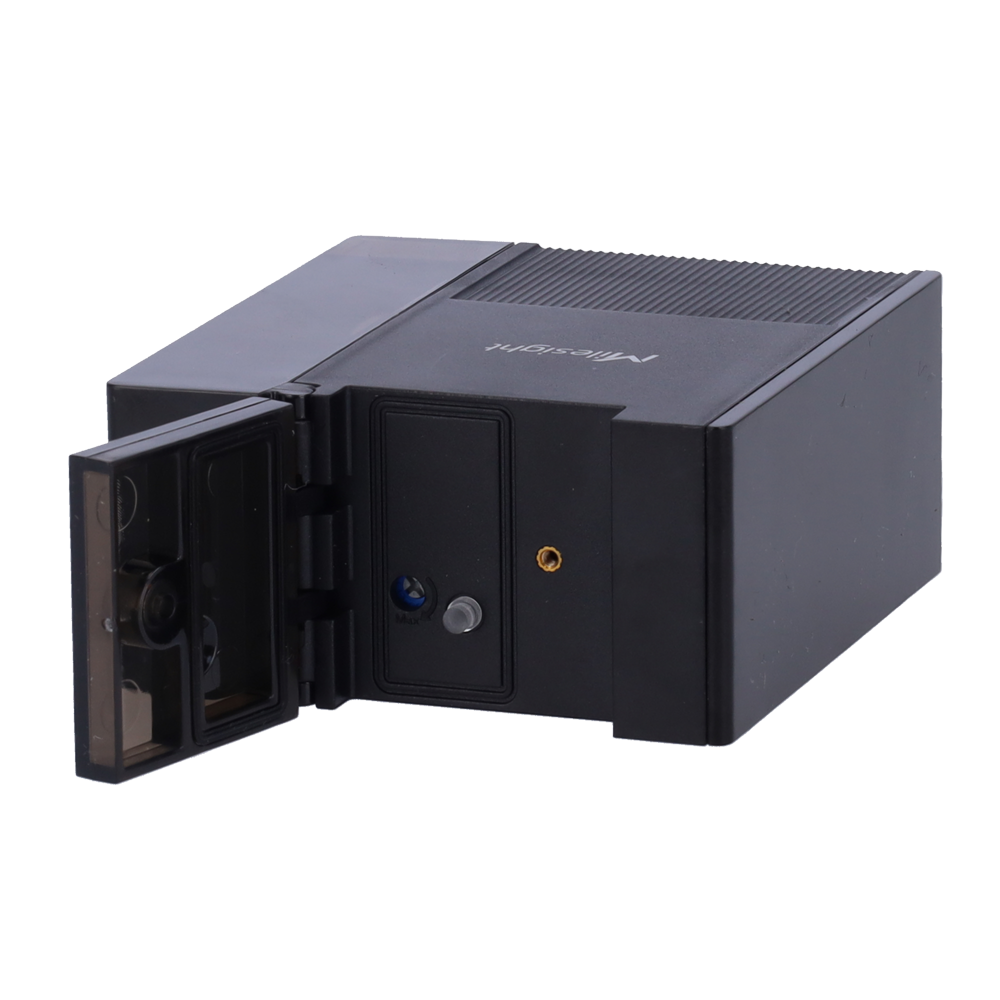

• Detection distance: 1 - 9 m (adjustable via knob)
• Input voltage: 802.3af PoE or 12-60 V DC
• Power consumption: Maximum 0.9W
• Digital output: 1 x NPN open-collector
• Maximum output power: 1mA @ 5VDC

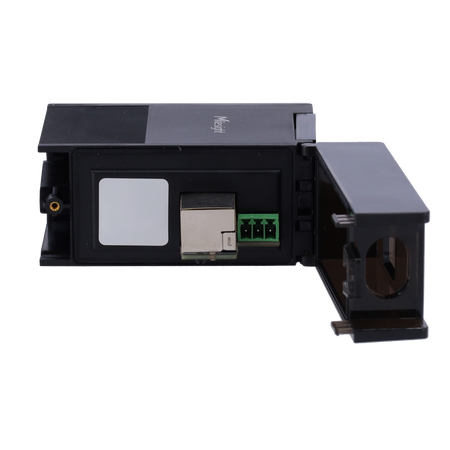

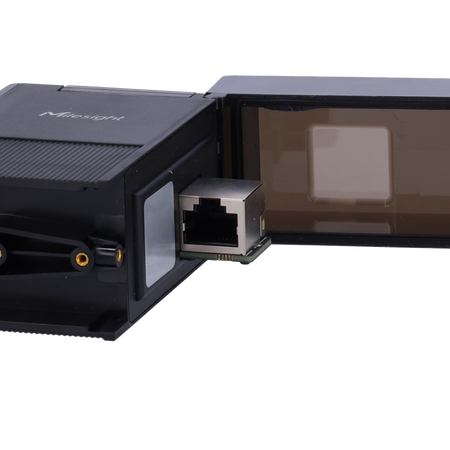

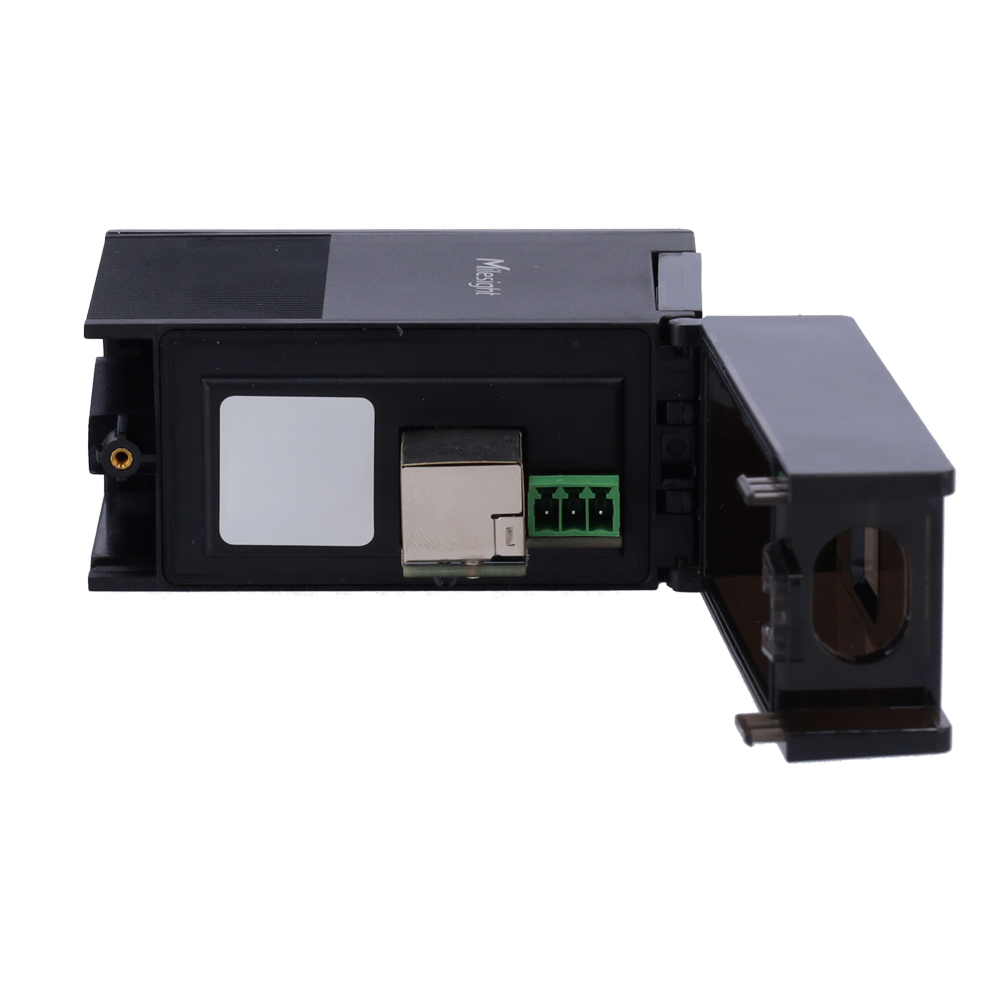

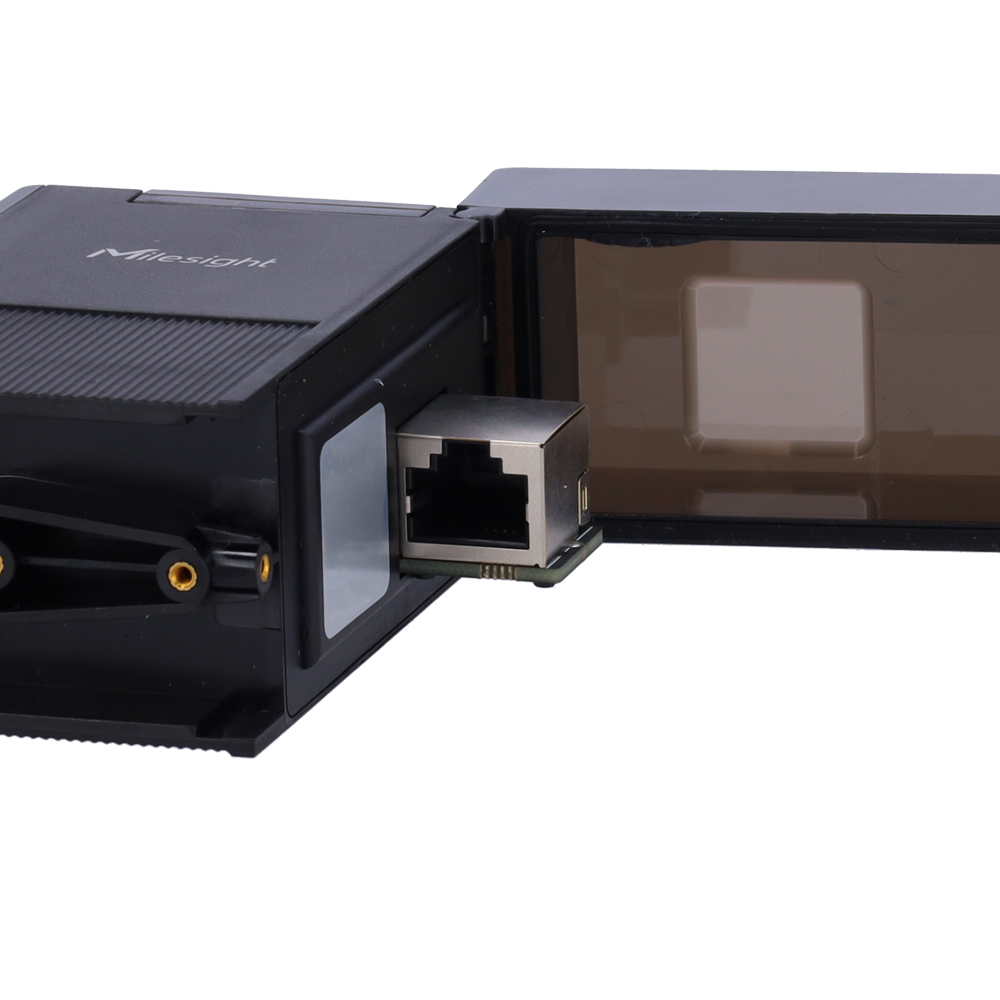

• Power interface: 1 x RJ45 (PoE PD), 1 x 2-pin terminal block
• Output connector: 3.5mm terminal block
• Indicators: Infrared LED
📦 INCLUDED:
• Device• Quick start guide
| Dimensions | 73.5 x 80 x 36 mm |
|---|---|
| Protection Rating | IP65 |
| Operating Temperature | -20°C to +50°C |
| Relative Humidity | 0-95% (non-condensing) |
| Sensor Technology | Diffuse reflection (photoelectric) |
| Wavelength | 940nm (Infrared LED) |
| Installation Height | 0.7 - 1.2 m |
| Detection Range | 1 - 9 m (adjustable via knob) |
| Input Voltage | 802.3af PoE or 12-60 V DC |
| Power Consumption | Maximum 0.9W |
| Digital Output | 1 x NPN open-collector |
| Maximum Output Power | 1mA @ 5VDC |
| Power Interface | 1 x RJ45 (PoE PD), 1 x 2-pin terminal block |
| Output Connector | 3.5mm terminal block |
| Indicators | Infrared LED |
