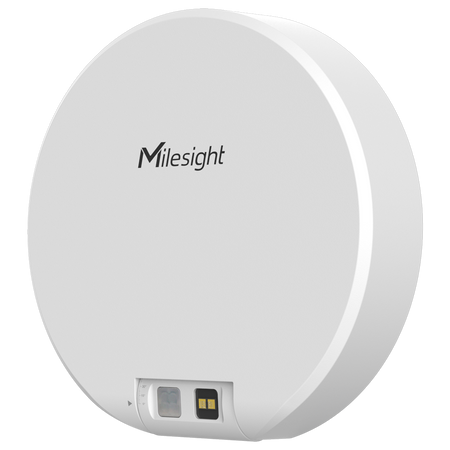

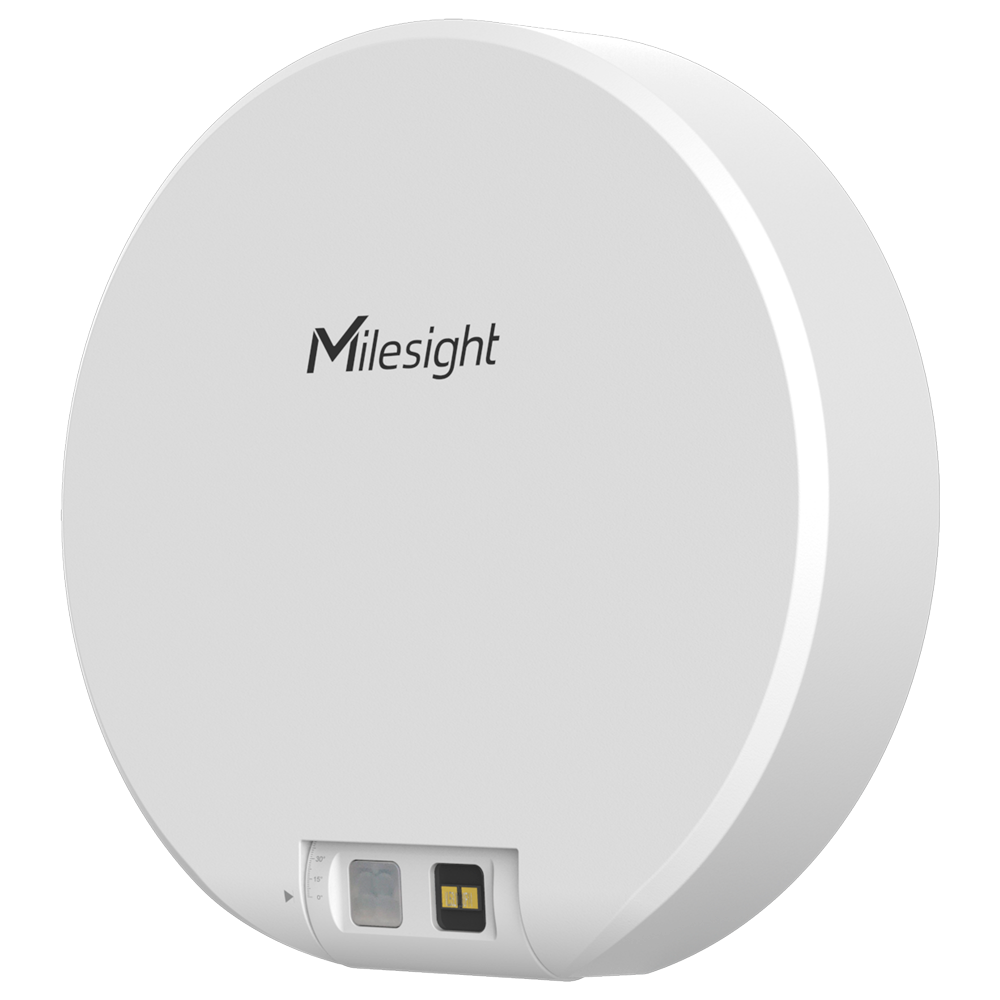

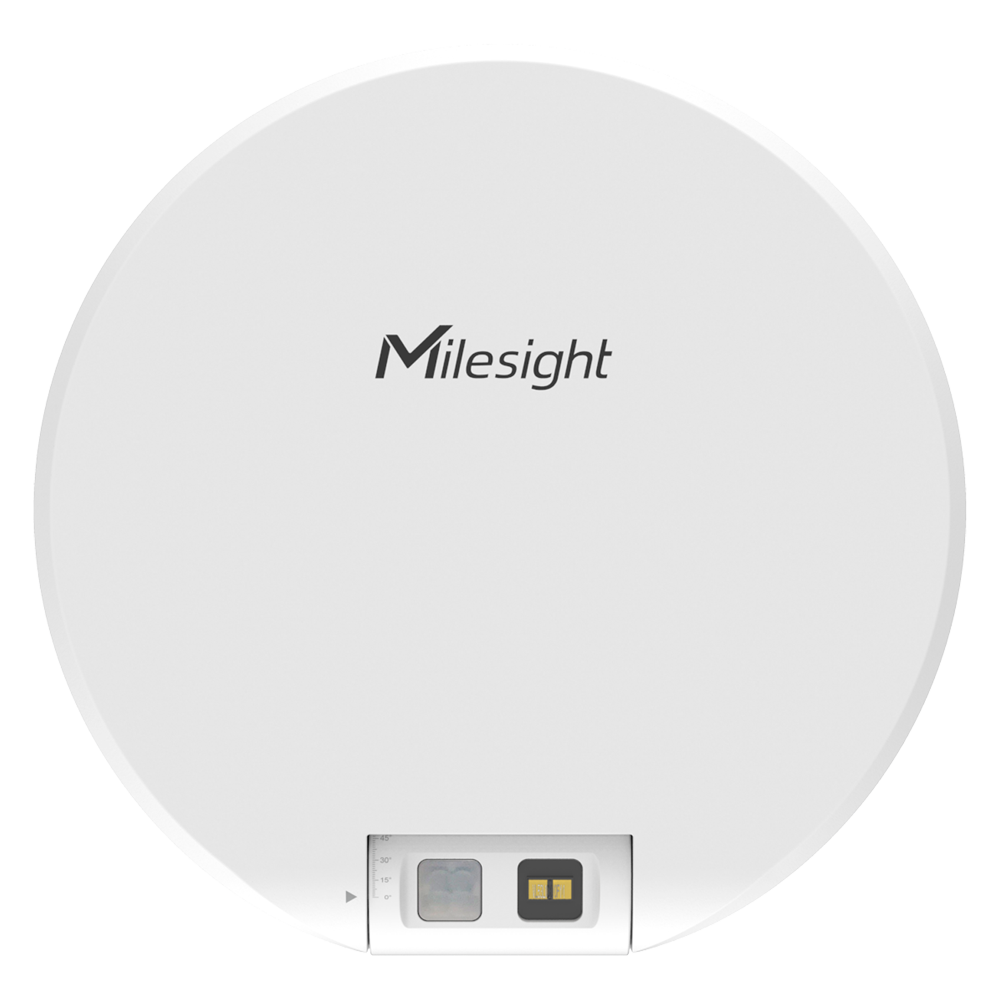

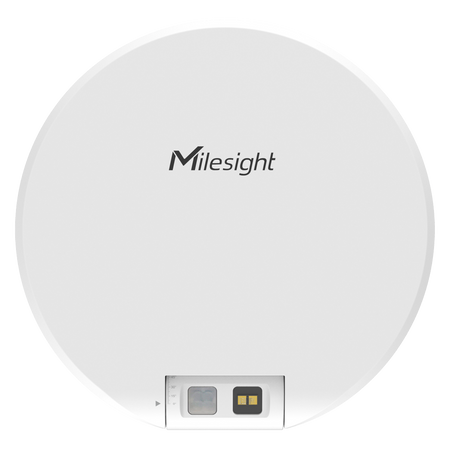

Milesight LoRaWAN Presence Sensor - Dual PIR and ToF technology
Regular price
€242,11
Final price
Regular price
-3%
€250,00
Sale price
€242,11
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN Presence Sensor - Dual technology PIR and ToF - 100% anonymous detection - 99.5% high precision - Range up to 15km line-of-sight - NFC and App configuration
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency Band: 868 MHz
• Output Power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Communication range: Range up to 15km line-of-sight
• ToF sensor: FOV: 27º; Detection range: 0.04~3.50m; Accuracy: ± 2cm; Resolution: 1mm
• PIR sensor: Detection area: 80º; Maximum distance: 2.5m
• Sensor angle: Adjustable 0°, 15°, 30°, 45°, 60°, 75°
• Recognition rate: 99.5%
• Configuration: NFC via smartphone App
• Power supply: 3x 4000 mAh ER18505 Li-SOCl2
• Battery life: 4 years (90 detections / 7 consecutive hours per day)
• Operating temperature: -20ºC to 60ºC (Relative humidity < 95%)
• Protection rating: IP30
• Dimensions: Ф100 x 24 mm
• Material: Flame-retardant polycarbonate
• Color: White
📦 INCLUDED:
• Occupancy sensor• Instruction manual• Mounting hardware
| Technology | LoRaWAN® |
|---|---|
| Frequency Band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Communication range | Up to 15km line of sight |
| ToF Sensor | FOV: 27º Detection range: 0.04~3.50m Accuracy: ± 2cm Resolution: 1mm |
| PIR Sensor | Detection area: 80º Maximum distance: 2.5m |
| Sensor angle | Adjustable 0°, 15°, 30°, 45°, 60°, 75° |
| Recognition rate | 99.5% |
| Configuration | NFC via smartphone App |
| Power supply | 3x 4000 mAh ER18505 Li-SOCl2 |
| Battery life | 4 years (90 detections / 7 consecutive hours per day) |
| Operating temperature | -20ºC to 60ºC (Relative humidity < 95%) |
| Protection class | IP30 |
| Dimensions | Ф100 x 24 mm |
| Material | Fire-retardant polycarbonate |
| Color | White |
