Milesight 4G Industrial Router - 5 Gigabit ports with 4 PoE+ PSE ports - Dual-band WiFi 6 up to 1.8 Gbps - Precise positioning via GPS/GNSS - RS232/RS485 serial interfaces and digital I/O - Dual SIM slot for automatic failover
📋 SPECIFICATIONS:
• Brand: Milesight
• CPU: Quad-core ARM Cortex-A55, 2.0 GHz
• RAM: 1 GB DDR4
• Flash: 1 GB
• Cellular Module: 4G LTE Cat 4 / WCDMA / GSM
• Mobile Speed: Up to 150 Mbps DL / 50 Mbps UL

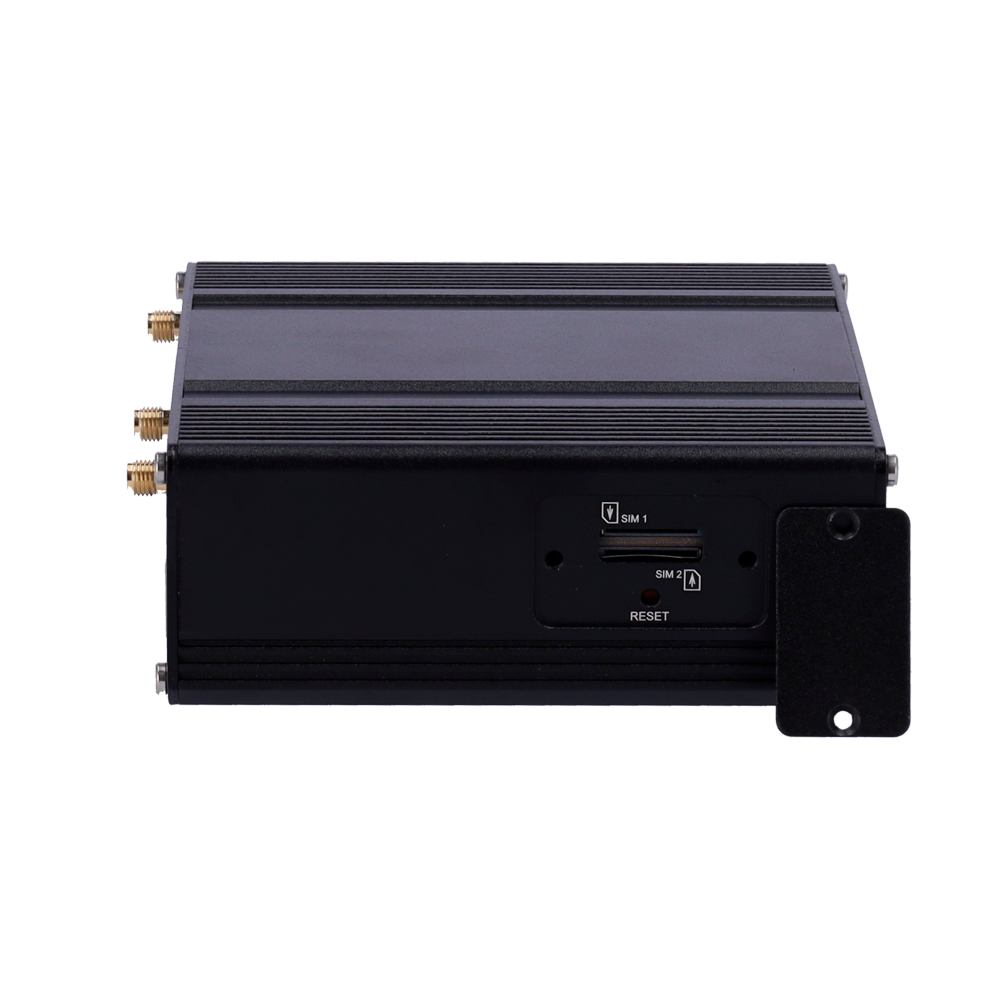

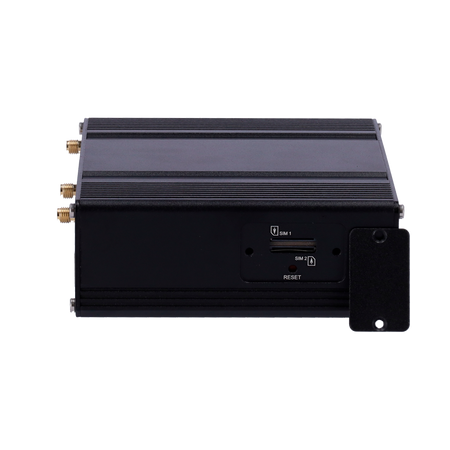

• SIM Slots: 2 x Mini SIM (2FF) with automatic failover
• WiFi: IEEE 802.11b/g/n/ac/ax (WiFi 6) 2.4/5 GHz
• Wi-Fi Speed: 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
• Wi-Fi Security: WPA/WPA2/WPA3 (Personal/Enterprise)

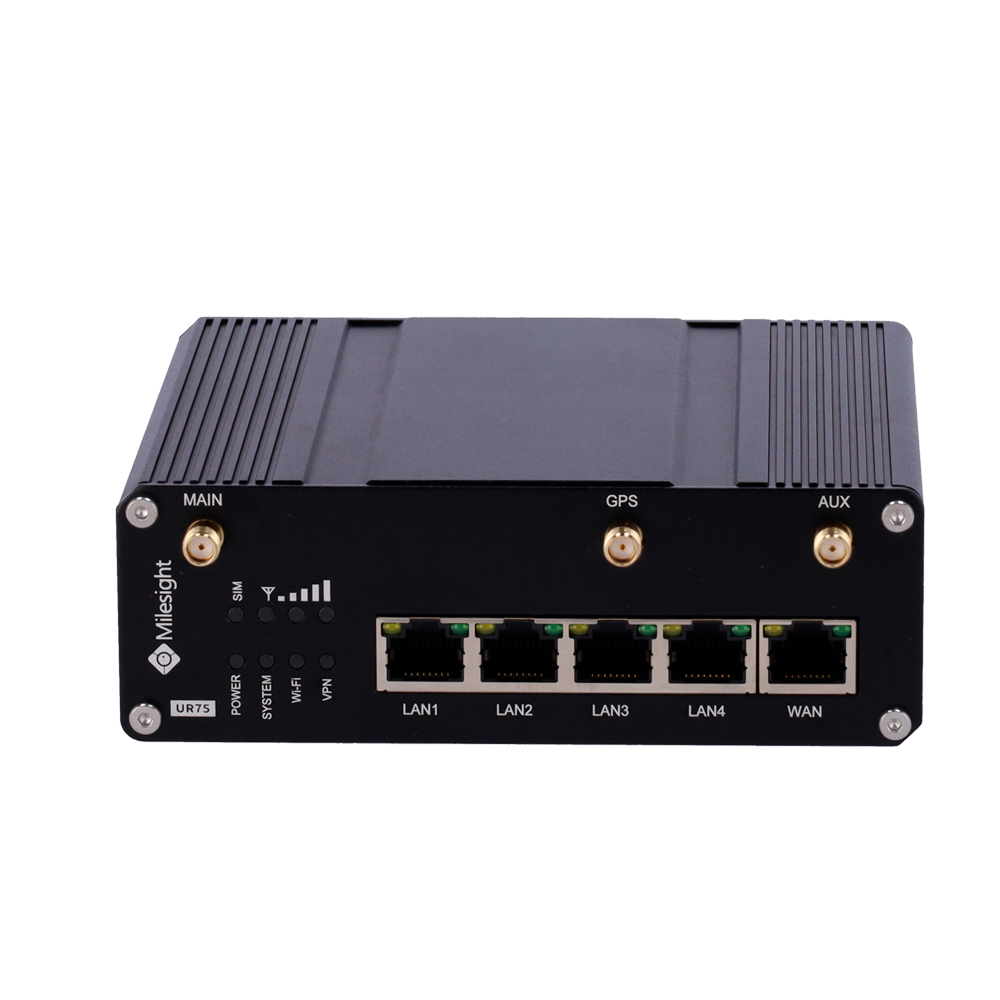

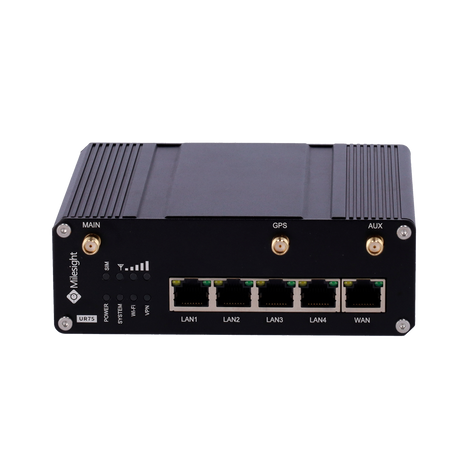

• Ethernet: 5 x RJ45 10/100/1000 Mbps (1 WAN / 4 LAN)
• PoE Output: 4 x 802.3af/at PSE (30W per port, 60W total max.)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS

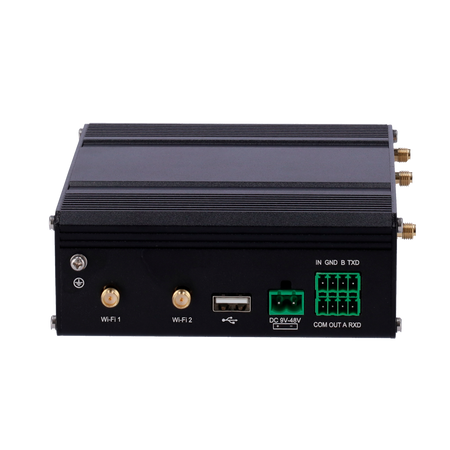

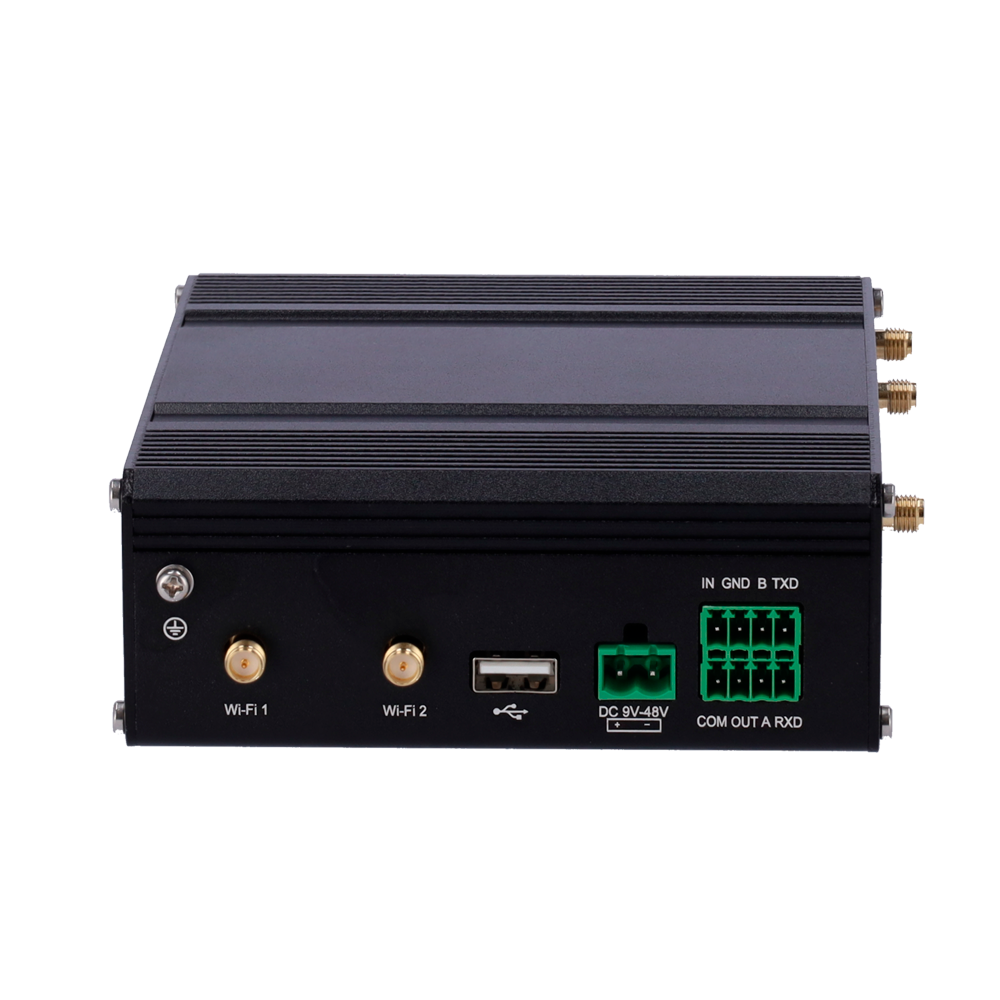

• Serial Port: 1 x RS232 + 1 x RS485 (Terminal Block)
• Baud Rate: 300 bps to 230,400 bps
• Digital I/O: 1 x DI (Dry Contact) + 1 x DO (Relay, 0.3A@30VDC)
• USB: 1 x USB Type-C (Power, Debug, Data)
• Network Protocols: IPv4/IPv6, PPP, SNMP, TCP, UDP, MQTT, TR069
• Routing: Static routing, RIP, OSPF, BGP
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, WireGuard
• Network Security: SPI Firewall, ACL, DMZ, Port Mapping
• Watchdog: Hardware and timer based
• Power Supply: 9 - 48 VDC (2-pin terminal block)
• Consumption: Typical 7.8 W, Maximum 12.5 W (without PoE)
• Material: Metal, black color
• IP Rating: IP30
• Operating Temp: -40 °C to +70 °C (WiFi: -40 °C to +60 °C)
• Humidity: 0% to 95% (non-condensing)
• Dimensions: 135 x 103 x 45 mm
• Weight: 423 g
📦 INCLUDED:

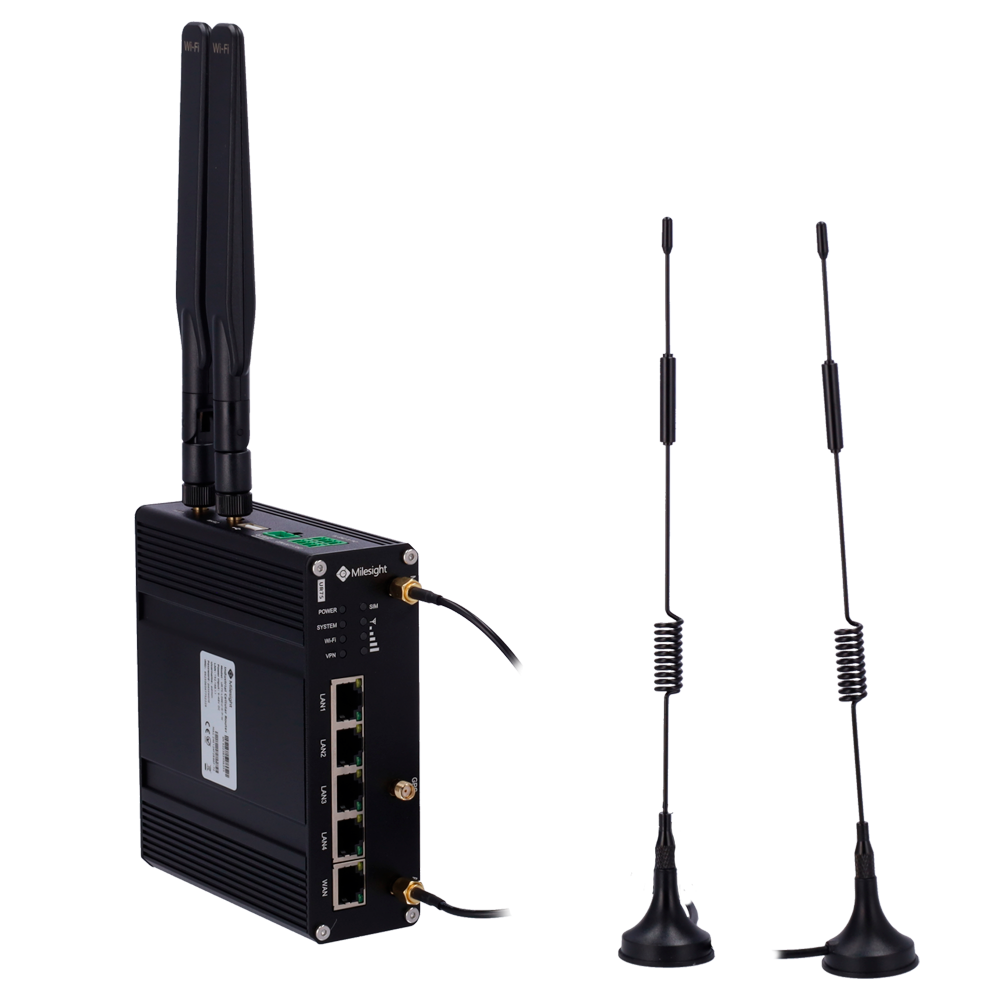

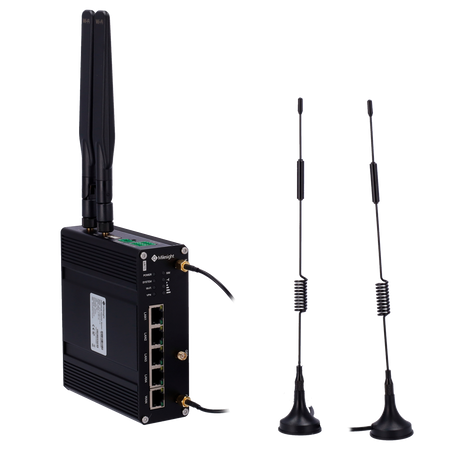

• 1x Industrial Router MS-UR75-L04EU-G-P-W
• 1x Power adapter
• 2x Mobile antennas (SMA male)
• 4x WiFi antennas
• 1x GPS antenna
• 1x 8-pin terminal block
• 1x DIN rail mounting kit
| CPU | Quad-core ARM Cortex-A55, 2.0 GHz |
|---|---|
| RAM | 1 GB DDR4 |
| Flash | 1 GB |
| Cellular module | 4G LTE Cat 4 / WCDMA / GSM |
| Mobile speed | Up to 150 Mbps DL / 50 Mbps UL |
| SIM slot | 2 x Mini SIM (2FF) with auto failover |
| WiFi | IEEE 802.11b/g/n/ac/ax (WiFi 6) 2.4/5 GHz |
| Wi-Fi speed | 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) |
| Wi-Fi security | WPA/WPA2/WPA3 (Personal/Enterprise) |
| Ethernet | 5 x RJ45 10/100/1000 Mbps (1 WAN / 4 LAN) |
| PoE output | 4 x 802.3af/at PSE (30W per port, 60W total max.) |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Serial port | 1 x RS232 + 1 x RS485 (Terminal Block) |
| Baud Rate | 300 bps to 230,400 bps |
| Digital I/O | 1 x DI (Dry Contact) + 1 x DO (Relay, 0.3A@30VDC) |
| USB | 1 x USB Type-C (Power, Debug, Data) |
| Network protocols | IPv4/IPv6, PPP, SNMP, TCP, UDP, MQTT, TR069 |
| Routing | Static routing, RIP, OSPF, BGP |
| VPN | IPsec, OpenVPN, GRE, L2TP, PPTP, WireGuard |
| Network security | SPI Firewall, ACL, DMZ, Port Mapping |
| Watchdog | Hardware and timer based |
| Power supply | 9 - 48 VDC (2-pin Terminal Block) |
| Consumption | Typical 7.8 W, Maximum 12.5 W (without PoE) |
| Material | Metal, black color |
| IP protection | IP30 |
| Operating temp | -40 °C to +70 °C (WiFi: -40 °C to +60 °C) |
| Humidity | 0% to 95% (non-condensing) |
| Dimensions | 135 x 103 x 45 mm |
| Weight | 423 g |
