MILESIGHT

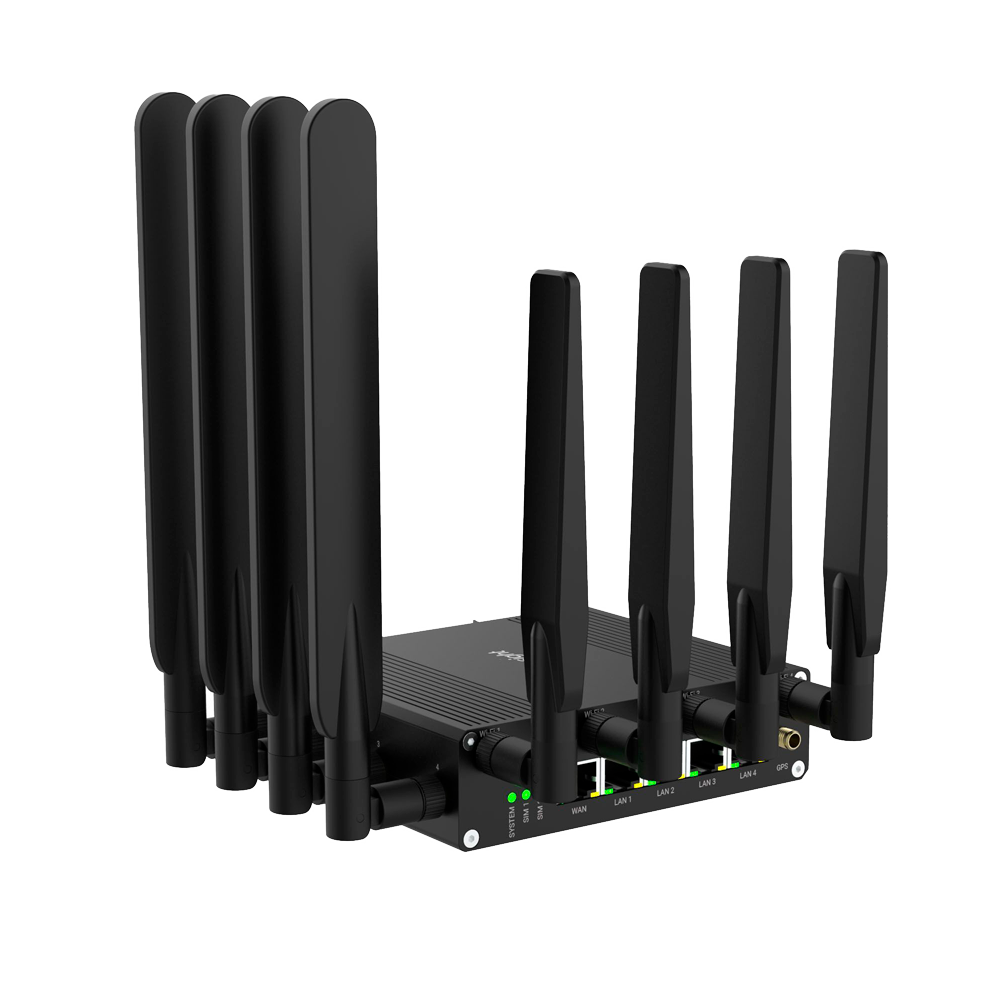

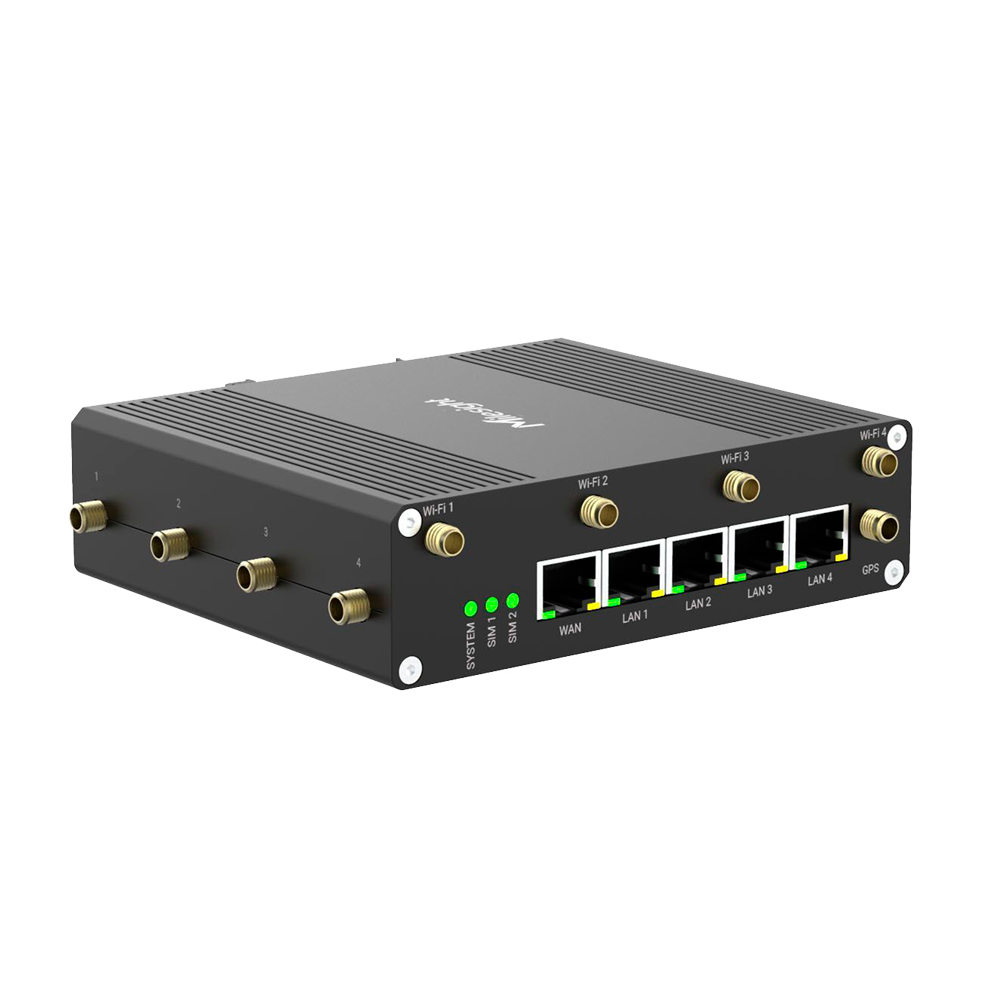

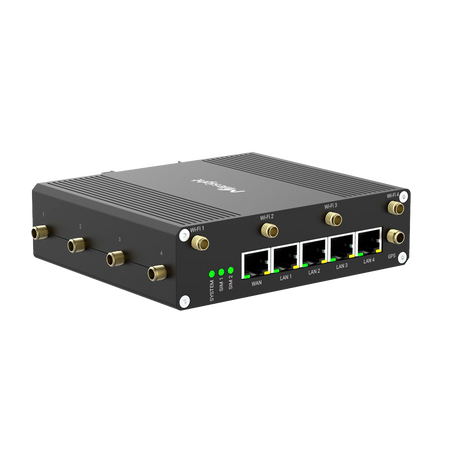

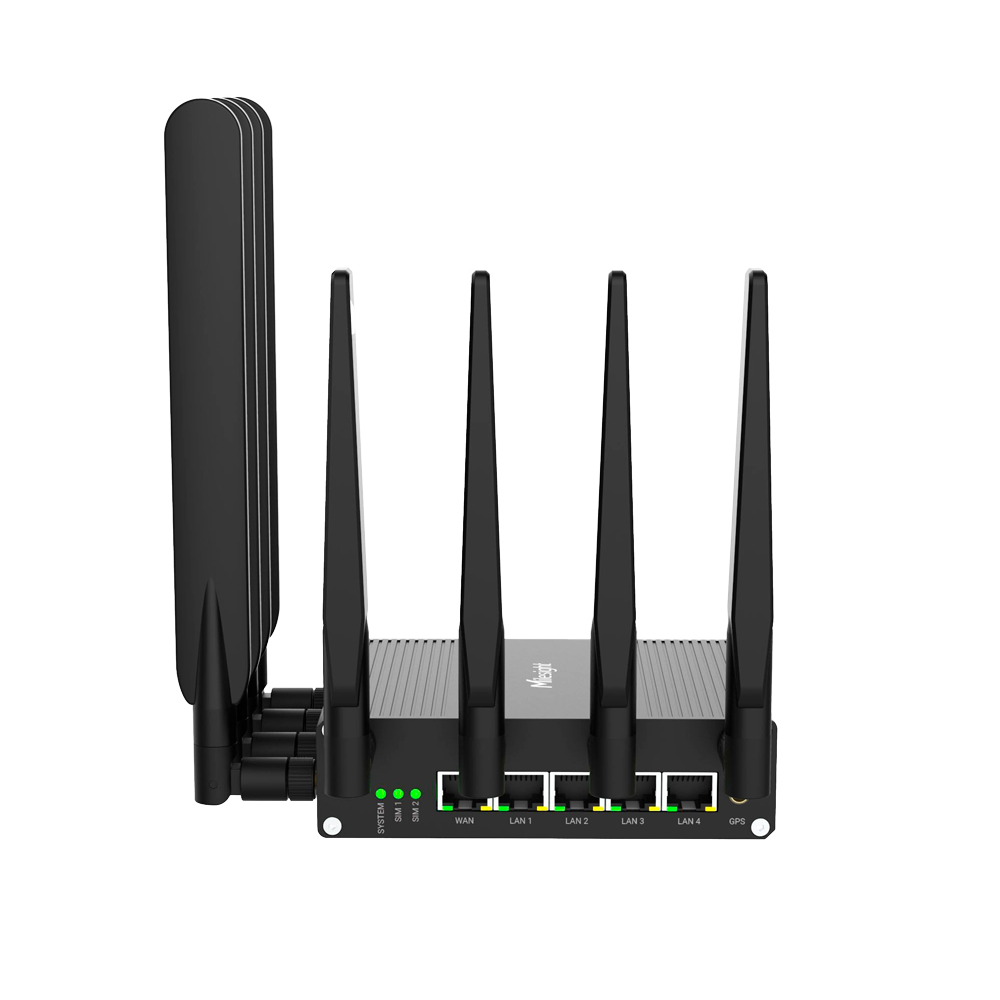

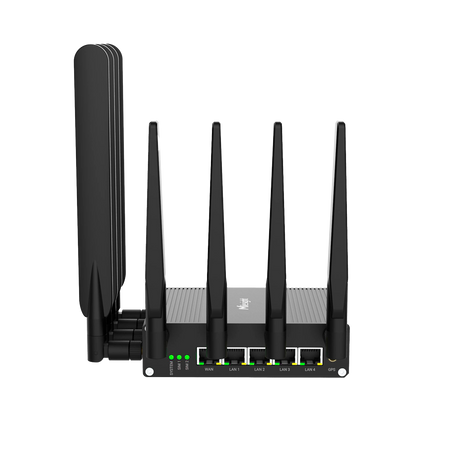

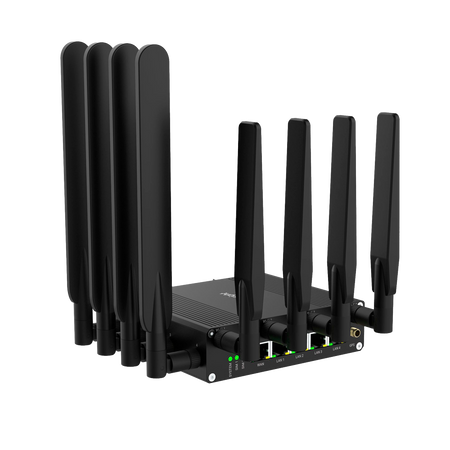

Milesight 5G NSA/SA Industrial Router

SKU: MS-UR75-504AE-P-W2
(0)
In stock
Usually shipped within 24 hours
€968,44 Final price
-3% €1.000,00 €968,44 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Milesight 5G NSA/SA Industrial Router - 5 Gigabit ports with 4 PoE+ (30W) ports - 1.8 Gbps dual-band WiFi 6 for high-density environments - GPS/GNSS tracking for fleet management - Industrial RS232/RS485 and I/O interfaces - Dual SIM with failover for maximum availability

📋 SPECIFICATIONS:
• Brand: Milesight
• Series: Ultra Series Industrial Router
• CPU: Quad-core ARM Cortex-A55, 2.0 GHz
• RAM: 1 GB DDR4
• Flash: 1 GB
• Storage Expansion: 1 x Micro SD card slot
• Cellular Module: 5G Sub-6GHz SA/NSA, 4G LTE, 3G WCDMA
• 5G Speed: 4.67 Gbps DL / 1.25 Gbps UL
• Carrier Aggregation: Supported (2CC CA)
• SIM: 2 x Mini SIM slots (2FF) with failover
• Ethernet: 5 x RJ45 10/100/1000 Mbps (1 WAN / 4 LAN)
• PoE Output: 4 x IEEE 802.3af/at PSE (LAN 1-4)
• PoE Power: 30W per port, max. 60W total
• WiFi: IEEE 802.11b/g/n/ac/ax (Wi-Fi 6) 2.4/5 GHz
• Wi-Fi Speed: 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• GNSS Antenna: 1 x 50 Ω SMA female
• Serial: 1 x RS232 + 1 x RS485 (Terminal Block)
• Baud Rate: 300 bps to 230,400 bps
• Digital I/O: 1 x Digital Input + 1 x Digital Output (Relay)
• USB: 1 x USB 2.0 Type-C (Power, Debug, Data)
• Network Protocols: IPv4/IPv6, PPP, SNMP, TCP, UDP, MQTT, TR069
• Routing: Static routing, RIP, OSPF, BGP
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, WireGuard, ZeroTier
• Network Security: SPI Firewall, ACL, DMZ, Port Mapping
• Management: Web, CLI, SMS, DeviceHub, MilesightVPN
• Power Supply: 9 - 48 VDC (48V power supply required for PoE)
• Consumption: Typical 7.8 W, Maximum 12.5 W (without PoE)
• Housing Material: Metal, black color
• IP Rating: IP30
• Operating Temp.: -40 °C to +70 °C
• Relative Humidity: 0% to 95% (non-condensing)
• Dimensions: 135 x 103 x 45 mm
• Weight: 423 g

📦 INCLUDED:
• 1x MS-UR75-504AE-P-W2 Industrial Router • 1x Quick start guide • 1x Industrial power adapter • 4x 5G/4G cellular antennas • 4x WiFi antennas • 1x GPS antenna • 1x 8-pin terminal block • 1x DIN rail mounting kit
Series Ultra Series Industrial Router
CPU Quad-core ARM Cortex-A55, 2.0 GHz
RAM 1 GB DDR4
Flash 1 GB
Storage Extension 1 x Micro SD card slot
Cellular Module 5G Sub-6GHz SA/NSA, 4G LTE, 3G WCDMA
5G Speed 4.67 Gbps DL / 1.25 Gbps UL
Carrier Aggregation Supported (2CC CA)
SIM 2 x Mini SIM slots (2FF) with failover
Ethernet 5 x RJ45 10/100/1000 Mbps (1 WAN / 4 LAN)
PoE Output 4 x IEEE 802.3af/at PSE (LAN 1-4)
PoE Power 30W per port, 60W cumulative max.
WiFi IEEE 802.11b/g/n/ac/ax (Wi-Fi 6) 2.4/5 GHz
Wi-Fi Speed 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
GNSS Antenna 1 x 50 Ω SMA female
Serial 1 x RS232 + 1 x RS485 (Terminal Block)
Baud Rate 300 bps to 230,400 bps
Digital I/O 1 x Digital Input + 1 x Digital Output (Relay)
USB 1 x USB 2.0 Type-C (Power, Debug, Data)
Network Protocols IPv4/IPv6, PPP, SNMP, TCP, UDP, MQTT, TR069
Routing Static routing, RIP, OSPF, BGP
VPN IPsec, OpenVPN, GRE, L2TP, PPTP, WireGuard, ZeroTier
Network Security SPI Firewall, ACL, DMZ, Port Mapping
Management Web, CLI, SMS, DeviceHub, MilesightVPN
Power Supply 9 - 48 VDC (48V power supply required for PoE)
Consumption Typical 7.8 W, Maximum 12.5 W (without PoE)
Housing Material Metal, black color
IP Rating IP30
Operating Temp -40 °C to +70 °C
Relative Humidity 0% to 95% (non-condensing)
Dimensions 135 x 103 x 45 mm
Weight 423 g
