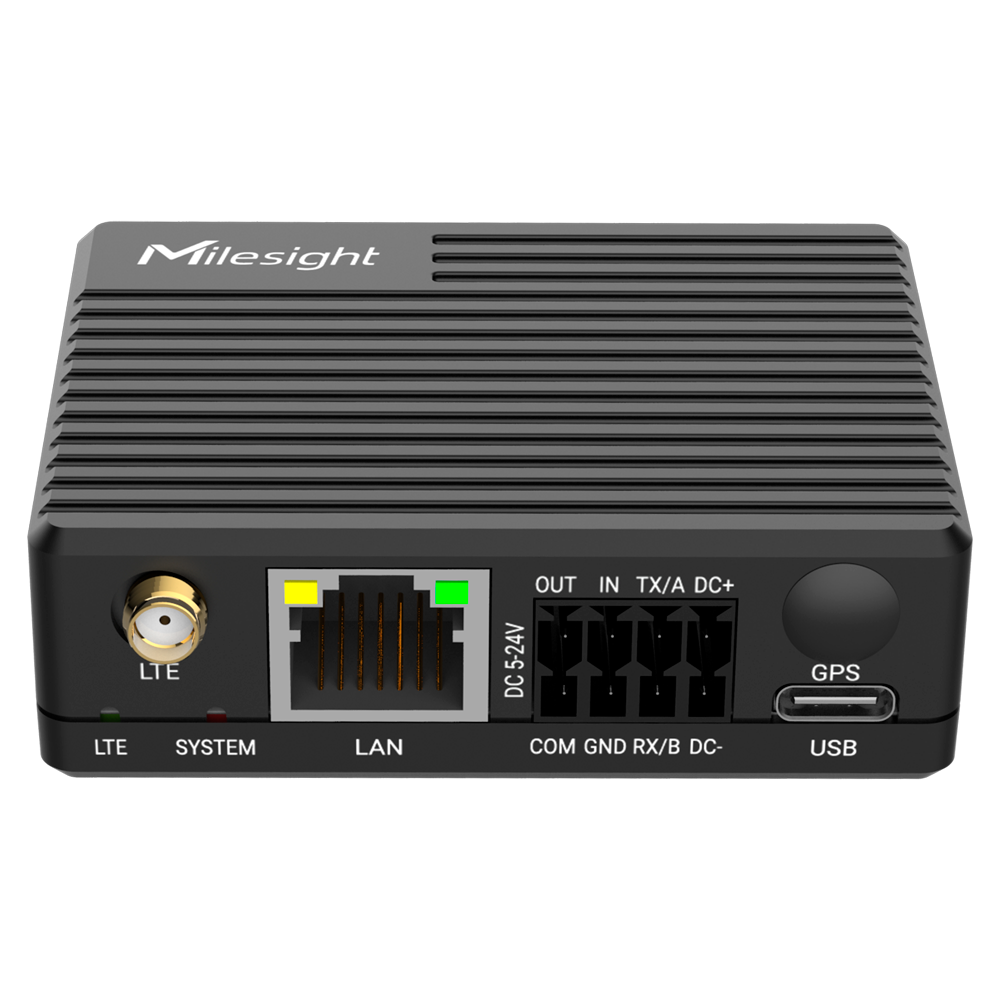

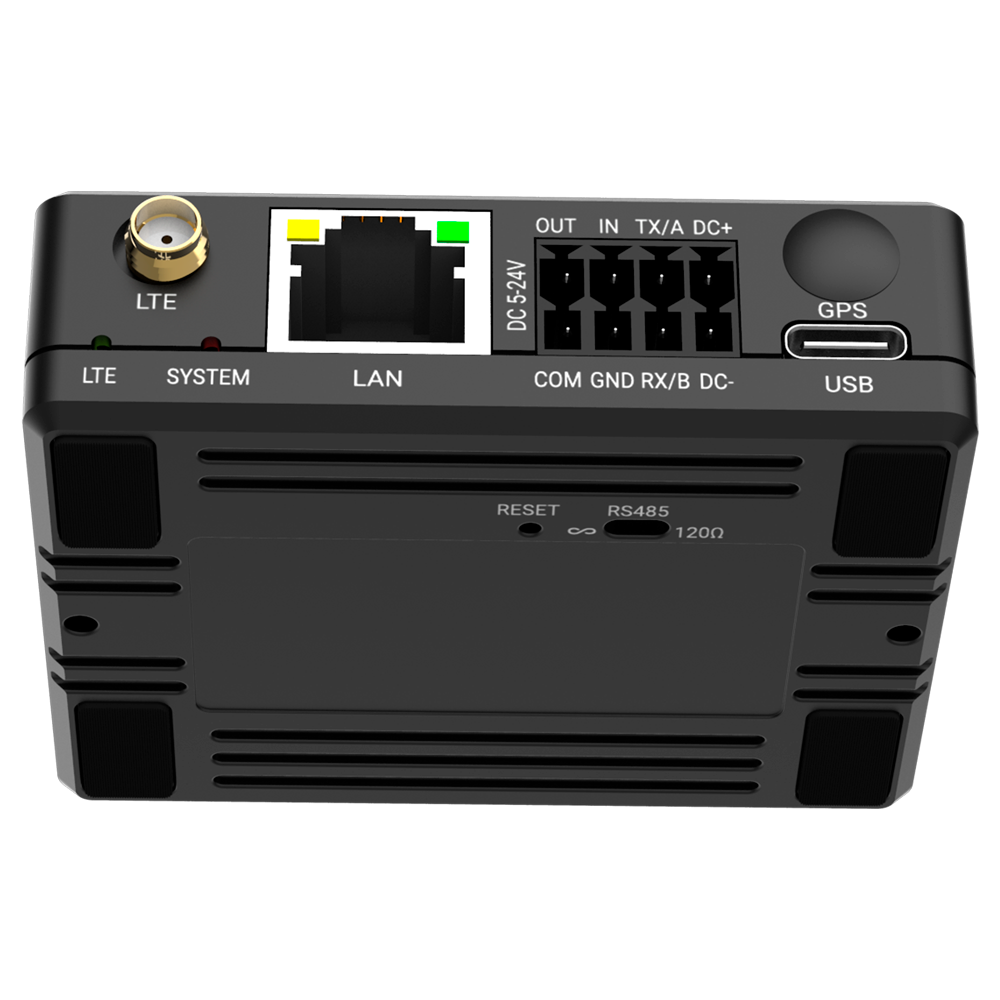

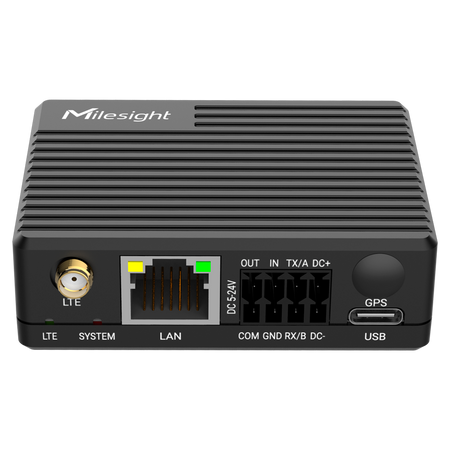

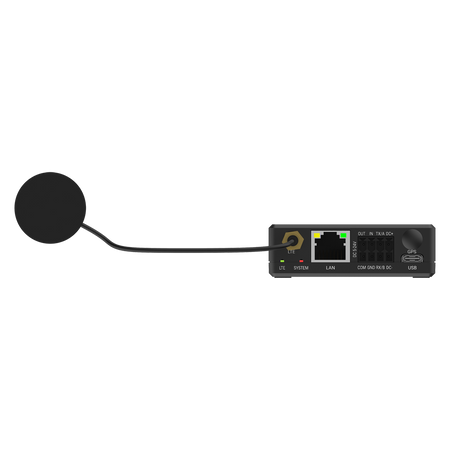

Milesight 4G LTE Cat 1 Router (10/5 Mbps)
Regular price
€180,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

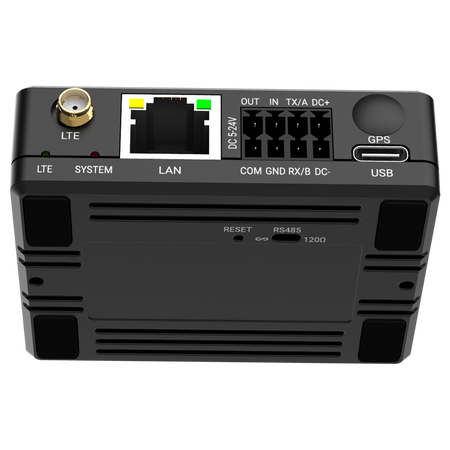

Milesight 4G LTE Cat 1 Router (10/5 Mbps) - Ultra-compact dimensions for confined spaces - Fast Ethernet port and USB Type-C port - Industrial RS232 or RS485 and I/O interfaces - Power saving modes: Idle and Standby - Security suite with industrial VPN tunnels
📋 SPECIFICATIONS:
• Brand: Milesight
• CPU: ARM Cortex-A7, 528 MHz
• RAM: 128 MB DDR3
• Flash: 128 MB
• Mobile communication module: 4G LTE Cat 1, 3G WCDMA, 2G GSM
• Mobile speed: Up to 10 Mbps download and 5 Mbps upload
• 4G bands (EU): B1/B3/B5/B7/B8/B20/B28
• SIM: 1 x Mini SIM (2FF), 1.8V / 3V
• Mobile antenna: 1 x SMA female (50 Ω)
• Ethernet: 1 x 10/100 Mbps LAN (RJ45)
• USB: 1 x USB Type-C (Power, Debug)
• Serial: 1 x RS232 or RS485 (Terminal Block)
• Digital I/O: 1 x Digital input + 1 x Digital output
• Watchdog: Integrated (hardware) and timer
• Network protocols: IPv4/IPv6, PPP, TCP, UDP, DHCP, SNMP, MQTT
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP
• Security: SPI Firewall, ACL, DMZ, Port Mapping
• Power modes: Operating, Idle, Standby
• Power supply: 5 - 24 VDC (Surge and Reverse Polarity Protection)
• Housing: Metal (IP30)
• Installation: Desktop, wall, DIN rail (optional)
• Operating Temp.: -20 °C to +60 °C
• Humidity: 0% to 95% (non-condensing)
• Dimensions: 70 x 48 x 22 mm
• Weight: 122 g
📦 INCLUDED:

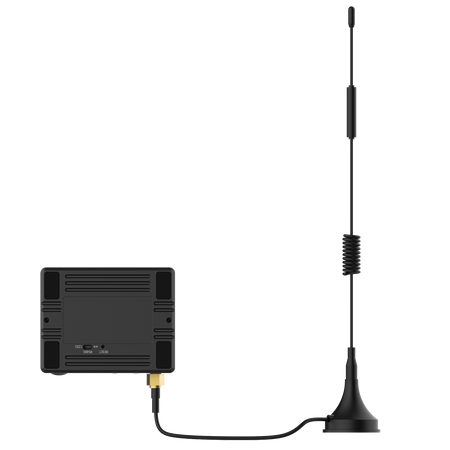

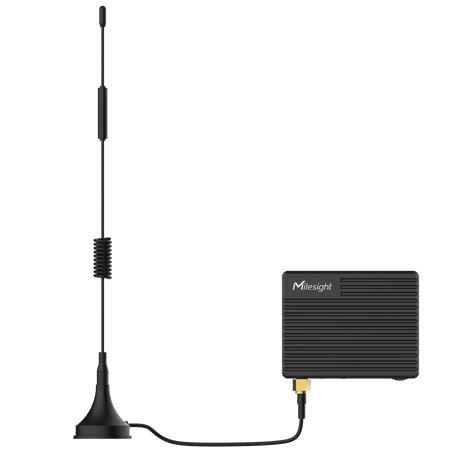

• 1x MS-UR41-L08EU Industrial Mini Router• 1x DC power adapter• 1x High-gain magnetic mobile antenna• 1x 8-pin terminal block• 1x SIM extraction tool• 1x Wall mounting bracket kit
| CPU | ARM Cortex-A7, 528 MHz |
|---|---|
| RAM | 128 MB DDR3 |
| Flash | 128 MB |
| Mobile communication module | 4G LTE Cat 1, 3G WCDMA, 2G GSM |
| Mobile speed | Up to 10 Mbps download and 5 Mbps upload |
| 4G bands (EU) | B1/B3/B5/B7/B8/B20/B28 |
| SIM | 1 x Mini SIM (2FF), 1.8V / 3V |
| Mobile antenna | 1 x SMA female (50 Ω) |
| Ethernet | 1 x 10/100 Mbps LAN (RJ45) |
| USB | 1 x USB Type-C (Power, Debug) |
| Serial | 1 x RS232 or RS485 (Terminal Block) |
| Digital I/O | 1 x Digital input + 1 x Digital output |
| Watchdog | Built-in (hardware) and timer |
| Network protocols | IPv4/IPv6, PPP, TCP, UDP, DHCP, SNMP, MQTT |
| VPN | IPsec, OpenVPN, GRE, L2TP, PPTP |
| Security | SPI Firewall, ACL, DMZ, Port Mapping |
| Power modes | Operating, Idle, Standby |
| Power supply | 5 - 24 VDC (Surge and Reverse Polarity Protection) |
| Housing | Metal (IP30) |
| Installation | Desktop, wall, DIN rail (optional) |
| Operating temp | -20 °C to +60 °C |
| Humidity | 0% to 95% (non-condensing) |
| Dimensions | 70 x 48 x 22 mm |
| Weight | 122 g |
