Milesight 4G LTE Cat 4 Industrial Router with Dual SIM
Regular price
€405,82
Final price
Regular price
-9%
€444,00
Sale price
€405,82
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Industrial 4G LTE Cat 4 router with Dual SIM - 5 Fast Ethernet ports (1 WAN + 4 LAN) - Integrated Wi-Fi 4 connection (802.11b/g/n) - RS232 and RS485 serial interfaces for telemetry - Digital inputs and outputs (1 DI / 1 DO) - Reinforced metal housing with IP30 protection rating
📋 SPECIFICATIONS:
• Brand: Milesight
• Series: Pro Series Industrial Router
• Processor: NXP ARM Cortex-A7, 528 MHz
• RAM Memory: 128 MB DDR3
• Flash Memory: 128 MB
• Storage: 1 x Micro SD slot (expandable)
• Cellular module: 4G LTE (CAT 4), 3G WCDMA
• LTE speed: 150 Mbps DL / 50 Mbps UL
• SIM: 2 x Mini SIM-2FF (1.8V / 3V)
• Cellular Antenna: 2 x 50 Ω SMA female
• Ethernet ports: 5 x 10/100 Mbps (1 WAN + 4 LAN)
• ETH Isolation: 1.5 kV RMS
• PoE Output: 4 x 802.3 af/at PSE (LAN 1-4)
• Max. PoE power: 30 W per port (60 W total)
• WiFi Standard: IEEE 802.11b/g/n, 2.4 GHz
• Wi-Fi Users: Up to 15 simultaneous connections
• Wi-Fi Security: WEP, WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP
• WiFi Antenna: 1 x 50 Ω RP-SMA female
• GNSS Technology: GPS, GLONASS, BDS, Galileo, QZSS
• GNSS Accuracy: 2.5m CEP (open space)
• GPS Antenna: 1 x 50 Ω SMA female
• Serial Port: 1 x RS232 + 1 x RS485 (Terminal Block)
• Baud Rate: 300 bps to 230,400 bps
• Digital I/O: 1 x DI + 1 x DO (Relay)
• Digital input: Dry Contact (Galvanic isolation)
• Digital output: Wet Contact (Max. 0.3A @ 30VDC)
• Reset button: 1 x physical RESET
• LED indicators: POWER, SYSTEM, SIM, WiFi, VPN, 3 x Signal
• Watchdog: Composed of hardware and timer
• Power supply: 9 - 48 VDC (48V required for PoE)
• Consumption: Typical 3.9 W, Maximum 4.6 W (without PoE)
• IP Rating: IP30
• Installation: Desktop, wall, or DIN rail
• Operating temperature: -40 °C to +70 °C (Wi-Fi up to +60 °C)
• Relative humidity: 0% to 95% (non-condensing) at 25 °C
• Network Protocols: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP
• Routing: Static routing, RIP v1/v2, OSPF
• IIoT Protocols: MQTT, Modbus Gateway (TCP/RTU), TR069
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard
• Network Security: SPI Firewall, ACL, DMZ, Port Mapping, MAC Binding
• Authentication: AAA (Radius, Tacacs+, LDAP, Local)
• Management: Web GUI, CLI (SSH/Telnet), SMS, DeviceHub, RMS
• Housing material: Industrial Metal
• Dimensions: 135 x 103 x 45 mm
• Weight: 423 g
• Color: Black
📦 INCLUDED:

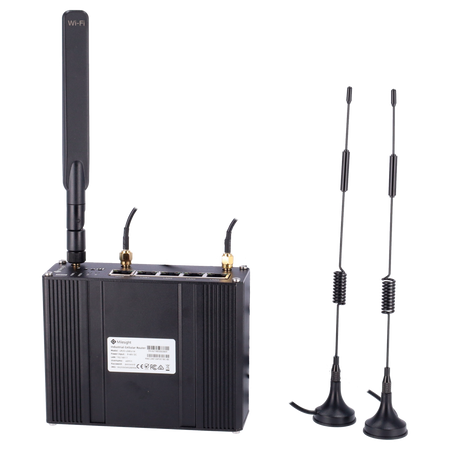

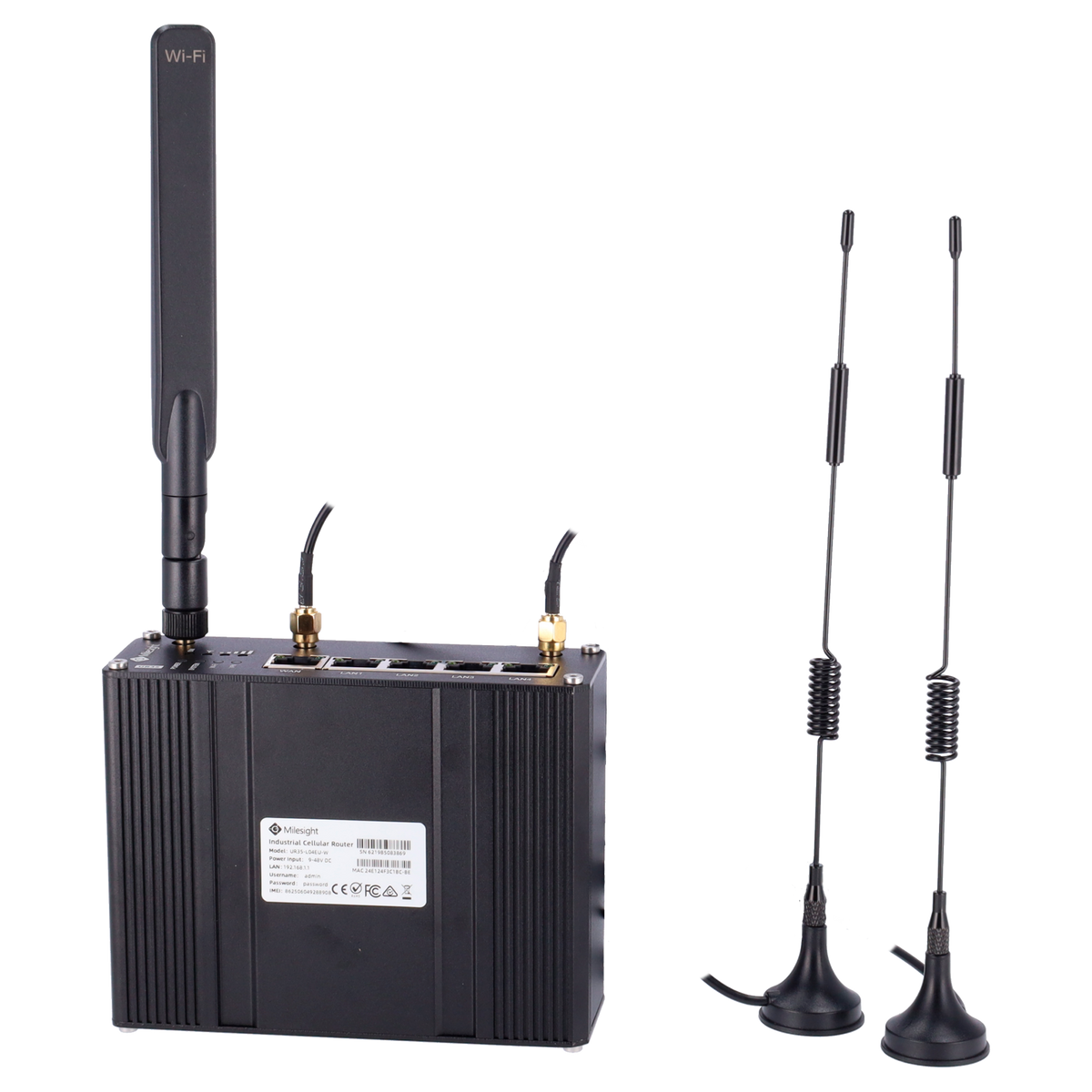

• 1x Industrial Router MS-UR35-L04EU-W
• 1x Power adapter
• 2x Magnetic mobile antennas (SMA male)
• 1x WiFi antenna
• 1x 8-pin terminal block
• 1x DIN rail mounting kit
| Series | Pro Series Industrial Router |
|---|---|
| Processor | NXP ARM Cortex-A7, 528 MHz |
| RAM | 128 MB DDR3 |
| Flash Memory | 128 MB |
| Storage | 1 x Micro SD Slot (expandable) |
| Cellular Module | 4G LTE (CAT 4), 3G WCDMA |
| LTE Speed | 150 Mbps DL / 50 Mbps UL |
| SIM | 2 x Mini SIM-2FF (1.8V / 3V) |
| Cellular Antenna | 2 x 50 Ω SMA female |
| Ethernet Ports | 5 x 10/100 Mbps (1 WAN + 4 LAN) |
| ETH Isolation | 1.5 kV RMS |
| PoE Output | 4 x 802.3 af/at PSE (LAN 1-4) |
| Max PoE Power | 30 W per port (60 W total) |
| WiFi Standard | IEEE 802.11b/g/n, 2.4 GHz |
| Wi-Fi Users | Up to 15 simultaneous connections |
| Wi-Fi Security | WEP, WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP |
| WiFi Antenna | 1 x 50 Ω RP-SMA female |
| GNSS Technology | GPS, GLONASS, BDS, Galileo, QZSS |
| GNSS Accuracy | 2.5m CEP (open space) |
| GPS Antenna | 1 x 50 Ω SMA female |
| Serial Port | 1 x RS232 + 1 x RS485 (Terminal Block) |
| Baud Rate | 300 bps to 230,400 bps |
| Digital I/O | 1 x DI + 1 x DO (Relay) |
| Digital Input | Dry Contact (Galvanic isolation) |
| Digital Output | Wet Contact (Max. 0.3A @ 30VDC) |
| Reset Button | 1 x physical RESET |
| LED Indicators | POWER, SYSTEM, SIM, WiFi, VPN, 3 x Signal |
| Watchdog | Hardware and timer-based |
| Power Supply | 9 - 48 VDC (48V required for PoE) |
| Consumption | Typical 3.9 W, Maximum 4.6 W (without PoE) |
| IP Protection | IP30 |
| Installation | Desk, wall, or DIN rail |
| Operating Temperature | -40 °C to +70 °C (Wi-Fi up to +60 °C) |
| Relative Humidity | 0% to 95% (non-condensing) at 25 °C |
| Network Protocols | IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP |
| Routing | Static routing, RIP v1/v2, OSPF |
| IIoT Protocols | MQTT, Modbus Gateway (TCP/RTU), TR069 |
| VPN | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard |
| Network Security | SPI Firewall, ACL, DMZ, Port Mapping, MAC Binding |
| Authentication | AAA (Radius, Tacacs+, LDAP, Local) |
| Management | Web GUI, CLI (SSH/Telnet), SMS, DeviceHub, RMS |
| Housing Material | Industrial Metal |
| Dimensions | 135 x 103 x 45 mm |
| Weight | 423 g |
| Color | Black |
