MILESIGHT

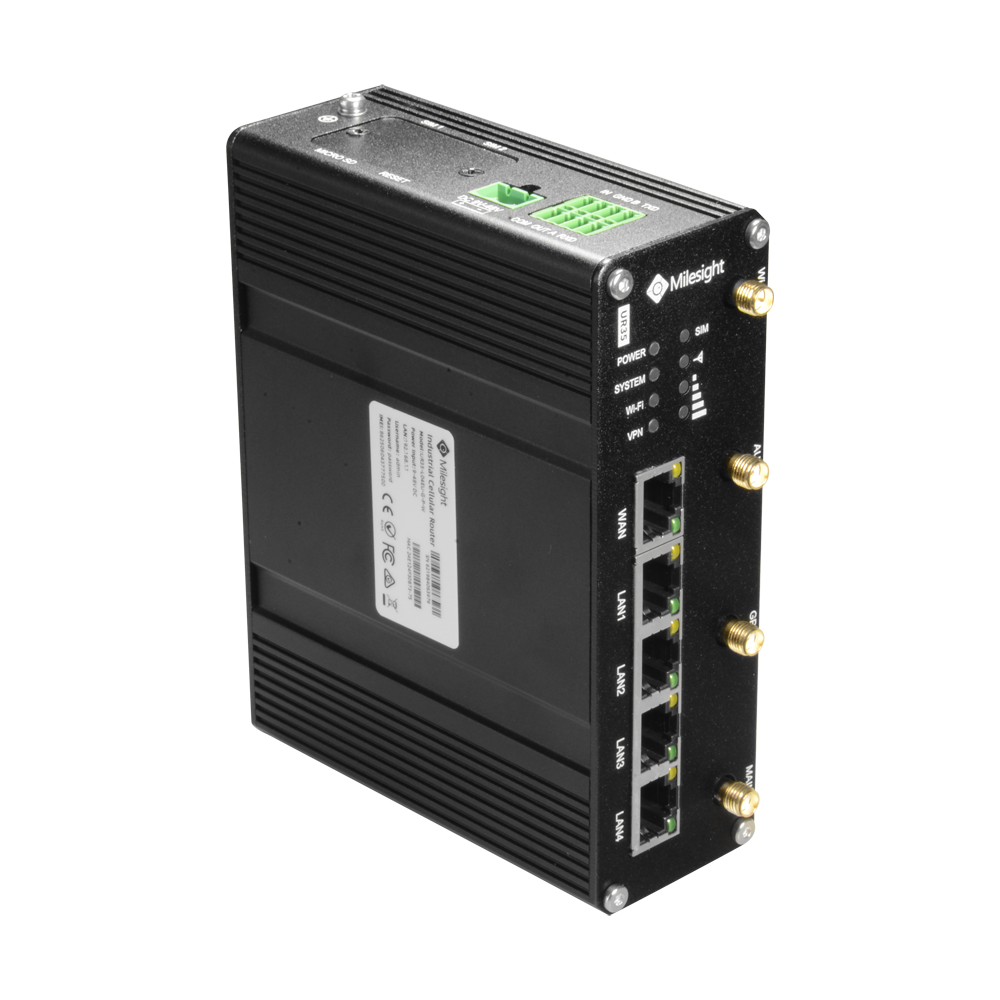

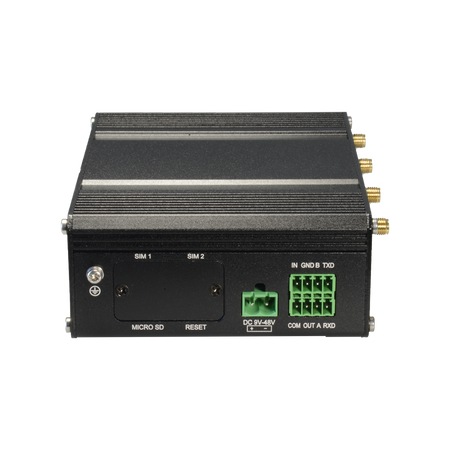

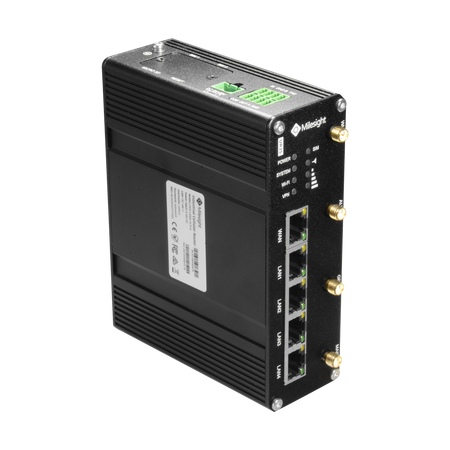

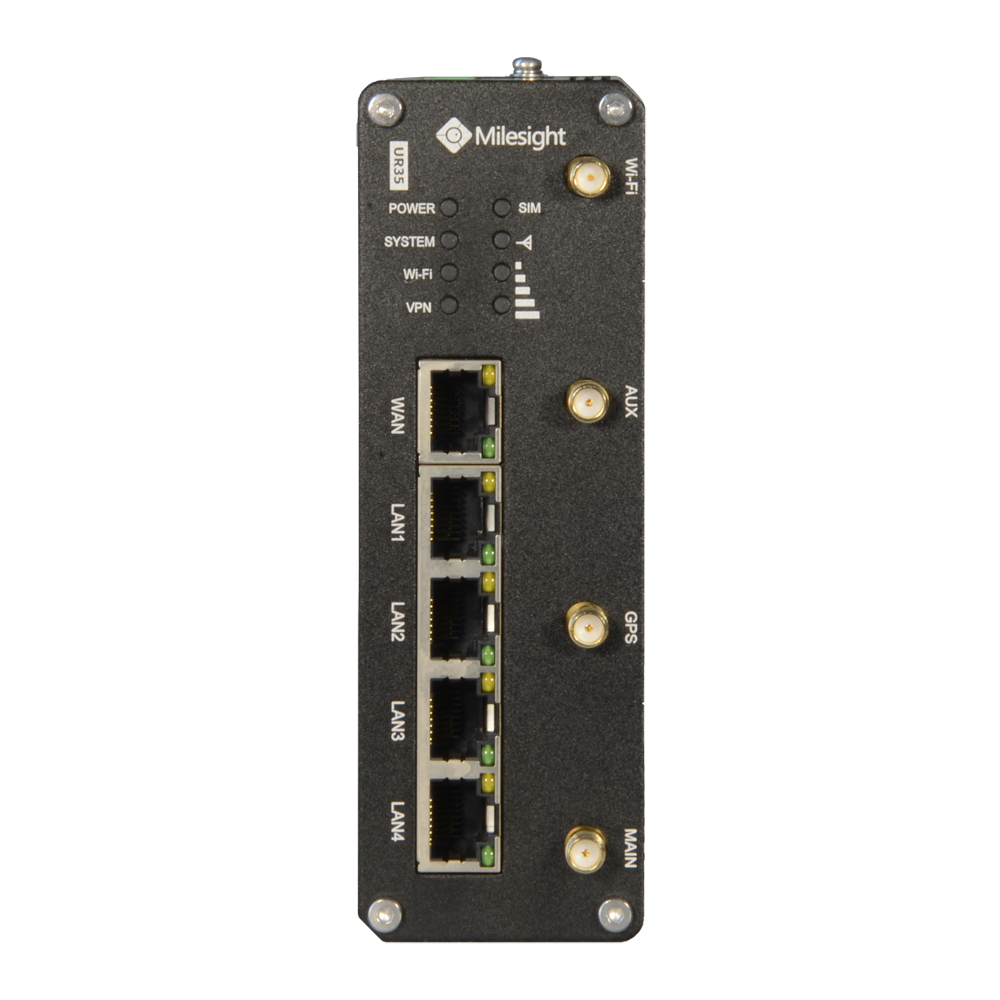

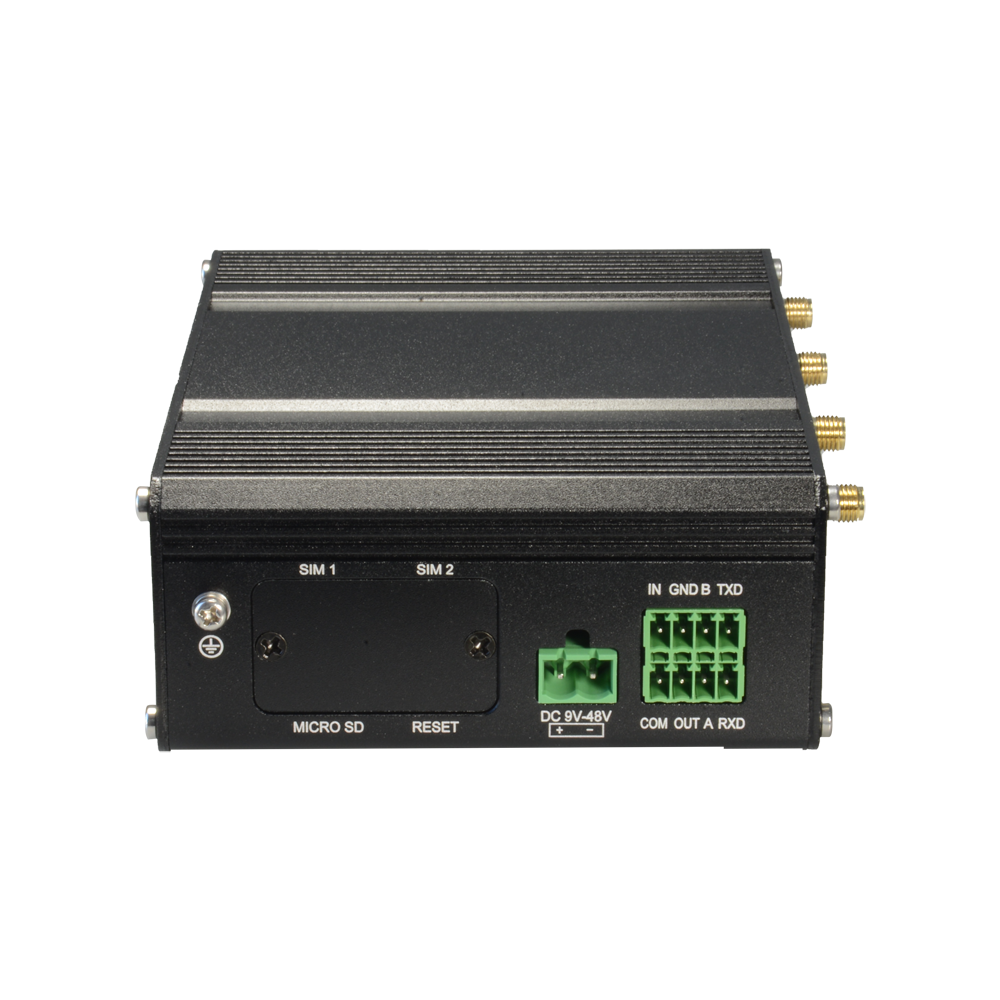

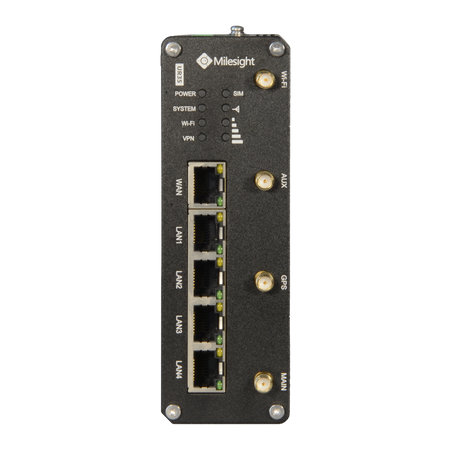

Milesight 4G LTE Cat 4 Router with dual SIM

SKU: MS-UR35-L04EU-G-P-W
(0)
In stock
Usually shipped within 24 hours
€488,84 Final price
-7% €528,00 €488,84 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Milesight 4G LTE Cat 4 Router with dual SIM - 5 Fast Ethernet ports (1 WAN and 4 LAN) - 4 ports with 30W 802.3at PoE+ support - GPS/GNSS module for precise geolocation - WiFi 802.11b/g/n for wireless access - RS232/RS485 serial interfaces and digital I/O

📋 SPECIFICATIONS:
• Brand: Milesight
• Series: Pro Series Industrial Router
• CPU: ARM Cortex-A7, 528 MHz
• RAM: 128 MB DDR3
• Flash Memory: 128 MB
• Storage: 1 x Micro SD slot (expandable)
• Cellular module: 4G LTE Cat 4 / 3G WCDMA
• LTE speed: Maximum 150 Mbps download and 50 Mbps upload
• SIM ports: 2 x Mini SIM-2FF slots (1.8V/3V)
• Cellular antenna: 2 x 50 Ω SMA female connectors
• Ethernet: 5 x RJ45 10/100 Mbps (1 WAN + 4 LAN)
• ETH isolation: 1.5 kV RMS
• PoE output: 4 x 802.3 af/at PoE PSE on LAN ports
• PoE power: Maximum 30W per port, Total 60W
• WiFi: IEEE 802.11 b/g/n, 2.4 GHz
• Wi-Fi mode: Access Point (AP) or Client
• Wi-Fi users: Up to 15 simultaneous connections
• Wi-Fi security: WEP, WPA-PSK, WPA2-PSK, WPA-EAP
• WiFi antenna: 1 x 50 Ω RP-SMA female connector
• GNSS technology: GPS, GLONASS, BDS, Galileo, QZSS
• GNSS precision: 2.5m CEP (open sky)
• GPS antenna: 1 x 50 Ω SMA female connector
• Serial port: 1 x RS232 + 1 x RS485 (Terminal Block)
• Serial speed: 300 bps to 230,400 bps
• Digital input: 1 x DI (dry contact)
• Digital output: 1 x DO (powered contact, 0.3A@30VDC)
• Network protocols: IPv4/IPv6, PPP, SNMP v1/v2c/v3, TCP, UDP, DHCP, OSPF
• IIoT protocols: MQTT, Modbus Gateway, Modbus TCP/RTU, TR069, DLMS
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard
• Network security: SPI Firewall, ACL, DMZ, MAC Filter, AAA (Radius/Tacacs+)
• Watchdog: Hardware and timer based
• Power supply: 9 to 48 VDC (2-pin Terminal Block)
• Consumption: Typical 3.9W, Maximum 4.6W (Without PoE)
• Housing material: Metal, black color
• IP protection: IP30
• Operating temperature: -40 °C to +70 °C (reduced performance >60°C)
• Humidity: 0% to 95% (non-condensing) at 25°C
• Installation: Desk, wall, or DIN rail
• Dimensions: 135 x 103 x 45 mm
• Weight: 423 g

📦 INCLUDED:

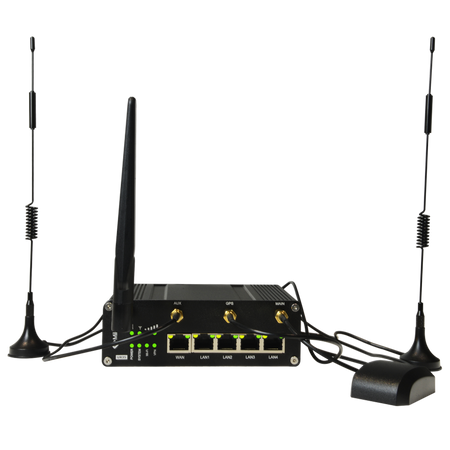

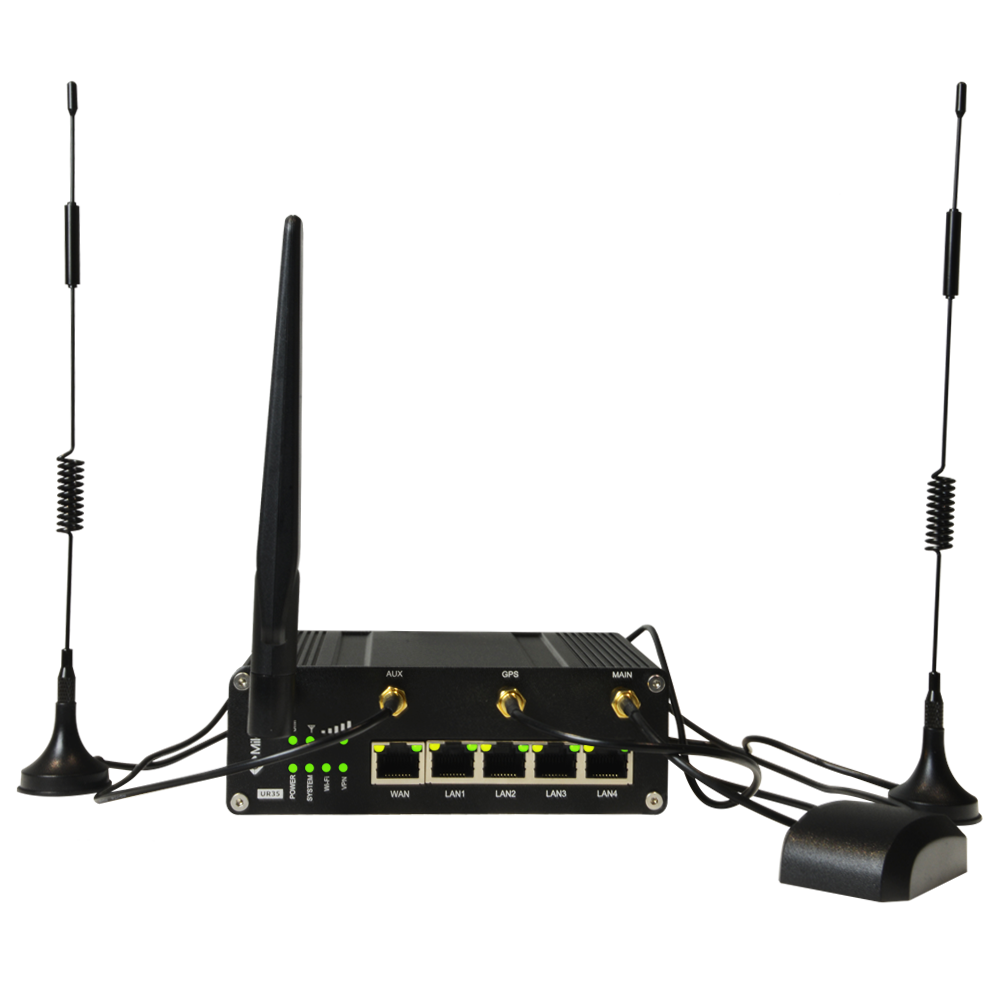

• 1x Industrial Router MS-UR35-L04EU-G-P-W• 1x Industrial power supply• 2x Magnetic mobile antennas (SMA male)• 1x WiFi antenna and 1x GPS antenna• 1x 8-pin terminal block• 1x DIN rail mounting kit
Series Pro Series Industrial Router
CPU ARM Cortex-A7, 528 MHz
RAM 128 MB DDR3
Flash Memory 128 MB
Storage 1 x Micro SD Slot (expandable)
Cellular Module 4G LTE Cat 4 / 3G WCDMA
LTE Speed Up to 150 Mbps download and 50 Mbps upload
SIM Ports 2 x Mini SIM-2FF Slots (1.8V/3V)
Cellular Antenna 2 x 50 Ω SMA female connectors
Ethernet 5 x RJ45 10/100 Mbps (1 WAN + 4 LAN)
ETH Isolation 1.5 kV RMS
PoE Output 4 x 802.3 af/at PoE PSE on LAN ports
PoE Power Maximum 30W per port, Total 60W
WiFi IEEE 802.11 b/g/n, 2.4 GHz
Wi-Fi Mode Access Point (AP) or Client
Wi-Fi Users Up to 15 simultaneous connections
Wi-Fi Security WEP, WPA-PSK, WPA2-PSK, WPA-EAP
WiFi Antenna 1 x 50 Ω RP-SMA female connector
GNSS Technology GPS, GLONASS, BDS, Galileo, QZSS
GNSS Accuracy 2.5m CEP (open space)
GPS Antenna 1 x 50 Ω SMA female connector
Serial Port 1 x RS232 + 1 x RS485 (Terminal Block)
Serial Speed 300 bps to 230,400 bps
Digital Input 1 x DI (dry contact)
Digital Output 1 x DO (powered contact, 0.3A@30VDC)
Network Protocols IPv4/IPv6, PPP, SNMP v1/v2c/v3, TCP, UDP, DHCP, OSPF
IIoT Protocols MQTT, Modbus Gateway, Modbus TCP/RTU, TR069, DLMS
VPN IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard
Network Security SPI Firewall, ACL, DMZ, MAC Filter, AAA (Radius/Tacacs+)
Watchdog Hardware and timer based
Power Supply 9 to 48 VDC (2-pin Terminal Block)
Power Consumption Typical 3.9W, Maximum 4.6W (Without PoE)
Chassis Material Metal, black color
IP Rating IP30
Operating Temperature -40 °C to +70 °C (reduced performance >60°C)
Humidity 0% to 95% (non-condensing) at 25°C
Installation Desk, wall, or DIN rail
Dimensions 135 x 103 x 45 mm
Weight 423 g
