MILESIGHT

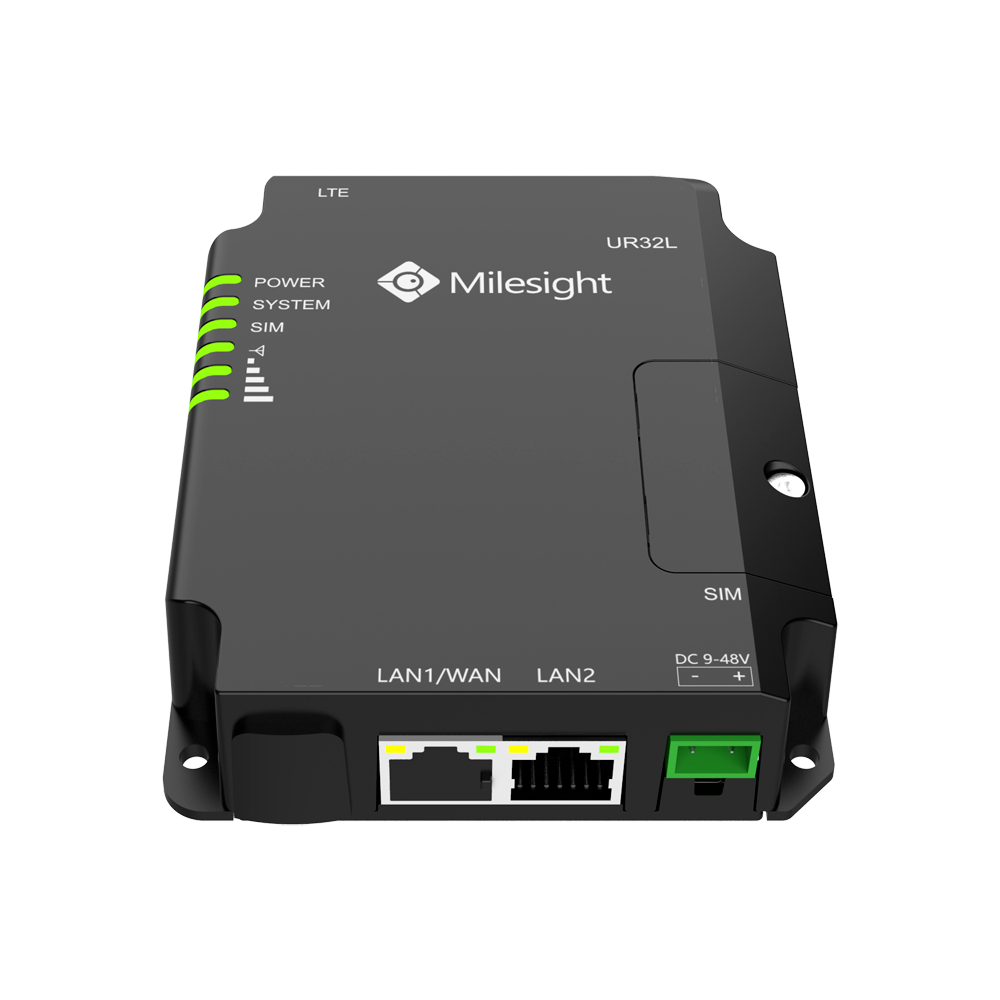

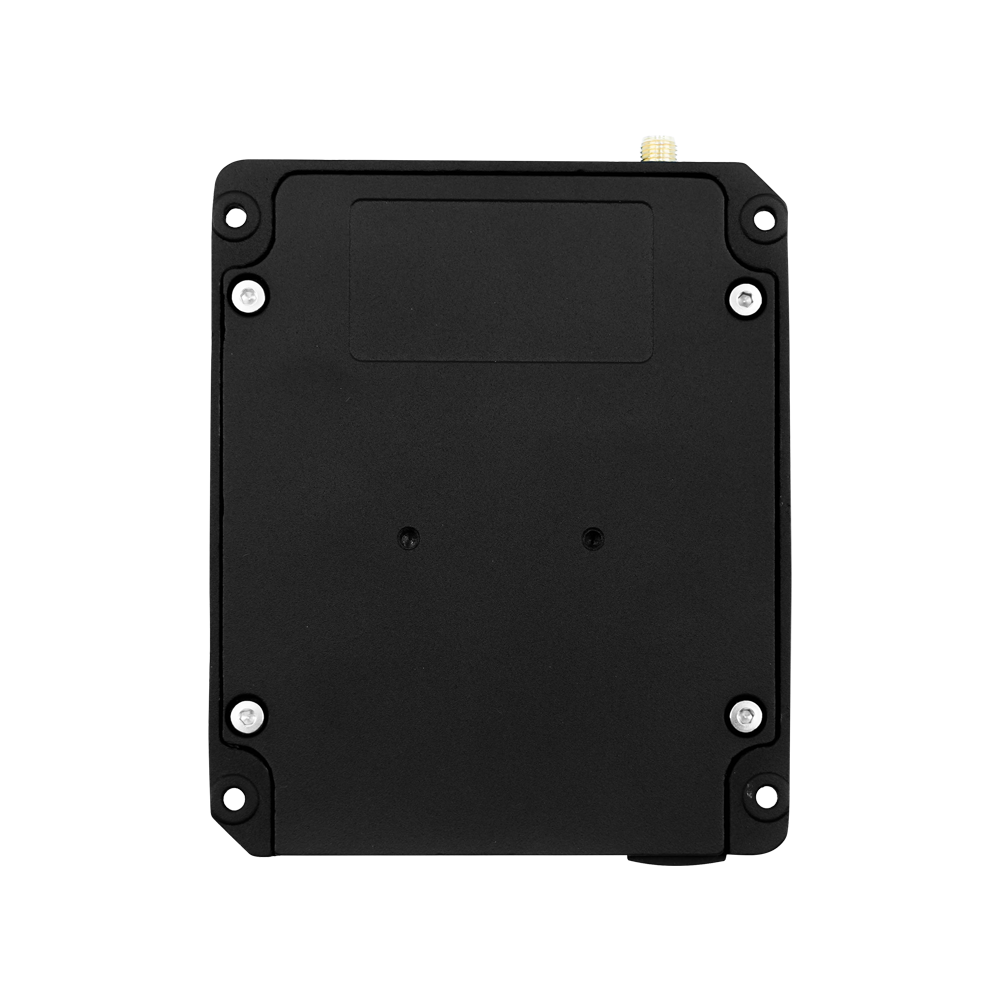

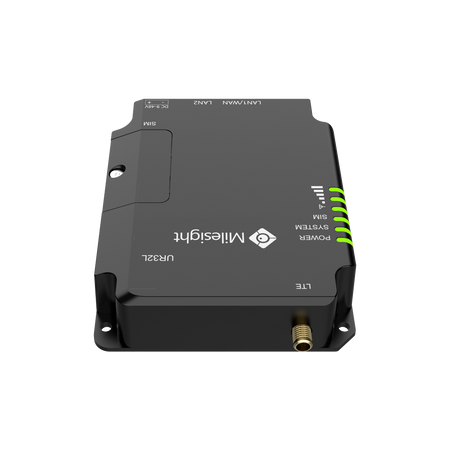

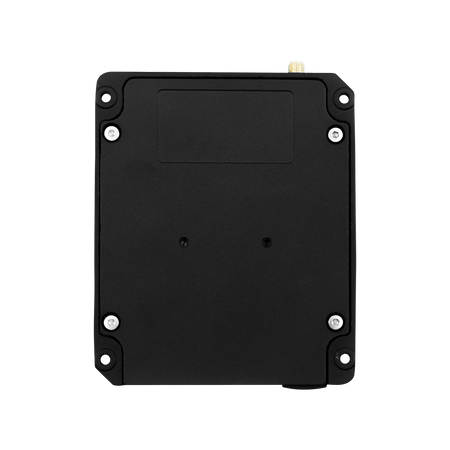

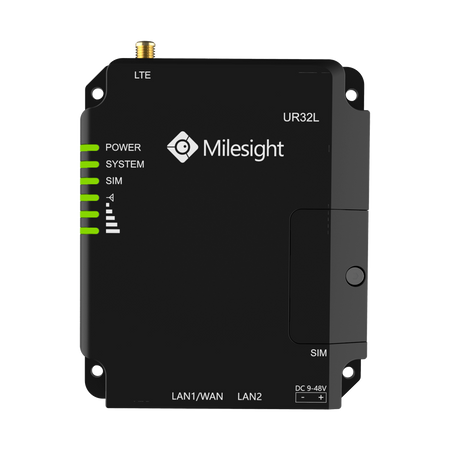

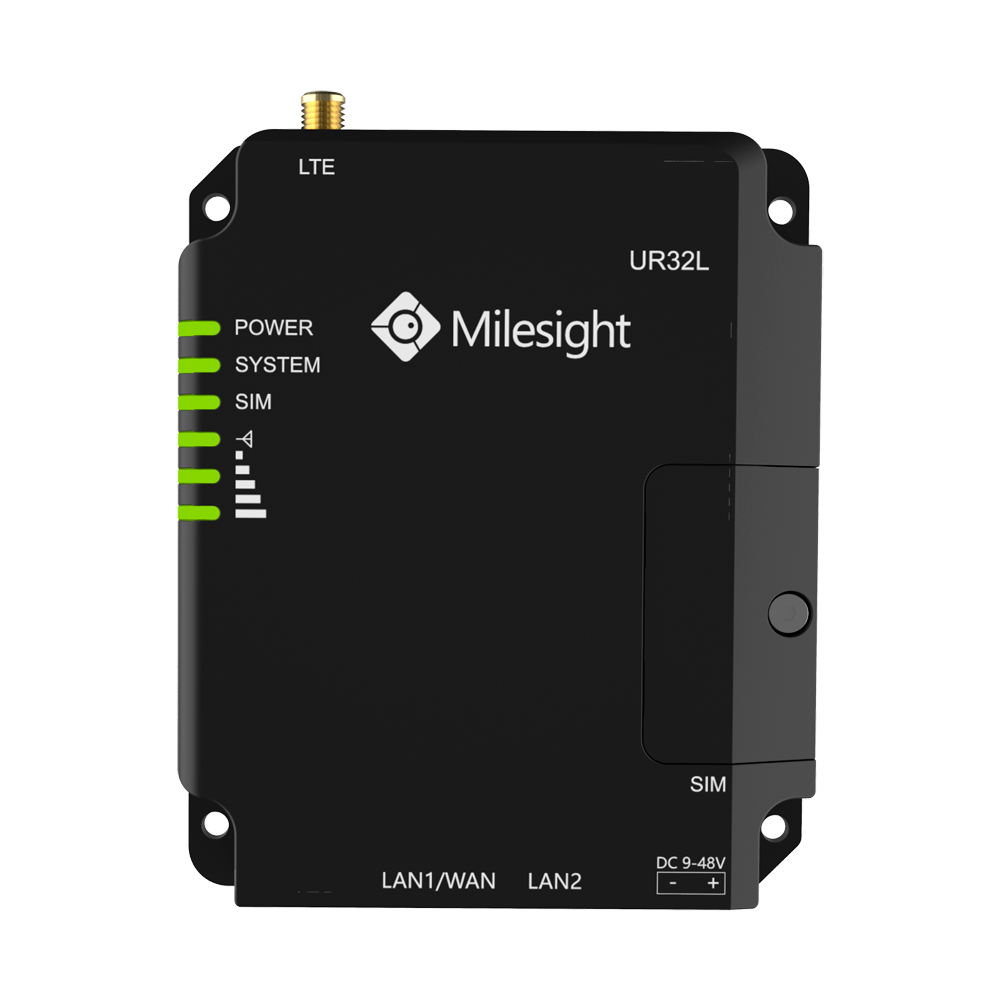

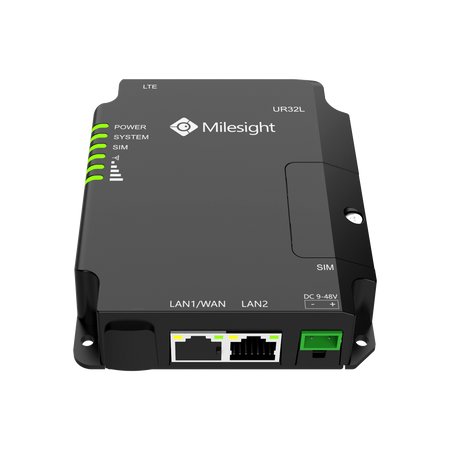

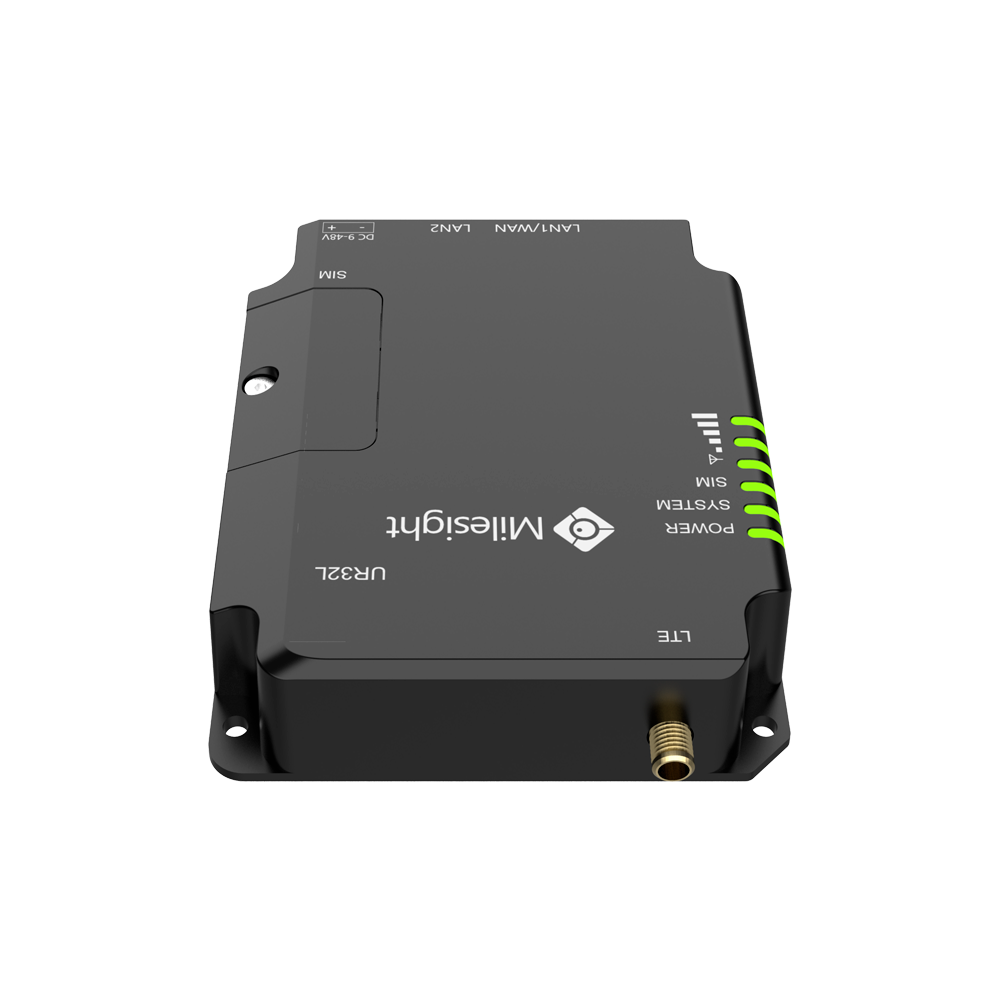

Milesight 4G LTE Cat 4 Industrial Router - 150 Mbps 2.4 GHz 802.11b/g/n Wi-Fi

SKU: MS-UR32-L04EU-P-W
(0)
In stock
Usually shipped within 24 hours
€391,99 Final price
-9% €430,00 €391,99 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Milesight 4G LTE Cat 4 Industrial Router - Reliable connectivity with dual SIM slots - 2.4 GHz 150 Mbps 802.11b/g/n Wi-Fi - Advanced VPN: IPSec, OpenVPN and L2TP/PPTP - 2 x 10/100 Ethernet ports with PoE output - Hardware watchdog and automatic reboot

📋 SPECIFICATIONS:
• Brand: Milesight
• Installation: Desktop, wall or DIN rail
• CPU: ARM Cortex-A7, 528 MHz
• RAM: 128 MB DDR3
• Flash memory: 128 MB
• Expandable storage: 1 x Micro SD card slot
• Operating System: OpenWrt Linux OS based
• Mobile network: 4G LTE (CAT 4), WCDMA, GSM
• LTE Tx Power: Class 3 (23 dBm +/- 2 dB)
• SIM slots: 2 x SIM slots (Mini SIM-2FF)
• Ethernet ports: 2 x 10/100 Mbps
• Ethernet configuration: 1 x WAN + 1 x LAN or 2 x LAN
• Ethernet isolation: 1.5 kV RMS
• PoE output: 2 x 802.3 af/at PoE PSE on LAN ports
• PoE power: Max. 30W per port, Total 60W
• Wi-Fi standard: IEEE 802.11 b/g/n, 2.4GHz
• Wi-Fi users: Up to 15 simultaneous connections
• Wi-Fi security: WPA/WPA2-PSK/EAP, WEP/TKIP/AES
• GNSS: GPS, GLONASS, BDS, Galileo, QZSS
• Serial port: 1 x RS232 (Optional hardware RS485)
• Serial baud rate: 300 bps to 230,400 bps
• DI/DO: 1 x DI + 1 x DO (galvanic isolation)
• VPN: IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard, ZeroTier
• Firewall: SPI, ACL, Port Mapping, MAC Binding, DoS/DDoS
• Network protocols: IPv4/IPv6, PPP, PPPOE, SNMP, RIP, OSPF, MQTT
• Management: Web, CLI, SMS, TR069, DeviceHub
• Watchdog: Built-in hardware watchdog
• Input voltage: 9-48 VDC (48V required for PoE)
• Power protection: Overvoltage and reverse polarity
• Power consumption: Typical 1.9 W, Maximum 2.4 W (non-PoE mode)
• IP rating: IP30
• Housing material: Metal
• Operating temperature: -40 °C to +70 °C
• Storage temperature: -40 °C to +85 °C
• Relative humidity: 0 % to 95 % (non-condensing)
• Dimensions: 108 x 90 x 26 mm
• Weight: 271 g
• Color: Black

📦 INCLUDED:

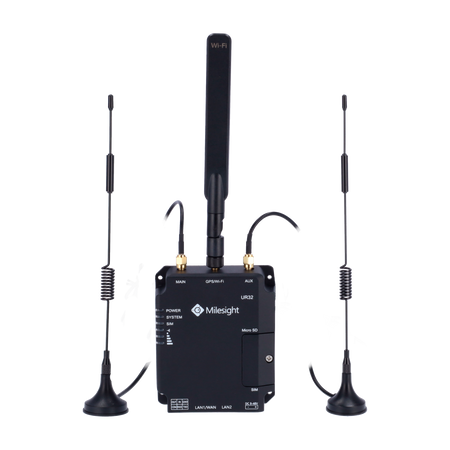

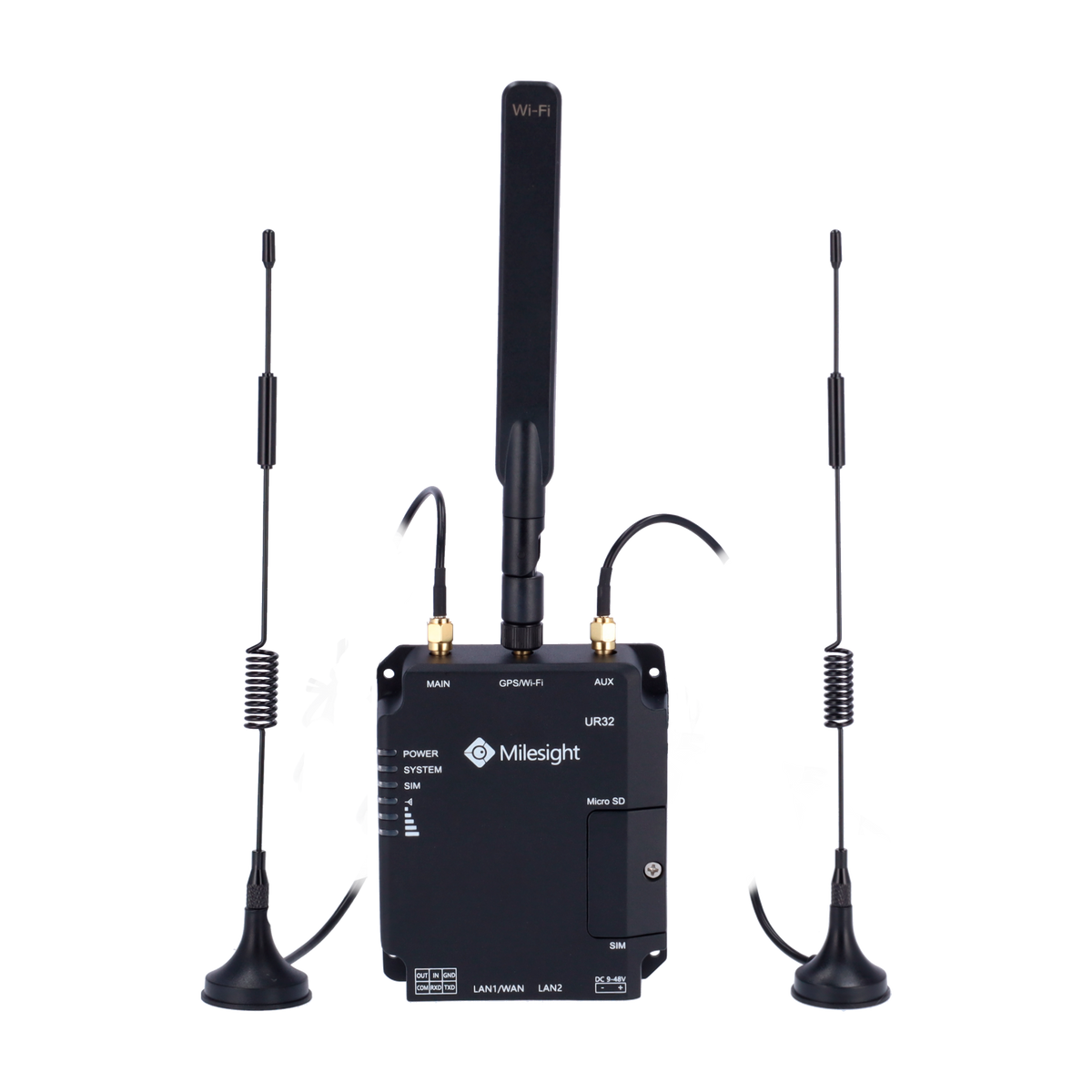

• 1x UR32 industrial router • 1x Power adapter • 1x 6-pin connector • 1x DIN rail mounting kit • 4x Wall mounting kit • 2x Magnetic cellular antennas • 1x Wi-Fi antenna • 1x GPS antenna
Installation Desktop, wall, or DIN rail
CPU ARM Cortex-A7, 528 MHz
RAM 128 MB DDR3
Flash memory 128 MB
Expandable storage 1 x Micro SD card slot
Operating System Based on OpenWrt Linux OS
Mobile network 4G LTE (CAT 4), WCDMA, GSM
LTE Tx Power Class 3 (23 dBm +/- 2 dB)
SIM slots 2 x SIM slots (Mini SIM-2FF)
Ethernet ports 2 x 10/100 Mbps
Ethernet configuration 1 x WAN + 1 x LAN or 2 x LAN
Ethernet isolation 1.5 kV RMS
PoE output 2 x 802.3 af/at PoE PSE on LAN ports
PoE power Max. 30W per port, Total 60W
Wi-Fi standard IEEE 802.11 b/g/n, 2.4GHz
Wi-Fi users Up to 15 simultaneous connections
Wi-Fi security WPA/WPA2-PSK/EAP, WEP/TKIP/AES
GNSS GPS, GLONASS, BDS, Galileo, QZSS
Serial port 1 x RS232 (Hardware RS485 optional)
Serial baud rate 300 bps to 230,400 bps
DI/DO 1 x DI + 1 x DO (galvanic isolation)
VPN IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, WireGuard, ZeroTier
Firewall SPI, ACL, Port Mapping, MAC Binding, DoS/DDoS
Network protocols IPv4/IPv6, PPP, PPPOE, SNMP, RIP, OSPF, MQTT
Management Web, CLI, SMS, TR069, DeviceHub
Watchdog Built-in hardware watchdog
Input voltage 9-48 VDC (48V required for PoE)
Power protection Overvoltage and reverse polarity
Power consumption Typical 1.9 W, Maximum 2.4 W (non-PoE mode)
IP rating IP30
Housing material Metal
Operating temperature -40 °C to +70 °C
Storage temperature -40 °C to +85 °C
Relative humidity 0 % to 95 % (non-condensing)
Dimensions 108 x 90 x 26 mm
Weight 271 g
Color Black
