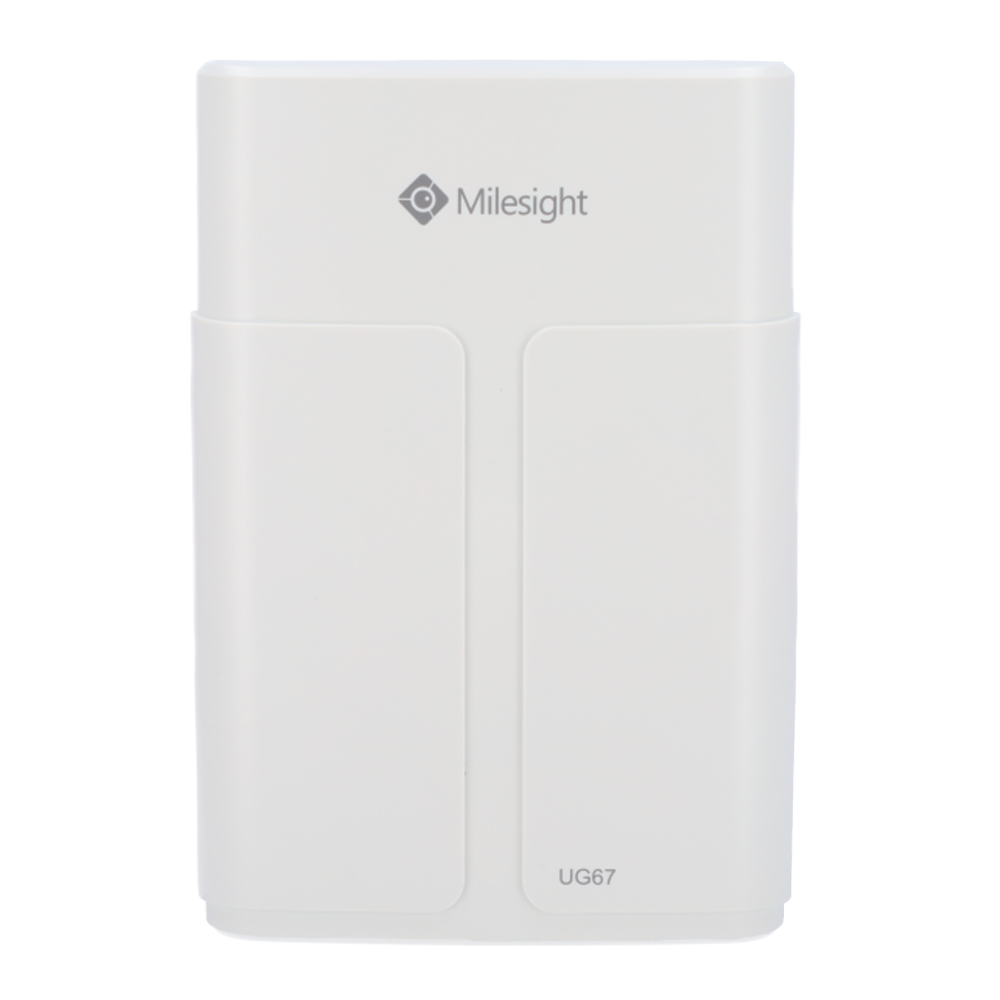

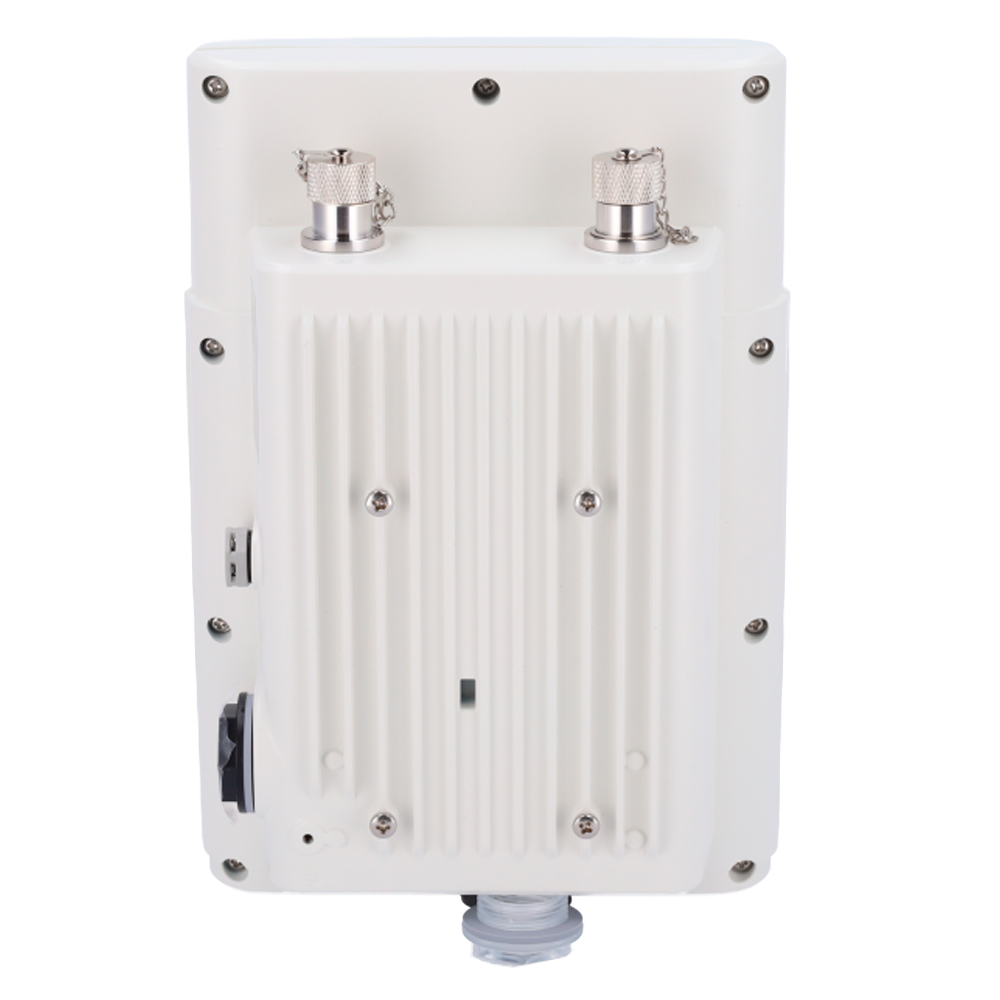

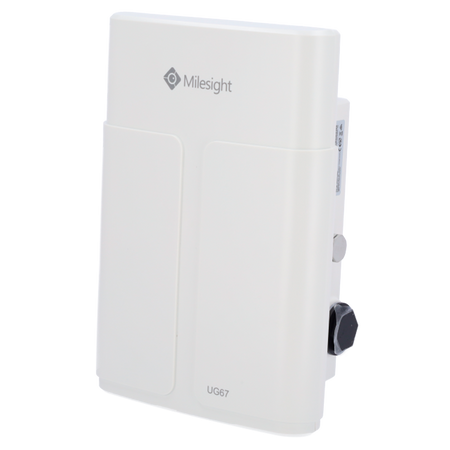

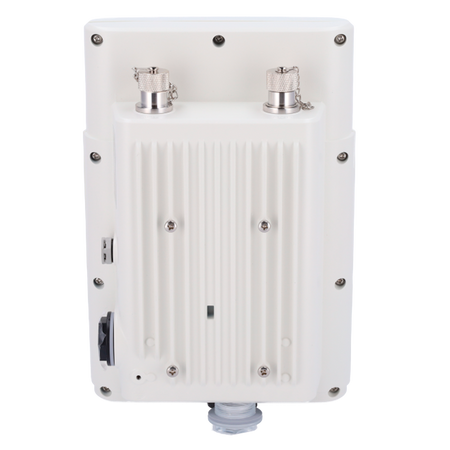

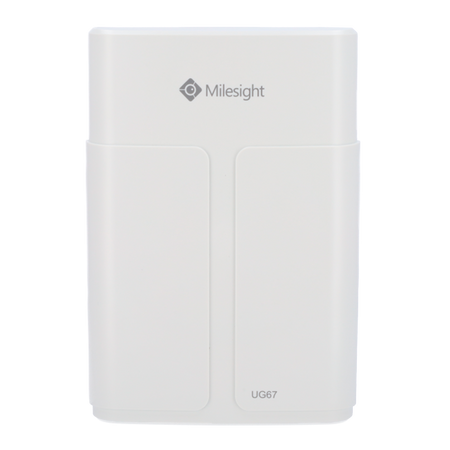

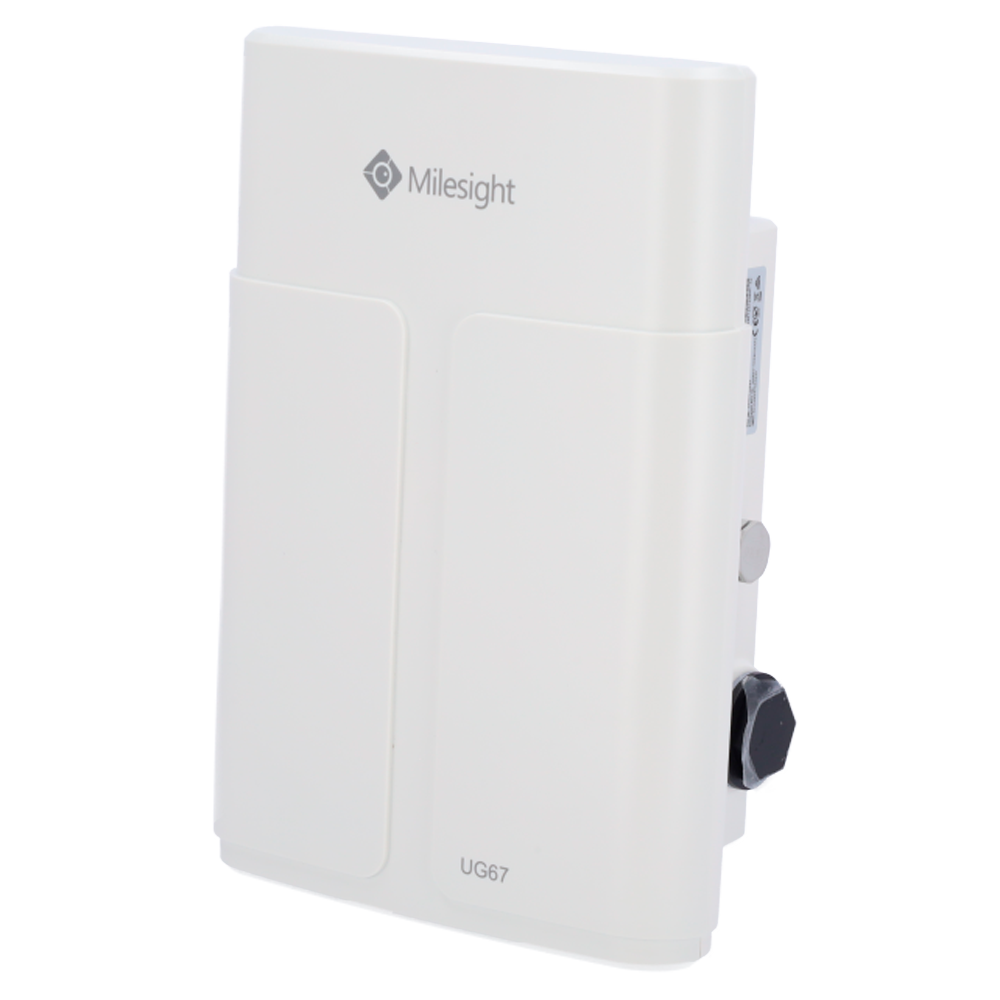

Milesight LoRaWAN Gateway, range up to 2km - Ethernet, WiFi communication - IP67 protection rating
Milesight LoRaWAN Gateway, range up to 2km - Ethernet, WiFi communication - IP67 protection rating
Regular price
€1.060,67
Final price
Regular price
-8%
€1.150,00
Sale price
€1.060,67
Final price
Couldn't load pickup availability
Ready to use

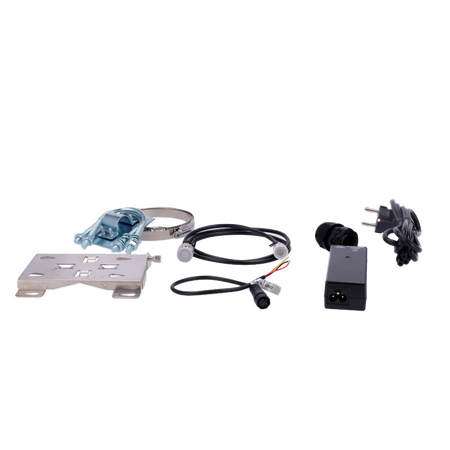

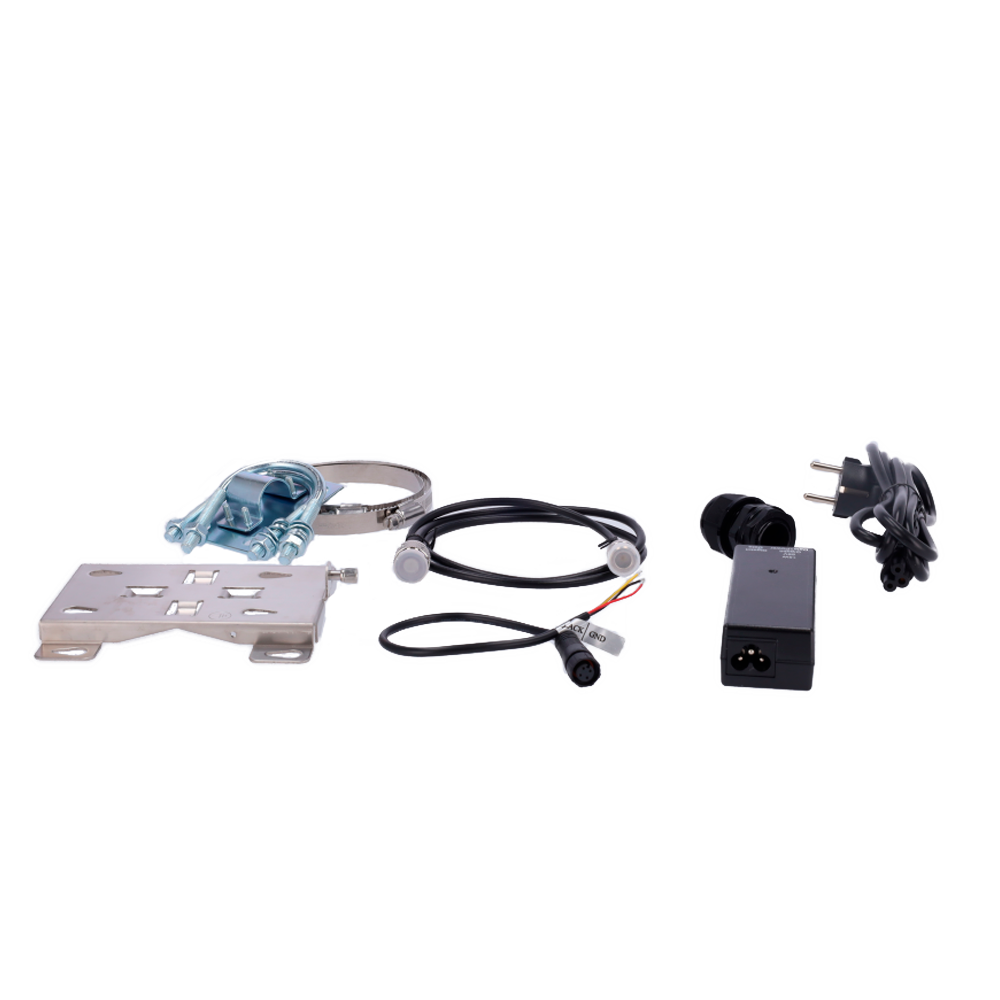

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN Gateway - Range up to 2km - 8 channels and connection for 2000 devices - Ethernet, WiFi communication - IP67 Protection Rating - GPS
📋 SPECIFICATIONS:
• Hardware: CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53; Memory: 512 MB DDR4 RAM; Flash: 8 GB eMMC

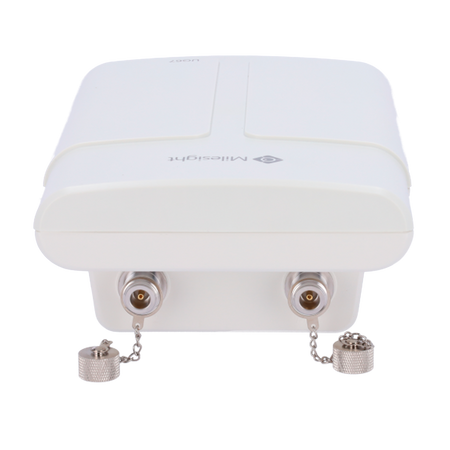

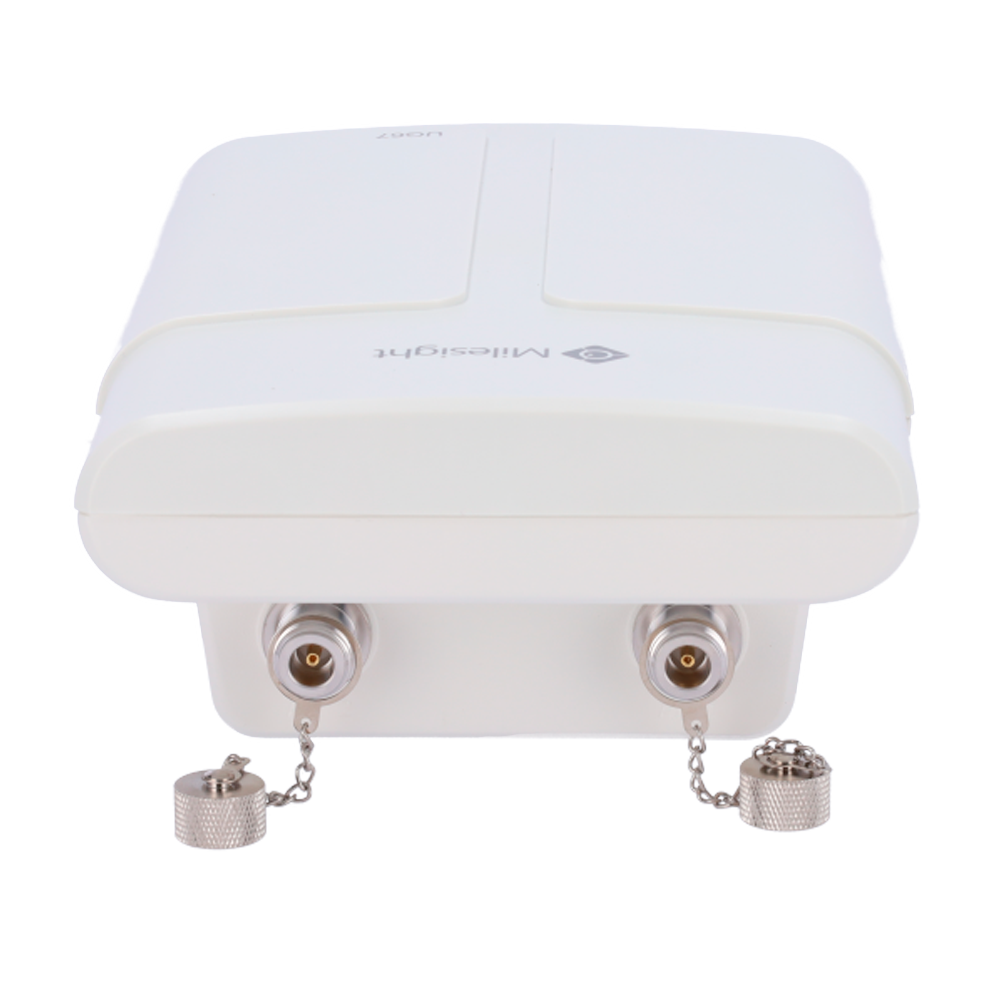

• Antennas: 2x Internal LoRa antennas + 2x external N-female connectors; Internal Wi-Fi antenna; Internal GPS antenna
• Channels: 8
• Connected devices: 2000 end devices
• Frequency band: 868 MHz
• Sensitivity: 140dBm@292bps
• Output power: 27dBm Max.
• Protocol: V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C
• Ethernet: 1x RJ45 10/100/1000Mbps Base-T (IEEE 802.3); Full or Half-Duplex mode with auto-detection; Auto MDI/MDIX
• WiFi: IEEE 802.11 b/g/n
• WiFi transmission power: 802.11b: 18 dBm +/-2.0 dBm (11 Mbps); 802.11g: 15 dBm +/-2.0 dBm (6 Mbps); 802.11g: 15 dBm +/-2.0 dBm (54 Mbps); 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20); 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20); 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40); 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
• GPS sensitivity: -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
• GPS accuracy: <2.5m CEP
• Network protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
• VPN Tunnel: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
• Access authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2
• Firewall: ACL/DMZ/Port mapping/MAC binding/URL filter
• Management: Web, CLI, SMS, On-demand dial-up, Hub, Milesight IoT Cloud
• Reliability: WAN Failover
• Built-in functions: Watchdog, RTC, Timer
• Power supply: 12V DC M12 connector, PoE 802.3af, ≤ 4.8W Max.
• Operating temperature: From -40ºC to 70ºC (Relative humidity <95%)
• Storage temperature: -40ºC to 85ºC
• Ethernet isolation: 1.5kV RMS
• Protection rating: IP67
• Dimensions: 240 (D) x 164 (H) x 90.9 (W) mm
• Mounting: Wall or pole

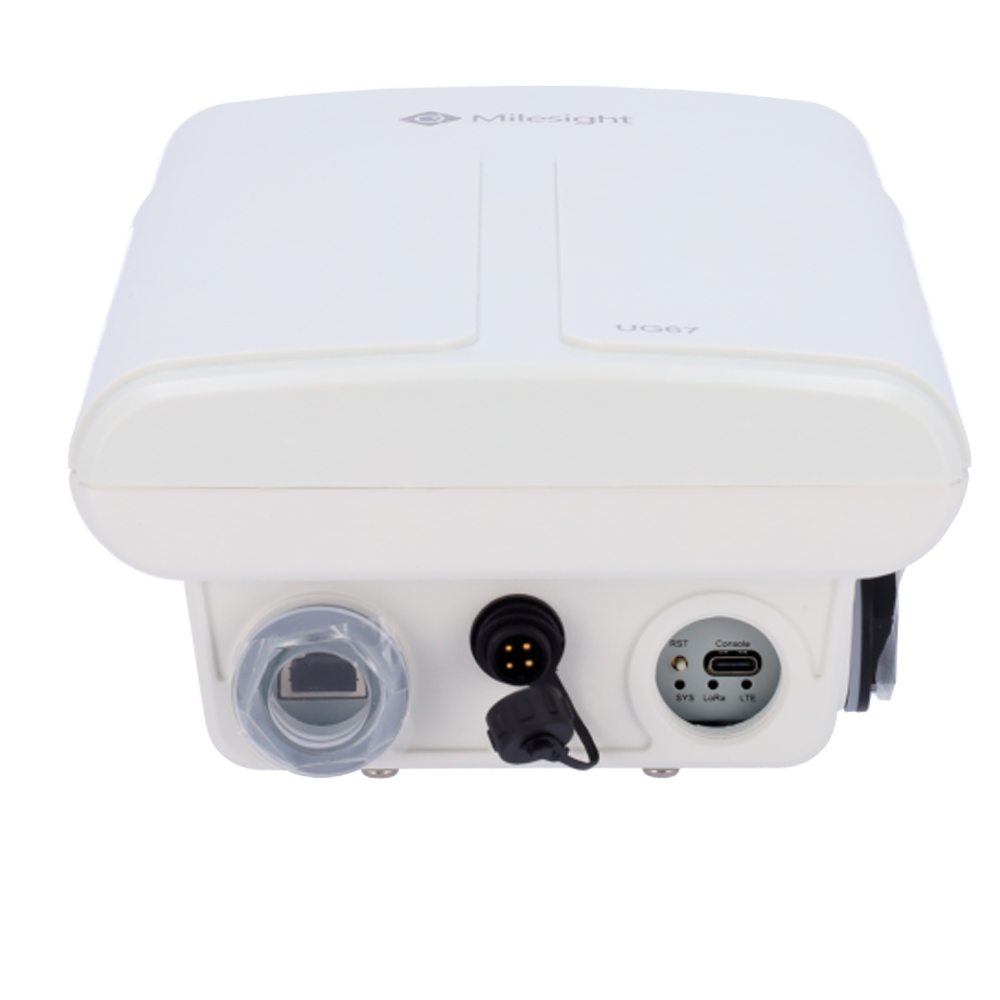

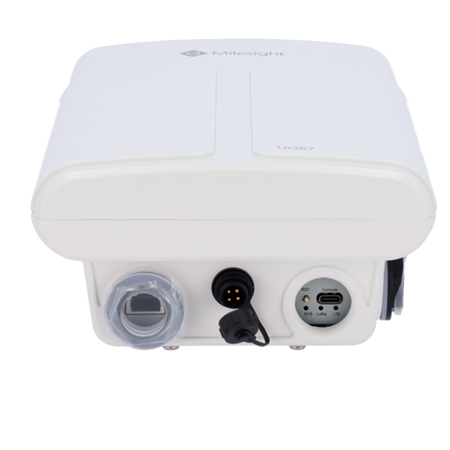

• Others: 1x Reset button; 1x Console port Type-C connector
• Certifications: CE, FCC
| Hardware | CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 Memory: 512 MB DDR4 RAM Flash: 8 GB eMMC |
|---|---|
| Antennas | 2x Internal Lora antennas + 2x External N-female connectors Internal Wi-Fi antenna Internal GPS antenna |
| Channels | 8 |
| Connected devices | 2000 end devices |
| Frequency Band | 868 MHz |
| Sensitivity | 140dBm@292bps |
| Output Power | 27dBm Max. |
| Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
| Ethernet | 1x RJ45 10/100/1000Mbps Base-T (IEEE 802.3) Full or Half-Duplex mode with Auto MDI/MDIX detection |
| WiFi | IEEE 802.11 b/g/n |
| WiFi Transmit Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| GPS Sensitivity | 167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition |
| GPS Accuracy | <2.5m CEP |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port mapping/MAC binding/URL filter |
| Management | Web, CLI, SMS, Dial-on-demand, Hub, Milesight IoT Cloud |
| Reliability | WAN failover |
| Built-in functions | Watchdog, RTC, Timer |
| Power Supply | 12VDC M12 connector, PoE 802.3af, ≤ 4.8W Max. |
| Operating Temperature | -40ºC to 70ºC (Relative humidity <95%) |
| Storage Temperature | -40ºC to 85ºC |
| Ethernet Isolation | 1.5kV RMS |
| Protection Grade | IP67 |
| Dimensions | 240 (D) x 164 (H) x 90.9 (W) mm |
| Mounting | Wall or Pole |
| Other | 1x Reset button 1x Console port Type-C connector |
| Certificates | CE, FCC |
