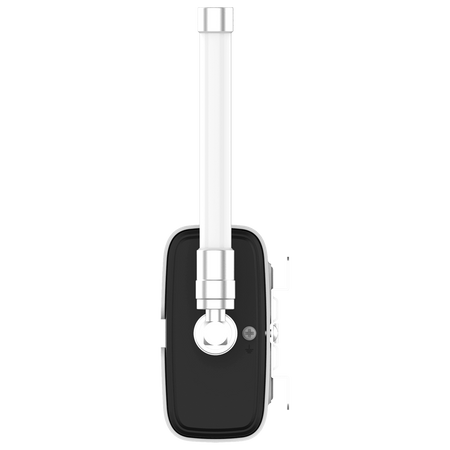

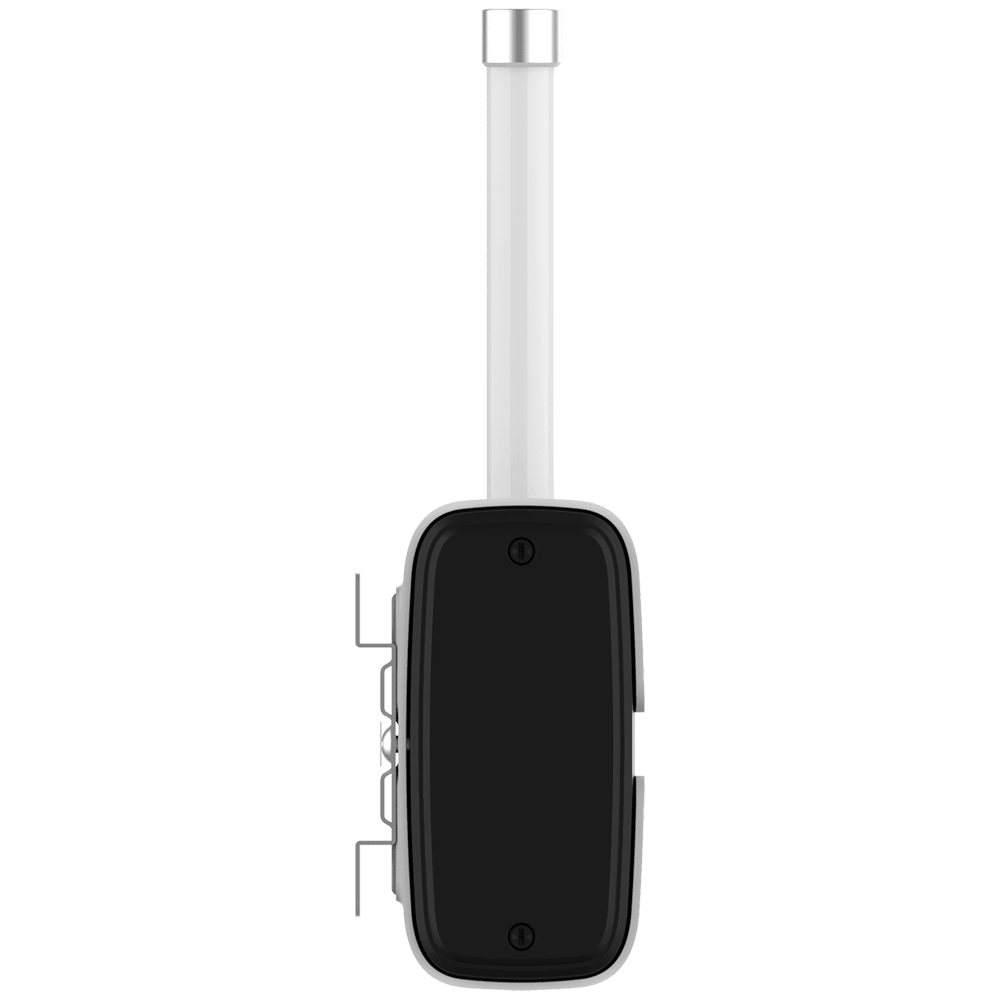

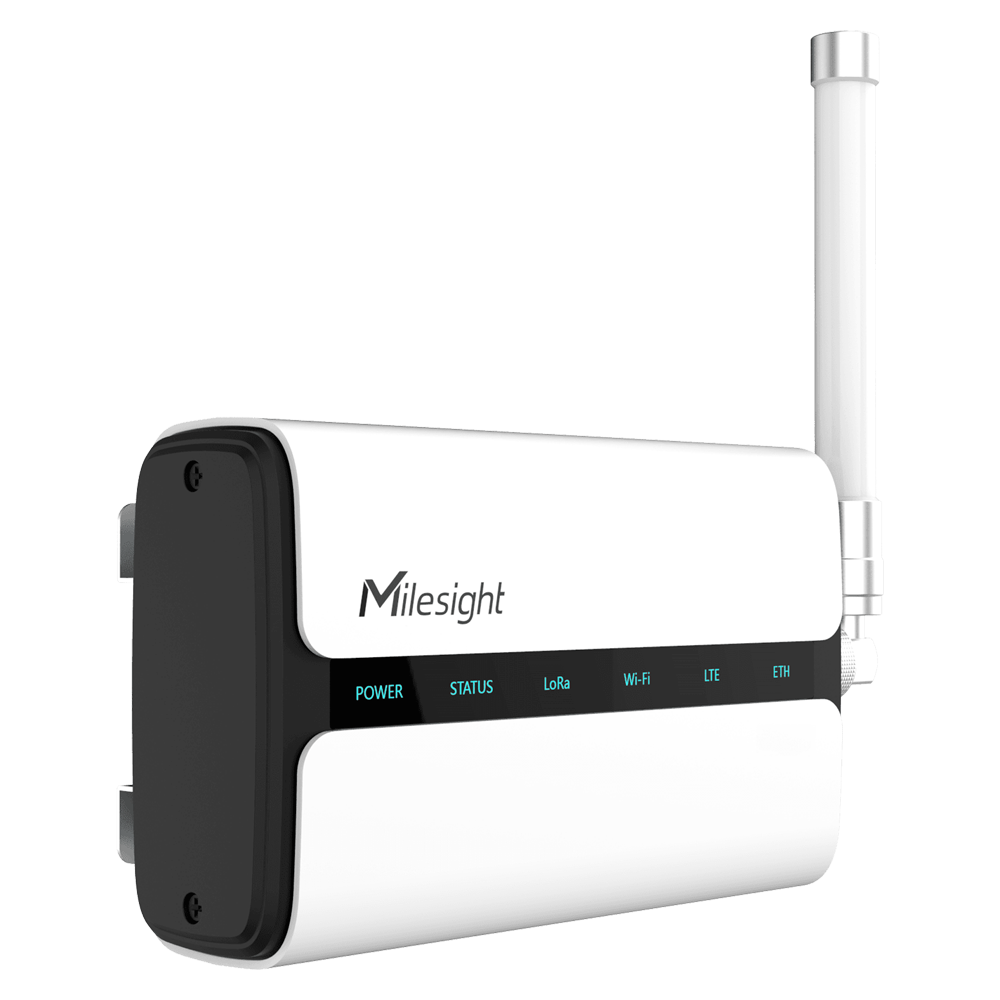

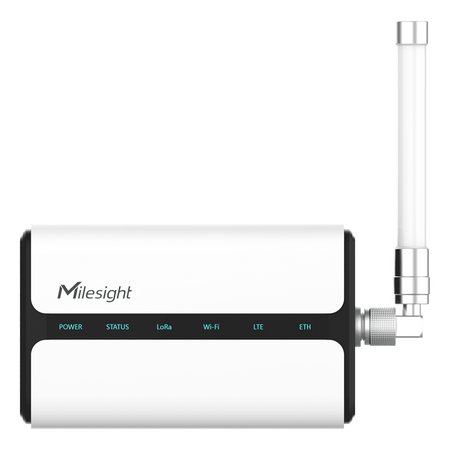

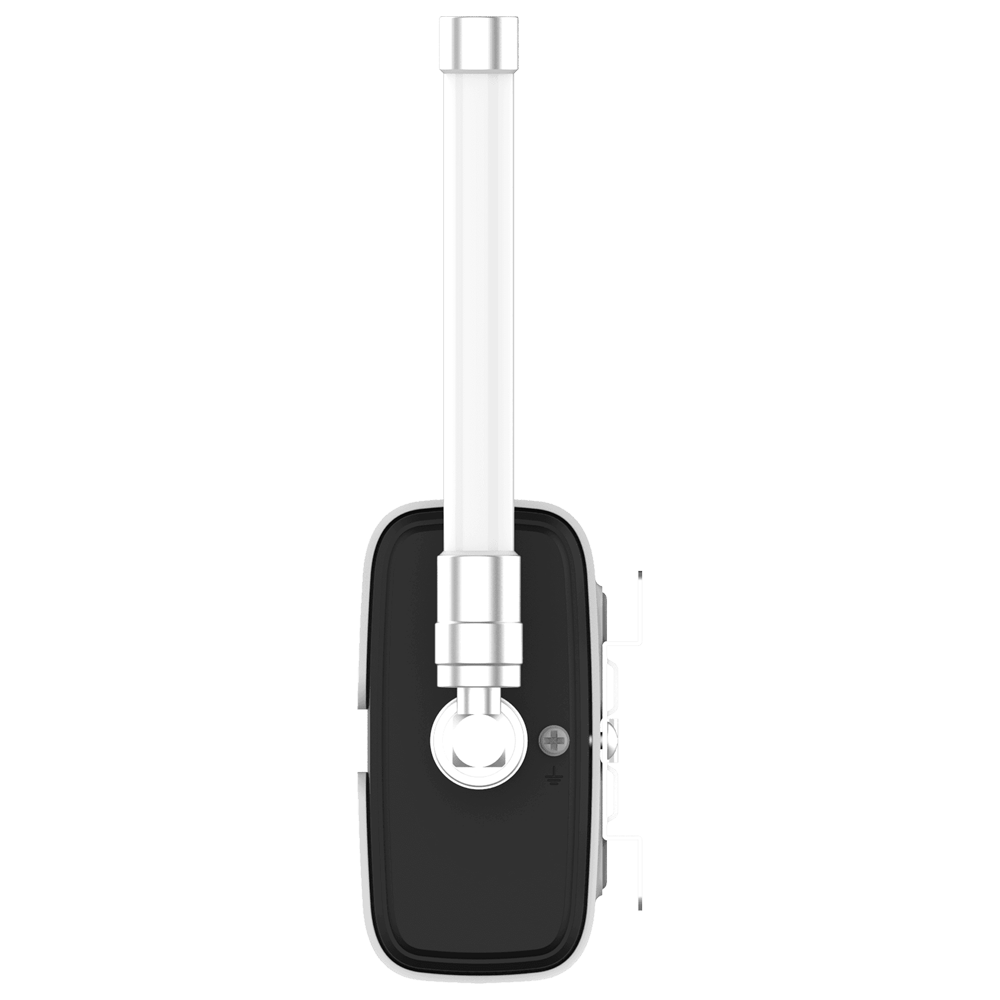

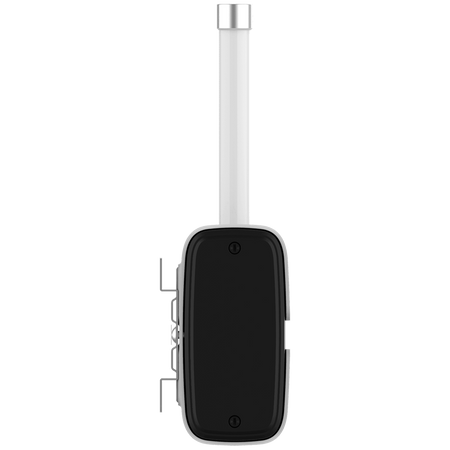

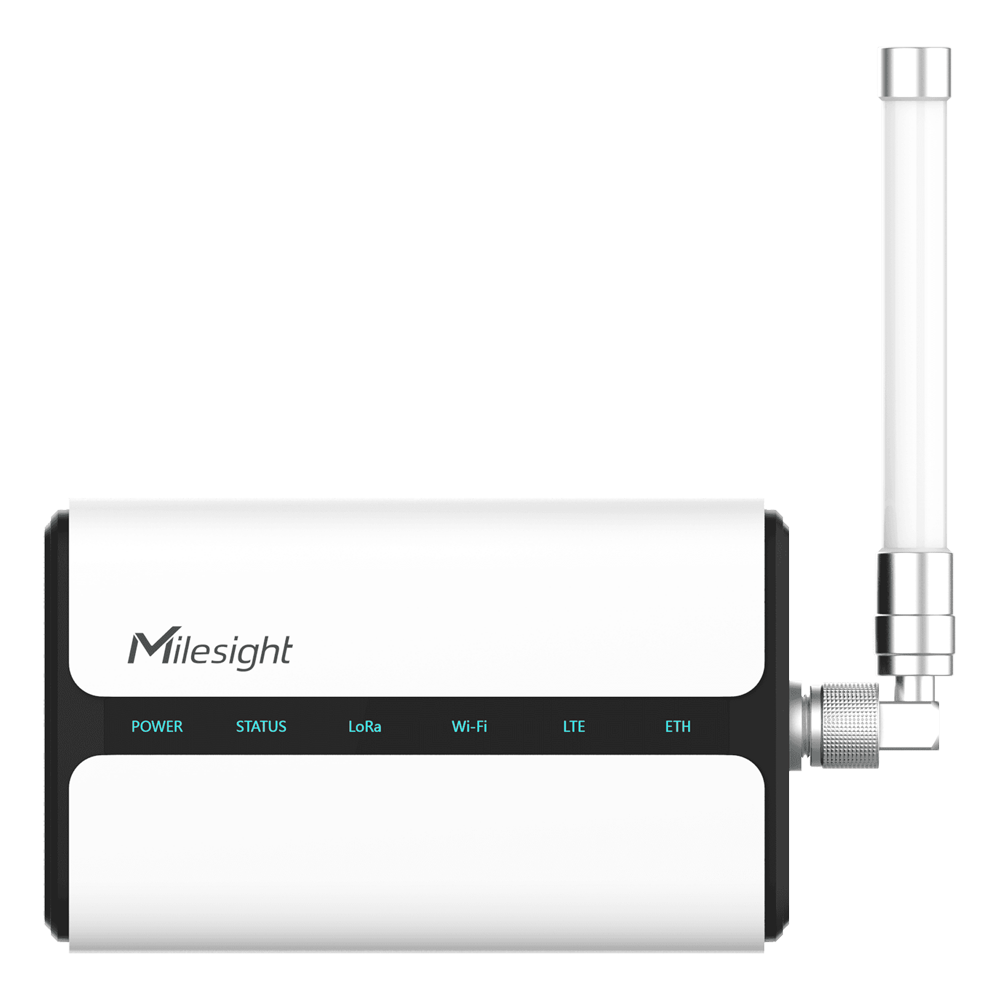

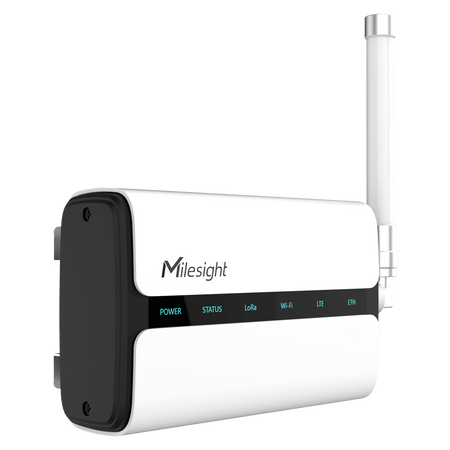

Milesight LoRaWAN Gateway Range up to 2km - Ethernet, WiFi and 4G LTE communication
Milesight LoRaWAN Gateway Range up to 2km - Ethernet, WiFi and 4G LTE communication
Regular price
€668,68
Final price
Regular price
-6%
€710,00
Sale price
€668,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN Gateway - Range up to 2km - 8 channels and connection for 2000 devices - Ethernet, WiFi and 4G LTE communication - IP65 Protection Rating
📋 SPECIFICATIONS:
• Hardware: CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53; Memory: 512 MB DDR4 RAM; Flash: 8 GB eMMC
• Antenna: 1x External LoRa antenna with N-female connector; Internal Wi-Fi antenna; Internal LTE antenna
• Channels: 8
• Connected devices: 2000 end devices
• Frequency band: 868 MHz
• Sensitivity: 140dBm@292bps
• Output power: 27dBm Max.
• Protocol: V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C
• Ethernet: 1x RJ45 10/100/1000Mbps Base-T (IEEE 802.3); Full or Half-Duplex mode with auto-detection; Auto MDI/MDIX
• WiFi: IEEE 802.11 b/g/n
• WiFi transmit power: 802.11b: 18 dBm +/-2.0 dBm (11 Mbps); 802.11g: 15 dBm +/-2.0 dBm (6 Mbps); 802.11g: 15 dBm +/-2.0 dBm (54 Mbps); 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20); 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20); 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40); 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)
• 4G LTE: 1 SIM slot
• Network protocols: PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
• VPN Tunnels: OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
• Access authentication: CHAP/PAP/MS-CHAP/MS-CHAPV2
• Firewall: ACL/DMZ/Port mapping/MAC binding/URL filter
• Management: Web, CLI, SMS, Dial-up on demand, Hub, Milesight IoT Cloud
• Reliability: WAN failover
• Built-in functions: Watchdog, RTC, Timer
• Power supply: 9-24V DC, PoE 802.3af, ≤ 4.2Max.
• Operating temperature: -40ºC to 70ºC (Relative humidity <95%)
• Storage temperature: -40ºC to 85ºC
• Ethernet isolation: 1.5kV RMS
• Protection rating: IP65
• Dimensions: 180 (D) x 110 (H) x 56.5 (W) mm

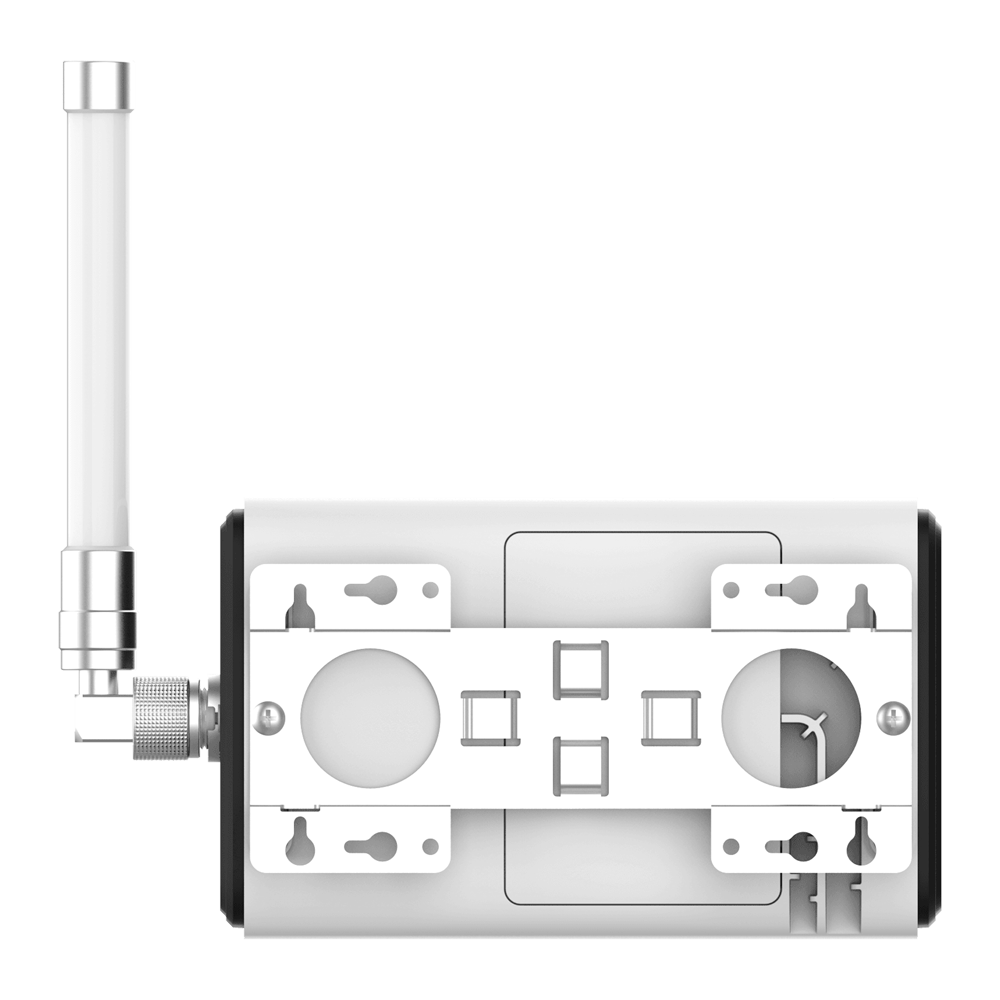

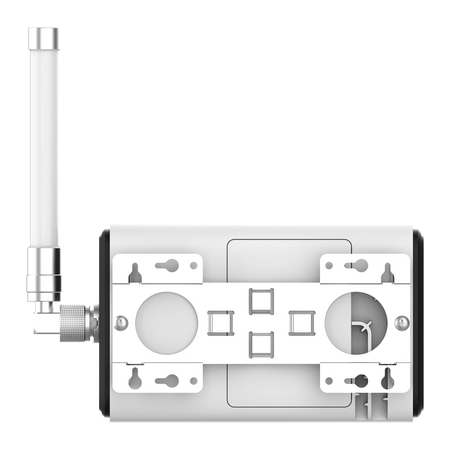

• Mounting: Desktop, ceiling or pole
• Other: 1x Reset button; 1x Type-C console port
• Certifications: CE, FCC
| Hardware | CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 Memory: 512 MB DDR4 RAM Flash: 8 GB eMMC |
|---|---|
| Antenna | 1x External LoRa antenna with N-Female connector Internal Wi-Fi antenna Internal LTE antenna |
| Channels | 8 |
| Connected devices | 2000 end devices |
| Frequency Band | 868 MHz |
| Sensitivity | 140dBm@292bps |
| Output Power | 27dBm Max. |
| Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
| Ethernet | 1x RJ45 10/100/1000Mbps Base-T (IEEE 802.3) Full or Half-Duplex mode with auto-detection Auto MDI/MDIX |
| WiFi | IEEE 802.11 b/g/n |
| WiFi Transmit Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| 4G LTE | 1 SIM slot |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port mapping/MAC binding/URL filter |
| Management | Web, CLI, SMS, Dial-up on demand, Hub, Milesight IoT Cloud |
| Reliability | WAN Failover |
| Built-in functions | Watchdog, RTC, Timer |
| Power Supply | 9-24V DC, PoE 802.3af, ≤ 4.2 Max. |
| Operating temperature | From -40ºC to 70ºC (Relative humidity <95%) |
| Storage temperature | -40ºC to 85ºC |
| Ethernet isolation | 1.5kV RMS |
| Protection rating | IP65 |
| Dimensions | 180 (D) x 110 (H) x 56.5 (W) mm |
| Mounting | Desktop, Ceiling or Pole |
| Others | 1x Reset button 1x Console port Type-C connector |
| Certificates | CE, FCC |
