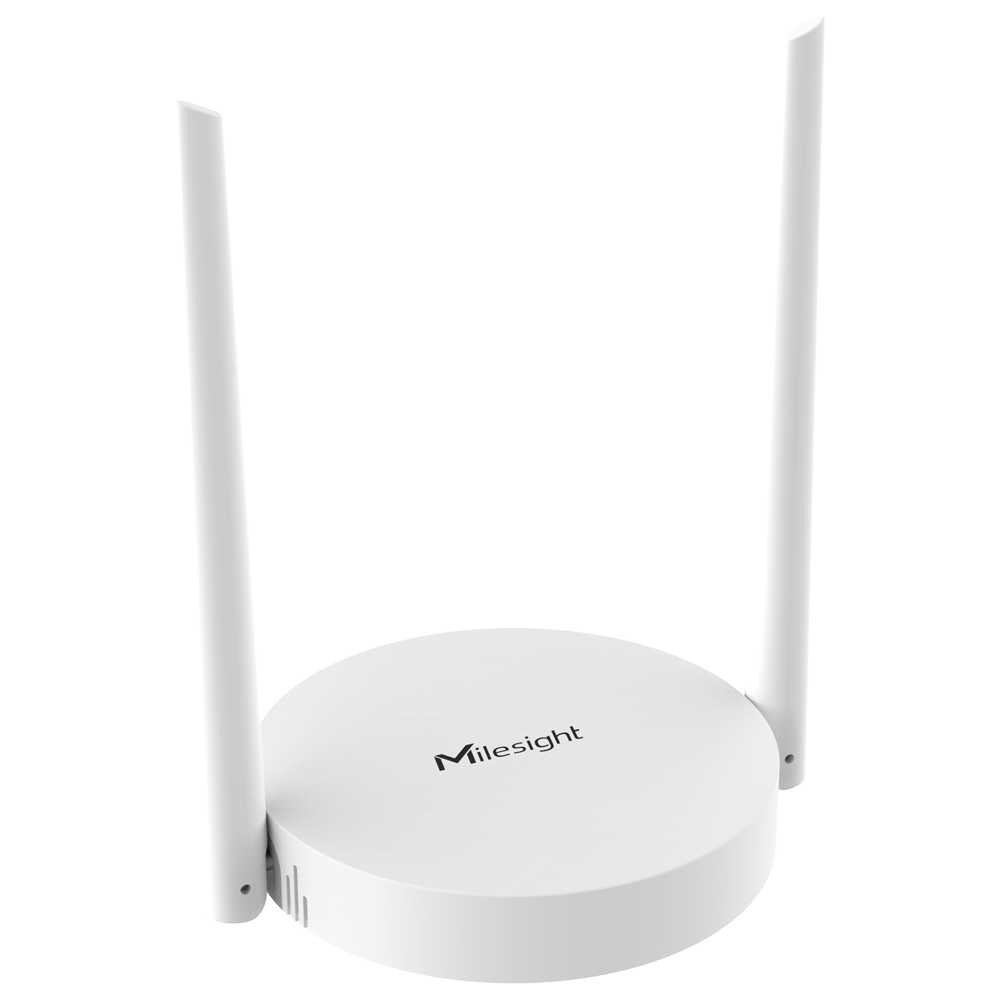

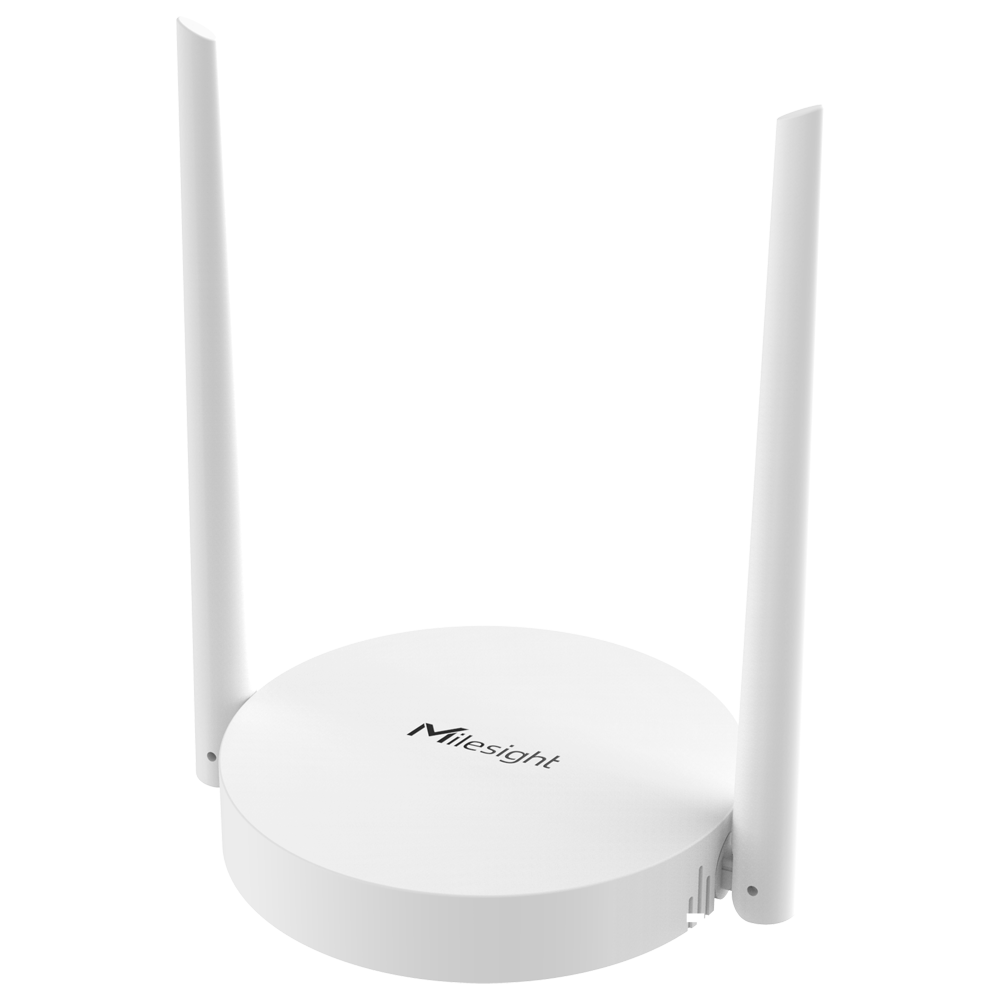

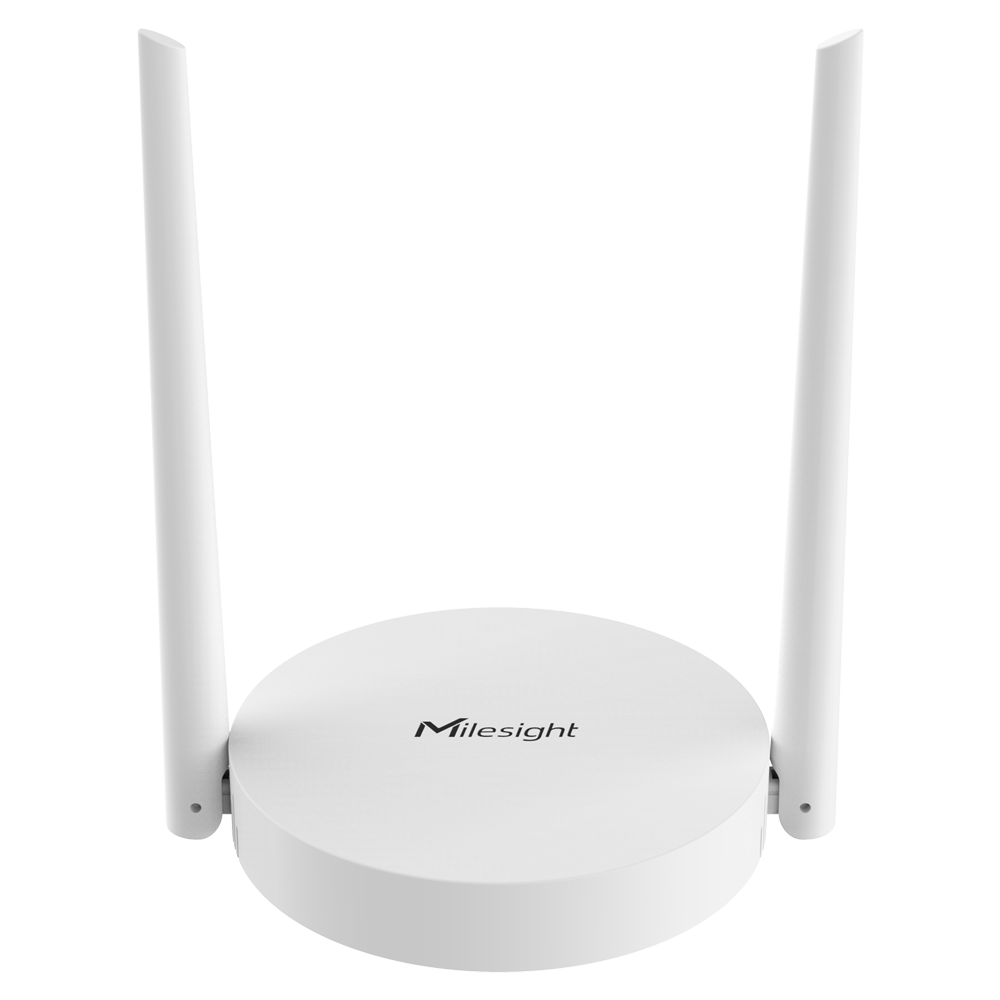

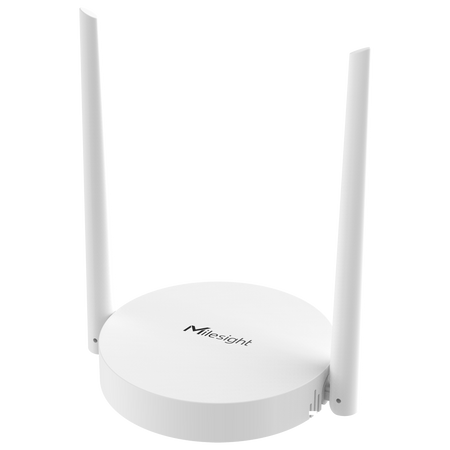

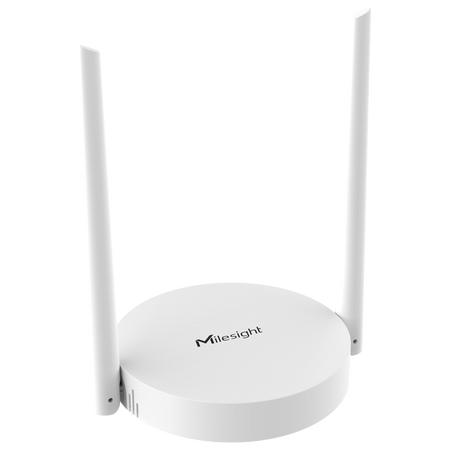

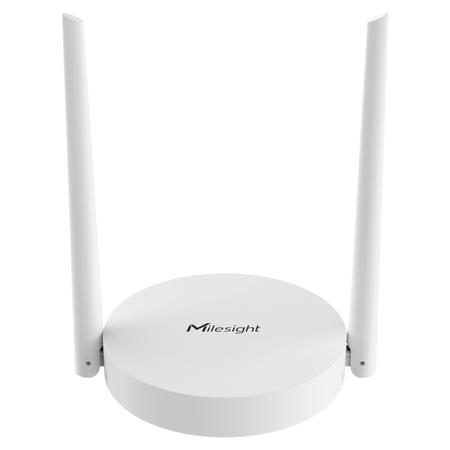

Milesight Industrial LoRaWAN Gateway - Compact size
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Industrial LoRaWAN Gateway - Range up to 2km - 8 channels and connection for 2000 devices - Ethernet and WiFi communication - Compact size
📋 SPECIFICATIONS:
• Hardware: CPU: Dual-core 240MHz, 32-bit Xtensa® LX7; Memory: 8 MB PSRAM; Flash: 16 MB Flash
• Antennas: 1x External LoRa antenna with N-Female connector; Internal Wi-Fi antenna
• Channels: 8
• Connected devices: 2000 end devices
• Frequency Band: 868 MHz
• Sensitivity: 140dBm@292bps
• Output Power: 27dBm Max.
• Protocol: V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C
• Ethernet: 1x RJ45 10/100Mbps Base-T (IEEE 802.3); Full or Half-Duplex mode with auto-detection; Auto MDI/MDIX
• Network Protocols: HTTP, HTTPS, MQTT, etc.
• VPN Tunnel: OpenVPN Client
• Management: Web, DeviceHub, Milesight Development Platform
• Power Supply: 5V Type-C port, PoE 802.3af, ≤ 3.3Max.
• Operating temperature: -20ºC to 50ºC
• Ethernet Isolation: 1.5kV RMS
• Protection Rating: IP30
• Dimensions: Ф 115 x 21 mm
• Mounting: Desk, ceiling
• Certificates: CE, FCC
| Hardware | CPU: Dual-core 240MHz, 32-bit Xtensa® LX7 Memory: 8 MB PSRAM Flash: 16 MB Flash |
|---|---|
| Antennas | 1x External LoRa Antenna N-Female connector, Internal Wi-Fi Antenna |
| Channels | 8 |
| Connected devices | 2000 end devices |
| Frequency Band | 868 MHz |
| Sensitivity | 140dBm@292bps |
| Output Power | 27dBm Max. |
| Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
| Ethernet | 1x RJ45 10/100Mbps Base-T (IEEE 802.3) Full or Half-Duplex mode with auto-sensing Auto MDI/MDIX |
| Network Protocols | HTTP, HTTPS, MQTT, etc. |
| VPN Tunnel | OpenVPN Client |
| Management | Web, DeviceHub, Milesight Development Platform |
| Power Supply | 5V Type-C port, PoE 802.3af, ≤ 3.3W Max. |
| Operating Temperature | -20ºC to 50ºC |
| Ethernet Isolation | 1.5kV RMS |
| Ingress Protection | IP30 |
| Dimensions | Ф 115 x 21 mm |
| Mounting | Desktop, ceiling |
| Certificates | CE, FCC |
