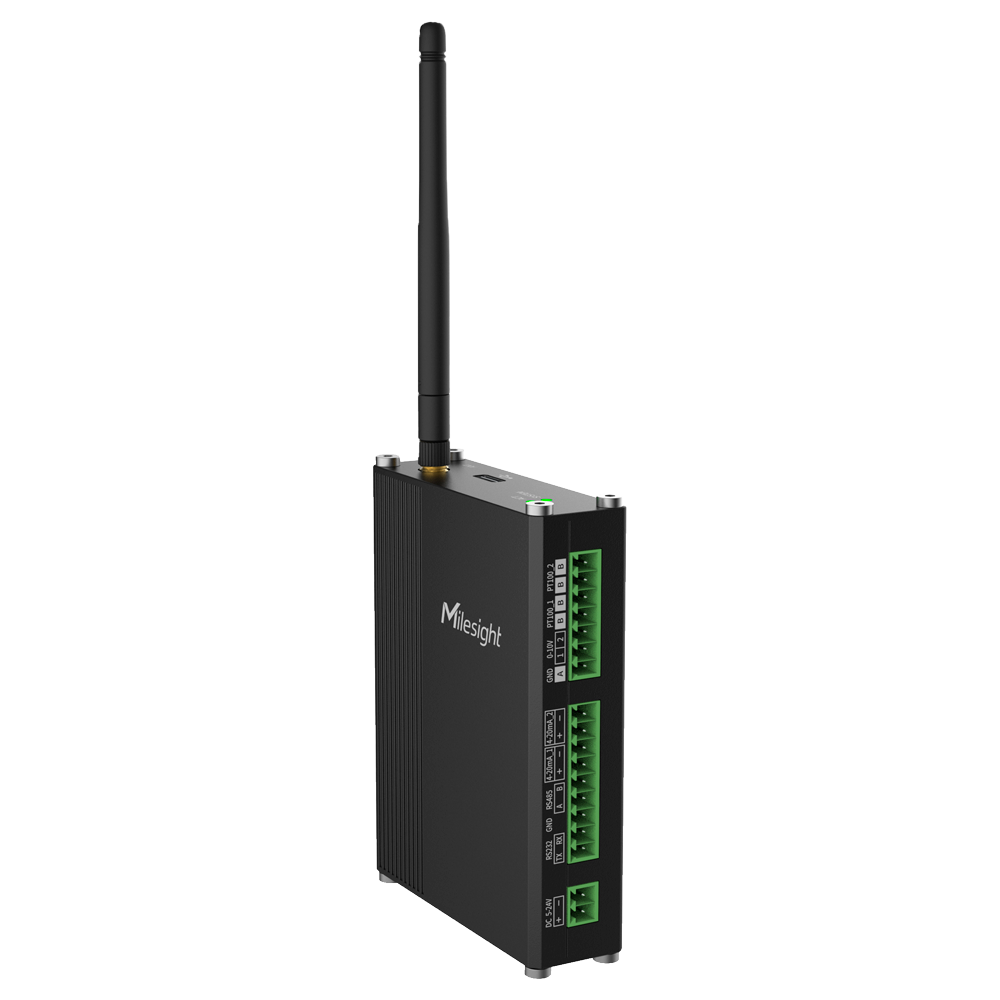

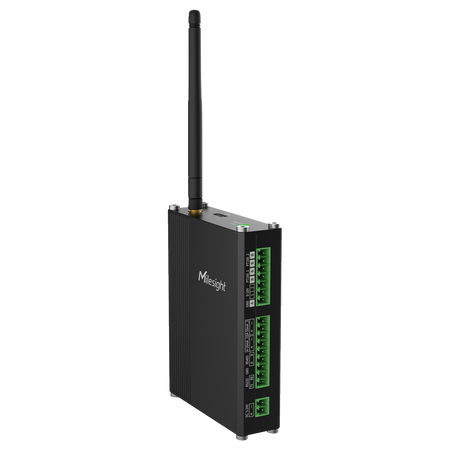

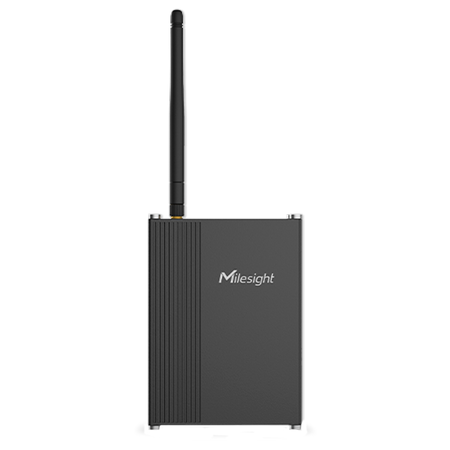

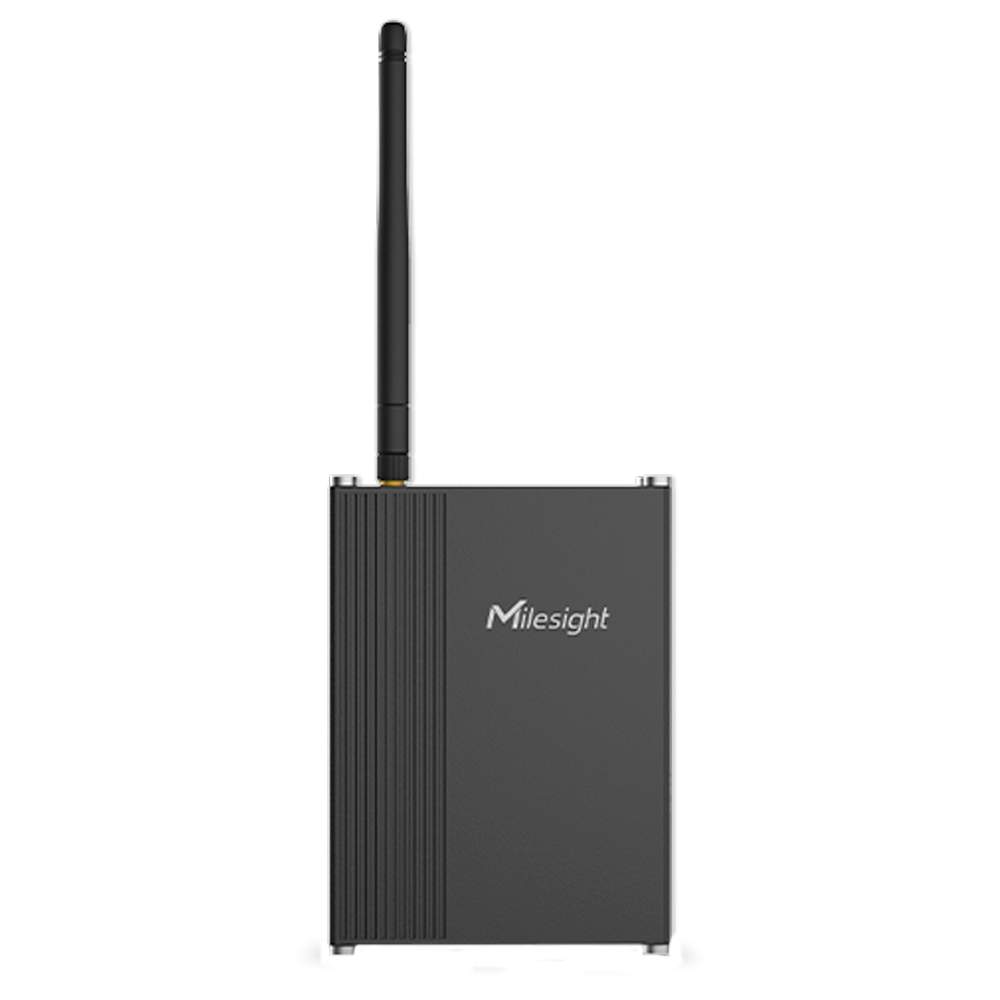

Milesight multi-I/O LoRaWAN IoT controller for data acquisition
Regular price
€242,11
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
LoRaWAN IoT Controller - Multiple I/O for data acquisition - Range up to 15km with line of sight - Configuration via NFC and APP - Ideal for industrial solutions - Capable of independent operation
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class C

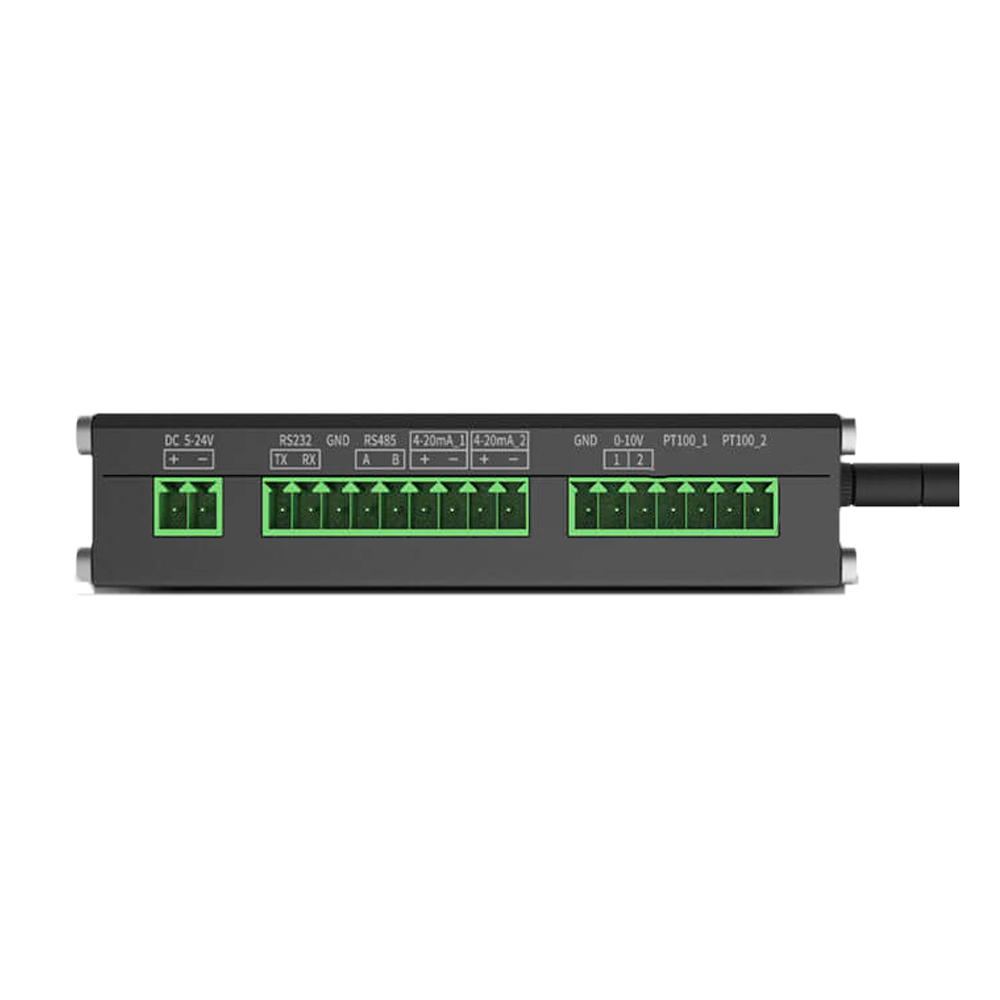

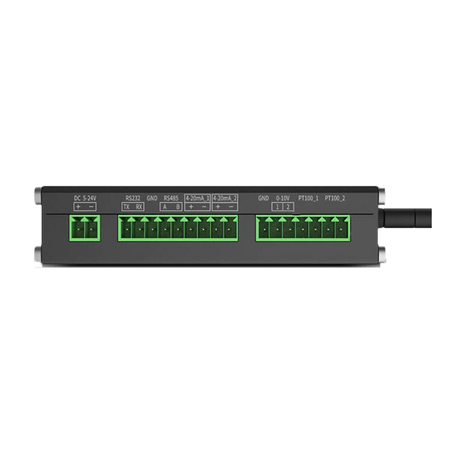

• I/O: 4x DI + 2x DO; Opto-isolated digital input 3~24VDC (pulse counting supported); SPDT relay digital output 3A @ 30VDC/250VAC max.
• Serial port: 1x RS485 and 1x RS232; Baud rate: 1200 ~ 115200 bps; Protocol: Transparent (RS232), Modbus RTU (RS485)
• Analog input: 4 x analog inputs; Resolution: 12 bit; Input range: 2x 4~20 mA and 2x 0~10 V
• Analog input (RTD): 2x PT100 RTD; 2 and 3-wire connection; Resolution: 12 bit; Range: -200ºC~800ºC
• Power supply: 5~24 VDC
• Operating temperature: -20ºC ~ 60ºC
• Environmental protection: IP30
• Dimensions: 93 x 70 x 22 mm
• Installation: Desktop, wall-mounted, or DIN rail
📦 INCLUDED:
• IoT Controller• Connector• Installation accessories• User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| IO | 4x DI + 2X DO Opto-isolated digital input 3~24VDC (pulse counting supported) Digital output SPTD relay 3A @ 30VDC/250VAC max. |
| Serial port | 1x RS485 and 1x RS232 Baud rate: 1200 ~ 115200 bps Protocol: Transparent (RS232), Modbus RTU (RS485) |
| Analog input | 4 x analog inputs Resolution: 12 bit Input range; 2x 4~20 mA and 2x 0~10 V |
| Analog input (RTD) | 2x PT100 RTD 2 and 3-wire connection Resolution: 12 bit Range: -200ºC~800ºC |
| Power supply | 5~24 VDC |
| Operating temperature | -20ºC ~ 60ºC |
| Environmental protection | IP30 |
| Dimensions | 93 x 70 x 22 mm |
| Installation | Desktop, wall or DIN rail mounting |
