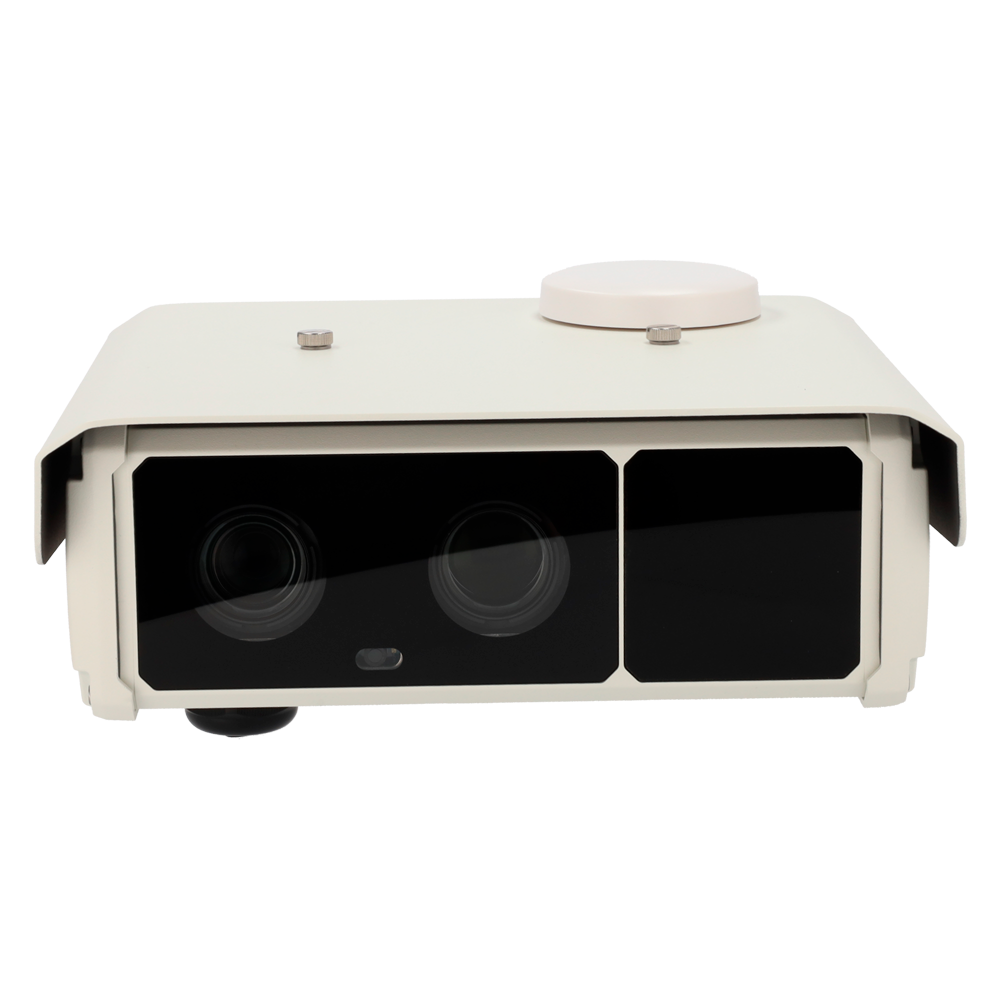

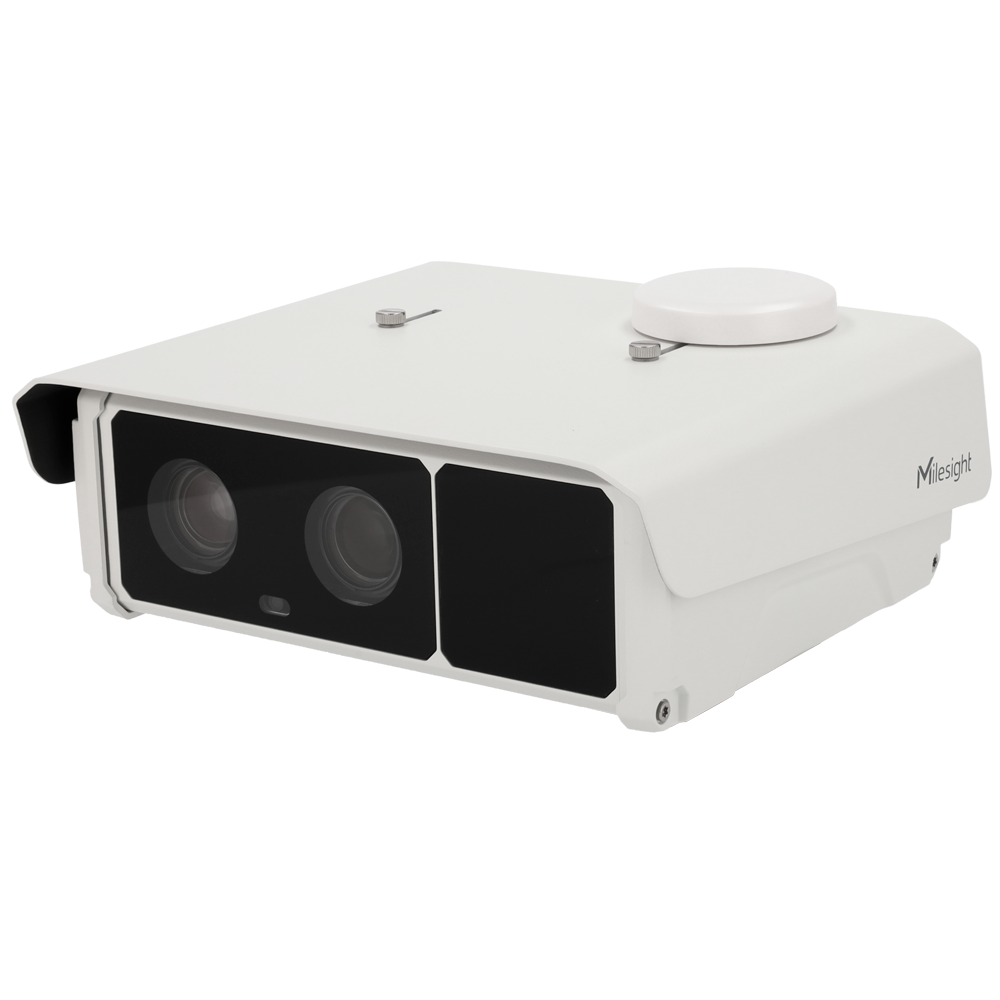

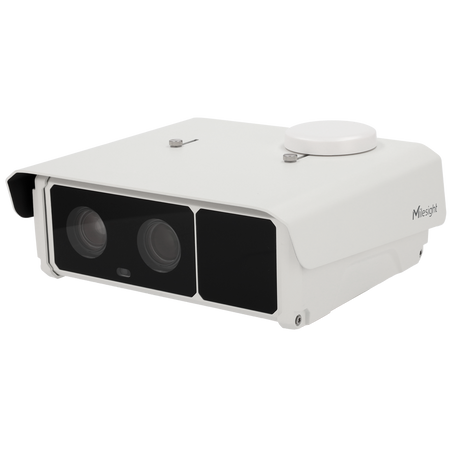

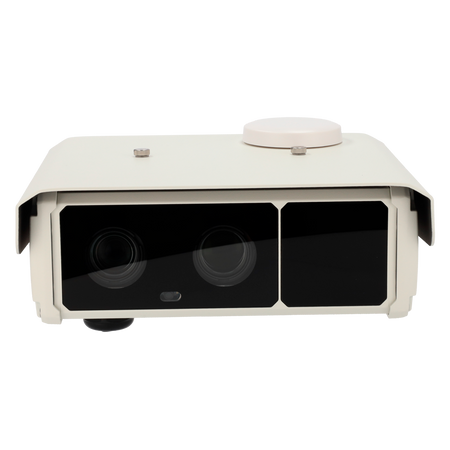

Milesight 5MP Photored traffic monitoring camera

5Mpx Photored traffic control camera - 2/3" Global shutter. 15~50 mm motorized lenses - Dual lens (OCR + surround image) - Traffic violation detection - IR 60m | MicroSD up to 1TB | ONVIF & RTSP - Vehicle brand, color, and type detection

📋 SPECIFICATIONS:
• Brand: MILESIGHT
• Optical sensor: 2/3" Global Shutter
• Maximum resolution (each lens): 5 Megapixels (2464x2056)
• Main Stream frame rate: 30fps@(2464x2056, 2204x2056, 1910x1592,1568x1312, 1104x928); 25fps@(2464x2056, 2204x2056, 1910x1592,1568x1312, 1104x928)
• Sub Stream frame rate: 30fps@(2464x2056); 25fps@(2464x2056)
• Compression: H265 / H264 / MJPEG
• Bitrate: 16 Kbps ~ 16 Mbps (CBR / VBR)
• Lenses: 15~50 mm motorized Autofocus (3X optical zoom)
• FOV: H: 41.4°~10.3°; V: 26.8º~8.42º; D: 32°~13.3°
• IRIS control: Automatic/Manual
• Minimum illumination: Color: 0.001Lux@F1.4; B/W: 0 Lux with IR ON
• Infrared illumination: 60 m
• Day / Night: Day / Night / Automatic / Customizable / Programmable
• Image enhancements: DIS (“Digital Image Stabilization”), IP address filtering, AGC, manual Shutter configuration
• License Plate Recognition: Up to 4 detection lanes (road installation) or; Up to 2 lanes with side installation; Maximum detection speed: 250 Km/h; Detection up to 50m
• Intelligent traffic detection: License plate recognition, License plate color recognition, Vehicle type classification, Vehicle color recognition, Vehicle driving direction recognition, and Traffic flow detection
• License plate list: Authorized / Unauthorized / Visitors; (max. 2000 plates) to trigger different actions
• Traffic violation detection: Detection of vehicles without license plates; Wrong-way driving detection
• Photored: Up to 4 lanes; Triggered via video analysis or alarm input; Up to 2 traffic lights per scene
• Event Trigger: Motion Detection, License Plate List, Exceptions, Alarm Input
• Characteristic-based events: Activation of recording or relay output in case of camera detection:; Specific license plate color; Specific vehicle type; Specific vehicle color; Detection in a specific lane.; * Up to 4 rules can be created
• Event Action: Image upload via FTP, SMTP, MicroSD card, Alarm output activation, SIP phone, HTTP notification
• Internal memory: MicroSD card, Max 256 GB (required for LPR function)
• Alarms: 4/1
• Audio: 1/1
• Audio compression: G.711/AAC/G.722/G.726
• Bidirectional audio: Supported
• Audio Bit Rate: 16~256Kbps
• SIP/VoIP: Yes. Voice and Video over IP
• Communication interface: Ethernet 10/100M BaseT | 1xRS485
• Remote access: Web browser and API
• Integration: HTTP, TCP and MQTT
• Interoperability: ONVIF (Profile G/Q/S/T)
• Certification: NDAA
• Power supply: 24 V DC/AC / MAX 22W (26W with IR ON)
• Protection degree: Waterproof IP67, Vandal-proof IK10, 4000V surge protection
• Operating temp.: -40º C ~ +60º C
• Dimensions: 126 (W) X 134 (H) X 301 (D) mm
• Weight: 1080 g

📦 INCLUDED:

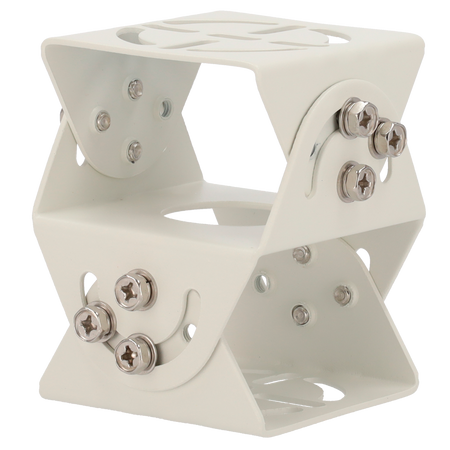

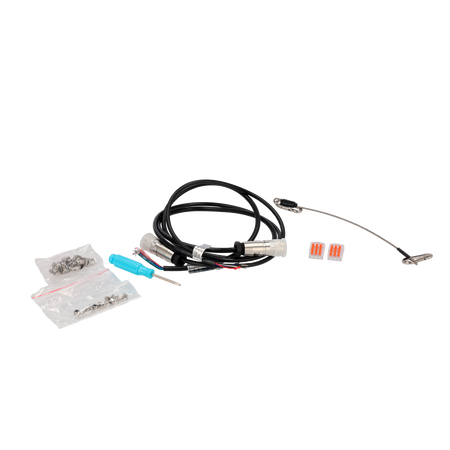

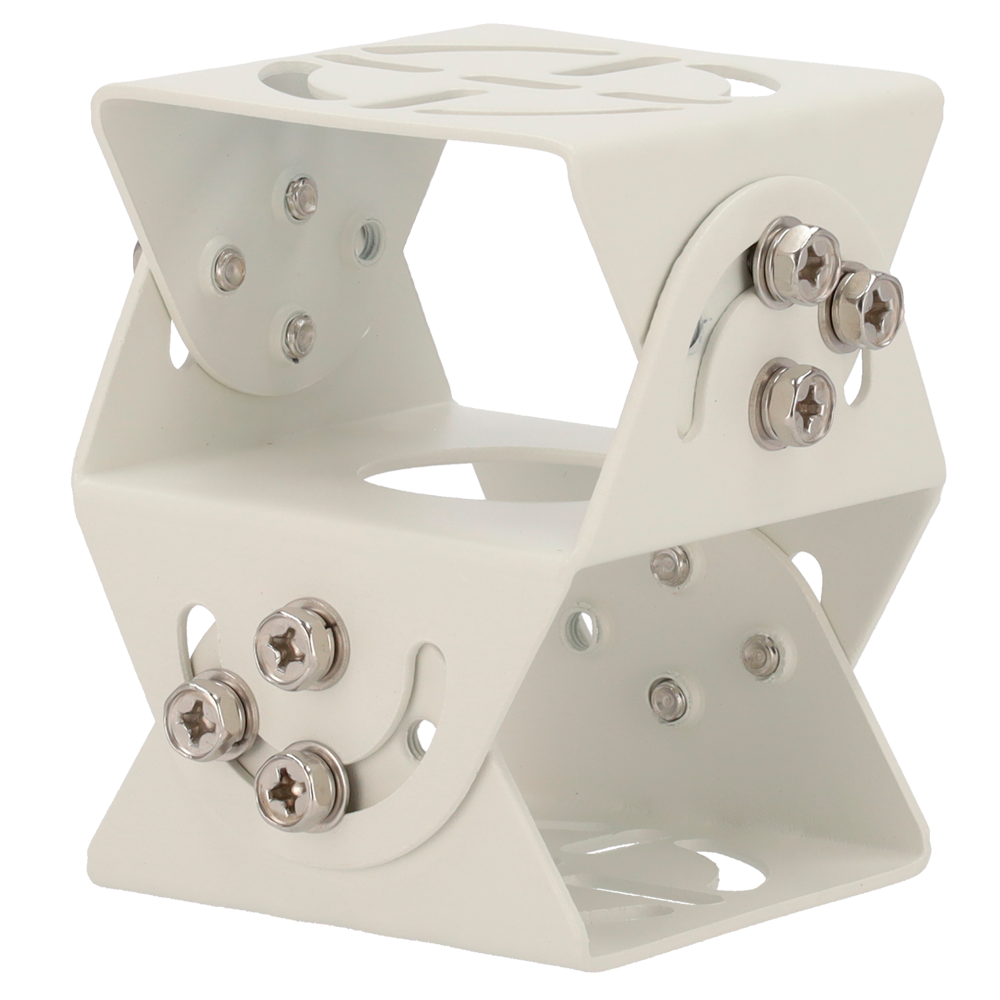

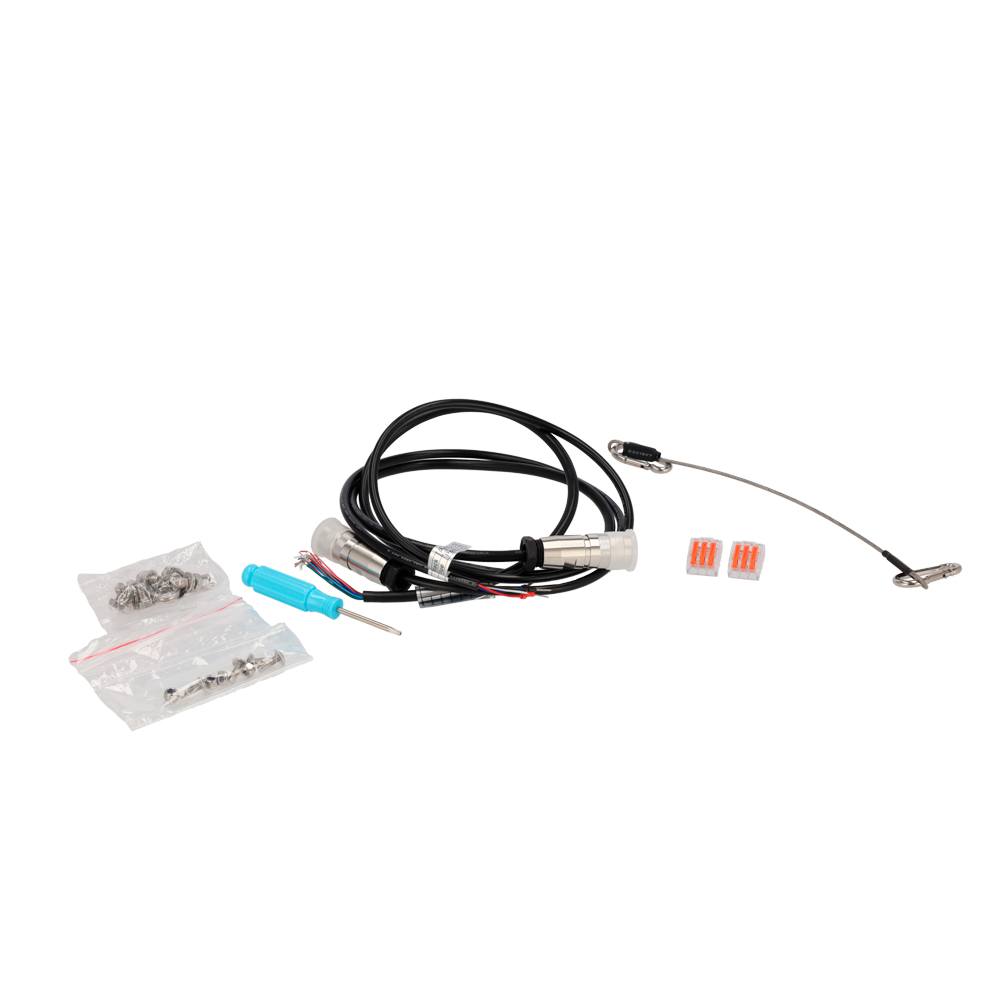

• Dual-lens IP LPR camera with Photored• Installation material• Gimbal mount• Connection cables
