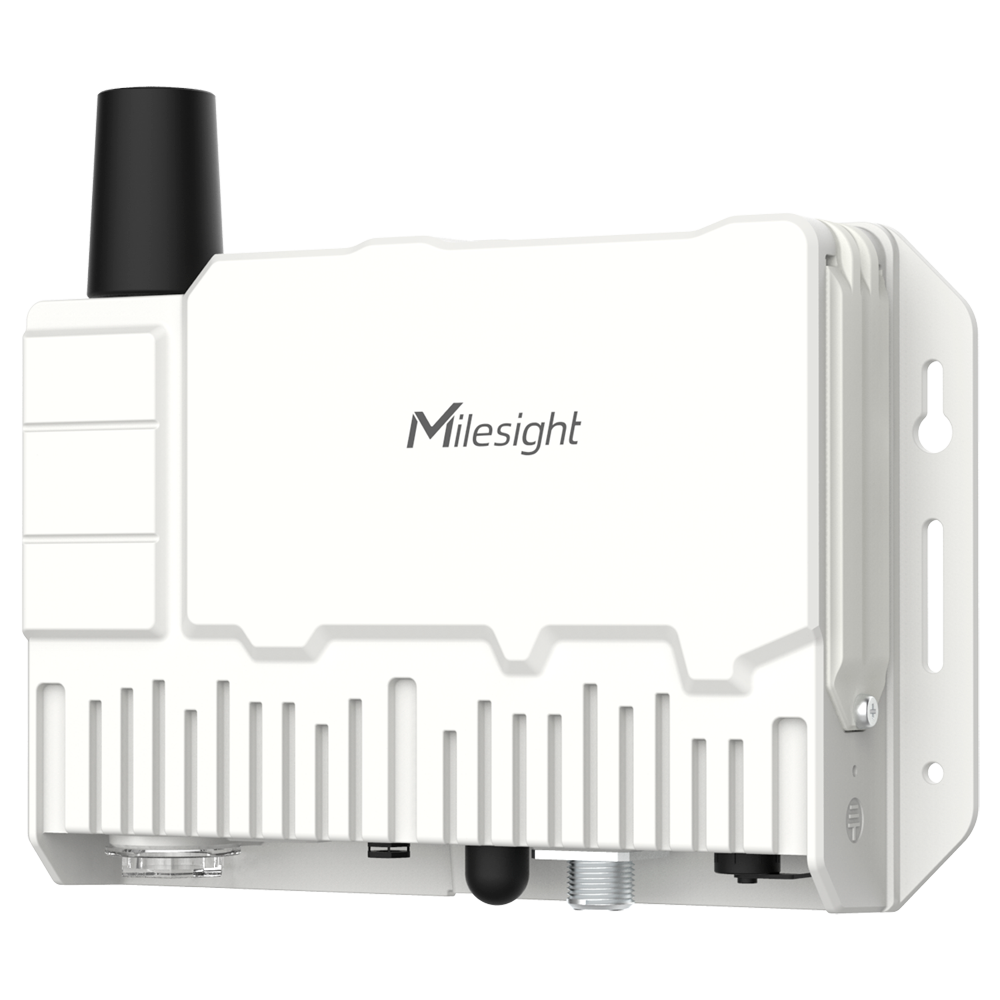

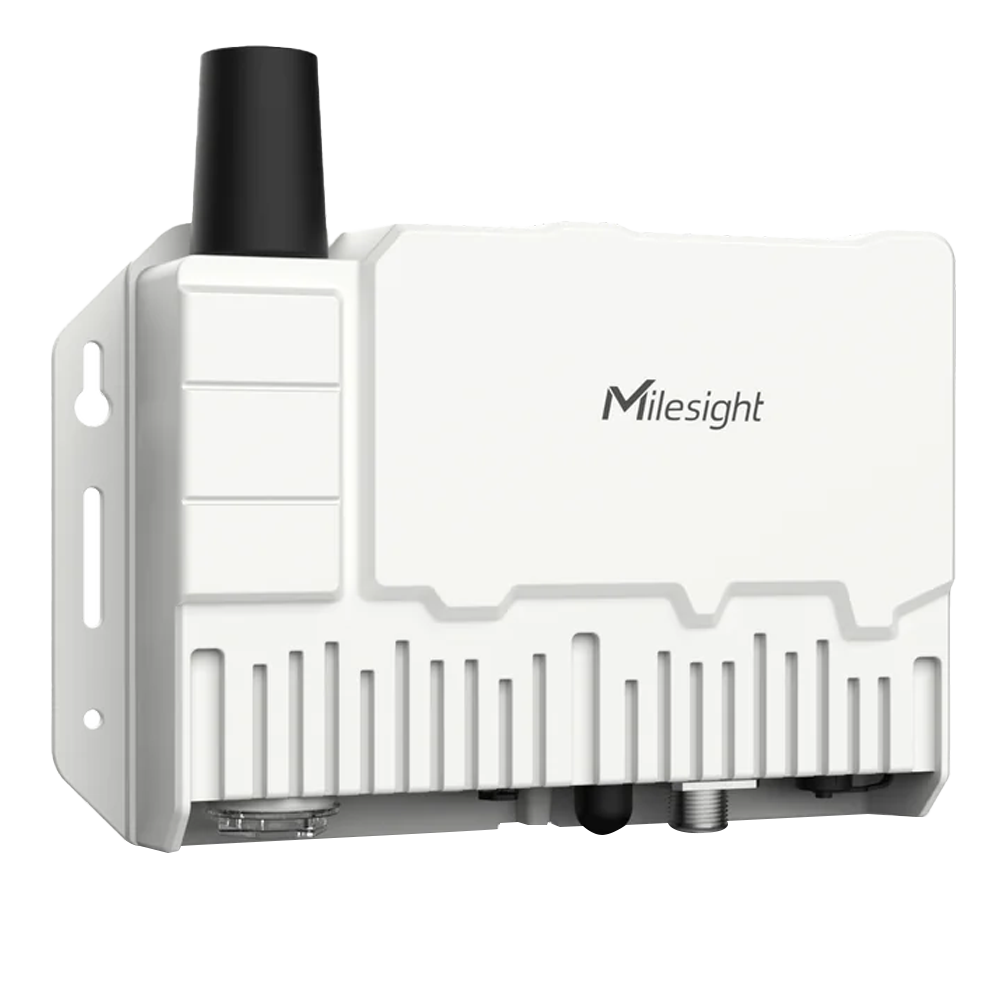

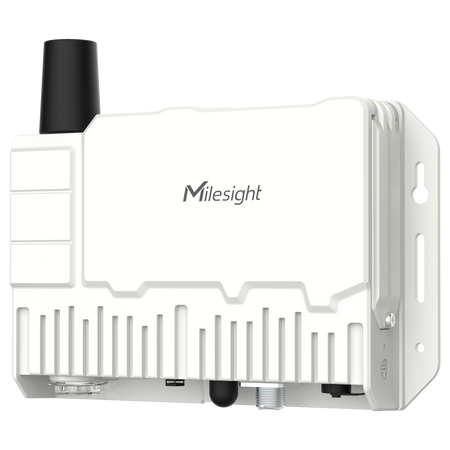

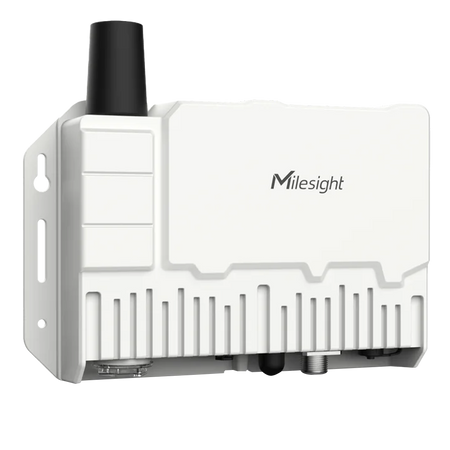

Low-power LoRaWAN gateway, suitable for Milesight solar panel systems
Regular price
€1.588,69
Final price
Regular price
-6%
€1.690,00
Sale price
€1.588,69
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

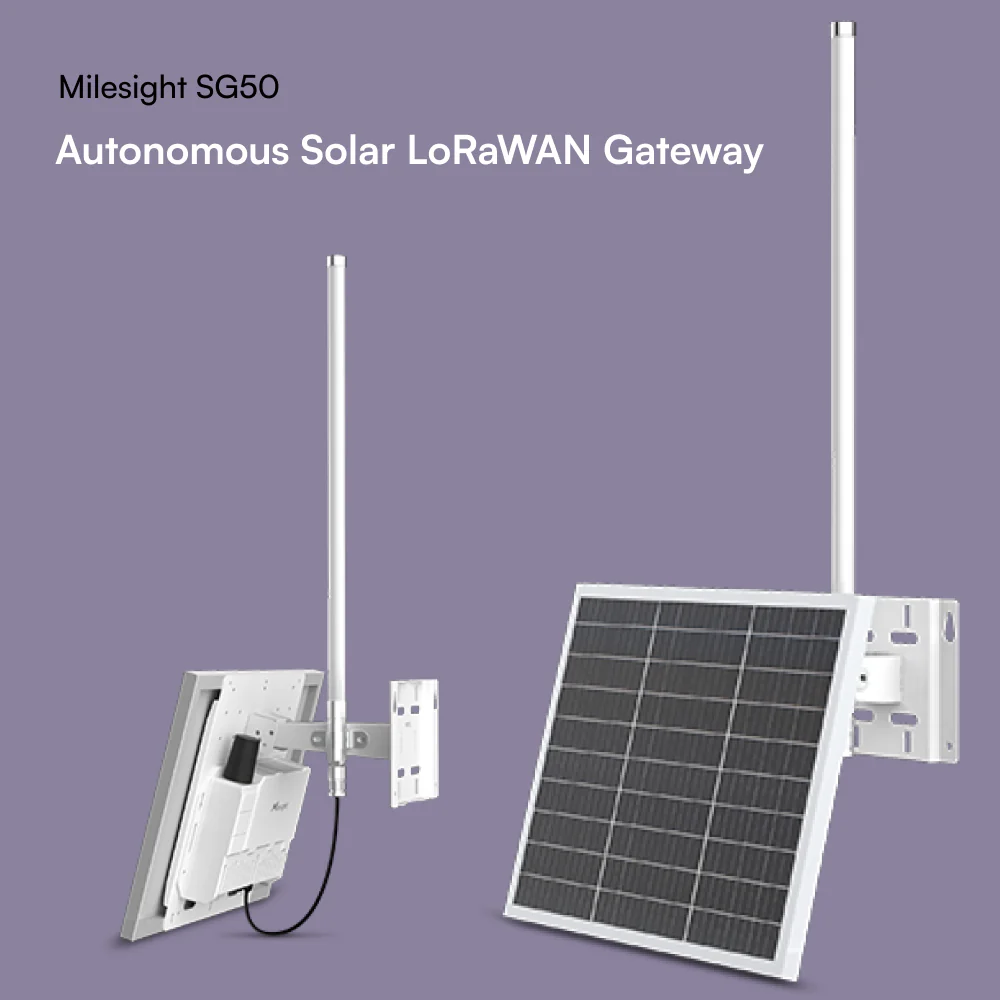

LoRaWAN Gateway - Low power consumption, suitable for solar panel systems - Includes a 45W solar panel - Range up to 2km and 2000 devices - WiFi and 4G LTE communication - IP67 Protection Rating
📋 SPECIFICATIONS:
• Hardware: CPU: Dual-core 240MHz, 32-bit Xtensa® LX7; Memory: 8 MB PSRAM; Flash: 16 MB
• Antennas: 1x Connector for external LoRa antenna; 1x External LTE antenna (shared with GPS); 1x External Wi-Fi antenna
• Channels: 8
• Connected devices: 2000 end devices
• Frequency Band: 868 MHz
• Sensitivity: 140dBm@292bps
• Output Power: 27dBm Max.
• Protocol: V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C
• WiFi: IEEE 802.11 b/g/n; AP mode (device configuration only)
• 4G LTE: 4G LTE (CAT 1); 1x Nano SIM slot
• 4G Bands: LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66; LTE-TDD: B34/38/39/40/41;; GSM: B2/3/5/8
• Power Supply: 1. Solar energy or DC (12~24 VDC) via M12 connector; 2. 3.6V and 25000 mAh backup batteries; 3. USB Type-C 5V/2A
• Battery life: Up to 4 days without sunlight
• Consumption: 0.8W
• Operating temperature: -30ºC to 70ºC (Relative humidity < 95%)
• Charging temperature: -20ºC to 50ºC
• Storage temperature: -40ºC to 85ºC
• Protection Rating: IP67
• Dimensions: 46 (D) x 157.5 (W) x 250 (H) mm
• Mounting: Wall or pole mount
• Other: 1x Reset button; 1x Console port with Type-C connector
• Certificates: CE, FCC
📦 INCLUDED:
• LoRa Hub• LoRaWAN antenna• Battery pack• Installation hardware• 45W solar panel• Solar panel bracket
| Hardware | CPU: Dual-core 240MHz, 32-bit Xtensa® LX7 Memory: 8 MB PSRAM Flash: 16 MB |
|---|---|
| Antennas | 1x External LoRa antenna connector 1x External LTE antenna (shared with GPS) 1x External Wi-Fi antenna |
| Channels | 8 |
| Connected devices | 2000 end devices |
| Frequency Band | 868 MHz |
| Sensitivity | 140dBm@292bps |
| Output Power | 27dBm Max. |
| Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
| WiFi | IEEE 802.11 b/g/n AP mode (device configuration only) |
| 4G LTE | 4G LTE (CAT 1) 1x Nano SIM slot |
| 4G Bands | LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD: B34/38/39/40/41; GSM: B2/3/5/8 |
| Power Supply | 1. Solar energy or DC (12~24 VDC) via M12 connector 2. 3.6 V and 25000 mAh backup batteries 3. USB Type-C 5 V/2A |
| Battery life | Up to 4 days without sunlight |
| Consumption | 0.8W |
| Operating temperature | -30ºC to 70ºC (Relative humidity < 95%) |
| Charging temperature | -20ºC to 50ºC |
| Storage temperature | -40ºC to 85ºC |
| Protection Grade | IP67 |
| Dimensions | 46 (D) x 157.5 (W) x 250 (H) mm |
| Mounting | Wall or pole mount |
| Other | 1x Reset button 1x Console port with Type-C connector |
| Certificates | CE, FCC |
