Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

MILESIGHT

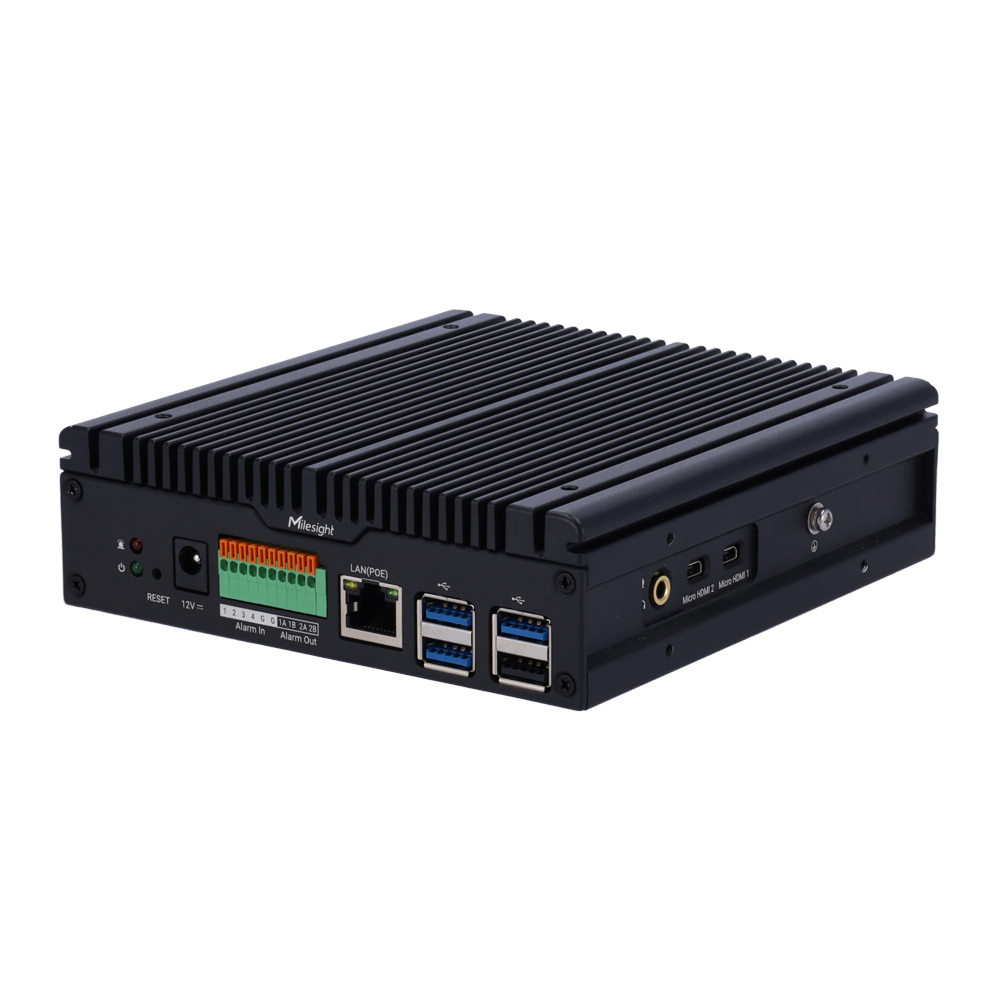

Milesight OpenVision mini server - Network Optix VMS pre-installed - 80/160Mbps bandwidth

SKU: MS-SE0208-K-NX
(0)
In stock
Usually shipped within 24 hours
€801,27 Final price
-6% €856,00 €801,27 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

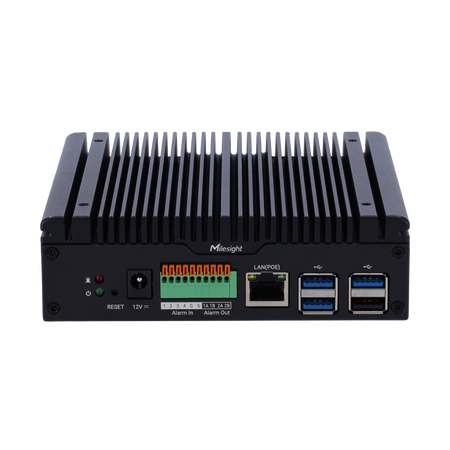

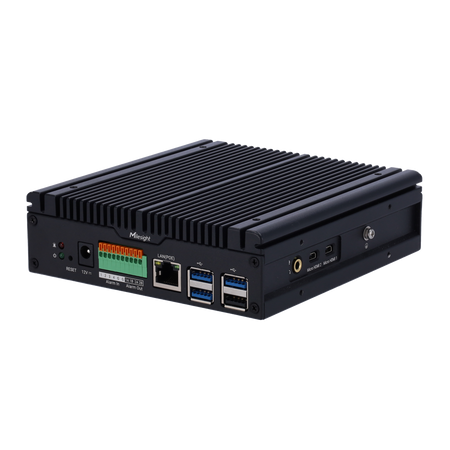

Milesight OpenVision mini server - Network Optix VMS pre-installed - Max. 4K resolution | 8 channels - 80/160Mbps bandwidth - 2x microHDMI | 2 M.2 max. 4TB per device - NDAA compliant

📋 SPECIFICATIONS:
• Brand: Milesight
• Range: OpenVision
• Hardware: Main processor: Intel Quad Core @3.40 GHz; Memory: 4GB LPDDR5; Local network: 1 x 2500Mbps RJ45, supports PoE PD; OS: Linux Ubuntu 24.04 LTS; Integrated GPU; TPM: fTPM
• Software: Network Optix VMS pre-installed
• IP camera inputs: LAN port up to 8 channels
• Resolution: 12Mpx~CIF
• Compatible IP cameras: ONVIF Profile S/T/G/M
• Two-way audio: Supported (microphone/speaker jack connector)

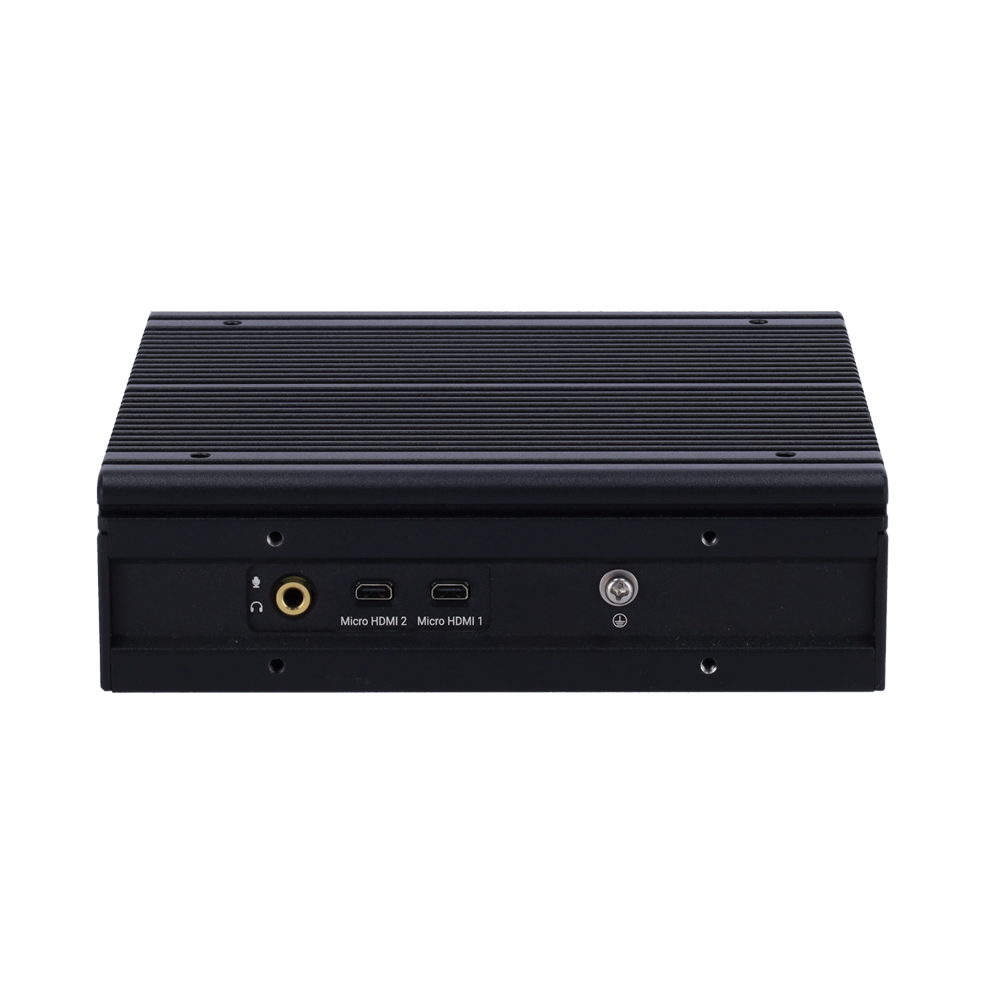

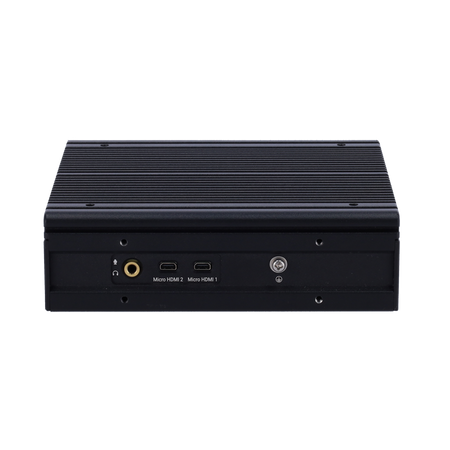

• Video output: 2 x micro HDMI
• Total bandwidth: 80Mbps input / 160Mbps output
• Multi-function: Pentaplex: live, recording, playback, backup, and remote access
• Recording modes: Continuous, event (object, motion detection, alarm, VCA, intelligent analysis)
• Event analysis recording (camera-supported): CCTV (intrusion / area entry / area exit / advanced motion detection / line crossing / loitering / abandoned object / taken object / target counting / people counting in area);; LPR (event by features / blacklist / whitelist / visit list / speed control / no license plate / wrong-way driving);; Object detection events (people and vehicles with features / faces)
• Intelligent search; (camera-supported): CCTV: Person (helmet, upper clothing color, lower clothing color),; Vehicle (vehicle type), face (gender, age, mask, hat, glasses);; LPR: vehicle (color, vehicle type, brand, speed, direction of travel),; license plate (number, color, country, plate type)
• Actions per event: Marker, camera output, camera recording, HTTP(S) commands, access PTZ presets, play audio, etc..

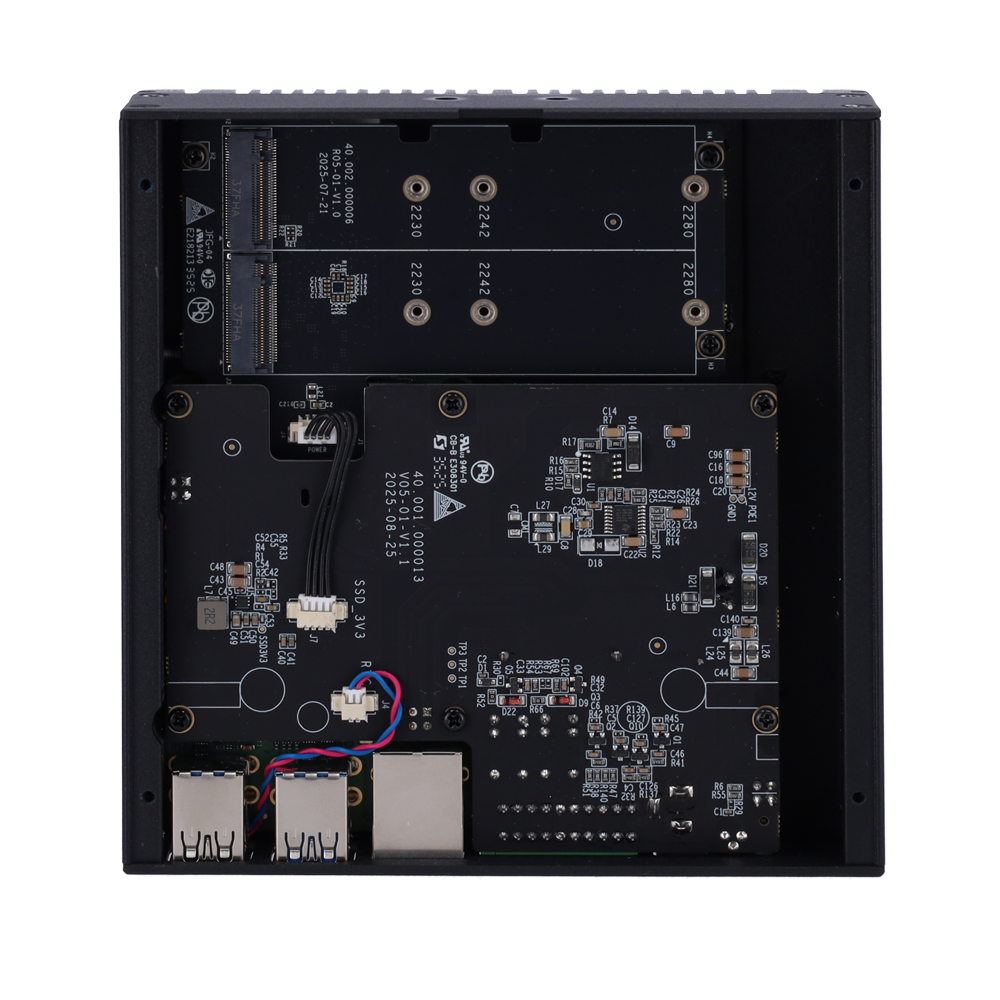

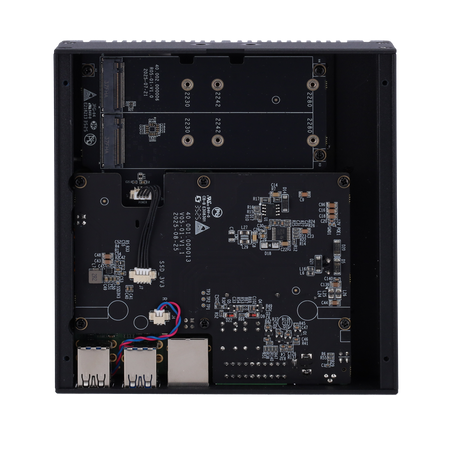

• Internal storage: 2 x M.2 NVMe SSD up to 4TB per drive (not included)

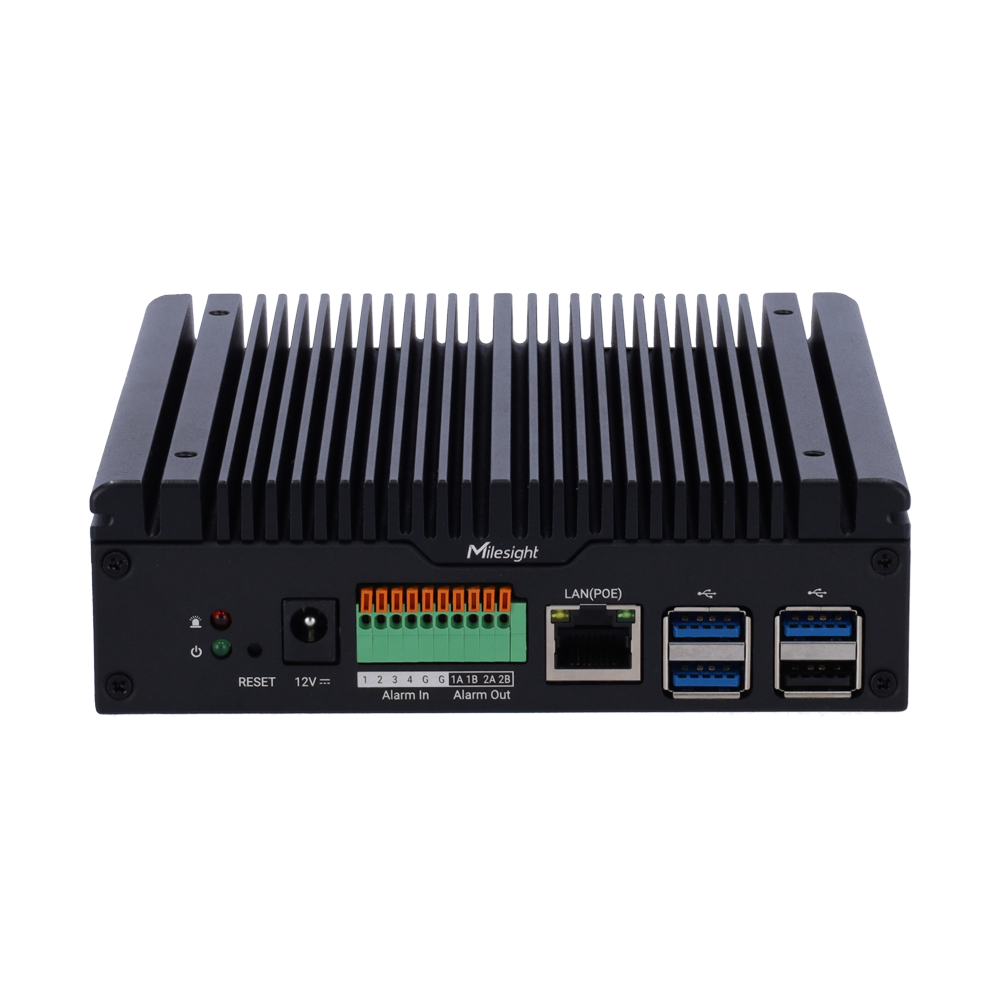

• External interface: 1 x RJ45 10/100/1000/2500Mbps, 3 x USB 3.0, 1 x USB 2.0
• Audio: Two-way; 1 headphone connector with microphone input
• Inputs / Outputs: 4 inputs and 2 relay outputs
• Remote access: Web browser, smartphone app, and Network Optix VMS
• Operating conditions: Temperature: -20℃~60℃; Humidity: 10%~90% (without freezing or condensation)
• Power supply: PoE+ (802.3at) / DC 12V±15%
• Consumption: Typical: 6W (without SSD, DC), 7W (without SSD, PoE); Max.: 16W (with SSD, DC), 18W (with SSD, PoE)
• Dimensions: 135mm (W) x 140mm (D) x 40mm (H)
• Installation: VESA mount
• Weight: 0.99 Kg
• Compliance: NDAA

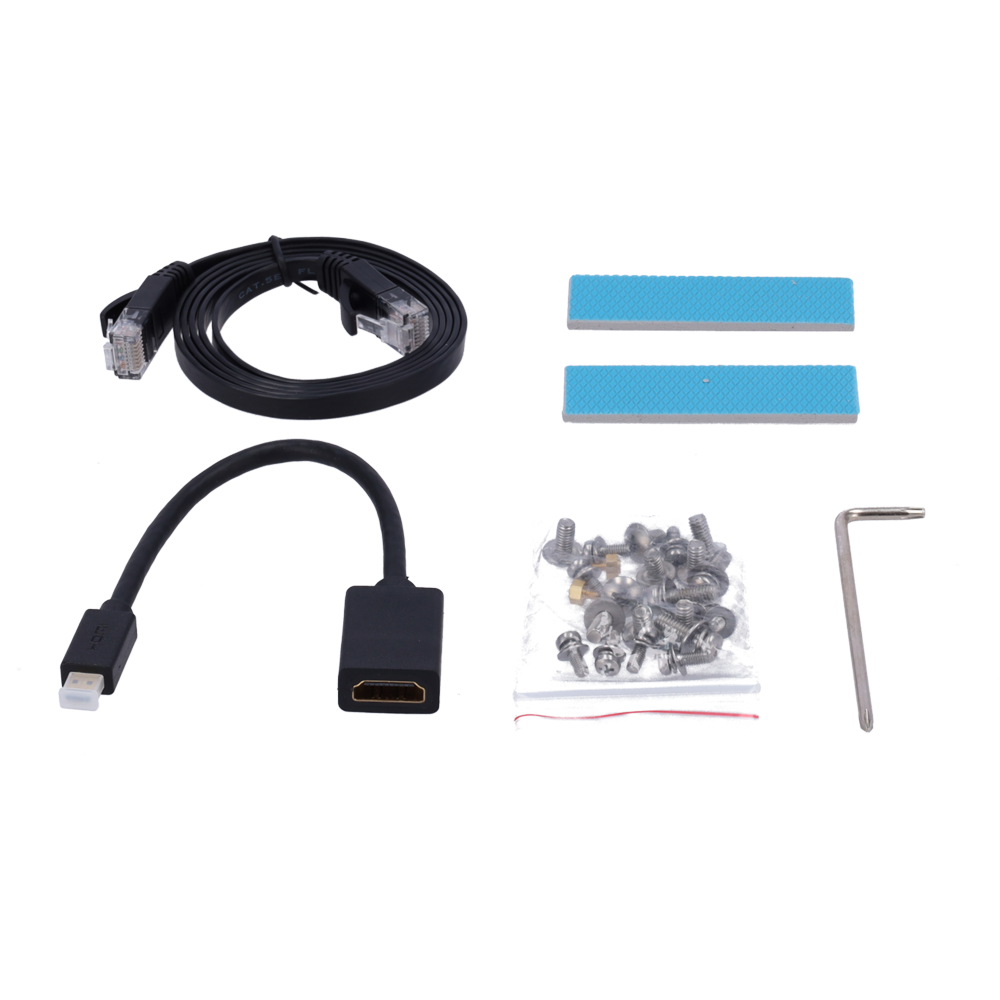

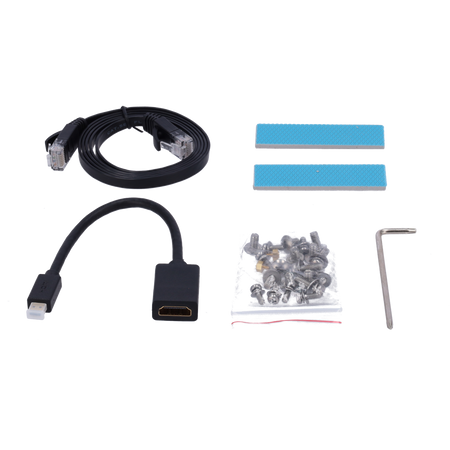

📦 INCLUDED:
• Milesight OpenVision mini NVR server• Video cable• Documentation
Range OpenVision
Hardware Main processor: Intel Quad Core @3.40 GHz Memory: 4GB LPDDR5 Local network: 1 x 2500Mbps RJ45, supports PoE PD OS: Linux Ubuntu 24.04 LTS Integrated GPU TPM: fTPM
Software Pre-installed Network Optix VMS
IP camera inputs LAN port up to 8 channels
Resolution 12Mpx~CIF
Compatible IP cameras ONVIF Profile S/T/G/M
Two-way audio Supported (microphone/speaker jack connector)
Video output 2 x micro HDMI
Total bandwidth 80Mbps input / 160Mbps output
Multifunction Pentaplex: live view, recording, playback, backup, and remote access
Recording mode Continuous, event (object, motion detection, alarm, VCA, intelligent analysis)
Event analysis recording (camera supported) CCTV (intrusion / area entry / area exit / advanced motion detection / line crossing / loitering / abandoned object / taken object / target counting / people counting in area); LPR (event by features / blacklist / whitelist / visit list / speed control / missing license plate / wrong-way driving); Object detection events (people and vehicles with features / faces)
Smart search (camera supported) CCTV: Person (helmet, upper clothing color, lower clothing color), Vehicle (vehicle type), face (gender, age, mask, hat, glasses); LPR: vehicle (color, vehicle type, brand, speed, direction of travel), license plate (number, color, country, plate type)
Event actions Marker, camera output, camera recording, HTTP(S) commands, access PTZ presets, play audio, etc.
Internal memory 2 x M.2 NVMe SSD up to 4TB per drive (not included)
External interface 1 x RJ45 10/100/1000/2500Mbps, 3 x USB 3.0, 1 x USB 2.0
Audio Two-way 1 headphone connector with microphone input
Inputs / Outputs 4 inputs and 2 relay outputs
Remote access Web browser, smartphone app, and Network Optix VMS
Operating conditions Temperature: -20℃~60℃ Humidity: 10%~90% (without freezing or condensation)
Power supply PoE+ (802.3at) / DC 12V±15%
Consumption Typical: 6W (without SSD, DC), 7W (without SSD, PoE) Max.: 16W (with SSD, DC), 18W (with SSD, PoE)
Dimensions 135mm (W) x 140mm (D) x 40mm (H)
Installation VESA mount
Weight 0.99 Kg
Compliance NDAA
