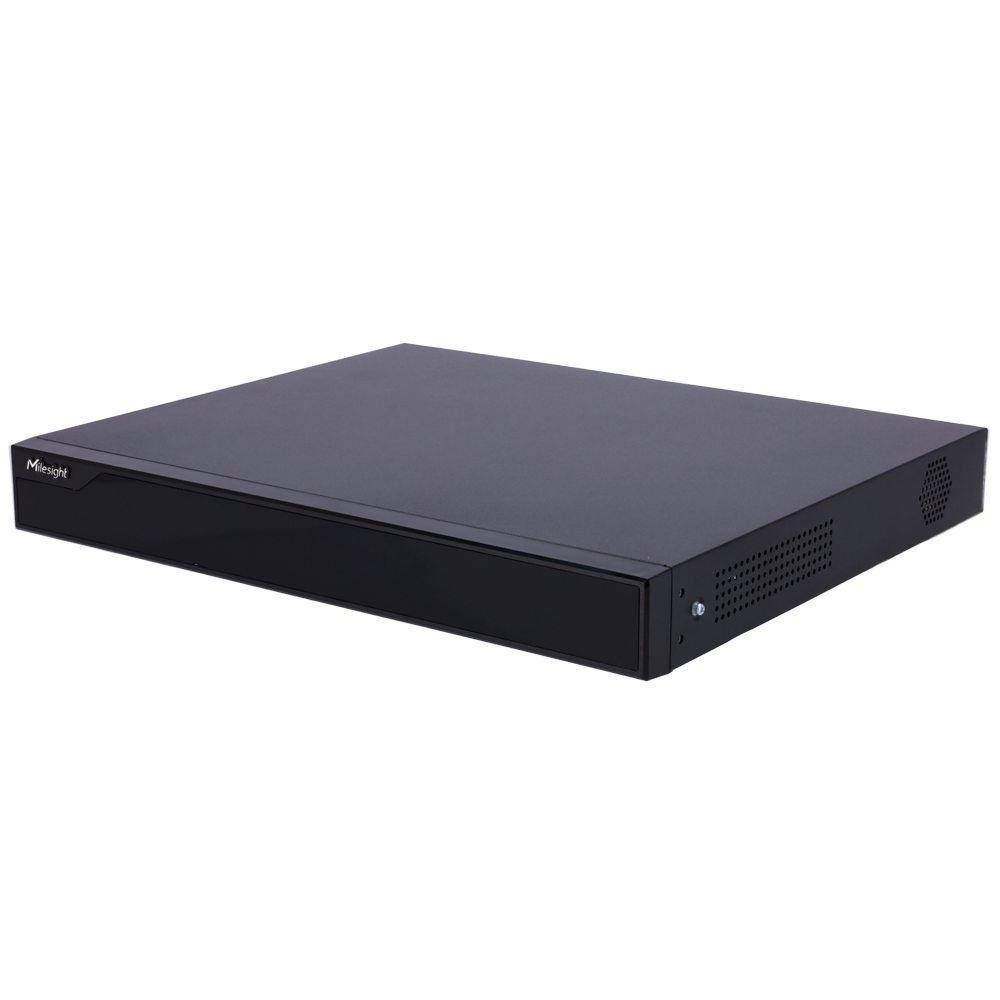

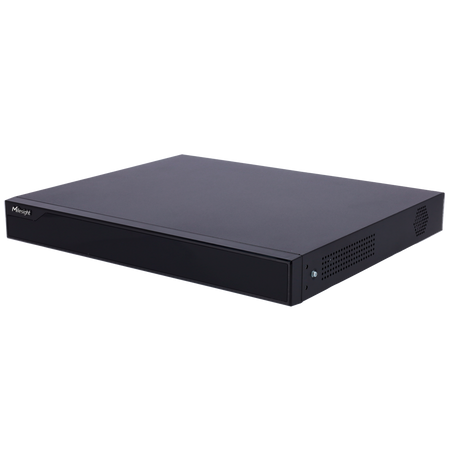

Milesight OpenVision server
Regular price
€1.429,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Milesight OpenVision server - Network Optix VMS pre-installed - Max. 4K resolution | 16 channels - Bandwidth 144/144Mbps - 2x HDMI and 1x DP | 2 HDDs max. 20TB (not included) - NDAA compliant
📋 SPECIFICATIONS:
• Brand: Milesight
• Series: OpenVision
• Hardware: Main processor: Intel Celeron Series, 4C 4T @2.00 GHz; Memory: 2 x 4GB DDR4; Local network: 2 x 1000Mbps RJ45; O.S.: Linux Ubuntu 22.04.5 LTS Desktop; Integrated GPU
• Software: Network Optix VMS pre-installed
• IP camera inputs: LAN port up to 16 channels
• Resolution: 12Mpx~CIF
• Compatible IP cameras: ONVIF Profile S/T
• Two-way audio: Supported by ONVIF protocol
• Video output: 2 x HDMI and 1 x DP
• Total bandwidth: 144Mbps incoming / 144Mbps outgoing
• Multifunction: Pentaplex: live, recording, playback, backup, and remote access
• Recording mode: Continuous, event (object, motion detection, alarm, VCA, intelligent analysis)
• Event recording (supported by Milesight camera): CCTV (intrusion / area entry / area exit / advanced motion detection / line crossing / loitering / abandoned object / removed object / target counting / people counting in area);; LPR (feature event / blacklist / whitelist / visit list / speed control / no license plate / wrong way driving);; Object detection events (people and vehicles with features / faces)
• Intelligent search; (supported by Milesight camera): CCTV: Person (helmet, upper clothing color, lower clothing color),; Vehicle (vehicle type), face (gender, age, mask, hat, glasses);; LPR: vehicle (color, vehicle type, brand, speed, direction of travel),; license plate (number, color, country, plate type)
• Event actions: Marker, camera output, camera recording, HTTP(S) commands, access PTZ preset, play audio, etc..
• Internal memory: 2 SATA 3.5" HDDs up to 20TB (not included)
• External interface: 2 x RJ45 10/100/1000Mbps, 2 x USB 3.0, 2 x USB 2.0, 1 x USB-C
• Remote access: Web browser, smartphone app, and Network Optix VMS
• Operating conditions: Temperature: 0℃~35℃; Humidity: 10%~90% (without freezing or condensation)
• Power supply: AC 100V~240V 50Hz~60Hz, DC 12V
• Consumption: ≤30W (without HD)
• Dimensions: 19" rack mount chassis (1U standard); 380mm (W) x 317.6mm (D) x 51.8mm (H)
• Weight: 2.2Kg
• Compliance: NDAA
📦 INCLUDED:
• Milesight OpenVision NVR server• AC/DC adapter• Documentation
| Range | OpenVision |
|---|---|
| Hardware | Main Processor: Intel Celeron Series, 4C 4T @2.00 GHz Memory: 2 x 4GB DDR4 Local Network: 2 x 1000Mbps RJ45 OS: Linux Ubuntu 22.04.5 LTS Desktop Integrated GPU |
| Software | Pre-installed Network Optix VMS |
| IP camera inputs | LAN port up to 16 channels |
| Resolution | 12Mpx~CIF |
| Compatible IP cameras | ONVIF Profile S/T |
| Two-way audio | Supported by ONVIF protocol |
| Video output | 2 x HDMI and 1 x DP |
| Total bandwidth | 144Mbps input / 144Mbps output |
| Multifunction | Pentaplex: live, recording, playback, backup, and remote access |
| Recording modes | Continuous, event (object, motion detection, alarm, VCA, intelligent analysis) |
| Event recording (supported by Milesight camera) | CCTV (intrusion / area entry / area exit / advanced motion detection / line crossing / loitering / abandoned object / removed object / target counting / people counting in area); LPR (event by characteristics / blacklist / whitelist / visit list / speed check / no license plate / wrong way driving); Object detection events (people and vehicles with characteristics / faces) |
| Smart search (supported by Milesight camera) | CCTV: Person (helmet, upper clothing color, lower clothing color), Vehicle (vehicle type), face (gender, age, mask, hat, glasses); LPR: vehicle (color, vehicle type, brand, speed, direction of travel), license plate (number, color, country, plate type) |
| Event actions | Marker, camera output, camera recording, HTTP(S) commands, access PTZ preset, play audio, etc. |
| Internal storage | 2 x 3.5" SATA HDD up to 20TB (not included) |
| External interface | 2 x RJ45 10/100/1000Mbps, 2 x USB 3.0, 2 x USB 2.0, 1 x USB-C |
| Remote access | Web browser, smartphone app, and Network Optix VMS |
| Operating conditions | Temperature: 0℃~35℃ Humidity: 10%~90% (no freezing or condensation) |
| Power supply | AC 100V~240V 50Hz~60Hz, DC 12V |
| Consumption | ≤30W (without HDD) |
| Dimensions | 19" rack mount chassis (standard 1U) 380mm (W) x 317.6mm (D) x 51.8mm (H) |
| Weight | 2.2Kg |
| Compliance | NDAA |
