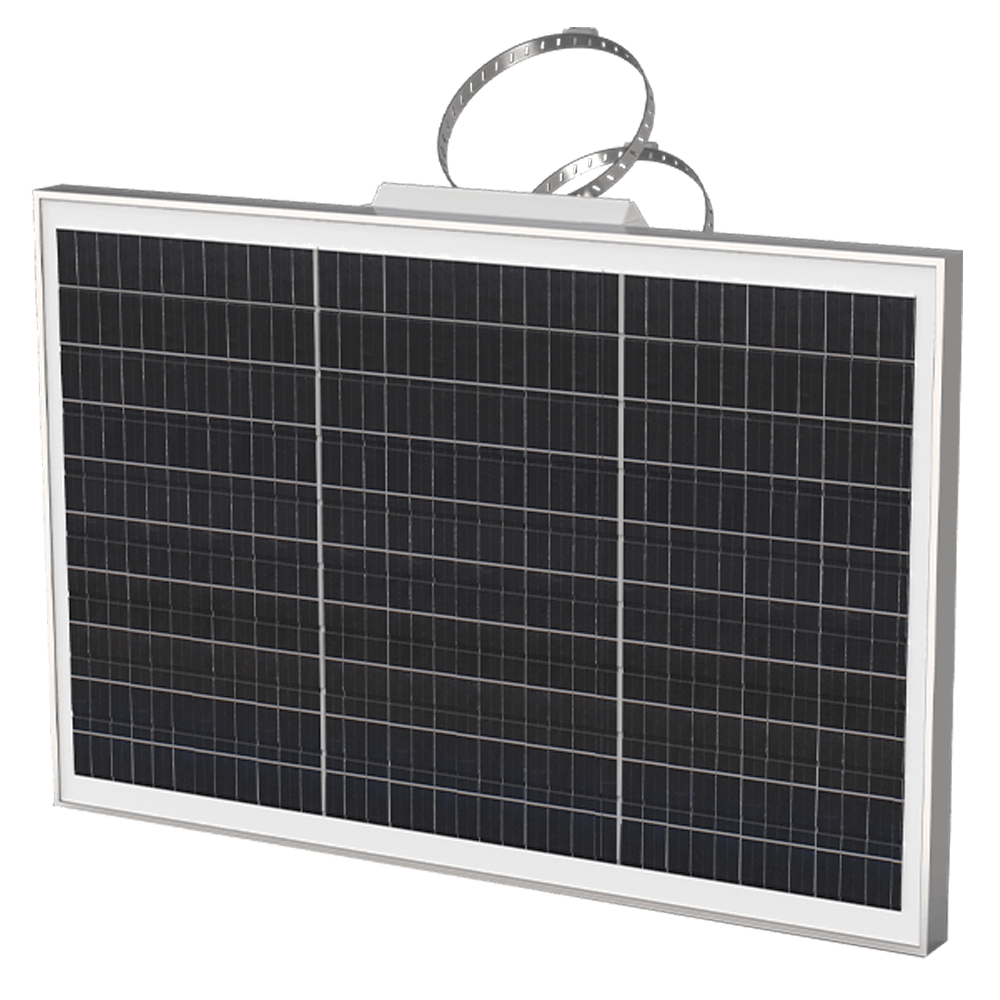

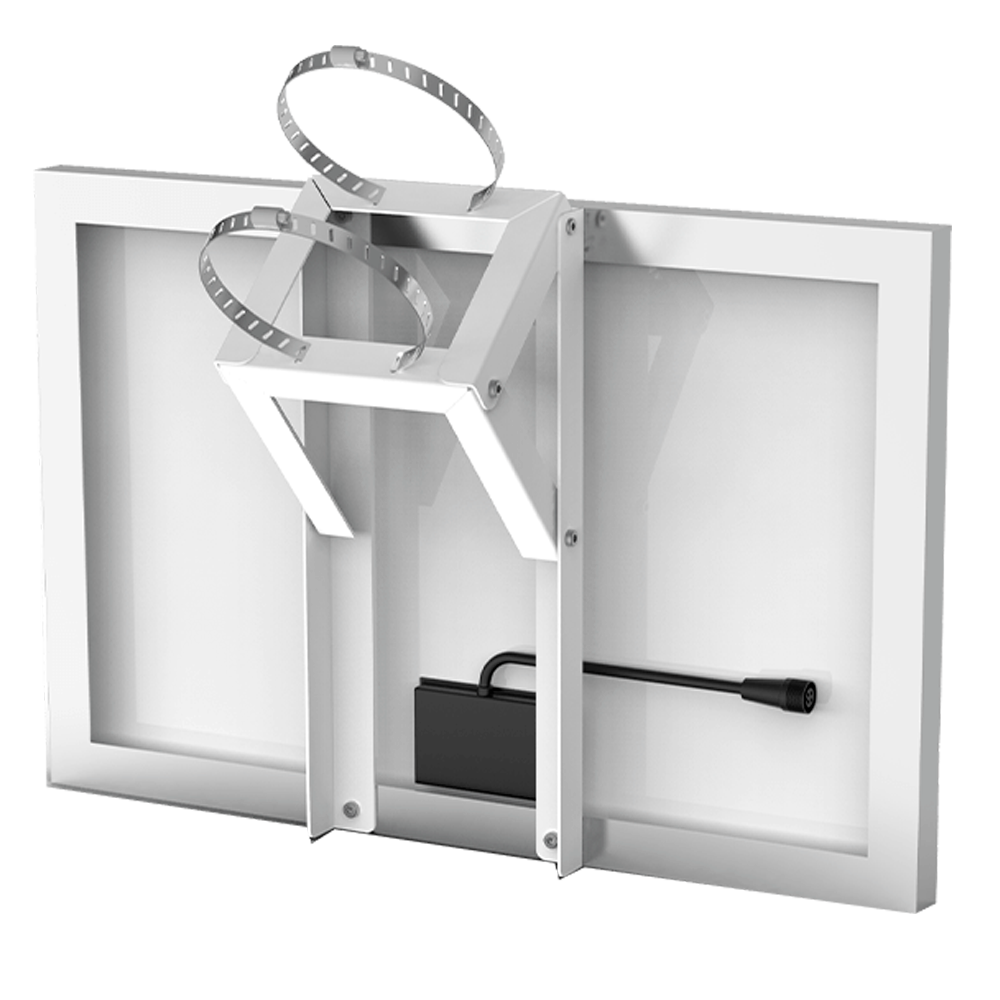

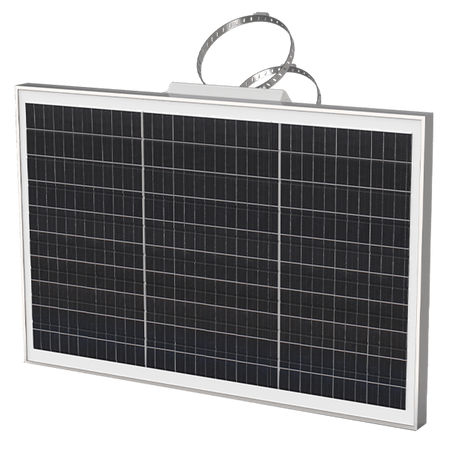

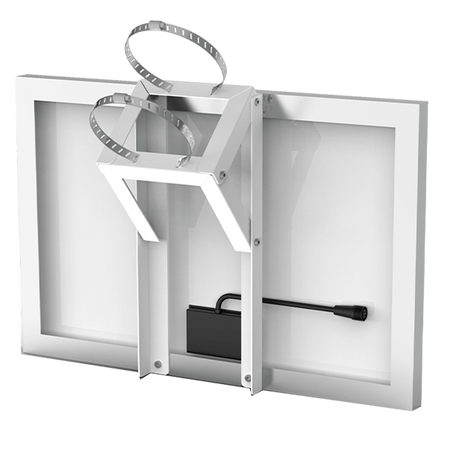

Milesight - 45W Solar Panel - Pole mount bracket - IP67 - Compatible with the SC211 traffic camera
📋 SPECIFICATIONS:
• Brand: Milesight
• Maximum power: 45W
• Open circuit voltage (VoC): 18.44 V
• Short circuit current (Isc): 3.01 A
• Pmax voltage: 15-93 V
• Pmax current: 2.82 A
• Module efficiency: 20.37 ηm(%)
• Power tolerance: >4.99 W
• Maximum system voltage supported: 700Vdc (IEC / UL)
• Series fuse rating: 10A
• External dimensions: 580 (H) x 385 (W) x 69 (D)
• Weight: 4.2 kg
• Cells: Monocrystalline 182x36.4mm (3x9 pcs)
• Front glass: 3.2mm tempered glass
• Frame: Aluminum
• Protection rating: IP67
• Cable length: 50cm
• Connection connector: MC4
• Maximum mechanical load: Front 5400Pa; Rear 2400Pa
• Temperature coefficient at maximum power: -0.350%/℃
• Temperature coefficient at maximum voltage: -0.270%/℃
• Temperature coefficient at maximum current: +0.048%/℃
• Operating temperature: -40~+85℃
• Nominal operating cell temperature: 45±2℃
📦 INCLUDED:
• 45W solar panel• Mounting accessories• Assembly instructions
| Maximum Power | 45W |
|---|---|
| Open Circuit Voltage (Voc) | 18.44 V |
| Short Circuit Current (Isc) | 3.01 A |
| Voltage at Pmax | 15.93 V |
| Current at Pmax | 2.82 A |
| Module Efficiency | 20.37 ηm(%) |
| Power Tolerance | >4.99 W |
| Maximum System Voltage | 700Vdc (IEC / UL) |
| Series Fuse Rating | 10A |
| External Dimensions | 580 (H) x 385 (W) x 69 (D) |
| Weight | 4.2 kg |
| Cells | Monocrystalline 182x36.4mm (3x9 pcs) |
| Front Glass | 3.2mm tempered glass |
| Frame | Aluminum |
| Protection Grade | IP67 |
| Cable Length | 50cm |
| Connector Type | MC4 |
| Maximum Mechanical Load | Front 5400Pa Rear 2400Pa |
| Temperature Coefficient of Pmax | -0.350%/℃ |
| Temperature Coefficient of Voc | -0.270%/℃ |
| Temperature Coefficient of Isc | +0.048%/℃ |
| Operating Temperature | -40~+85℃ |
| Nominal Operating Cell Temperature | 45±2℃ |
