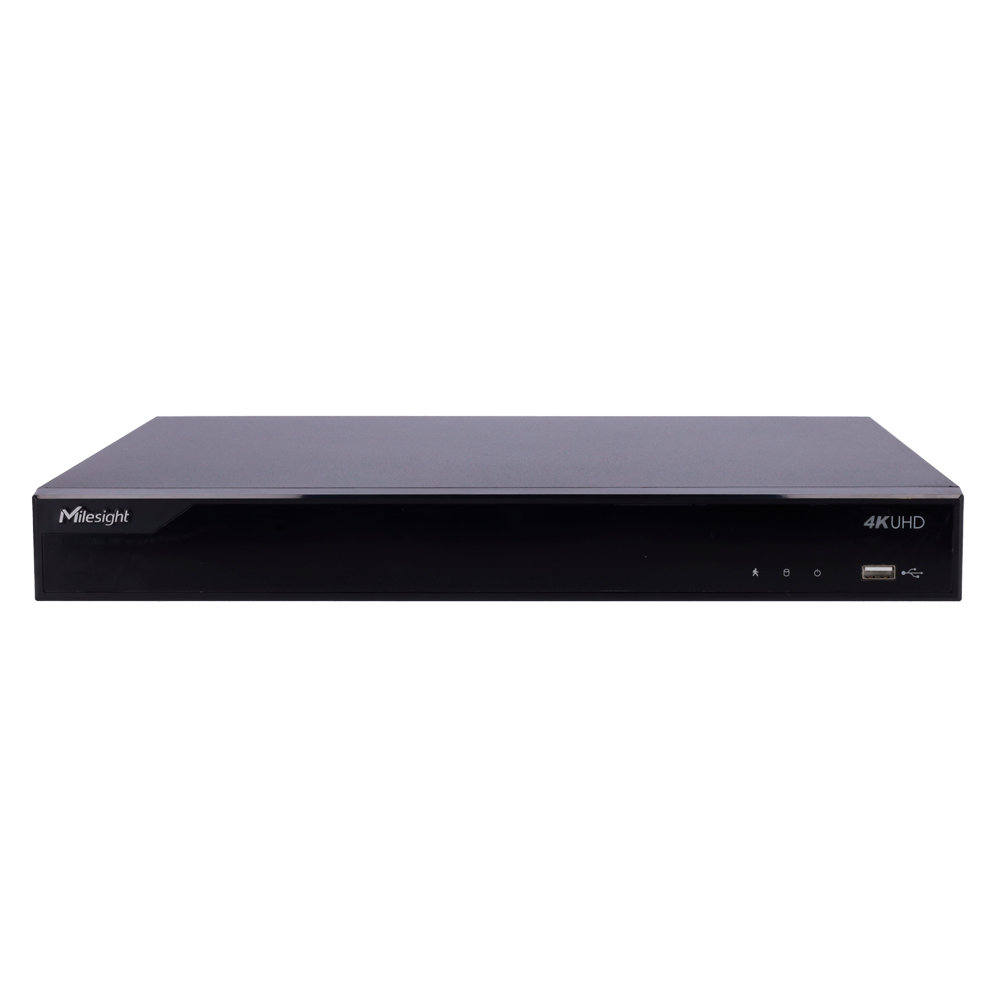

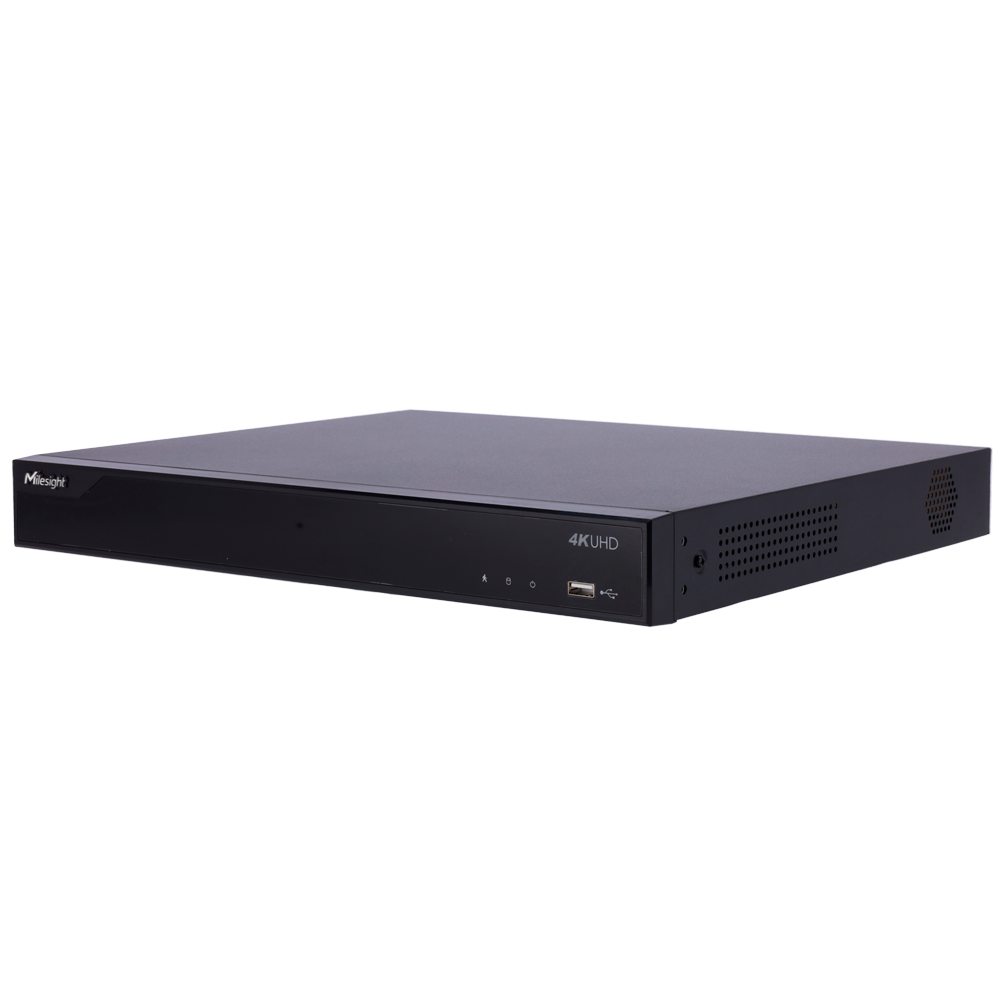

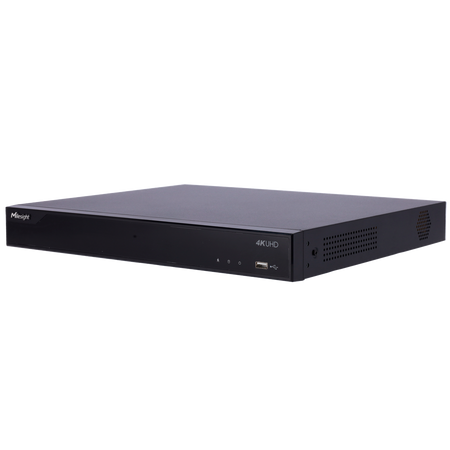

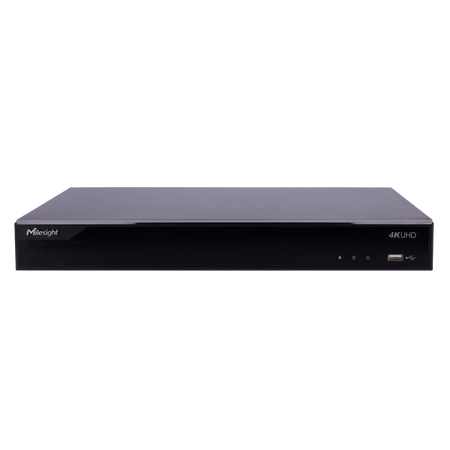

Milesight 4K PoE NVR 5000 Series - Max. 4K Resolution | 8 Channels / 8 PoE Ports
Milesight 4K PoE NVR 5000 Series - Max. 4K Resolution | 8 Channels / 8 PoE Ports
Regular price
€553,39
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Milesight 4K PoE NVR 5000 series - Max. 4K resolution | 8 channels / 8 PoE ports - 160/160Mbps bandwidth - 4K HDMI and VGA output | 2 HDDs - Supports Milesight LPR cameras | ONVIF S/T - NDAA compliant
📋 SPECIFICATIONS:
• Brand: Milesight
• Range: 4K H.265 PoE NVR 5000 series
• IP camera inputs: LAN port up to 8 channels
• PoE interface: Interface: 8 x 10/100Mbps RJ45 ports; Supported standard: IEEE 802.3af/at; Output power: ≤200W
• Compatible IP cameras: Milesight (native protocol), ONVIF S/T
• Main Stream recording: 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
• Decoding capacity: 3*(30fps@8MP), 4*(30fps@6MP), 4*(30fps@5MP); 6*(30fps@4MP), 8*(30fps@3MP); 8*(30fps@1080P), 8*(30fps@720P),8*(30fps@D1)
• Two-way audio: 1 RCA input / 1 RCA output / 1 HDMI output
• Video output: 1 4K HDMI, 1 FullHD VGA
• Video compression format: H.265+ / H.265 / H.264+ / H.264
• Display resolution: HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz; 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz; 1280x720/60Hz, 1024x768/60Hz
• Total bandwidth: 160Mbps input / 160Mbps output
• Multifunction: Pentaplex: live, recording, playback, backup and remote access
• Alarms: 4 inputs / 1 output
• Video analysis: Region entrance/exit, advanced motion detection, tamper detection, line crossing, loitering, people counting, abandoned object, removed object
• Recording modes: Continuous, event (motion detection, alarm, VCA, intelligent analysis)
• ANPR: Supported
• Advanced feature: ANR
• Internal storage: 2 x 3.5" SATA HDD up to 10TB (not included)
• External interface: 2 x USB 2.0 / 1 x RJ45 10/100/1000Mbps
• Remote access: Web browser, smartphone App and Milesight CMS/VMS PC software
• Operating conditions: Temperature: -10℃~55℃; Humidity: 10%~90%
• Power supply: AC 100V~240V 50Hz~60Hz
• Consumption: ≤7.5W (without HDD, without PoE activated)
• Dimensions: 19" rack-mount chassis (standard 1U); 380mm (W) x 317.6mm (D) x 51.8mm (H)
• Weight: 2.7Kg
• Compliance: NDAA
📦 INCLUDED:
• Milesight NVR video recorder • Mouse • AC/DC adapter • CD with manual and software
| Range | 4K H.265 PoE NVR 5000 series |
|---|---|
| IP Camera Inputs | LAN port up to 8 channels |
| PoE Interface | Interface: 8 x 10/100Mbps RJ45 ports Supported standard: IEEE 802.3af/at Output power: ≤200W |
| Compatible IP cameras | Milesight (native protocol), ONVIF S/T |
| Main Stream Recording | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Decoding Capacity | 3*(30fps@8MP), 4*(30fps@6MP), 4*(30fps@5MP), 6*(30fps@4MP), 8*(30fps@3MP), 8*(30fps@1080P), 8*(30fps@720P), 8*(30fps@D1) |
| Two-way audio | 1 RCA input / 1 RCA output / 1 HDMI output |
| Video output | 1 4K HDMI, 1 FullHD VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Total Bandwidth | 160Mbps incoming / 160Mbps outgoing |
| Multifunction | Pentaplex: live, recording, playback, backup, and remote access |
| Alarms | 4 inputs / 1 output |
| Video Analytics | Region entrance/exiting, advanced motion detection, tamper detection, line crossing, loitering, people counting, object abandoned, object removed |
| Recording mode | Continuous, event (motion detection, alarm, VCA, smart analysis) |
| ANPR | Supported |
| Advanced function | ANR |
| Internal memory | 2 SATA 3.5" HDDs up to 10TB (not included) |
| External interface | 2 x USB 2.0 / 1 x RJ45 10/100/1000Mbps |
| Remote access | Web browser, smartphone App, and Milesight CMS/VMS PC software |
| Operating conditions | Temperature: -10℃~55℃ Humidity: 10%~90% |
| Power supply | AC 100V~240V 50Hz~60Hz |
| Consumption | ≤7.5W (without HDD, without PoE activated) |
| Dimensions | 19" rack-mount chassis (standard 1U) 380mm (W) x 317.6mm (D) x 51.8mm (H) |
| Weight | 2.7Kg |
| Compliance | NDAA |
