Milesight LoRaWAN IoT Indoor Air Quality Solution Kit
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

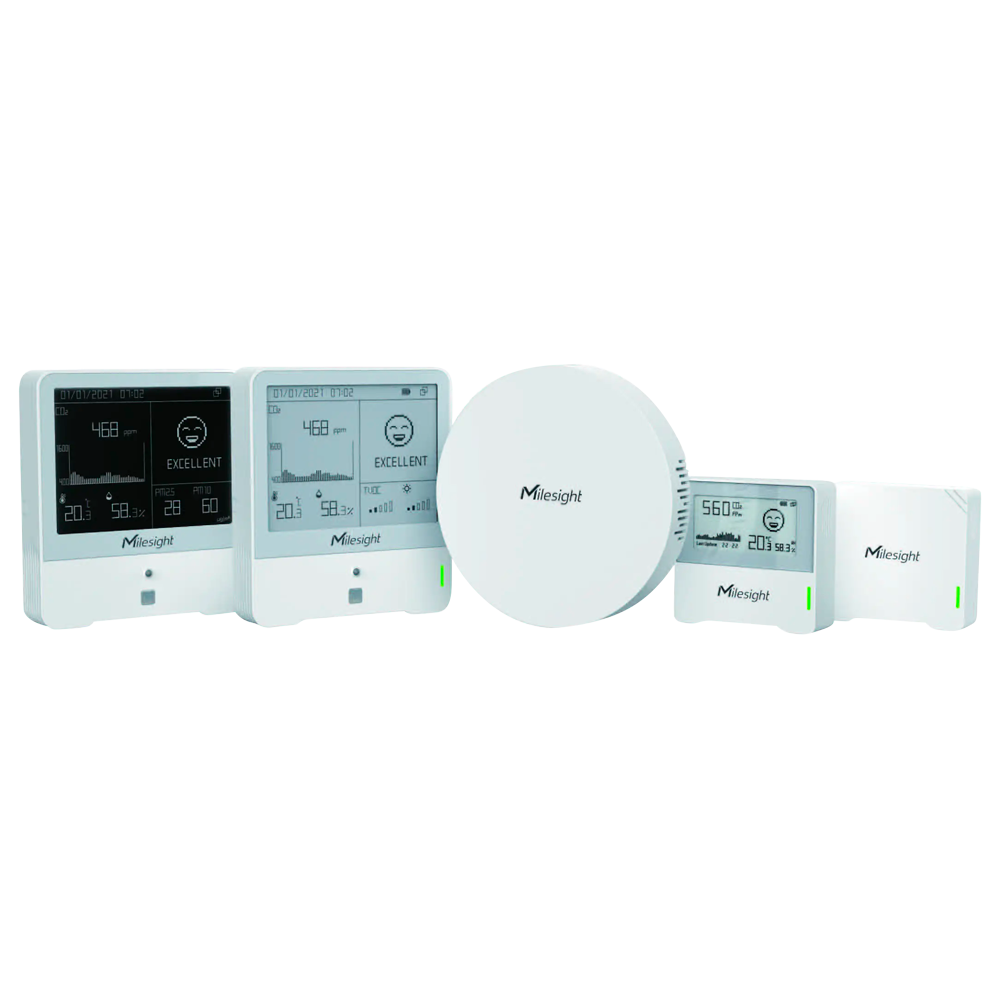

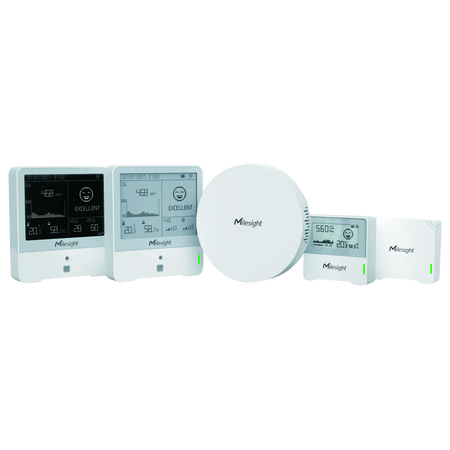

IoT LoRaWAN Indoor Air Quality solution kit - Mini LoRaWAN Gateway UG63 - 4 environmental sensors - 1 year of Milesight IoT Cloud Pro - 8 channels and connectivity for 2000 devices - Ethernet communication
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Temperature sensor: Range: -20°C to + 70°C; Accuracy: ±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C); Resolution: 0.1ºC
• Humidity sensor: Range: 0% to 100% RH; Accuracy: ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%); Resolution: 0.5% RH
• CO2 sensor: Range: 400 – 5000 ppm; Accuracy: ± (30 ppm +3% of reading); Resolution: 1 ppm
• Screen: 2.13" e-ink display
• Battery life: Approximately 3 years
• Power supply: 2x 2700 mAh ER14505 Li-SOCl2
• Operating temperature: -20°C to +60°C
• Environmental protection: IP30
• Dimensions: 68x65x20.5 mm
• Hardware: CPU: Dual-core 240MHz, 32-bit Xtensa® LX7; Memory: 8 MB PSRAM; Flash: 16 MB Flash
• Antennas: 1x External LoRa antenna, N-Female connector; Internal Wi-Fi antenna
• Channels: 8
• Connected devices: 2000 end devices
• Frequency Band: 868 MHz
• Sensitivity: 140dBm@292bps
• Output Power: 27dBm Max.
• Protocol: V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C
• Ethernet: 1x RJ45 10/100Mbps Base-T (IEEE 802.3); Full or Half-Duplex mode with auto-detection; Auto MDI/MDIX
• Network Protocols: HTTP, HTTPS, MQTT, etc.
• VPN Tunnel: OpenVPN Client
• Management: Web, DeviceHub, Milesight Development Platform
• Power input: 5V Type-C port, PoE 802.3af, ≤ 3.3Max.
• Operating temperature: -20ºC to 50ºC
• Ethernet isolation: 1.5kV RMS
• Protection rating: IP30
• Dimensions: Ф 115 x 21 mm
• Mounting: Desktop, ceiling
• Certificates: CE, FCC
• Model: AM103L-868M
• Type: Indoor temperature, humidity and CO2 sensor with LoRaWAN connectivity
• Wireless technology: LoRaWAN
• Antenna: Internal
• Frequency: 868 MHz (EU868, 868M model)
• Transmission power: 16 dBm (868 MHz)
• Sensitivity: -137 dBm @ 300 bps
• LoRaWAN mode: OTAA / ABP, Class A
• Temperature sensor: Sensirion CMOSens (MEMS) digital technology
• Temperature range: -20 °C to +60 °C
• Temperature accuracy: Typ. ±0.3 °C (-20 °C to 0 °C), typ. ±0.2 °C (0 °C to 60 °C)
• Temperature resolution: 0.1 °C
• Humidity sensor: Sensirion CMOSens (MEMS) digital technology
• Humidity range: 0 % to 100 % RH
• Humidity accuracy: Typ. ±2 % RH (at 25 °C)
• Humidity resolution: 0.5 % RH
• CO2 sensor: Non-dispersive infrared (NDIR)
• CO2 range: 400 to 5,000 ppm
• CO2 accuracy: ±(30 ppm + 3 % of reading) from (0 °C to +50 °C)
• CO2 resolution: 1 ppm
• Screen: No (L version, optimized for maximum battery life)
• LED indicator: Three-color traffic light LED for CO2 levels (green/yellow/red)
• Button: 1 × Power/Reset button
• On/Off: Mobile app via NFC or power button
• Configuration: Milesight Toolbox mobile app via NFC, LoRaWAN downlink
• CO2 calibration: Integrated automatic or manual calibration
• Local storage: 640 historical records with data transmission and retrieval
• Advanced features: Threshold alarm (temperature, humidity, and CO2), programmable hibernation, data retransmission
• Power supply: 2 × ER14505 Li-SOCl2 lithium batteries, 2,700 mAh each (replaceable)
• Estimated life: ~5 years (SF7, EU868, 10 min interval, 25 °C); ~3.3 years (SF10, EU868)
• Operating temperature: -20 °C to +60 °C
• Relative humidity: 0 % to 95 % (non-condensing)
• Ingress protection: IP30
• Material and color: PC + ABS, white
• Dimensions: 68 × 65 × 20.5 mm
• Weight: 182.5 g (batteries included)
• Mounting: Wall mounting with 3M adhesive tape (included) or screws (included)
• Certifications: CE, CE(RED), FCC, ISED, RoHS
• Compatible platforms: Milesight IoT Cloud, Milesight Development Platform, any standard LoRaWAN network server
• Typical applications: Air quality monitoring in offices, classrooms, hospitals, meeting rooms, restaurants, nurseries, libraries, homes
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Temperature sensor: Sensor type: MEMS; Range: -20°C to + 60°C; Accuracy: ±0.2°C; Resolution: 0.1ºC
• Humidity sensor: Sensor type: MEMS; Range: 0% to 100% RH; Accuracy: ±2% RH; Resolution: 0.5% RH
• Light sensor: Sensor type: Photodiode; Range: 0-60000 lux
• CO2 sensor: Sensor type: NDIR; Range: 400 – 5000 ppm NDIR; Accuracy: ± (30 ppm +3 % of reading); Resolution: 1 ppm
• TVOC sensor: Sensor type: MEMS; Range: 1.00 – 5.00 (IAQ rating); Accuracy: ±1; Resolution: 0.01
• Barometric pressure sensor: Sensor type: MEMS; Range: 260 – 1260 hPa; Accuracy: ±0.5 hPa; Resolution: 0.1 hPa
• PIR sensor: Detection distance: 5m; Detection angle: 80° horizontal, 55° vertical; Status: Vacant or occupied
• Screen: 4.2" e-ink display
• Battery life: Approximately 3 years
• Power supply: 4x 2700mAh ER14505 or powered via USB Type-C
• Operating temperature: -20°C ~ +60°C
• Environmental protection: IP30
• Dimensions: 100.8×114×22 mm
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class C
• Temperature sensor: Sensor type: MEMS; Range: -20°C to + 60°C; Accuracy: ±0.2°C; Resolution: 0.1ºC
• Humidity sensor: Sensor type: MEMS; Range: 0% to 100% RH; Accuracy: ±2% RH; Resolution: 0.5% RH
• Light sensor: Sensor type: Photodiode; Range: 0-60000 lux
• CO2 sensor: Sensor type: NDIR; Range: 400 – 5000 ppm NDIR; Accuracy: ± (30 ppm +3 % of reading); Resolution: 1 ppm
• TVOC sensor: Sensor type: MEMS; Range: 1.00 – 5.00 (IAQ rating); Accuracy: ±1; Resolution: 0.01
• Barometric pressure sensor: Sensor type: MEMS; Range: 260 – 1260 hPa; Accuracy: ±0.5 hPa; Resolution: 0.1 hPa
• PIR sensor: Detection distance: 5m; Detection angle: 80° horizontal, 55° vertical; Status: Vacant or occupied
• PM2.5&PM10: Sensor type: Laser detection; Range: 0 ~ 1000 μg/m3; Accuracy: 0~100(±10μg/m3), 100~1000(±10 %) (-10°C~ 60°C); Resolution: 1 μg/m3
• Formaldehyde (HCHO): Sensor type: Electrochemical; Range: 0 ~ 1.25 mg/m3; Accuracy: ±10 %; Resolution: 0.01 mg/m3; Lifespan: 6 years
• Ozone (O3): Sensor type: Electrochemical; Range: 0 ~ 10 ppm μg/m3; Accuracy: ±5 % FS; Resolution: 0.01 ppm; Lifespan: 2 years
• Screen: 4.2" e-ink display
• Power supply: Powered via USB Type-C 5V/1A
• Operating temperature: -20°C ~ +60°C
• Environmental protection: IP30
• Dimensions: 100.8×114×22 mm
📦 INCLUDED:
• Gateway (UG63)• 4 Air quality sensors (AM319, AM307, AM103 and AM103L)
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Temperature sensor | Range: -20°C to + 70°C Accuracy: ±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C) Resolution: 0.1ºC |
| Humidity sensor | Range: 0% to 100% RH Accuracy: ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%) Resolution: 0.5% RH |
| CO2 sensor | Range: 400 – 5000 ppm Accuracy: ± (30 ppm +3% of reading) Resolution: 1 ppm |
| Screen | 2.13" e-ink display. |
| Battery life | Approximately 3 years |
| Power supply | 2x 2700 mAh ER14505 Li-SOCl2 |
| Operating temperature | -20°C to +60°C |
| Environmental protection | IP30 |
| Dimensions | 68x65x20.5 mm |
| Hardware | CPU: Dual-core 240MHz, 32-bit Xtensa® LX7 Memory: 8 MB PSRAM Flash: 16 MB Flash |
| Antennas | 1x External LoRa antenna N-Female connector Internal Wi-Fi antenna |
| Channels | 8 |
| Connected devices | 2000 end devices |
| Frequency band | 868 MHz |
| Sensitivity | 140dBm@292bps |
| Output power | 27dBm Max. |
| Protocol | V1.0 Class A / Class B / Class C and V1.0.2 Class A / Class B / Class C |
| Ethernet | 1x RJ45 10/100Mbps Base-T (IEEE 802.3) Full or Half-Duplex mode with Auto MDI/MDIX detection |
| Network protocols | HTTP, HTTPS, MQTT, etc. |
| VPN tunnel | OpenVPN client |
| Management | Web, DeviceHub, Milesight Development Platform |
| Power supply | 5V Type-C port, PoE 802.3af, ≤ 3.3Max. |
| Operating temperature | -20ºC to 50ºC |
| Ethernet isolation | 1.5kV RMS |
| Protection degree | IP30 |
| Dimensions | Ф 115 x 21 mm |
| Mounting | Desk, ceiling |
| Certificates | CE, FCC |
| Model | AM103L-868M |
| Type | Indoor environmental sensor for temperature, humidity and CO2 with LoRaWAN connectivity |
| Wireless technology | LoRaWAN |
| Antenna | Internal |
| Frequency | 868 MHz (EU868, 868M model) |
| Transmission power | 16 dBm (868 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| LoRaWAN mode | OTAA / ABP, Class A |
| Temperature sensor | CMOSens (MEMS) digital technology Sensirion |
| Temperature range | -20 °C to +60 °C |
| Temperature accuracy | Typ. ±0.3 °C (-20 °C to 0 °C), typ. ±0.2 °C (0 °C to 60 °C) |
| Temperature resolution | 0.1 °C |
| Humidity sensor | CMOSens (MEMS) digital technology Sensirion |
| Humidity range | 0% to 100% RH |
| Humidity accuracy | Typ. ±2% RH (at 25 °C) |
| Humidity resolution | 0.5% RH |
| CO2 sensor | Non-dispersive infrared (NDIR) |
| CO2 range | 400 to 5,000 ppm |
| CO2 accuracy | ±(30 ppm + 3% of reading) from (0 °C to +50 °C) |
| CO2 resolution | 1 ppm |
| Screen | No (L version, optimized for maximum autonomy) |
| LED indicator | Three-color traffic light LED for CO2 levels (green/yellow/red) |
| Button | 1 × Power/Reset button |
| On/Off | Mobile app via NFC or power button |
| Configuration | Milesight Toolbox mobile app via NFC, LoRaWAN downlink |
| CO2 calibration | Integrated automatic or manual calibration |
| Local storage | 640 historical records with data transmission and recovery |
| Advanced features | Threshold alarm (temperature, humidity and CO2), programmable hibernation, data retransmission |
| Power supply | 2 × ER14505 Li-SOCl2 lithium batteries of 2,700 mAh each (replaceable) |
| Estimated life | ~5 years (SF7, EU868, 10 min interval, 25 °C); ~3.3 years (SF10, EU868) |
| Operating temperature | -20 °C to +60 °C |
| Relative humidity | 0% to 95% (non-condensing) |
| Ingress protection | IP30 |
| Material and color | PC + ABS, white |
| Dimensions | 68 × 65 × 20.5 mm |
| Weight | 182.5 g (batteries included) |
| Mounting | Wall mount with 3M adhesive tape (included) or screws (included) |
| Certifications | CE, CE(RED), FCC, ISED, RoHS |
| Compatible platforms | Milesight IoT Cloud, Milesight Development Platform, any standard LoRaWAN network server |
| Typical applications | Air quality monitoring in offices, classrooms, hospitals, meeting rooms, restaurants, daycares, libraries, homes |
| Technology | LoRaWAN® |
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Temperature sensor | Sensor type: MEMS Range: -20°C to + 60°C Accuracy: ±0.2°C Resolution: 0.1ºC |
| Humidity sensor | Sensor type: MEMS Range: 0% to 100% RH Accuracy: ±2% RH Resolution: 0.5% RH |
| Light sensor | Sensor type: Photodiode Range: 0-60000 lux |
| CO2 sensor | Sensor type: NDIR Range: 400 – 5000 ppm NDIR Accuracy: ± (30 ppm +3% of reading) Resolution: 1 ppm |
| TVOC sensor | Sensor type: MEMS Range: 1.00 – 5.00 (IAQ Rating) Accuracy: ±1 Resolution: 0.01 |
| Barometric pressure sensor | Sensor type: MEMS Range: 260 – 1260 hPa Accuracy: ±0.5 hPa Resolution: 0.1 hPa |
| PIR sensor | Detection distance: 5m Detection angle: 80° horizontal, 55° vertical Status: Vacant or occupied |
| Screen | 4.2" e-ink display. |
| Battery life | Approximately 3 years |
| Power supply | 4x 2700mAh ER14505 or powered via USB type C |
| Operating temperature | -20°C ~ +60°C |
| Environmental protection | IP30 |
| Dimensions | 100.8×114×22 mm |
| Technology | LoRaWAN® |
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| Temperature sensor | Sensor type: MEMS Range: -20°C to + 60°C Accuracy: ±0.2°C Resolution: 0.1ºC |
| Humidity sensor | Sensor type: MEMS Range: 0% to 100% RH Accuracy: ±2% RH Resolution: 0.5% RH |
| Light sensor | Sensor type: Photodiode Range: 0-60000 lux |
| CO2 sensor | Sensor type: NDIR Range: 400 – 5000 ppm NDIR Accuracy: ± (30 ppm +3% of reading) Resolution: 1 ppm |
| TVOC sensor | Sensor type: MEMS Range: 1.00 – 5.00 (IAQ Rating) Accuracy: ±1 Resolution: 0.01 |
| Barometric pressure sensor | Sensor type: MEMS Range: 260 – 1260 hPa Accuracy: ±0.5 hPa Resolution: 0.1 hPa |
| PIR sensor | Detection distance: 5m Detection angle: 80° horizontal, 55° vertical Status: Vacant or occupied |
| PM2.5&PM10 | Sensor type: Laser detection Range: 0 ~ 1000 μg/m3 Accuracy: 0~100(±10μg/m3), 100~1000(±10 %) (-10°C~ 60°C) Resolution: 1 μg/m3 |
| Formaldehyde (HCHO) | Sensor type: Electrochemical Range: 0 ~ 1.25 mg/m3 Accuracy: ±10 % Resolution: 0.01 mg/m3 Lifespan: 6 years |
| Ozone (O3) | Sensor type: Electrochemical Range: 0 ~ 10 ppm μg/m3 Accuracy: ±5 % FS Resolution: 0.01 ppm Lifespan: 2 years |
| Screen | 4.2" e-ink display. |
| Power supply | Powered via USB Type-C 5V/1A |
| Operating temperature | -20°C ~ +60°C |
| Environmental protection | IP30 |
| Dimensions | 100.8×114×22 mm |
