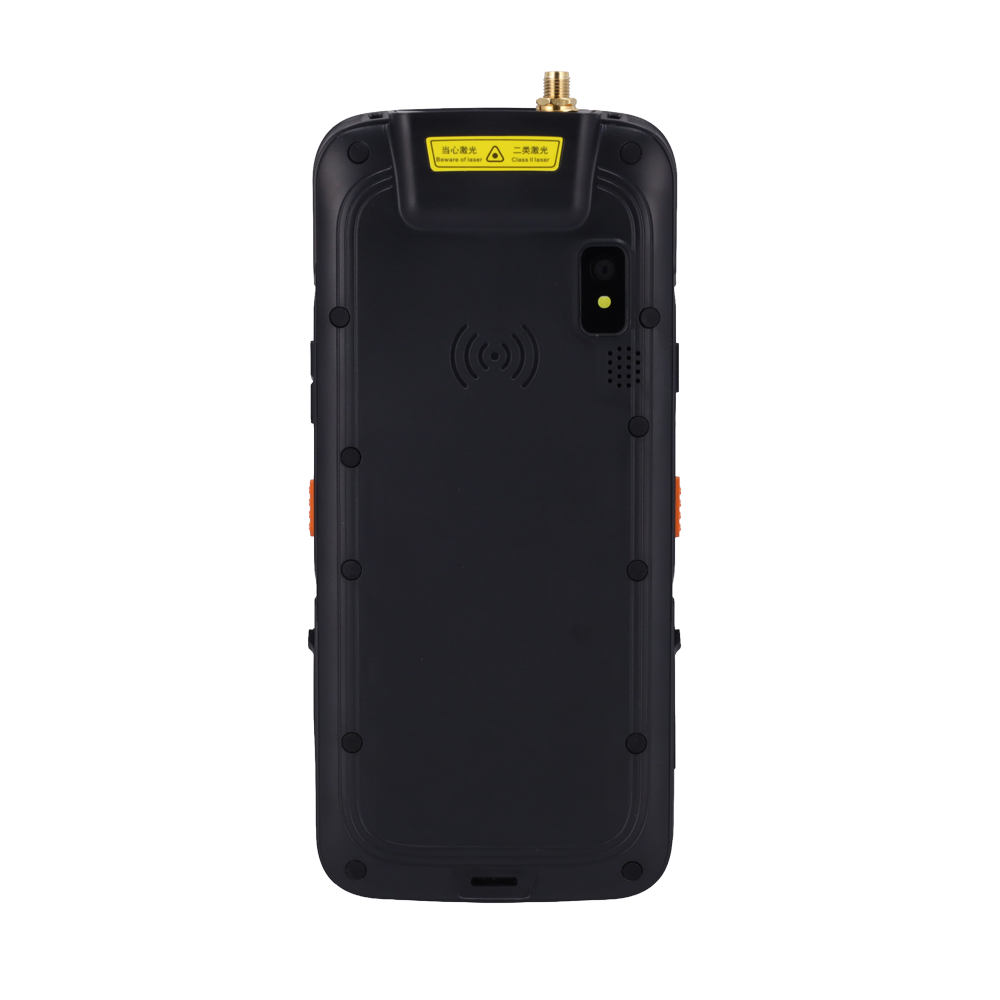

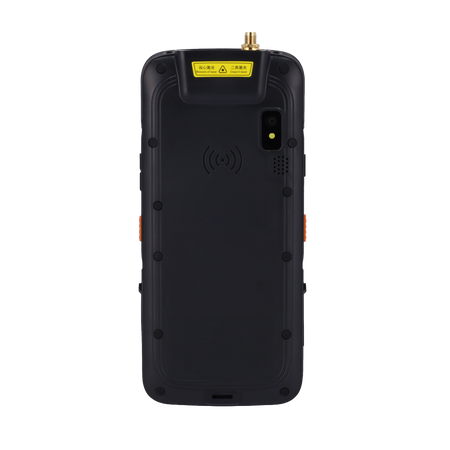

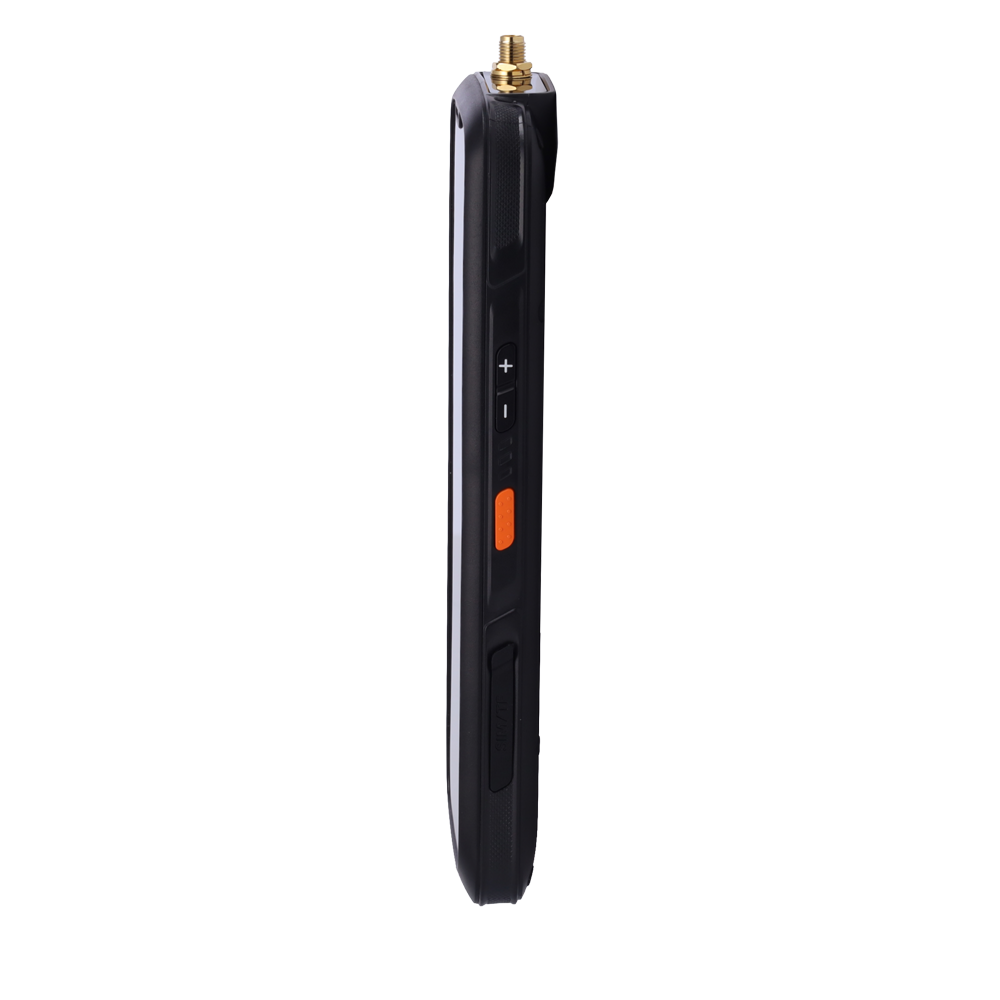

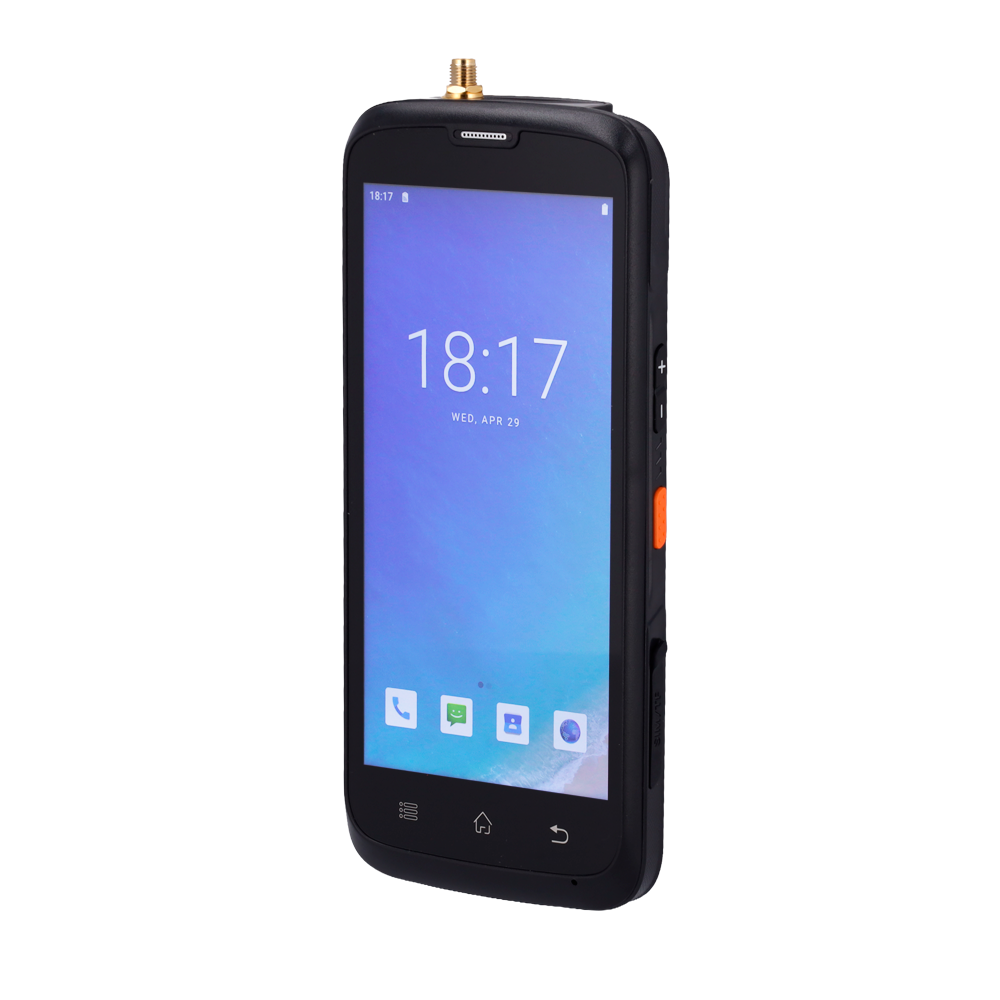

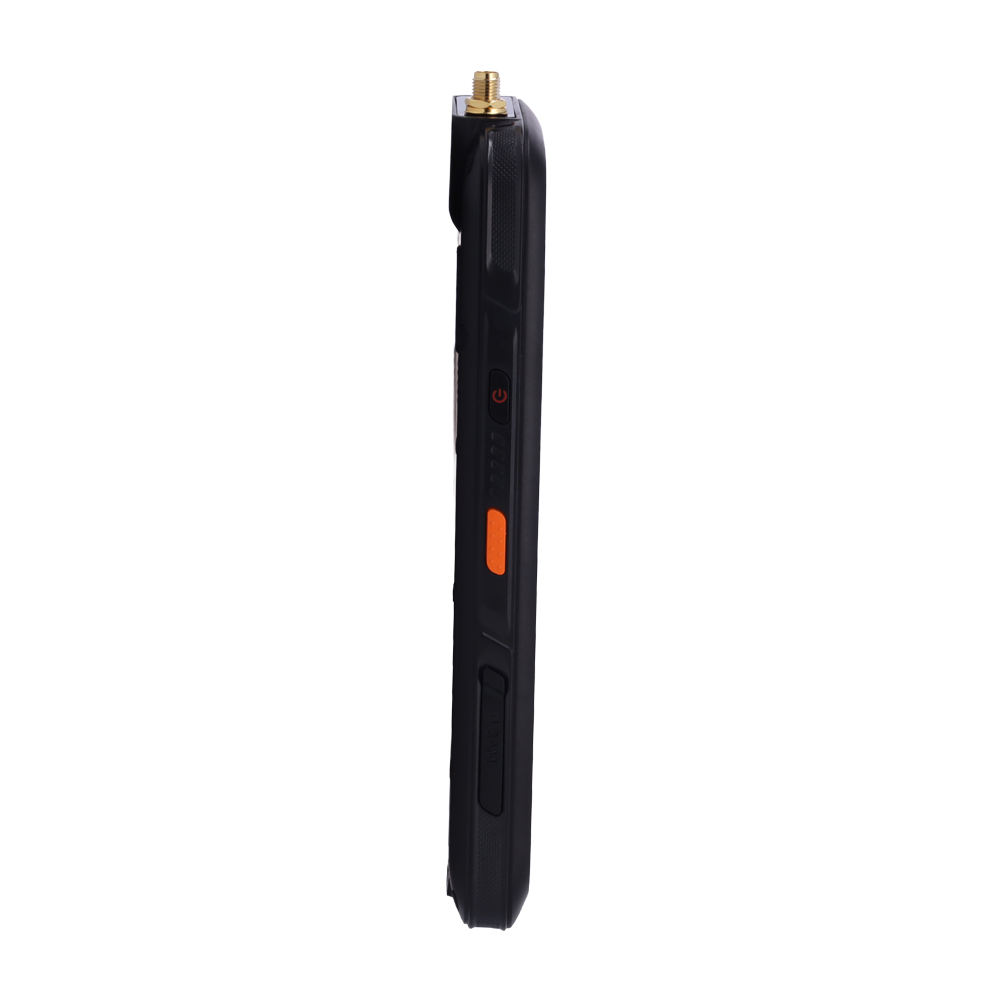

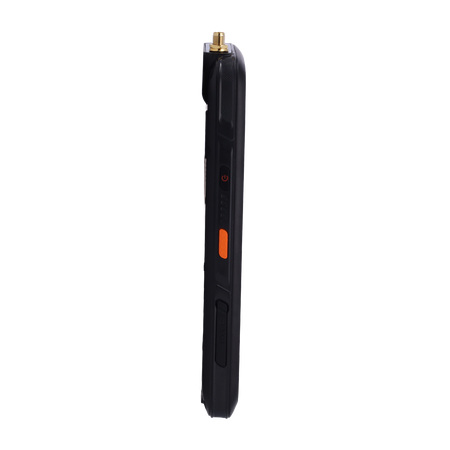

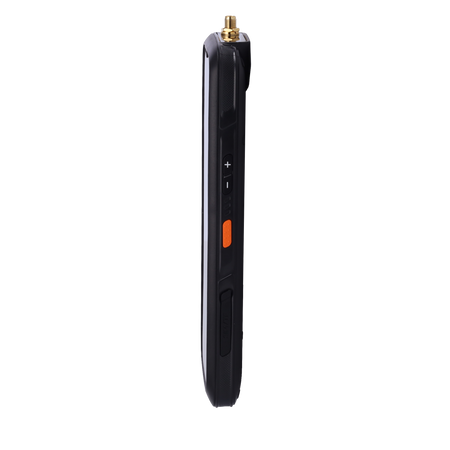

Milesight real-time signal tester
Couldn't load pickup availability

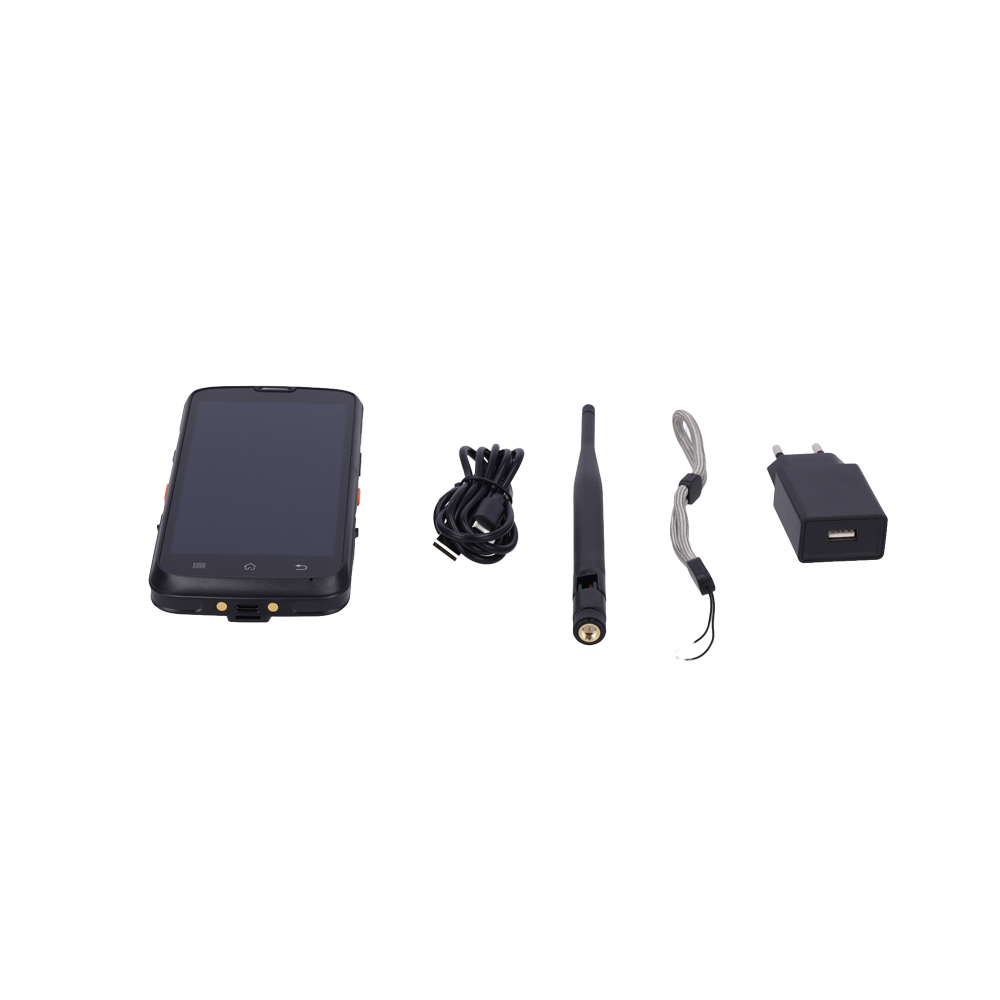

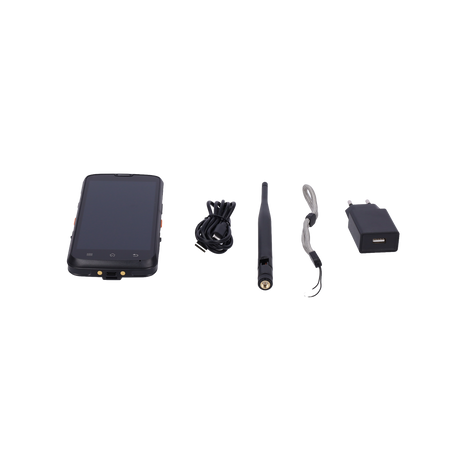

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

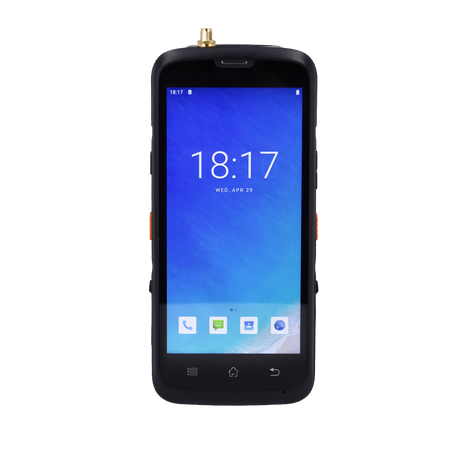

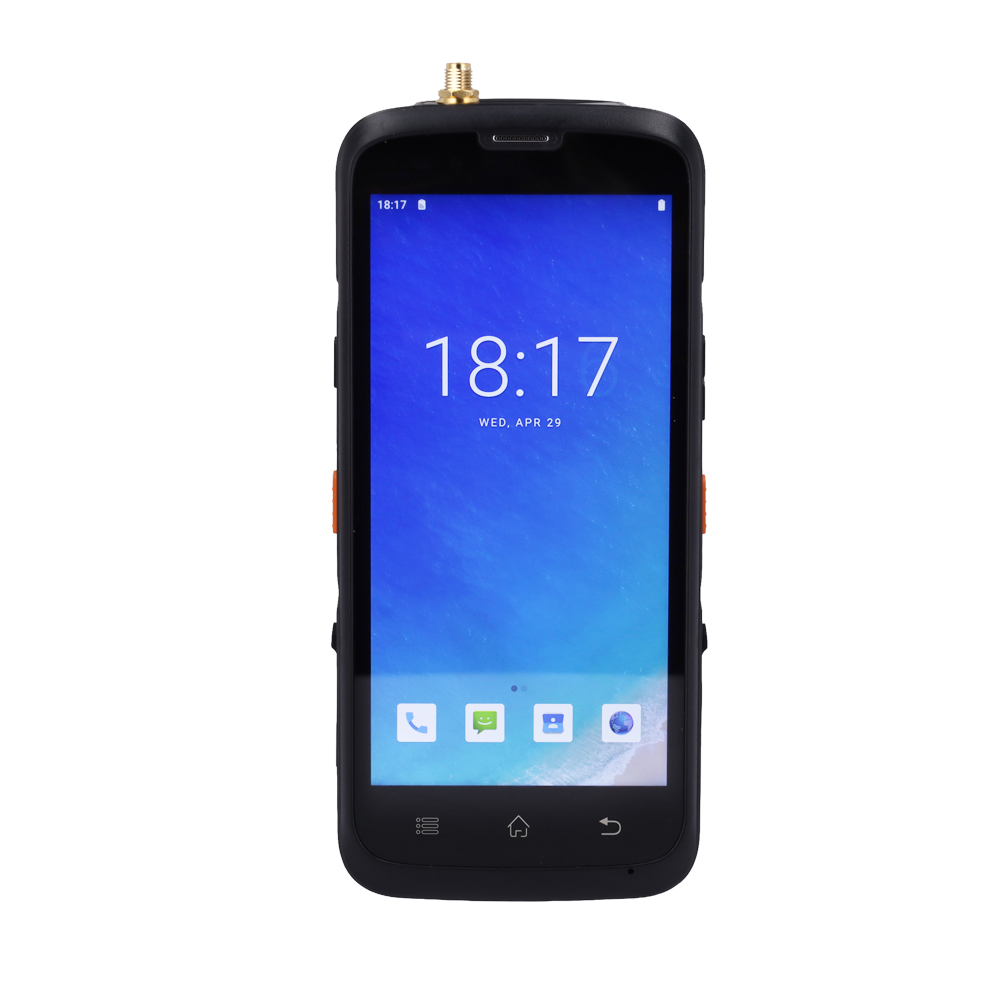

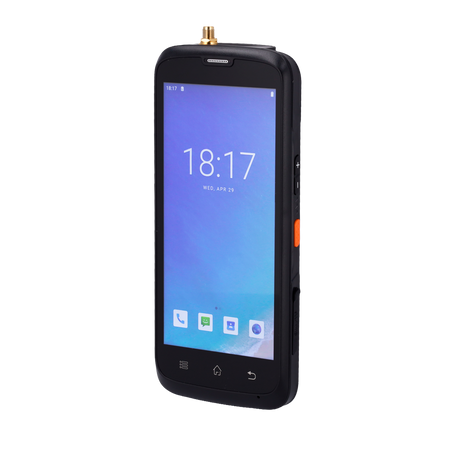

Real-time signal tester - 5.72-inch touchscreen - Broadband testing capability - Test log with GPS - Report creation - Long battery life
📋 SPECIFICATIONS:
• Screen: 5.72-inch TP touchscreen LCD screen
• Resolution: 1440 x 720 pixels
• CPU: Octa-core MTK6762, 2 GHz
• Memory: 4 GB RAM + 64 GB ROM
• Operating system: Android 12.0
• NFC: Compatible with ISO/IEC 14443A protocol, reading distance: 1-3 cm
• Storage: 1 Micro SD card slot compatible with up to 256 GB
• Channel: x1 channel
• Antenna connector: 1 50 Ω SMA female connector
• Frequencies: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
• Sensitivity: -137dBm@125kHz, SF=12
• Output power: 19dBm (470 MHz)/16dBm (868MHz)/22dBm (915 MHz)
• Protocol: LoRaWAN® V1.0.3
• Operating mode: OTAA Class A
• Wifi: IEEE 802.11 b/g/n, 2.4 GHz; IEEE 802.11 a/n/ac, 5 GHz
• Bluetooth: Bluetooth 4.0 (BLE)
• GNSS: GPS/Glonass/Beidou/Galileo
• USB: 1 USB 3.0 Type-C port for power supply and OTG
• Power supply: 1. Built-in 4.3 V/4300 mAh lithium-iron rechargeable battery; 2. 5 V⎓2 A via USB Type-C
• Battery life: Approx. 8 hours (standby mode: >300 hours)
• Operating temperature: -10°C; 50°C
• Storage temperature: -20°C; 60°C
• Relative humidity: 95% (non-condensing)
• Color: Black
• Protection: IP65
• Dimensions: 178 × 83 × 17 mm (7 × 3.26 × 0.67 inches)
• Weight: 242g (without antenna)
| Screen | 5.72-inch TP touchscreen LCD screen |
|---|---|
| Resolution | 1440 x 720 pixels |
| CPU | Octa-core MTK6762, 2 GHz |
| Memory | 4 GB RAM + 64 GB ROM |
| Operating System | Android 12.0 |
| NFC | Compatible with ISO/IEC 14443A protocol, reading distance: 1-3 cm |
| Storage | 1 Micro SD card slot compatible with up to 256 GB |
| Channel | x1 channel |
| Antenna connector | 1 50 Ω SMA female connector |
| Frequencies | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -137dBm@125kHz, SF=12 |
| Output power | 19dBm (470 MHz)/16dBm (868MHz)/22dBm (915 MHz) |
| Protocol | LoRaWAN® V1.0.3 |
| Operating mode | OTAA Class A |
| Wifi | IEEE 802.11 b/g/n, 2.4 GHz IEEE 802.11 a/n/ac, 5 GHz |
| Bluetooth | Bluetooth 4.0 (BLE) |
| GNSS | GPS/Glonass/Beidou/Galileo |
| USB | 1 USB 3.0 Type-C port for power supply and OTG |
| Power supply | 1. Built-in 4.3V/4300mAh lithium-iron rechargeable battery 2. 5V⎓2A via USB Type-C |
| Battery life | Approx. 8 hours (standby mode: >300 hours) |
| Operating temperature | -10°C - 50°C |
| Storage temperature | -20°C - 60°C |
| Relative humidity | 95% (non-condensing) |
| Color | Black |
| Protection | IP65 |
| Dimensions | 178 × 83 × 17 mm (7 × 3.26 × 0.67 inches) |
| Weight | 242g (without antenna) |
