Milesight LoRaWAN Water Level Sensor
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

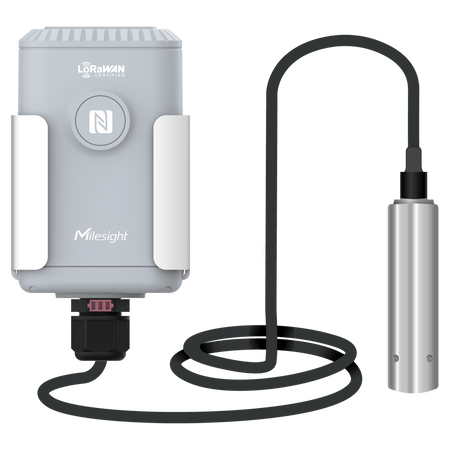

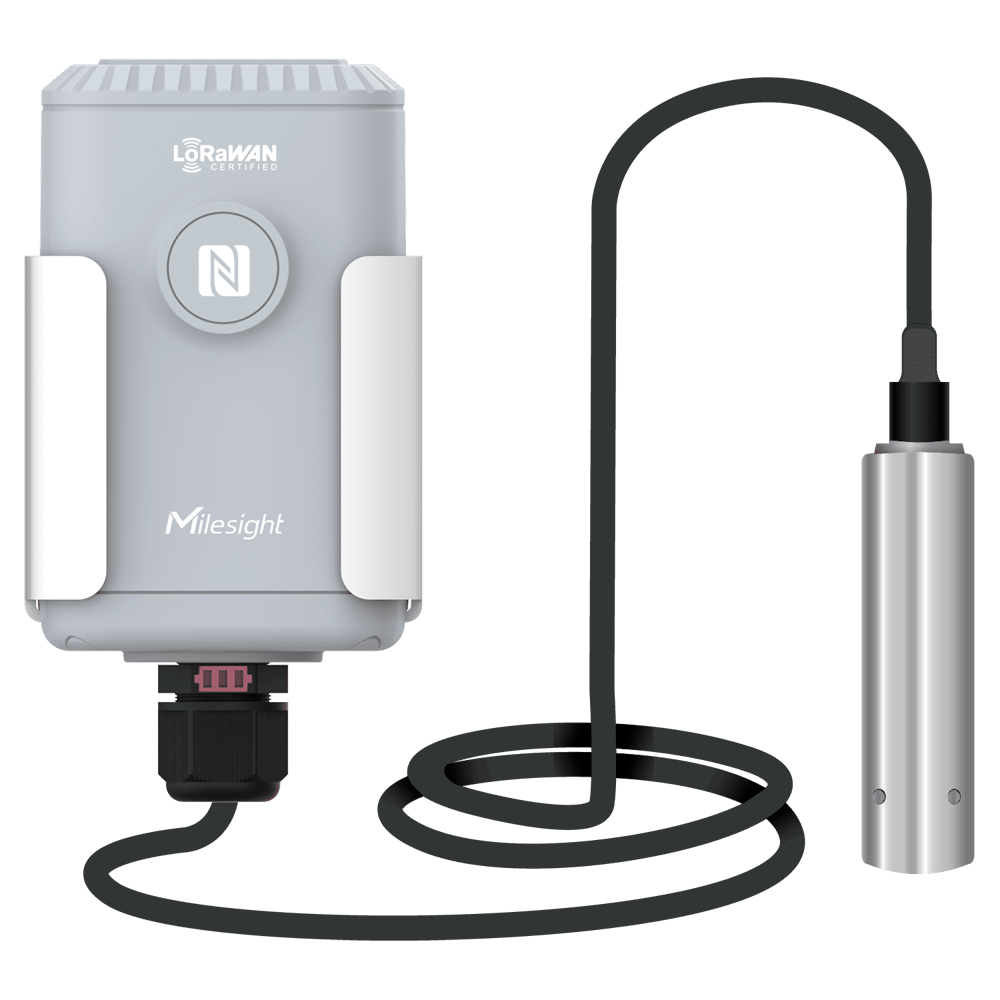

LoRaWAN water level sensor - Submersible water level meter - Range up to 15km with direct display - Configuration via NFC and APP - IP67 protection rating - Long battery life
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Reading type: Gauge pressure
• Range: 0~3m
• Accuracy: ± 0.5% FS
• Resolution: 0.01m
• Stability / year: ≤ ± 0.3% FS/year
• Cable length: 4.5m
• Power supply: 1 × 19000 mAh ER34615 Li-SOCL2
• Battery life: 10 years (10-minute interval)
• Operating temperature: Emitter: -30ºC to 70ºC; Sensor: -10ºC to +70ºC
• Environmental protection: Emitter: IP67; Sensor: IP68
• Dimensions: Emitter: 105.4 x 71 x 69.5 mm; Sensor: 40 m ф28 mm
📦 INCLUDED:
• Water level sensor• Battery• Installation accessories• User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency band | 868 MHz |
| Output power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Reading type | Gauge pressure |
| Range | 0~3m |
| Accuracy | ± 0.5% FS |
| Resolution | 0.01m |
| Stability / year | ≤ ± 0.3% FS/year |
| Cable length | 4.5m |
| Power supply | 1 × 19000 mAh ER34615 Li-SOCL2 |
| Battery life | 10 years (10-minute interval) |
| Operating temperature | Emitter: -30ºC to 70ºC Sensor: -10ºC to +70ºC |
| Environmental protection | Emitter: IP67 Sensor: IP68 |
| Dimensions | Emitter: 105.4 x 71 x 69.5 mm Sensor: 40m ф28 mm |
