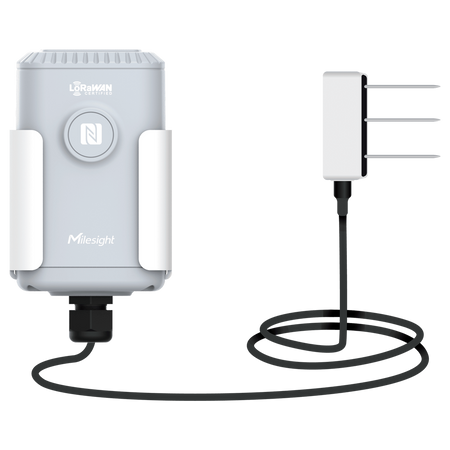

Milesight LoRaWAN soil quality sensor
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
LoRaWAN soil quality sensor - Humidity, temperature, and electrical conductivity - Range up to 15km with direct visualization - Configuration via NFC and APP - IP67 protection rating - Long battery life
📋 SPECIFICATIONS:
• Technology: LoRaWAN®
• Frequency band: 868 MHz
• Output power: 16dBm Max.
• Sensitivity: -137 dBm @300bps
• Mode: OTAA/ABP Class A
• Humidity: Range: 0% ~ 100% RH; Accuracy: ±2%(0~50%), ±3%(50%~100%); Resolution: 0.0001
• Temperature: Range: -40°C ~ 80°C; Accuracy: ±0.5ºC; Resolution: 0.1ºC
• Electrical conductivity: Range: 0~20000 µs/cm; Accuracy: ±3%(0~10000 µs/cm), ±5%(10000~20000 µs/cm); Resolution: 1 µs/cm
• Cable length: 2m
• Power supply: 1 × 19000 mAh ER34615 Li-SOCL2
• Battery life: 10 years (10-minute interval)
• Operating temperature: -30°C to 70°C
• Environmental protection: Emitter: IP67; Sensor: IP68
• Dimensions: Emitter: 105.4 x 71 x 69.5 mm; Sensor: 88 x 68 x 26 mm
📦 INCLUDED:
• Soil quality sensor• Battery• Installation accessories• User manual
| Technology | LoRaWAN® |
|---|---|
| Frequency Band | 868 MHz |
| Output Power | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Humidity | Range: 0% ~ 100% RH Accuracy: ±2%(0~50%), ±3%(50%~100%) Resolution: 0.0001 |
| Temperature | Range: -40°C ~ 80°C Accuracy: ±0.5ºC Resolution: 0.1ºC |
| Electrical Conductivity | Range: 0~20000 µs/cm Accuracy: ±3%(0~10000 µs/cm), ±5%(10000~20000 µs/cm) Resolution: 1 µs/cm |
| Cable Length | 2m |
| Power Supply | 1 × 19000 mAh ER34615 Li-SOCL2 |
| Battery Life | 10 years (10-minute interval) |
| Operating Temperature | -30°C to 70°C |
| Ingress Protection | Transmitter: IP67 Sensor: IP68 |
| Dimensions | Transmitter: 105.4 x 71 x 69.5 mm Sensor: 88 x 68 x 26 mm |
