MS-EM500-PP-868M
| Model | EM500-PP-868M |
|---|---|

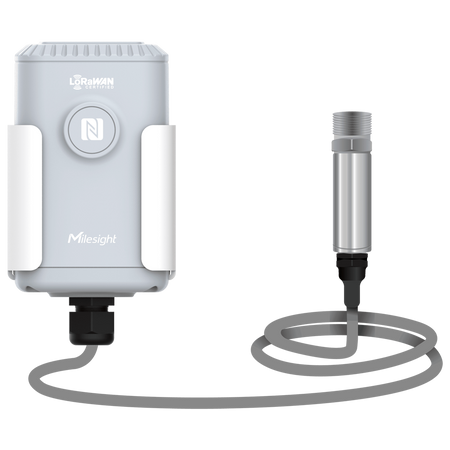

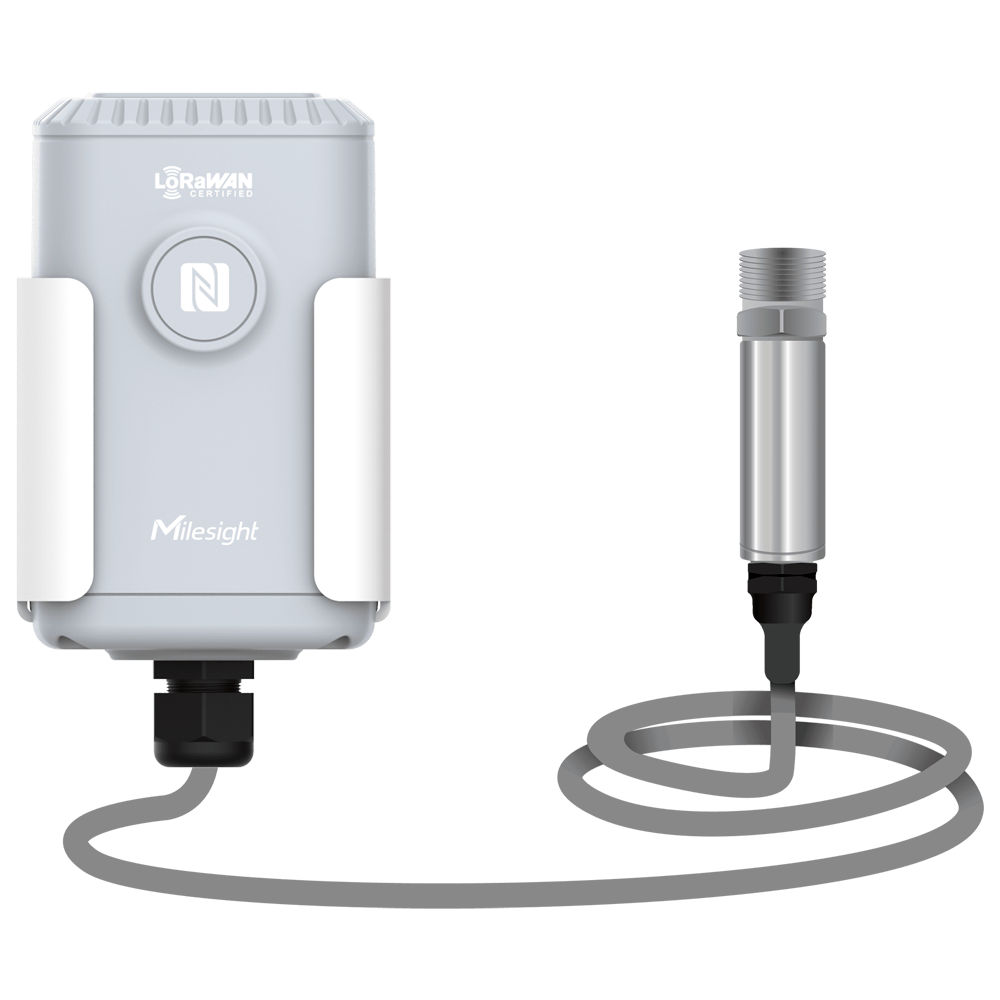

| Type | Pipe pressure sensor with LoRaWAN connectivity |
| Wireless technology | LoRaWAN |
| Antenna | Internal |
| Frequency | 868 MHz (EU868, 868M model) |
| Transmission power | 16 dBm (868 MHz) |
| Sensitivity | -137 dBm @ 300 bps |
| LoRaWAN mode | OTAA / ABP, Class A |
| Pressure type | Gauge pressure (relative) |
| Measurement range | 0 to 1,600 kPa (0 to 16 bar) |
| Accuracy | ±0.5% of full scale (FS) |
| Resolution | 1 kPa (0.01 bar) |
| Overload capacity | 150% of full scale (FS) |
| Long-term stability | ±0.3% FS per year |
| Connection | G 1/2" male thread (ISO 228 standard) |
| Cable length | 1.5 meters (between the pressure sensor and the transceiver) |
| Power supply | 1 × 19,000 mAh ER34615 Li-SOCl2 lithium battery (replaceable) |
| Estimated life | Up to 10 years (10-minute reporting interval) |
| On/Off | NFC, internal power button |
| Configuration | Milesight Toolbox mobile app via NFC, PC software via USB-C |
| Operating temperature (transceiver) | -30 °C to +70 °C |
| Operating temperature (sensor) | -10 °C to +70 °C |
| Relative humidity | 0% to 100% (non-condensing) |
| Ingress protection (transceiver) | IP67 |
| Ingress protection (sensor) | IP65 |
| Transceiver dimensions | 105.4 × 71 × 69.5 mm |
| Sensor dimensions | 67.5 mm × Ø27 mm |
| Mounting | Pole, wall, or DIN rail with included bracket |
| Certifications | CE, FCC, RoHS |
| Compatible platforms | Milesight IoT Cloud, Milesight Development Platform |
| Typical applications | Pipe pressure, water networks, pumping systems, leak detection, oil & gas sector |
